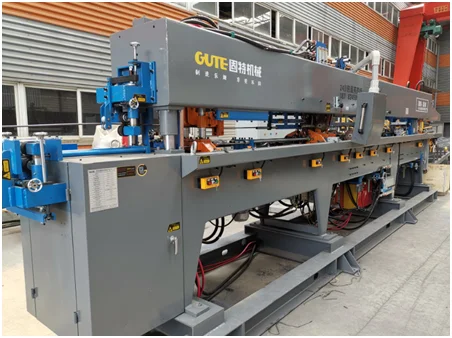

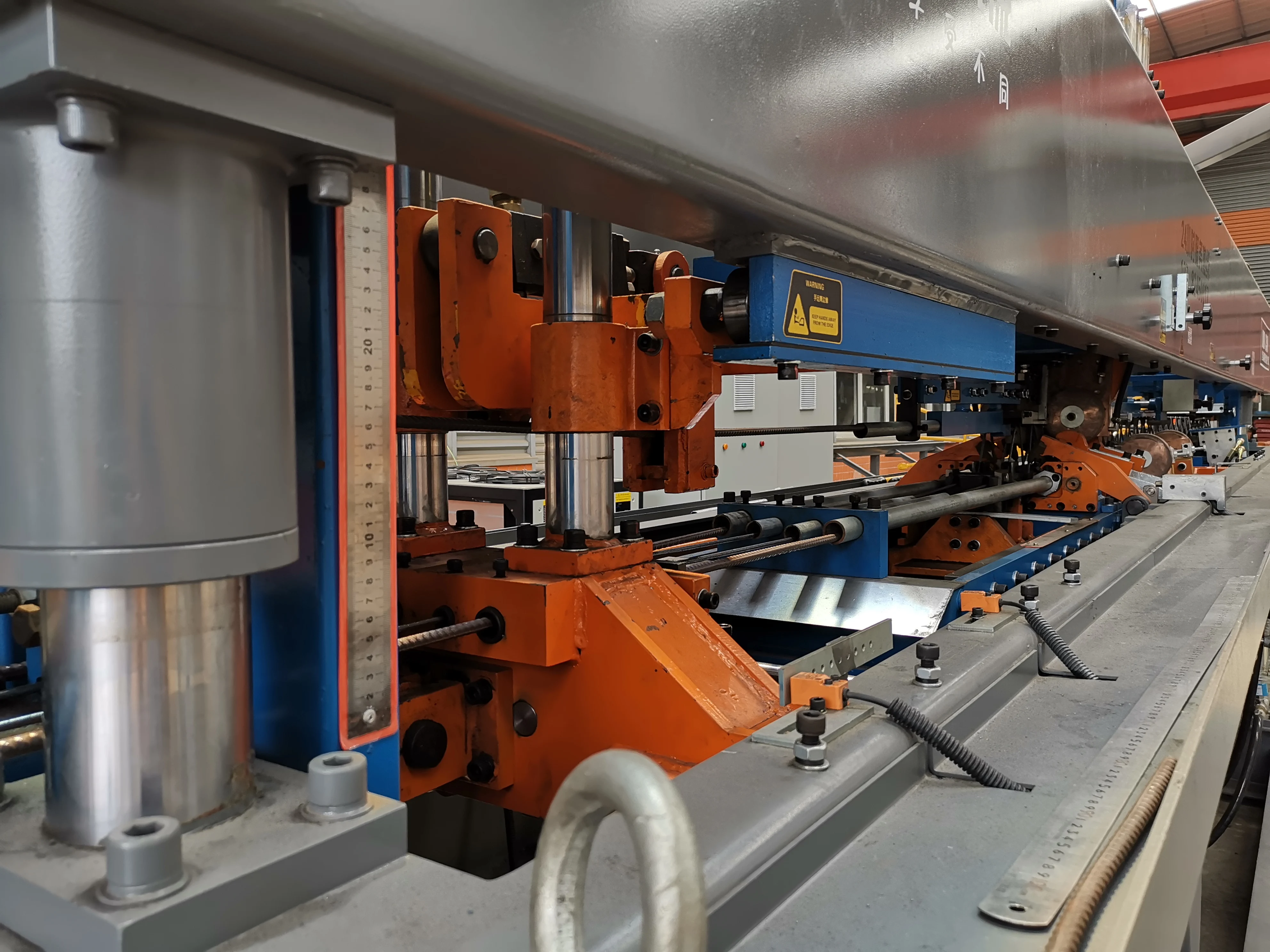

Automatic Truss Girder welding machine Lattice Girder welding machine Factory Supply With CE Certificate
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (62247916841):
Product Overview
Description
Product Description
Main Features
- 1.Delta (Taiwan) PLC program（Panasonic can be choice）, Delta(Taiwan)
- 2.Mitsubishi (Japan) and Chint (China) low-voltageapparatus.
- 3.Delta (Taiwan) servo motor for pulling mesh(Panasonic (Japan) can be choice), big power,
- 4.Delta (Taiwan) variable-frequencydrive
- 5.Brake clutch motor and reducer connect the principal axis directly, high stability, big It is our patenttechnology.
- 6.Water-cooling transformers and welding electrodes, high

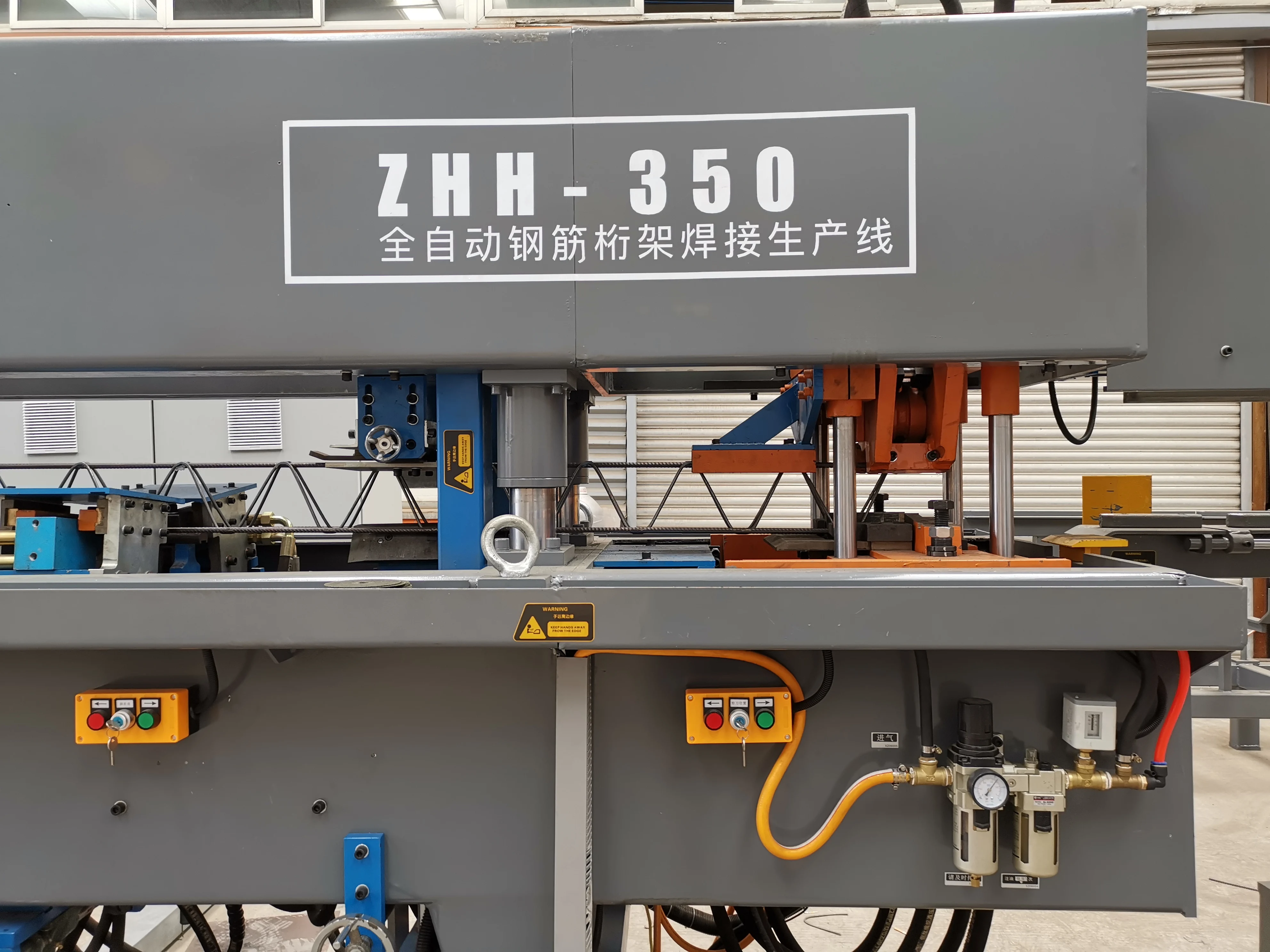

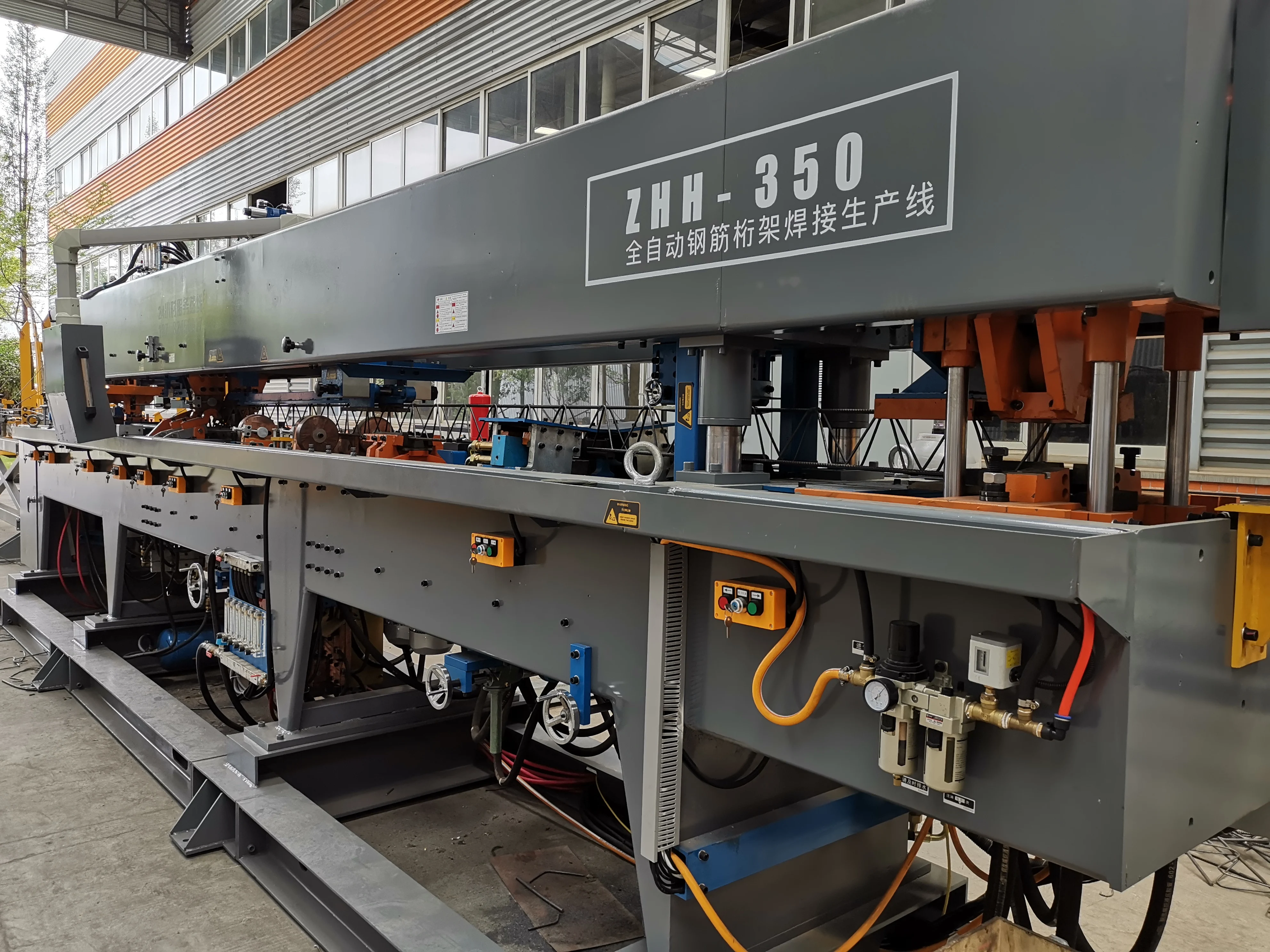

ZHH350 Parameter | ||||||
Upper Bar Dia. | 8一12mm | Lower Bar Dia. | 6一12mm | |||
Assist Bar Dia. | 4一8mm | Section Specing | 190一210mm | |||
Height of Truss | 70一300mm | Right Angle Truss Height | 70一350mm | |||
Length of Truss | 2000一12000mm | Total Installed Capacity | 350KVA | |||
Welding Speed | 12m/min Can be adjusted | Hydraulic Oil Volume | 1150L | |||
Welding Power Rating | 45KVA | Weight(t) | 20t | |||
L×W×H(mm) | GB4240/60 | Total Installed Capacity | 350KVA | |||
Main Features
- 1.Delta (Taiwan) PLC program（Panasonic can be choice）, Delta(Taiwan)
- 2.Mitsubishi (Japan) and Chint (China) low-voltageapparatus.
- 3.Delta (Taiwan) servo motor for pulling mesh(Panasonic (Japan) can be choice), big power,
- 4.Delta (Taiwan) variable-frequencydrive
- 5.Brake clutch motor and reducer connect the principal axis directly, high stability, big It is our patenttechnology.
- 6.Water-cooling transformers and welding electrodes, high
Detailed Images

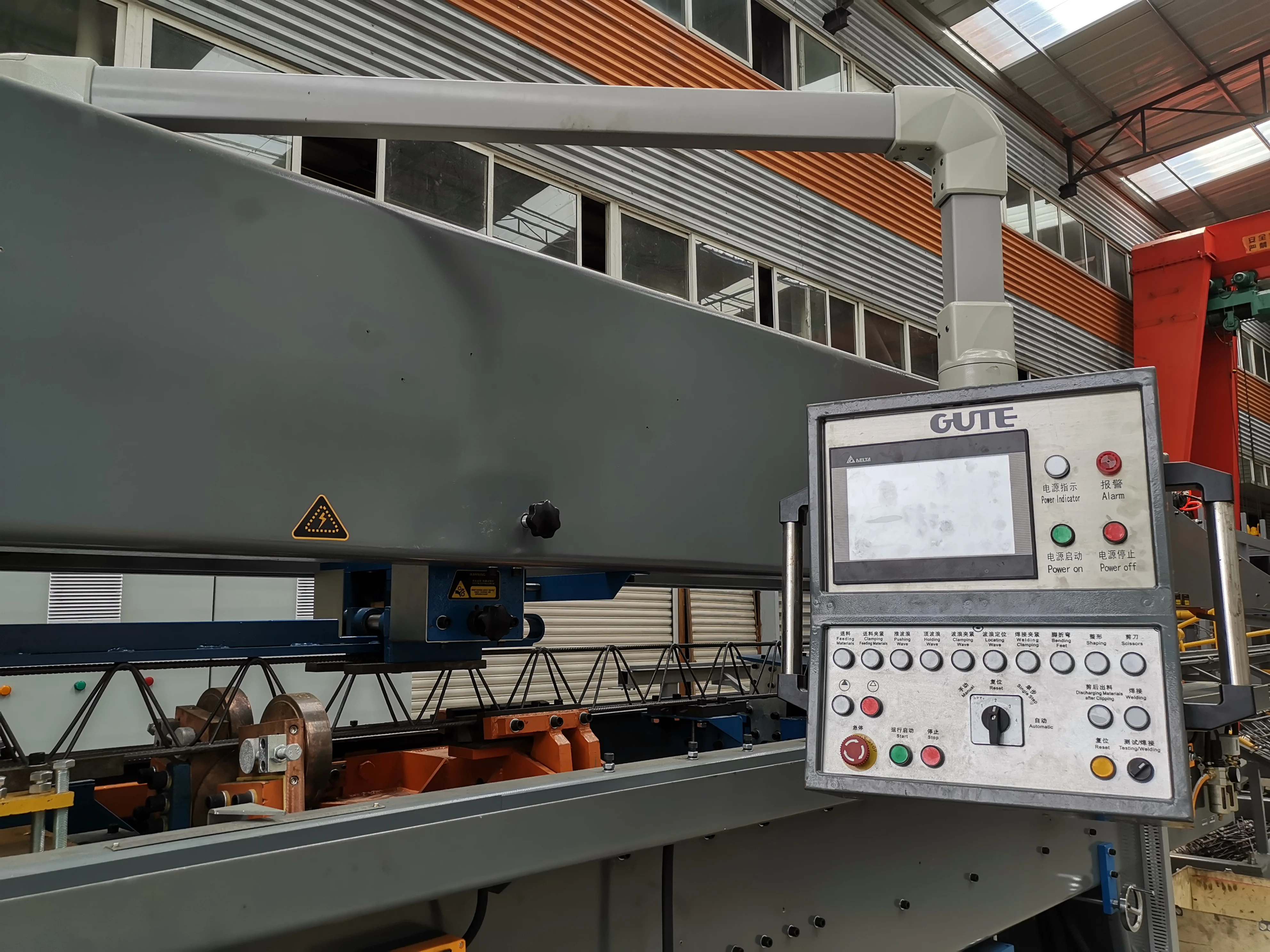

PLC Control
Brand: Delta
Original: China
Delta (Taiwan) PLC Program and HMI input front-panel is Delta(Taiwan) touch screen, very easy to opreate.

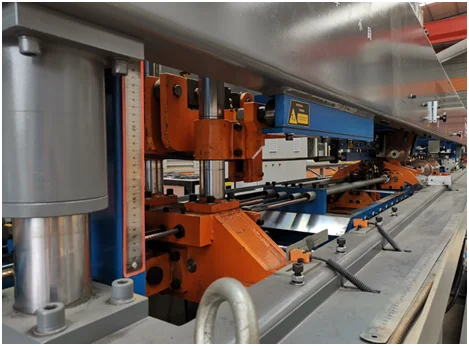

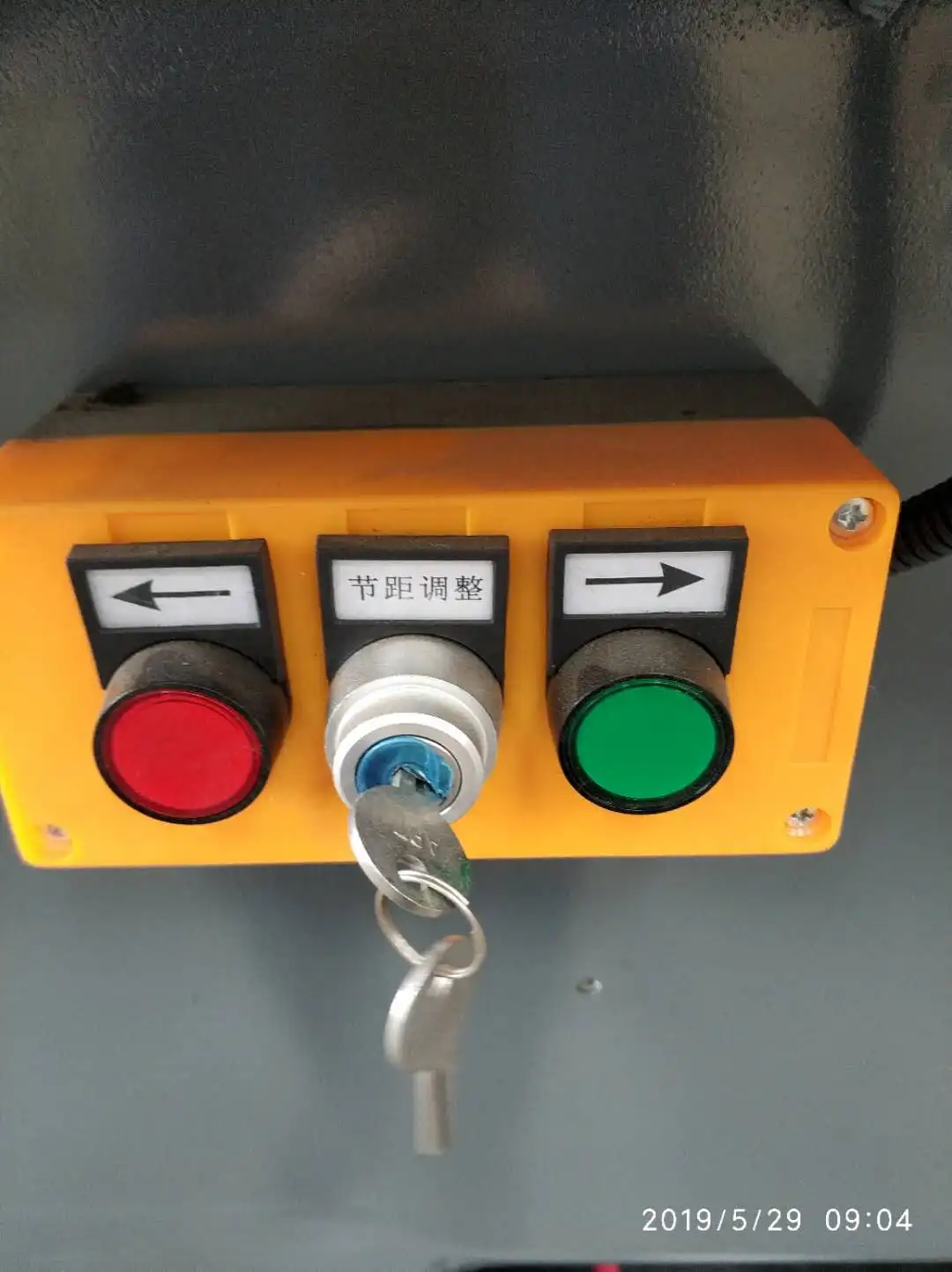

Length Adjustment
Model: GB4240
Original: China
This machine is automatically adjusted from 190mm to 210mm without manual adjustment.

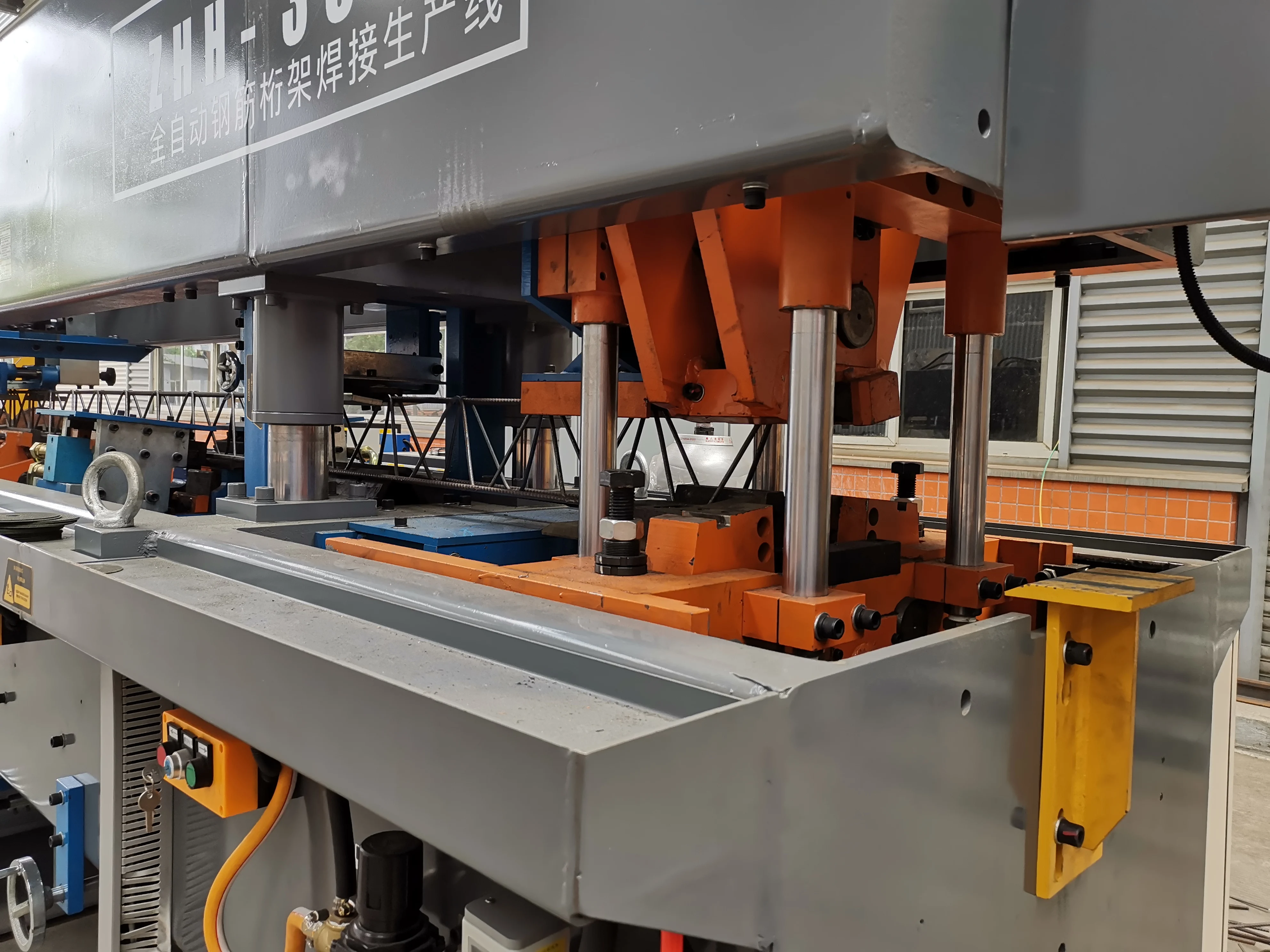

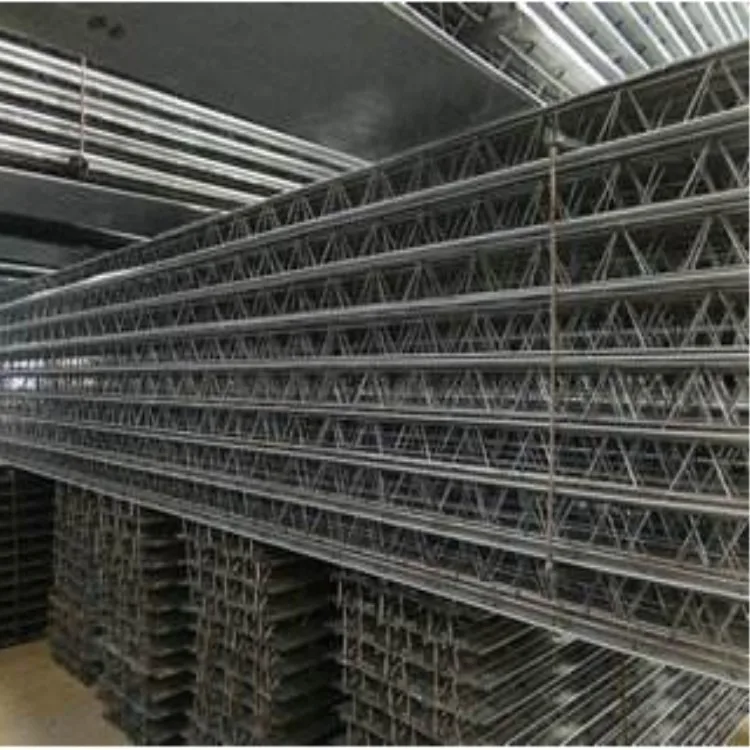

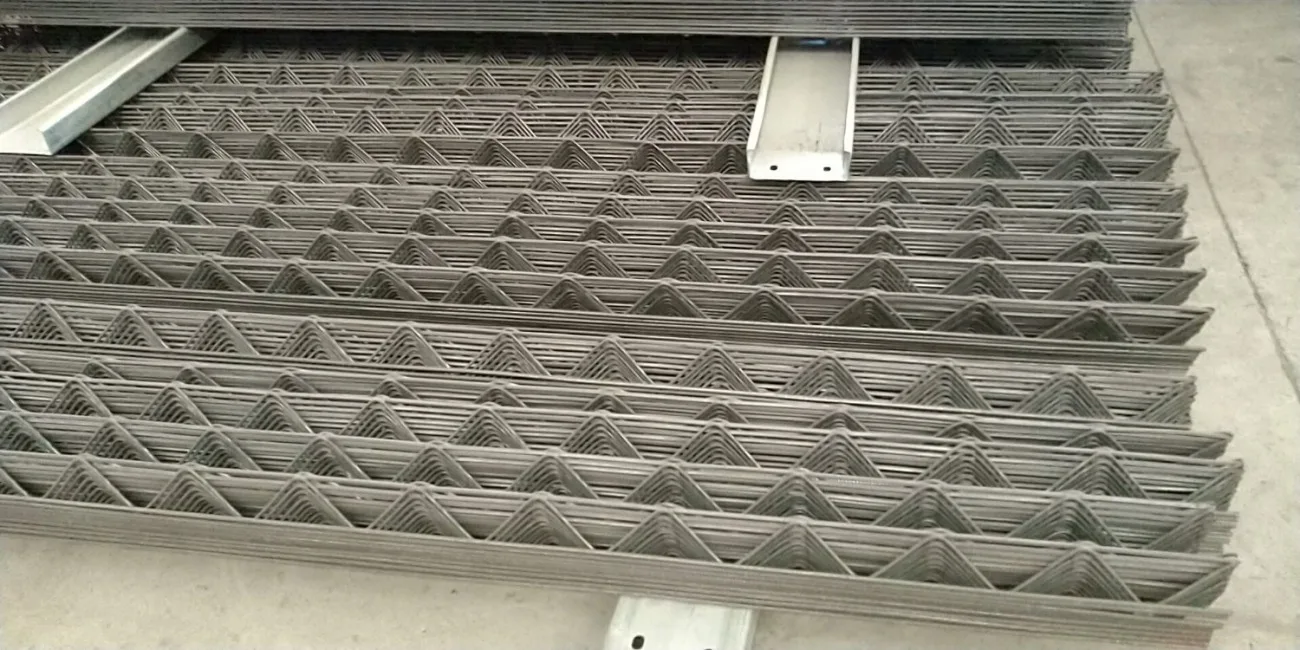

One Time Truss Formed
Material: Cast Steel
Original: China
Due to the free adjustment of height and pitch, the machine can be formed once without the need of artificial secondary shearing.
Fast Welding Time
Brand: EURO
Original: China
It adopts full hydraulic system. Compared with the common air pressure system, this machine has more stable steel clamp, stronger welding, shorter welding time and can reach 0.06-0.1 seconds.

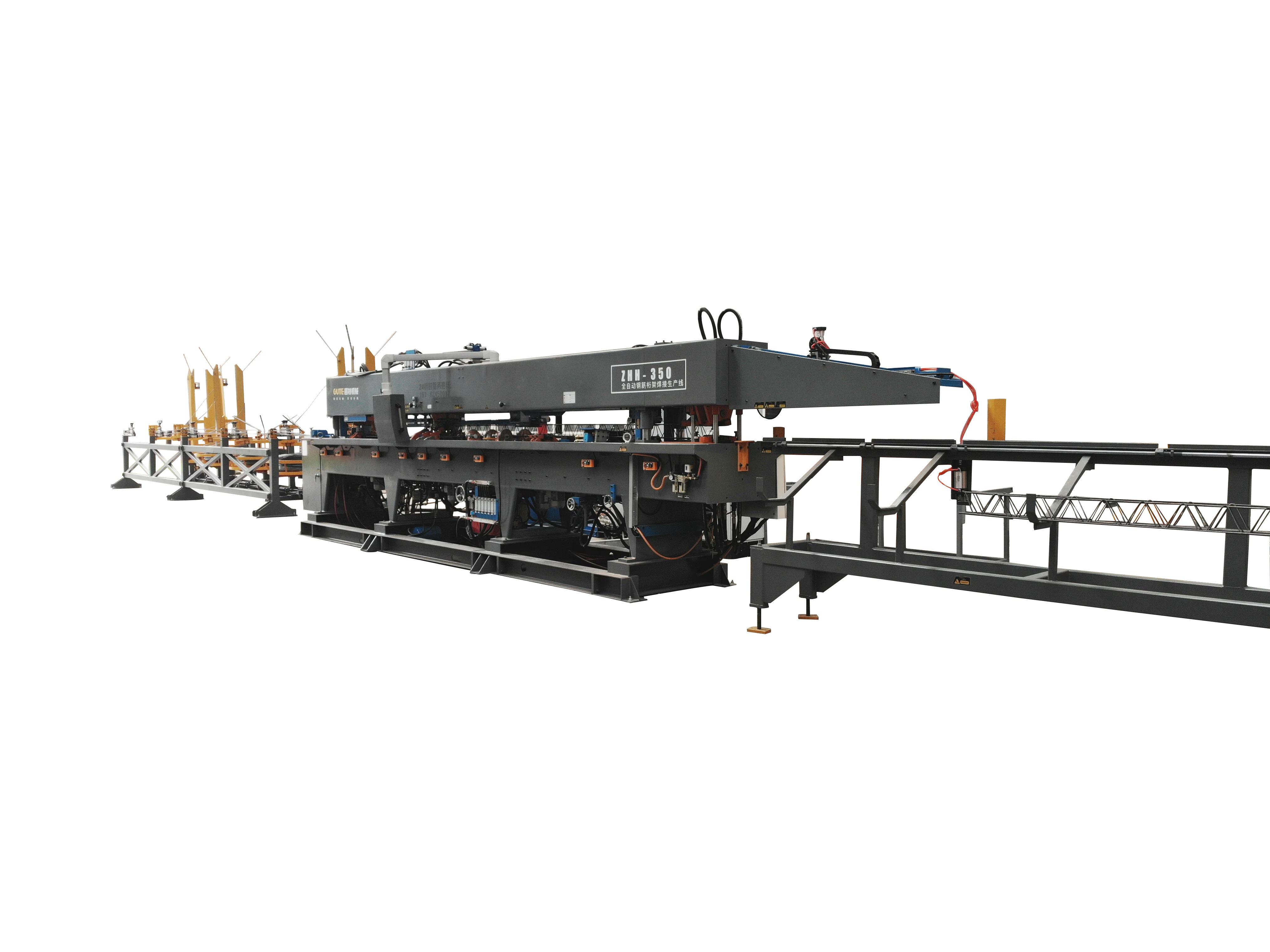

Production Line
Certifications
Packing & Delivery
Packaging | ||
Size | 1270(L) * 520(W) * 1010 (D) | |
Weight | 3.5T | |
Packaging Details | The normal package is wooden box(Size: 1279L*520W*1010H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Delivery | ||
Size | 1270(L) * 520(W) * 1010 (D) | |
Weight | 3.5 T | |
Packaging Details | The normal package is wooden box(Size: 1279L*520W*1010H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
