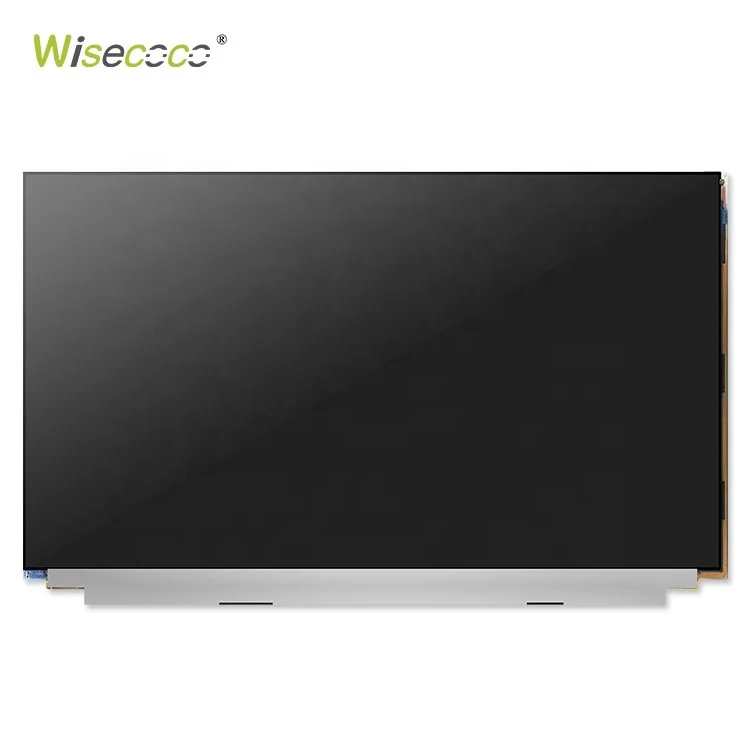

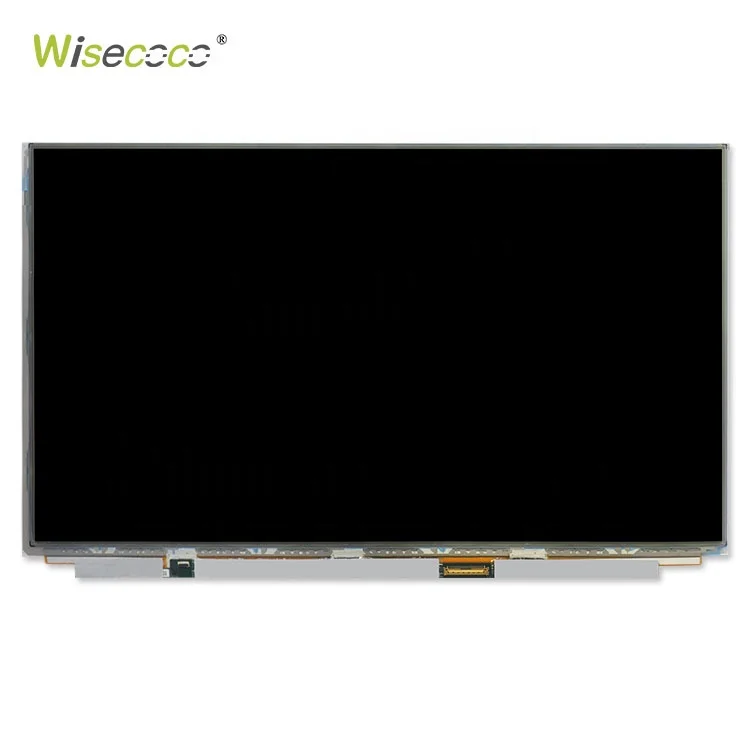

15.6 Inch 3840*2160 High Resolution LCD Uhd Ips 4K Tft LCD Display Panel Lvds 40 Pin Ips Edp 15.6 Inch LCD Screen
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62248120863):
Product Overview
Description
Product Description:
15.6 inch 3840x2160 high resolution lcd uhd ips 4k tft lcd display panel lvds 40 pin ips edp 15.6 inch lcd screen
General Features | |||
Screen Size | 15.6 inch | Type | IGZO TFT-LCD, CELL |
Pixel Number | 3840(RGB)*2160, UHD | Pixel Format | RGB Vertical Stripe |
Display Area | 345.6(W)*194.4(H) mm | Bezel Opening | - |
Outline Size | 354.78(w)*204.96(H)*0.824(D)mm | Surface | Glare (Haze o%), Hard coating (3H) |
Luminance | - | Contrast Ratio | 1000:1 (Typ.) (TM) |
Best View on | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
Display Colors | 16.7M 72% (CIE1931) | Lamp Type | No B/L |
Frequency | 60HZ | Transmissivity | 2.65% (Typ.)(with Polarizer) |
Signal Interface | Edp(4 Lanes), 40 pins, Connector | Touch screen | Optional |
Input Voltage | 3.3V (Typ.) | Application | Laptop, computer |
Environment | Operating Temp.: 0~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||
