Yunombo 6000 Counts Digital Multimeter NCV Mini Pocket Auto Range AC/DC voltage Current Resistance Capacitance Diode Multimeter

Product Overview

Description

Yunombo 6000 Counts Digital Multimeter NCV Mini Pocket Auto Range AC/DC voltage Current Resistance Capacitance Diode Multimeter



Overview
It is a mini pocket auto range digital multimeter with 6000 counts. It has a stable performance, high precision, high reliability clear readings, and overload protection.

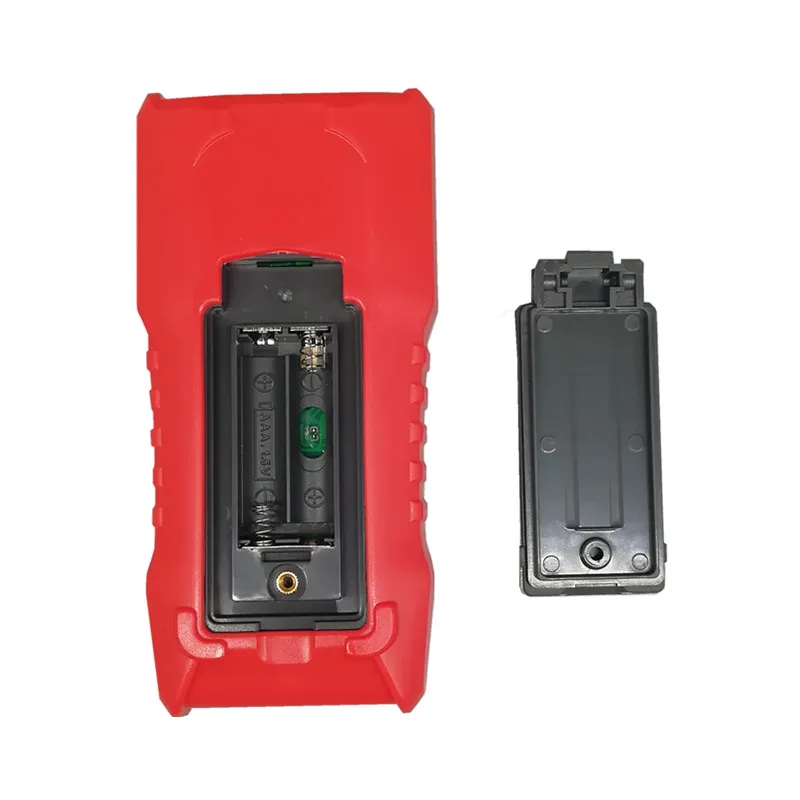

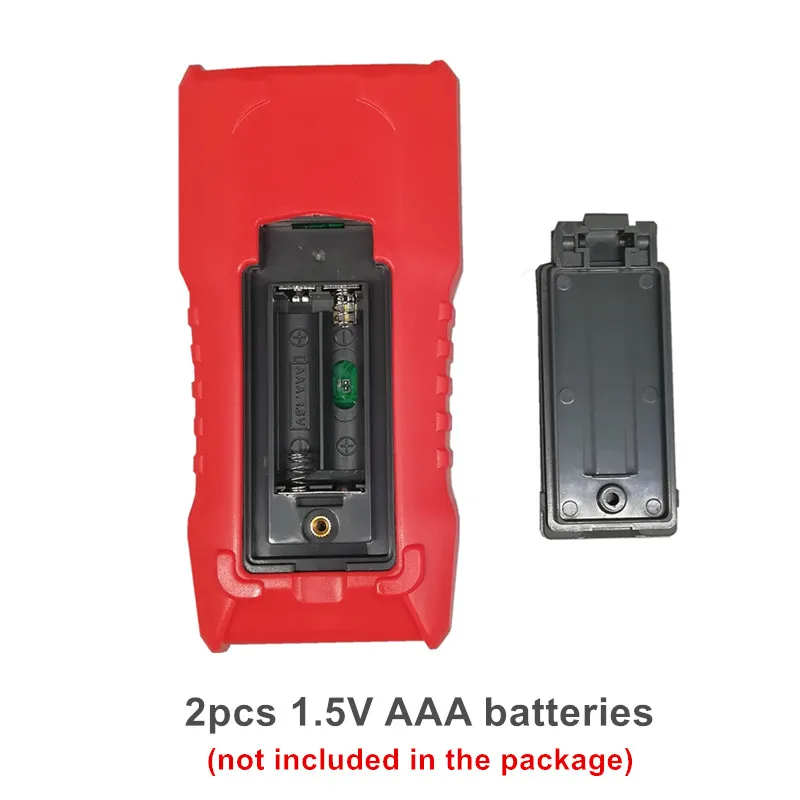

It is powered by 2pcs 1.5V AAA batteries, and it has a big LCD display and backlight.The backlight will be off automatically after 15 seconds on.
It can be used to measure the DC/AC voltage, DC/ AC current,resistance, capacitance,diode,continuity, frequency,temperature(YNB-503 only), netural and Live line checking(YNB-501 only),true RMS measurement and other parameters.

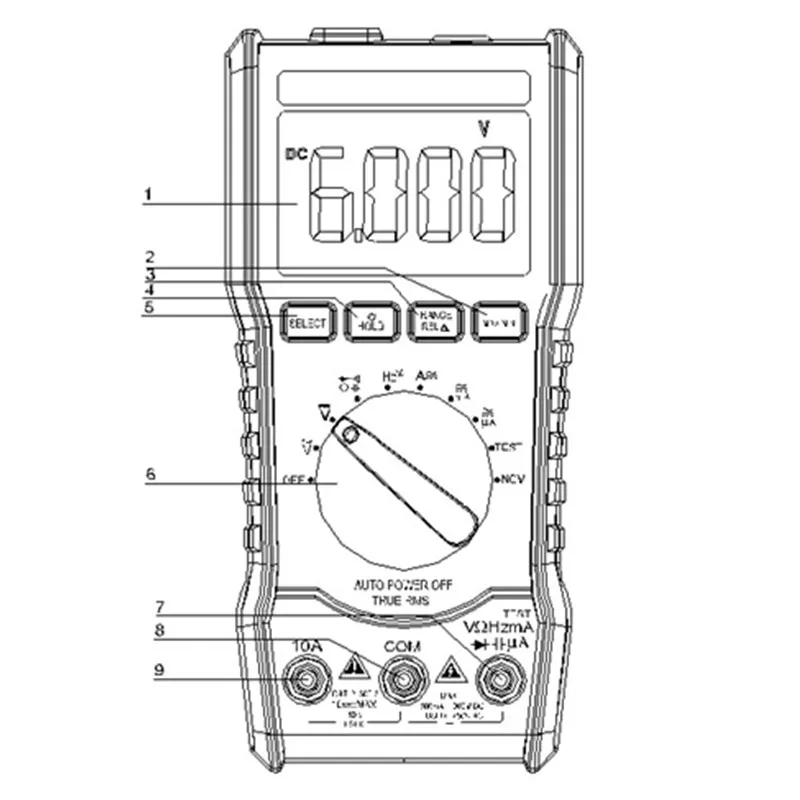

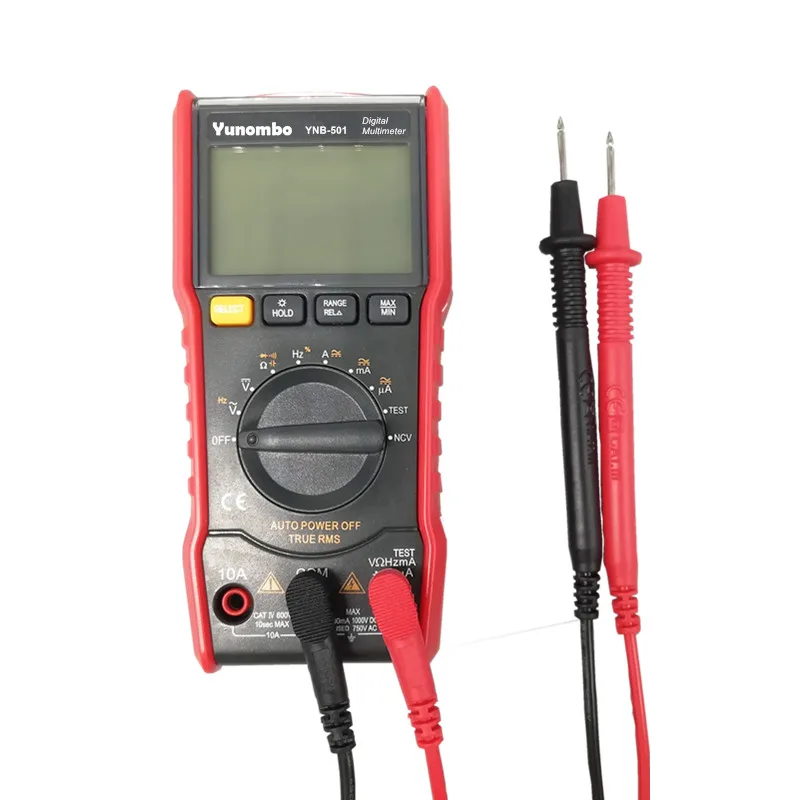

Operation Panel

1. LCD display;
2. "MAX/MIN" measurement button, press it for 2 seconds to turn on/off the flash light.
3. "RANGE" to switch to manual range; REL means relative measurement,it can be used when measuring the capacitance only;
4. "HOLD" to keep the measurement result. Press and hold this button for 3 seconds to turn on the backlight and keep it on. Press and hold this button for 2 seconds
to turn on the backlight,but it will be turn off automatically after 15 seconds;
5. Function selection button;
6. Switch to different measuring position;
7. Voltage, resistance, diode, capacitance, frequency,temperature(YNB-503 only),netural and Live line checking(YNB-501 only), low current(mA and uA) input port;
8. COM input; negative input, insert black test lead;
9. 10A Current input port.

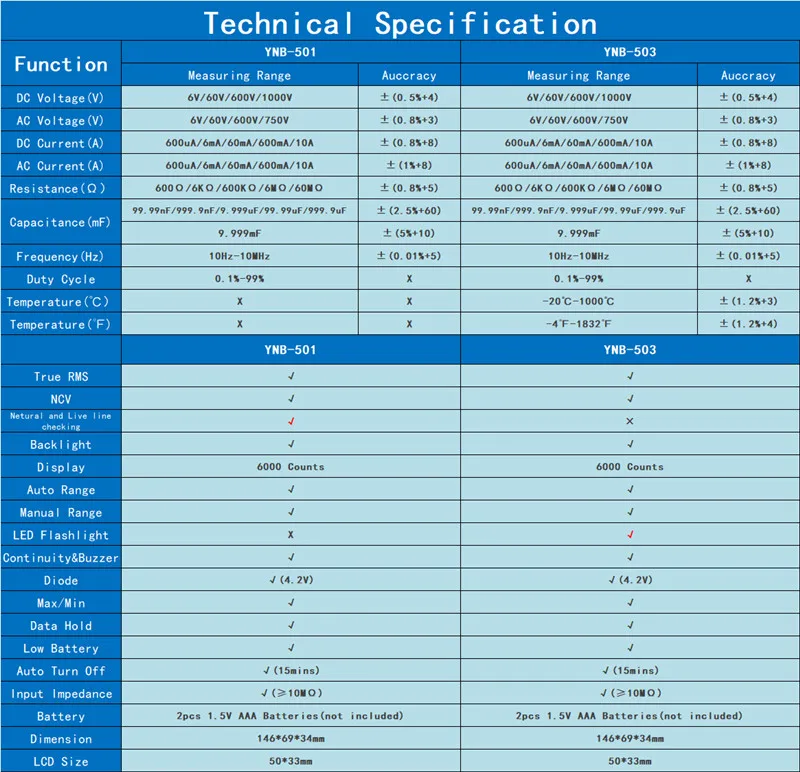

Specification:

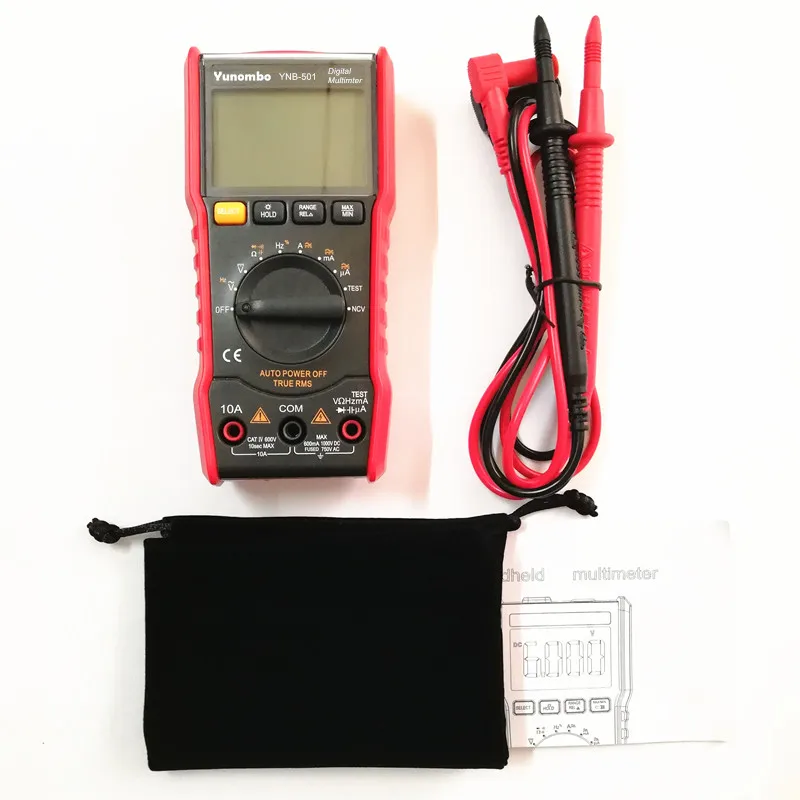

Package Photos:
