KCP series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.
What's the machines working principle?
KITECH provides four different pelletiizng solutions for you aiming at different MFI polymer will get different shape output pellets.

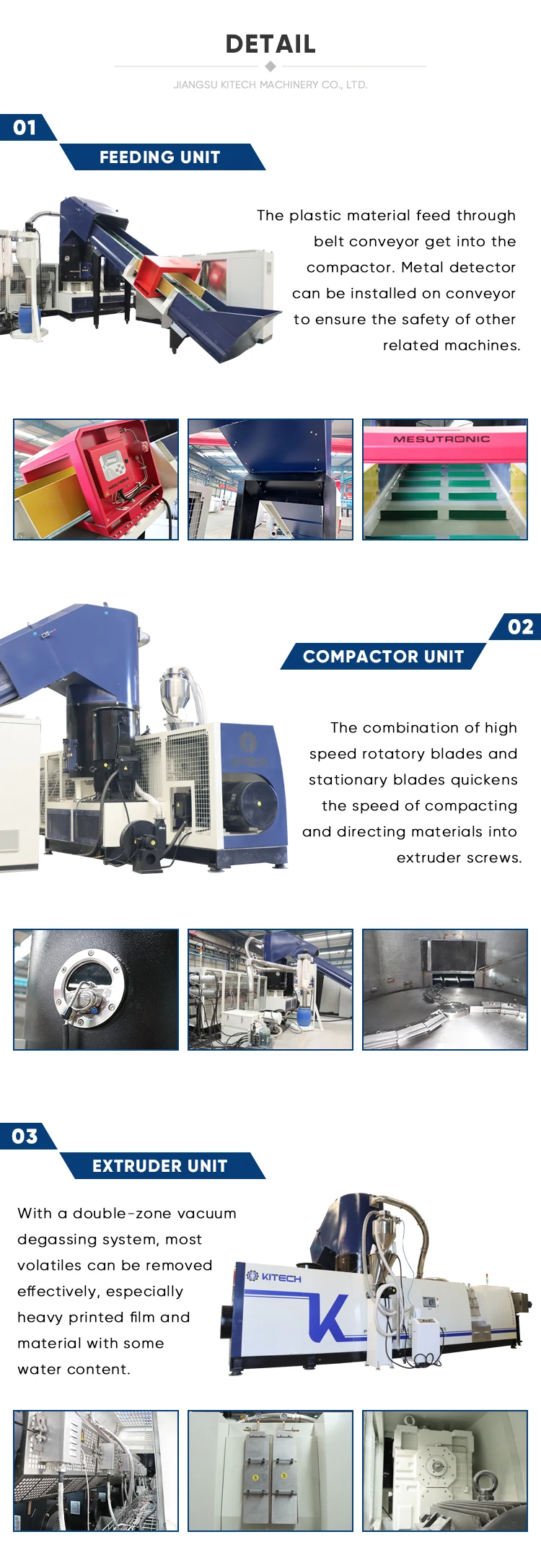

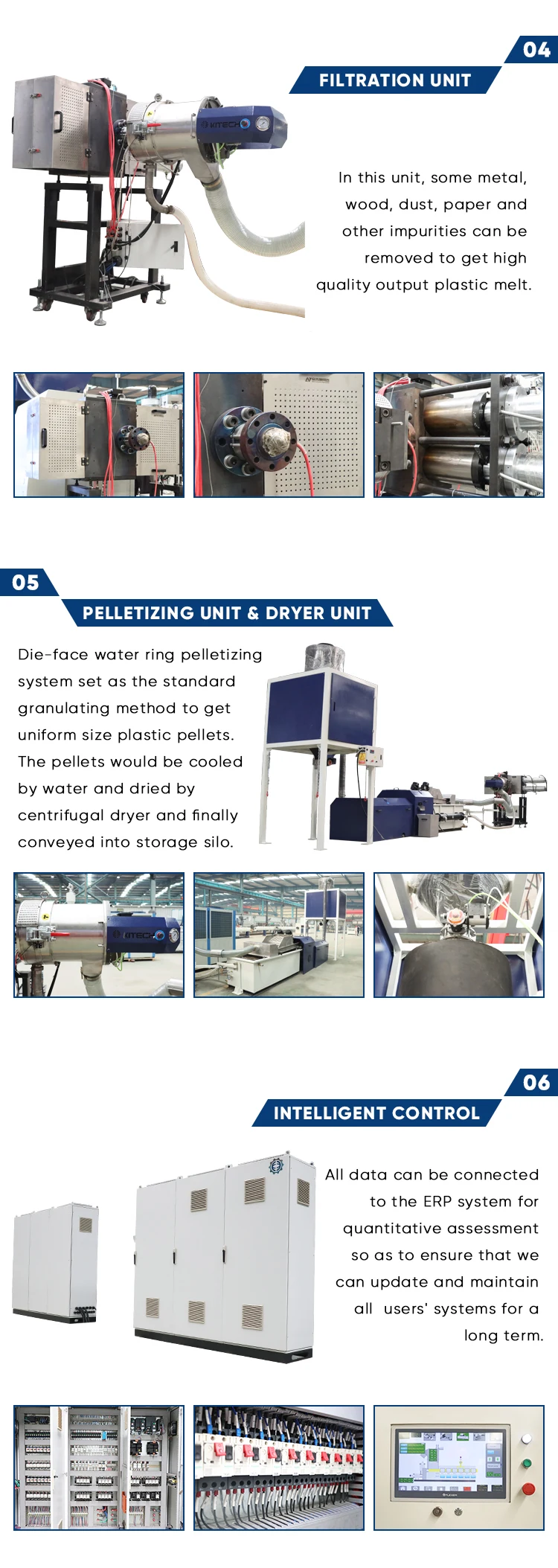

Detail Specification
Technology Parameter
Technology Parameter
Type
KCP80
KCP100
KCP120
KCP140
KCP160
KCP180
Capacity (kg/h)
150-250
300-420
400-600
600-750
800-950
1000-1200
Energy consumption (kWh/kg)
0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33
0.2-0.33

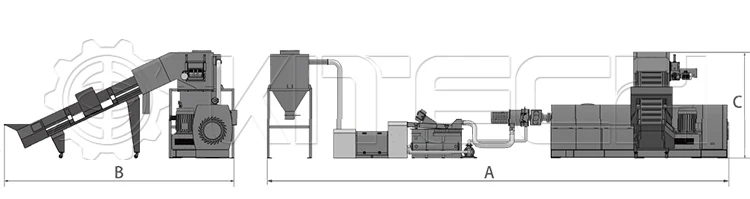

A / Length (mm)
10,300
10,300
11,400
11,400
14,800
14,800
B / Width (mm)
6,200
6,200
6,450
6,450
6,850
6,850
C / Height (mm)
3,500
3,750
3,980
4,250
4,460
4,850
Compactor
Volume(L)
300
500
800
1000
1200
1400
Motor power(KW)
37-45
55-75
75-90
90-132
132-160
160-185
Extruder
Screw Diameter (mm)
φ80
φ100
φ120
φ140
φ160
φ180
L/D
30-40
30-40
30-40
30-40
30-40
30-40
Motor power (kW)
55-75
90-110
132-160
160-200
250-315
315-355
Filter
(optional)
Two position plate type
●
●
●
●
●
●
Two position piston type
○
○
○
○
○
○
Back flush piston type
○
○
○
○
○
○
Automatic self-cleaning type
○
○
○
○
○
○
2nd Extruder
(optional)
Screw Diameter (mm)
φ100
φ120
φ140
φ160
φ180
φ200
L/D
10-18
10-18
10-18
10-18
10-18
10-18
Motor power (kW)
37-45
45-55
55-75
75-90
90-110
110-160
Downstream
(optional)
Water ring pelletizer
●
●
●
●
●
●
Strand pelletizer
○
○
○
○
○
○
Auto strand pelletizer
○
○
○
○
○
○
Underwater pelletizer
○
○
○
○
○
○
● Standard ○ Alternative
Recommend Products

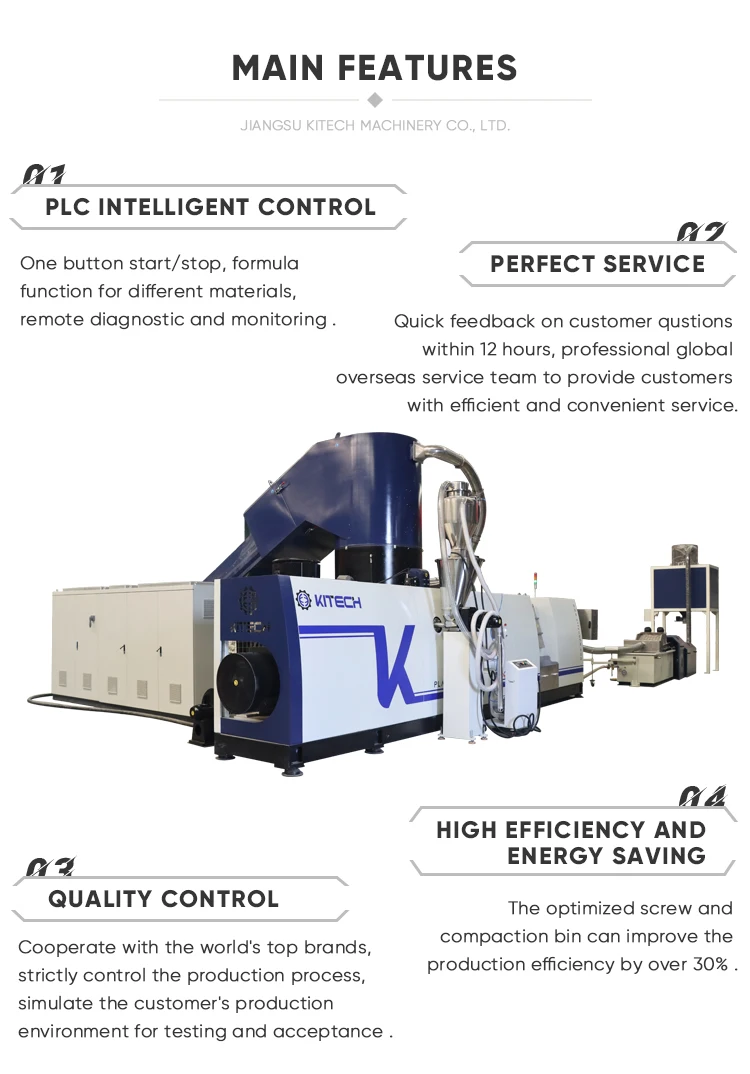

Main Features
●Ability: KITECH pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets. ●Stability: The pelletizing system is available for 24 hours working non-stop operation. ●Efficiency: The pelletizing system have very low consumption values for electricity, water and labor.
●Control: Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control. ●Service: Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.
Successful Project
Our Factory
FAQ
HOW TO FIND KITECH MACHINERY?
● Search Alibaba, Made in China, Google, Youtube , Facebook and Link in ● Visit exhibition in different countries ● Send KITECH Machinery an request and tell your basic inquiry ● KITECH Machinery sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to KITECH Machine site ● The meaning of visiting supplier, because seeing is believing, KITECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy. ● By letter of credit, you can lock the delivery time easily. ● After the factory visit, You can ensure the facticity of our bank account.
SEE KITECH MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years. ● Each component before assembly needs strictly control by inspecting personnel. ● Each assembly is in charged by a master who has working experience for more than 20 years ●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KITECH MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools ● After the commissioning, we will package the equipment by standard export package for shipment. ● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training. ● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
Would like to know more about KITECH Machine equipments, feel free to send us an inquiry!
