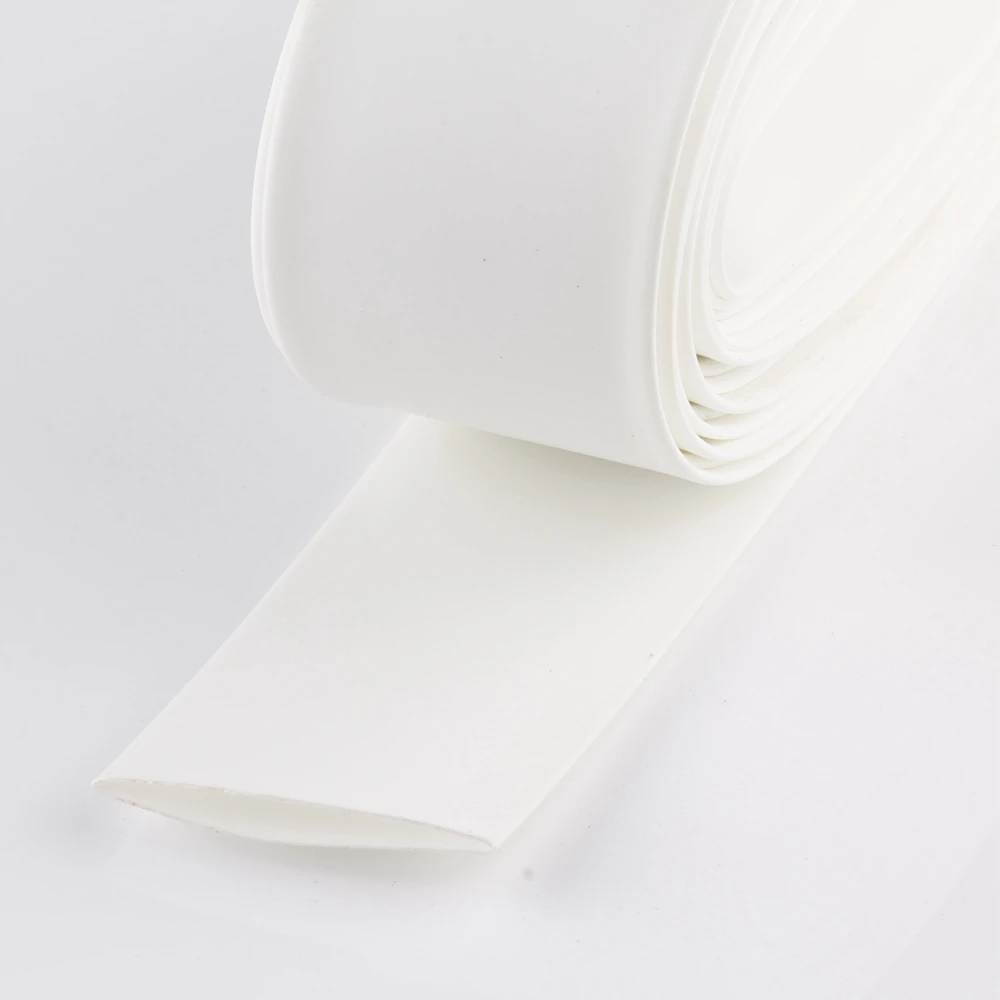

30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube
30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube
30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube
30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube
30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube

30mm white Heat Shrink Tubing Wire Wrap Cable Sleeve Assortment Ratio 2:1 Electric Insulation Tube

Share on (62248558132):


Price:

Quantity:


Product Overview

Description



Product Description


Heat Shrink Tube
◆Minimum Shrinkage Temp: +70°C
◆Full Shrinkage Temp: +100°C maximum
◆Operating Temperature: -55°C to + 125°C
◆Tensile strength: 14 Mpa
◆Supplied format ( round or flat ): Product is supplied flat
◆Cutting method: Scissors or sharp knife
◆Excellent flame retardant and insulation performance. Soft and flexible, low shrinkage temperature, fast shrinkage, acid and alkali resistance, anti-aging. Does not produce dioxin when burning








Specification
As Supplied Inner dameter Inch

After Recovery(mm)

Standard package(m/roll)
MM/Inch
MM
Total wall thickness
Wall thickness of adhesive layer
Inner  diameter
3.2        1/8
≥3.2
0.90±0.15
0.35±0.10
≤1.00
200
4.8        3/16
≥4.8
1.00±0.15
0.40±0.10
≤1.60
100
6.4        1/4
≥6.4
1.25±0.15
0.45±0.12
≤2.20
100
7.9       5/16
≥7.9
1.30±0.15
0.50±0.12
≤2.70
100
9.5       3/8
≥9.5
1.40±0.15
0.50±0.12
≤3.20
50
12.7     1/2
≥12.7
1.70±0.15
0.50±0.12
≤4.20
1.22
15        5/8
≥15.0
1.80±0.15
0.55±0.15
≤5.20
1.22
19.1     3/4
≥19.1
1.95±0.15
0.55±0.15
≤6.30
1.22
25.4     1
≥25.4
2.05±0.20
0.55±0.15
≤8.50
1.22
30        5/4
≥30.0
2.20±0.20
0.60±0.15
≤10.20
1.22
38.1     1-1/2
≥39.0
2.50±0.20
0.60±0.15
≤13.50
1.22
50        2
≥50.0
2.80±0.25
0.70±0.15
≤17.00
1.22

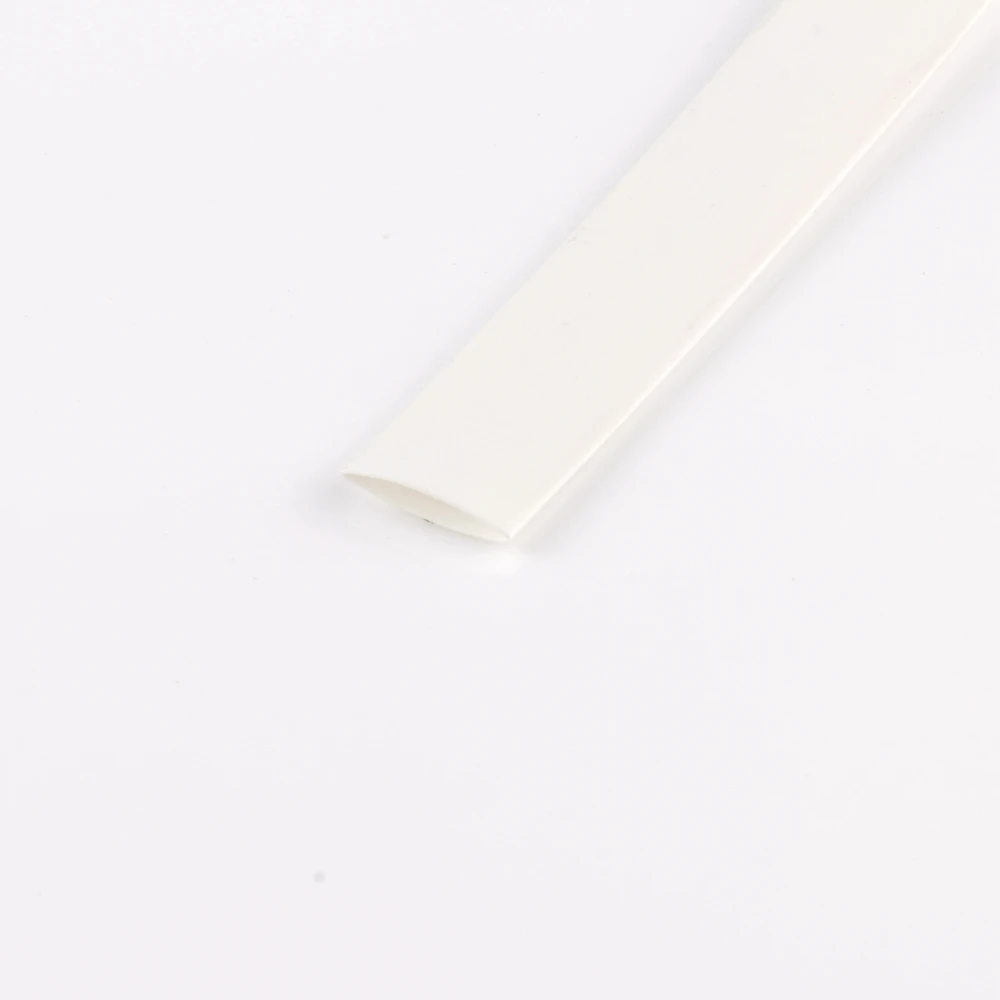

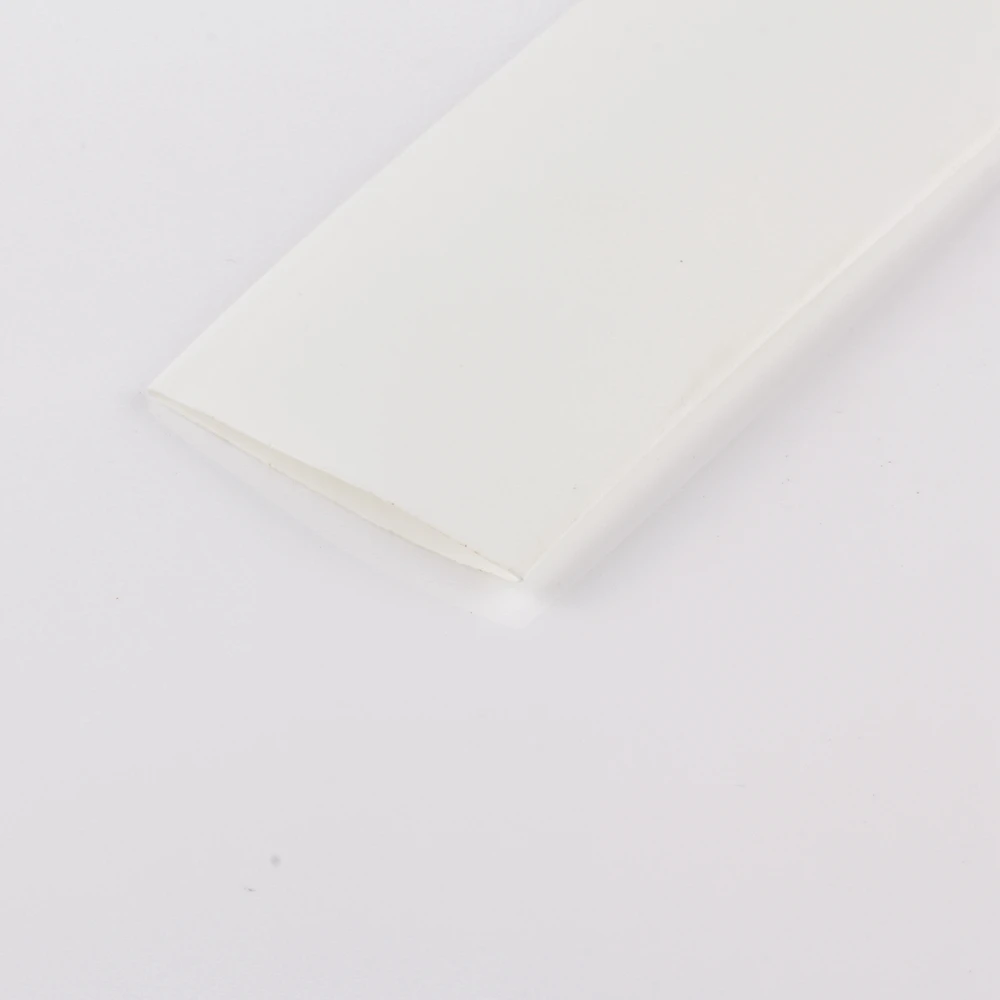

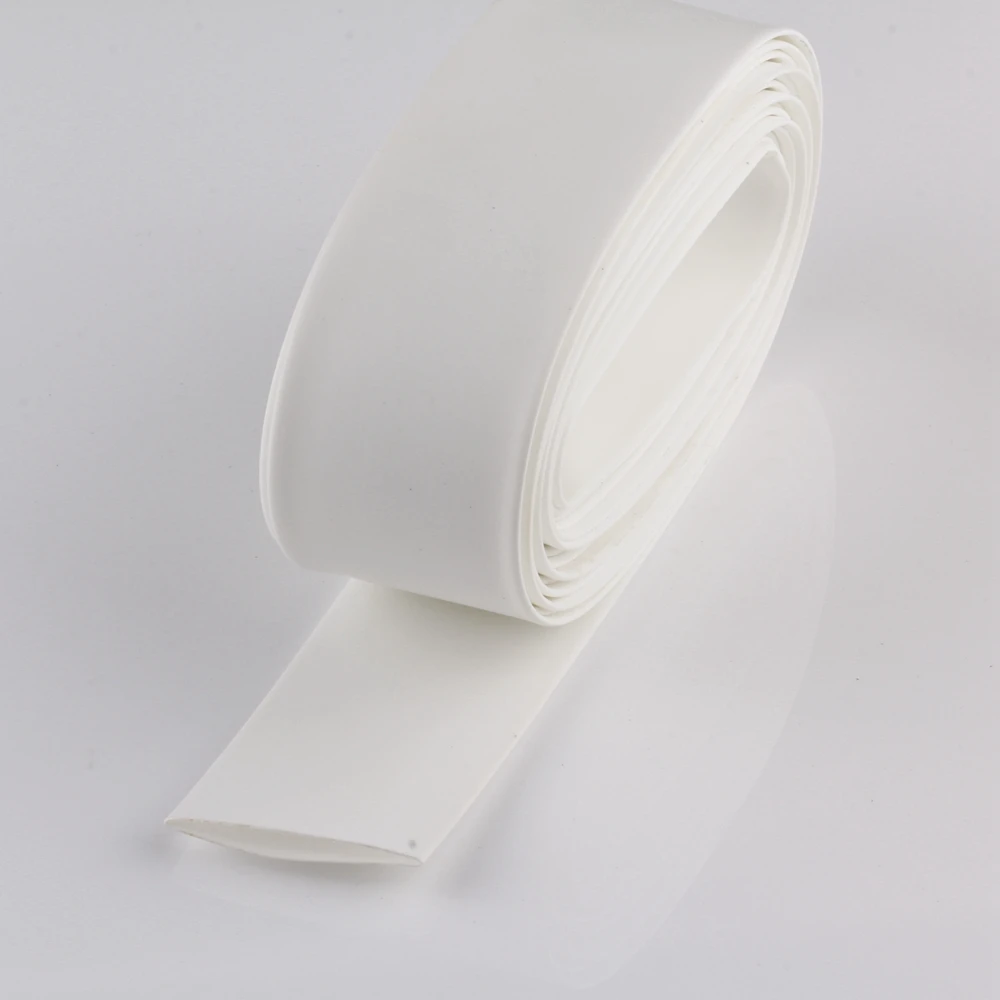

Detailed Images

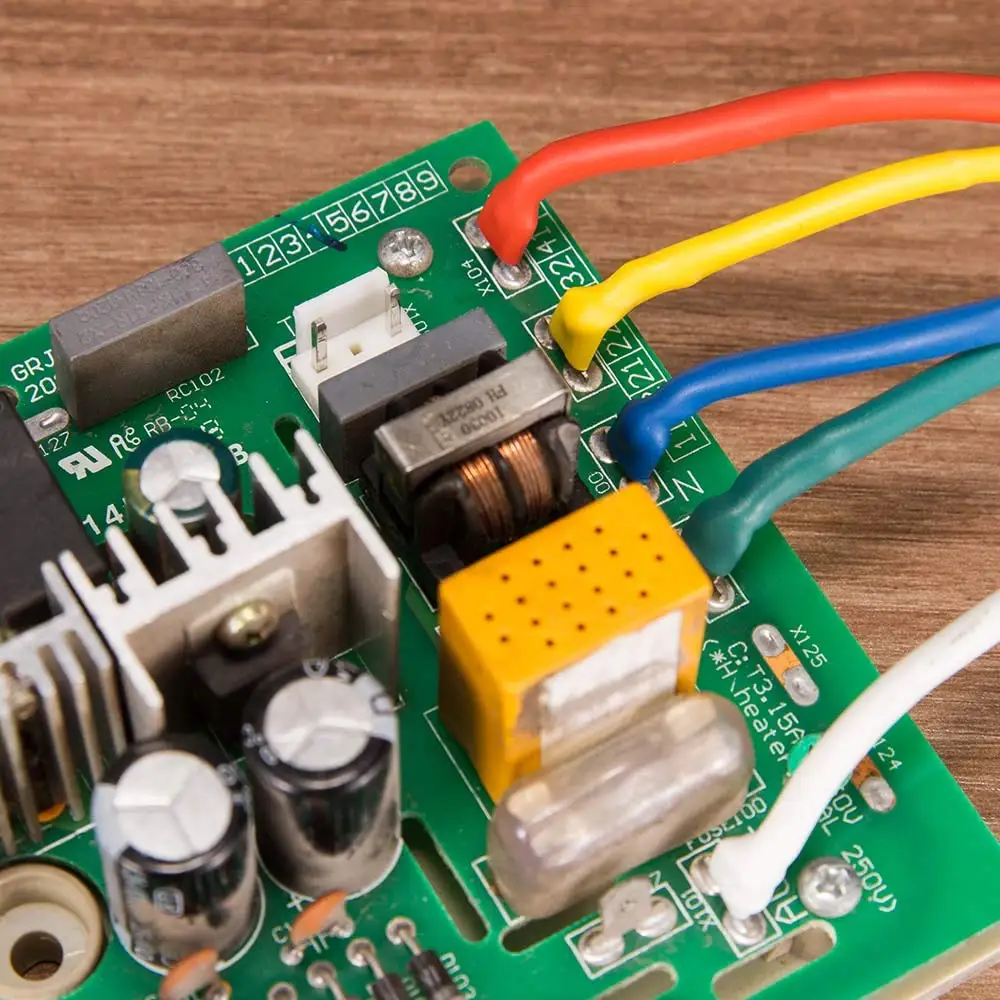

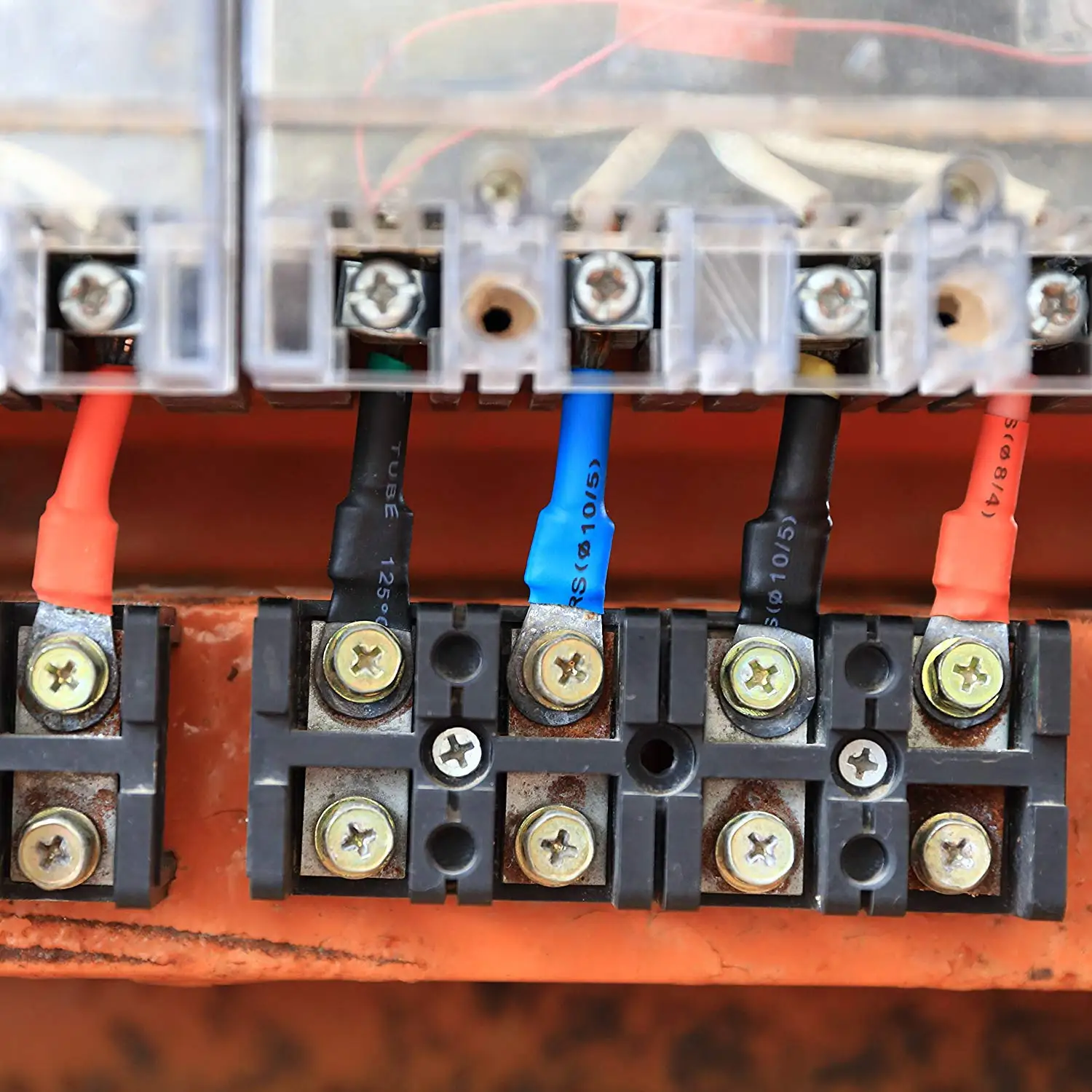

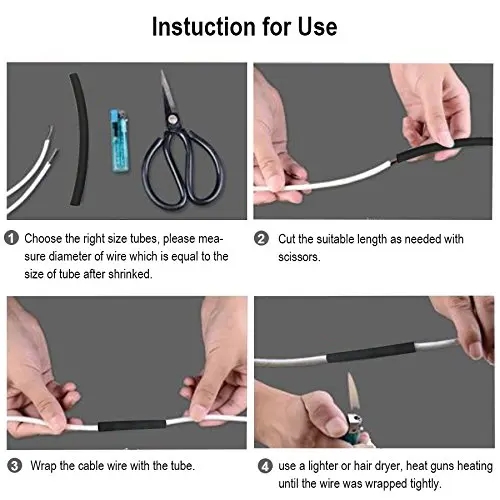

Application

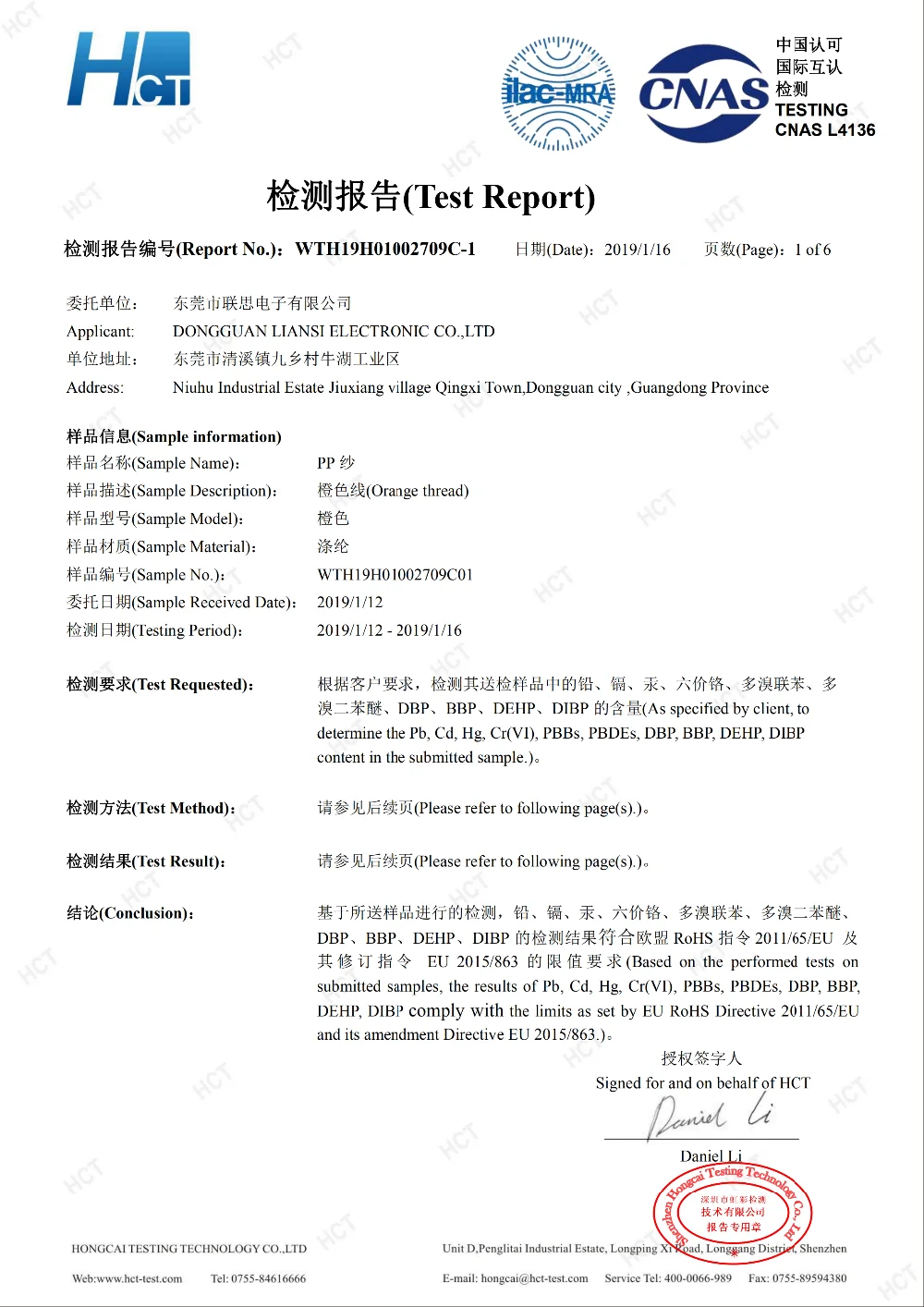

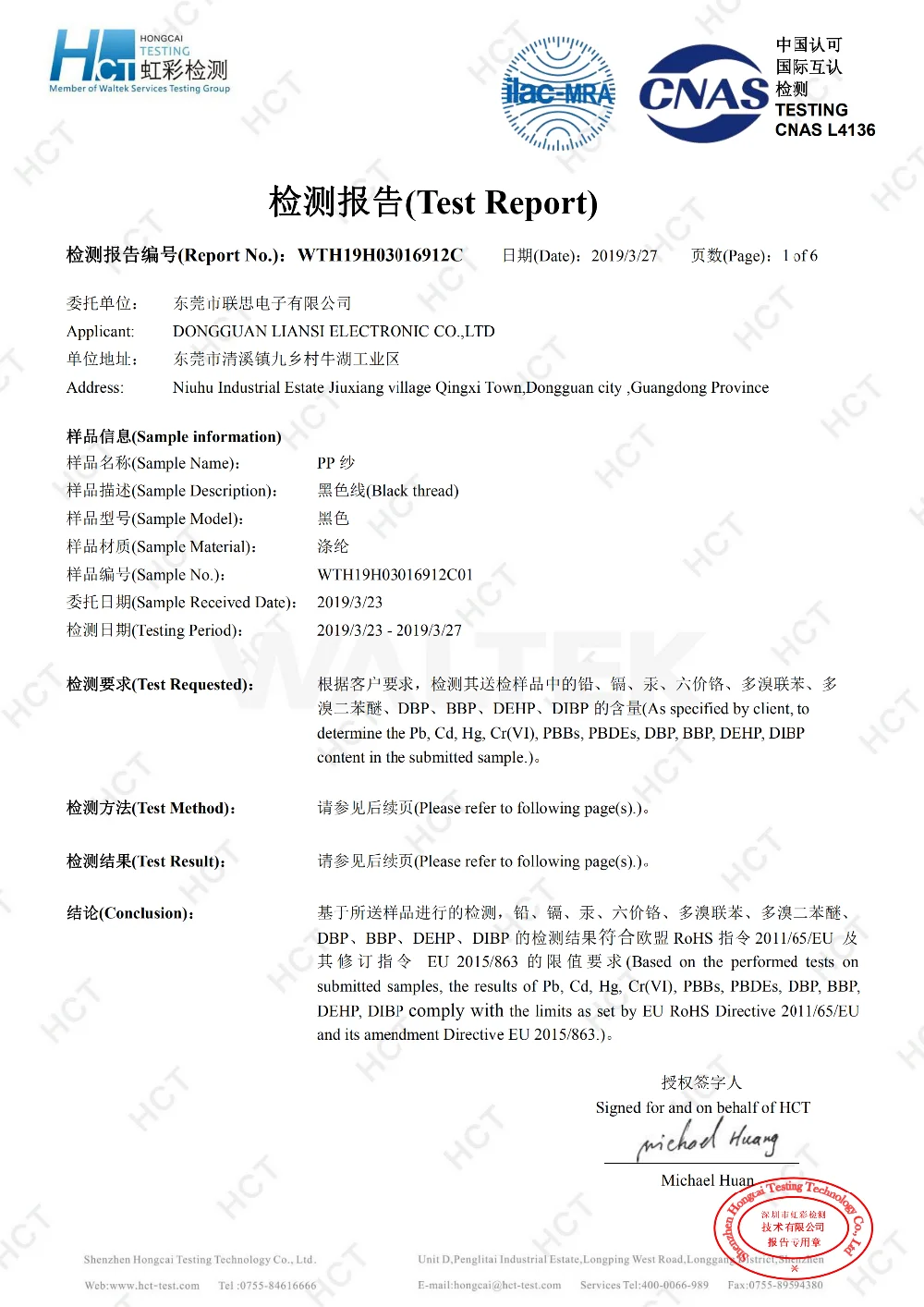

Certifications

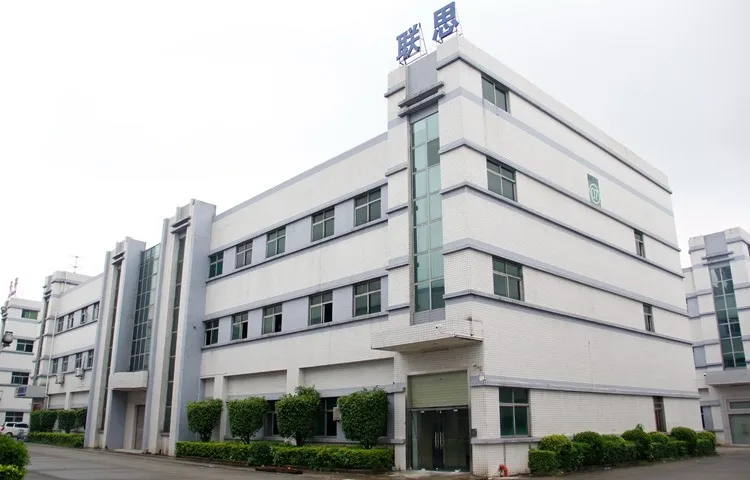

Our Company






Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.


From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.


Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days






FAQ


1.What is the MOQ ?
◆100 meters for our own available designs.

2.Can I get a lower price if I order large quantities?
◆Yes, cheaper prices with more bigger size orders.

3.What is your terms of payment?
◆T/T 100% in advance.

4.What is your terms of delivery?
◆FOB,CIF,EXW.

5.Can you produce according to the samples?
◆Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

6.What is your sample policy?
◆We can supply the sample, the customers just need to pay the courier cost.

7.Can I mix different designs?
◆sure!

8.How about your delivery time?
◆Generally, it will take 1 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Our Service


◆OEM Manufacturing welcome: Product, Package.
◆ Sample order.
◆We will reply you for your inquiry in 24 hours.
◆ after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
