Electronic Throttle control for Double Engine
- Category: >>>
- Supplier: Linhai Yida Electronics Co. Ltd.
Share on (62248574432):
Product Overview
Description
Product Technical Index
Power supply | Standby current | Maximum working current | Protection grade | Working temperature range |
DC24V | < 50mA | < 2A | IP65 | -10℃-50℃ |
Equipment Accessories
Main controller | Electric push rod device | Electronic operator |
2 | 2 | 1 |

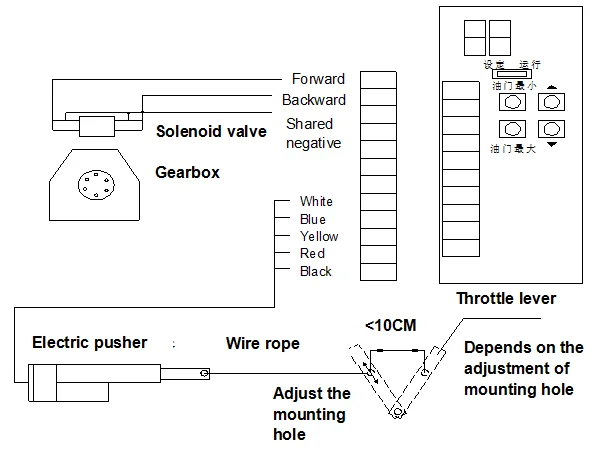

Install
First of all, check the throttle size direction of the fuel engine, put the electric throttle controller on the power supply, and set the throttle minimum position according to the setting. Fix the push rod to the support (because of the large tension, the support should be strengthened firmly, do not loosen and bend), and then fix the throttle pull rod and push rod with wire rope. At this time, it should be noted that the position of the throttle pull rod fixing wire rope will directly affect the stroke of the push rod, and the maximum stroke of the push rod will be 10cm.
Operational Principle
When the electronic operator moves forward (into the standby state) and the forward clutch is turned on, the throttle is still in the waiting state (low speed), the refueling door to a certain point, the main engine will increase or decrease as the operator instructs to work; when the throttle is reduced back to the neutral position, the car slows down to the waiting state, and then the forward clutch is disconnected. When the electronic operator is in the back gear, the backward clutch is turned on, and the same principle continues to work as when moving forward.
Product packaging
Packaging: Usually paper carton, one set in one box.
Shipping: Usually shipping by international express, sea , air.

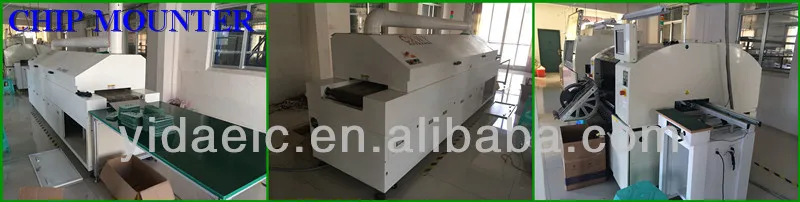

Company Profile
Developed from DAOZHI marine accessories factory with more than 10-year experience, LINHAI YIDA ELECTRONICS CO.,LTD is established in 2005. With a talent and collaborative team of engineers and sales staff, our company is specialized in desiging, manufacturing and marketing the marine electronic equipments.
Exhibition
FAQ
Q: Why choose Linhai Yida Electronics, any advantage?
A: The answer is Yes. There are 5 advantages.
(1) MUTUAL BENEFIT: Our offer will be reasonable, ourprice will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Shape and Quality can meet your request.
(3) OEM: (1)Laser Print your Logo (≥100PCS). (2)Design your packing box(≥1000PCS).
(4) MIX ORDER: We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: 3 Years Guarantee.If some parts are broken, we will send new parts to repair after confirmed.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Payment Terms, Transport method etc. We will make the accurate quotation to you as soon as possible.
