Aluminum metal M5*0.8 air vent plug PTFE breather for surfboard

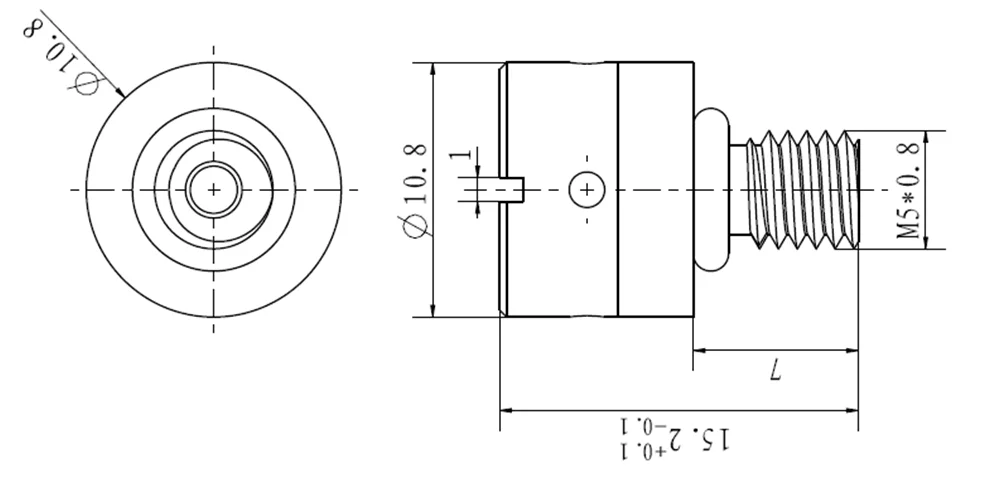

Thread specification:
M5*0.8mm
Spanner size:
0
Mounting thread height:
7.8mm
Maximum OD:
9.1mm
Body material:
Aluminum alloy
Vent membrane:
e-PTFE membrane
Seal ring:
Silicone rubber ring
Color:
Silver or OEM
Airflow rate
350ml/min at 7Kpa
WIP:
-12Kpa
Temperature range:
-40℃~+150℃
IP rate:
IP67
Fire resistance rate:
UL94V0
Service life:
5 years
Vent application
Vent plug products are widely used in LED, Sensor, packaging products, telecommunication, electronic products, Optical industries and so on.
