Product Overview

Description

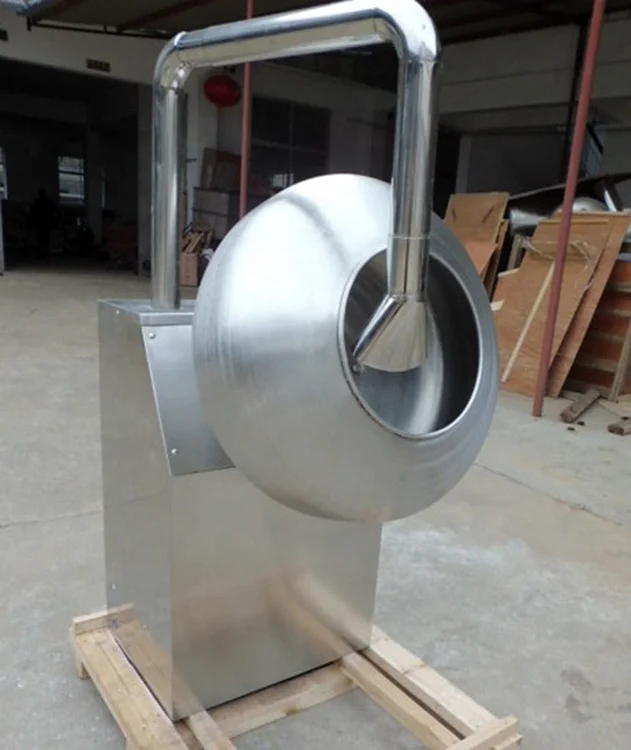

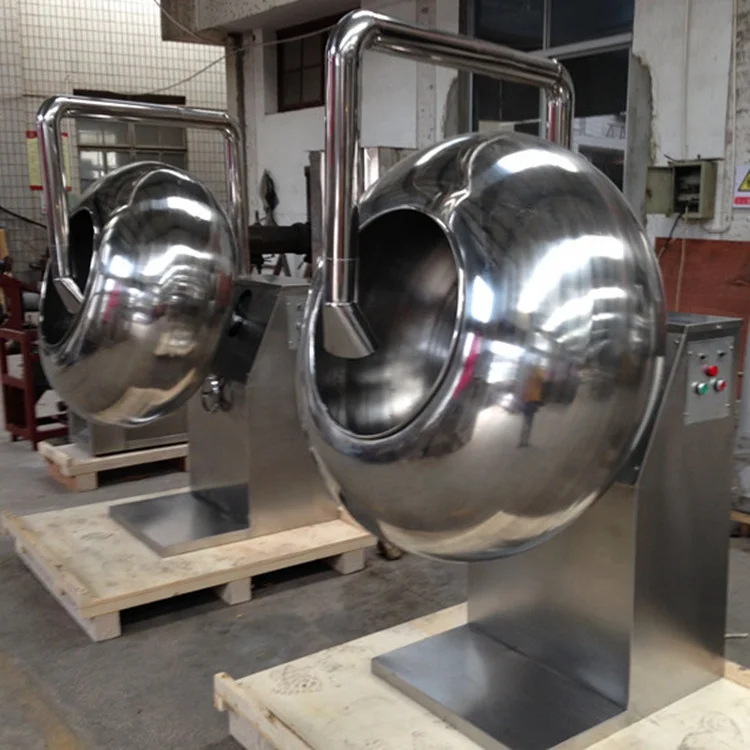

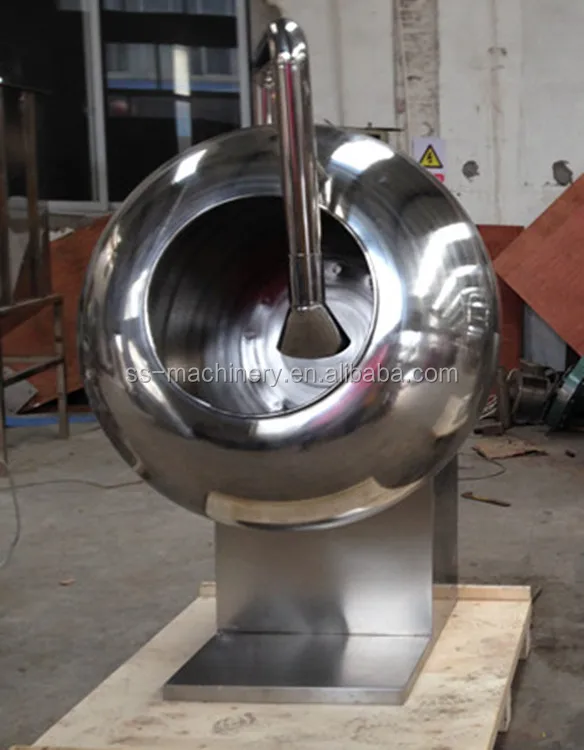

Sugar coating machine is mainly used in the pharmaceutical industry in the pill, tablets of sugar coating

Product Description

 Technical parameters :

model

TYBY800

Diameter

 800 mm

capacity

30-50kg/time

Rotate speed

36  r/min

Motor power

1.5KW

Fan power

0.12KW

Elec power

3  KW

size(mm)

1000*800 *1430

weight(kg)

205

 Sugar coating machine (3).jpgSugar coating machine (5).jpgSugar coating machine (2).jpgSugar coating machine (4).jpgSugar coating machine (1).png

Introduction :

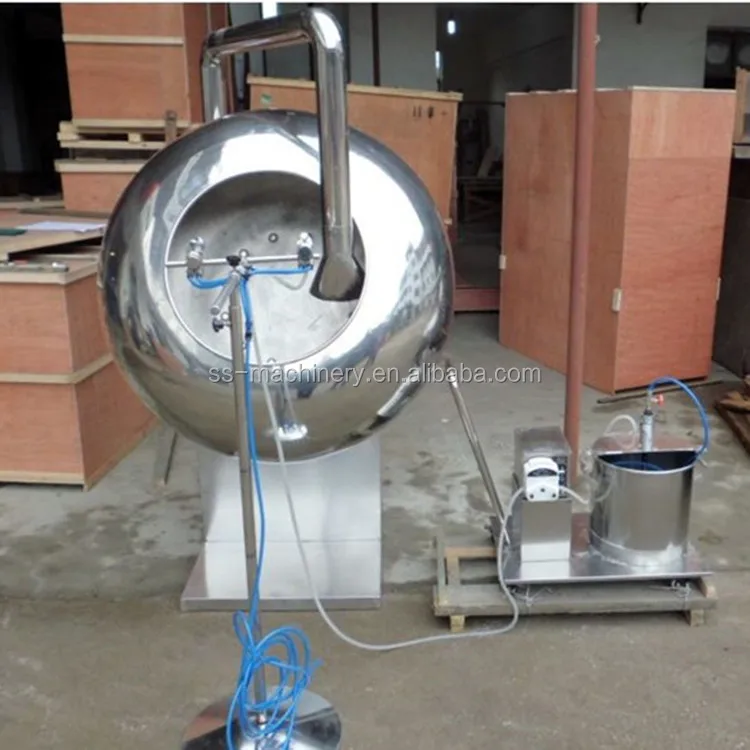

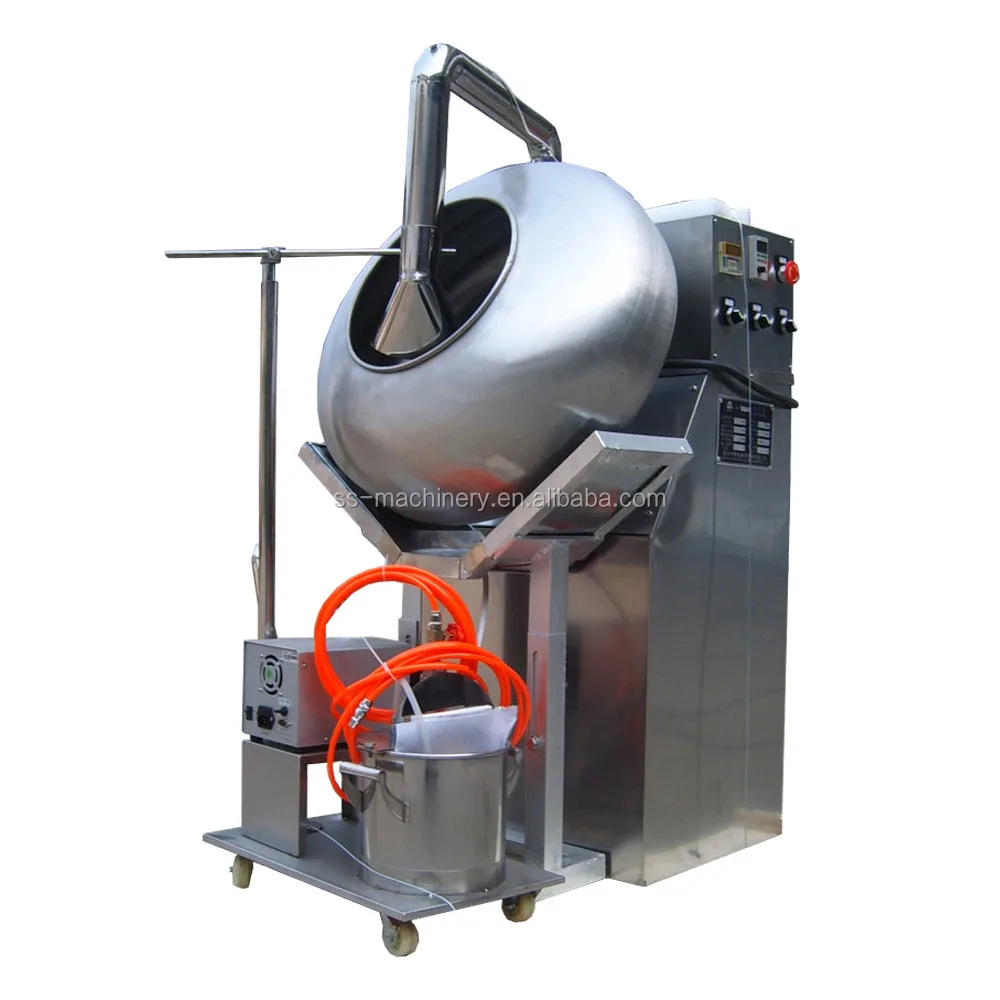

Sugar coating machine is mainly used in the pharmaceutical industry in the pill, tablets of sugar coating production, can also be used for food, light industry, chemical industry in the spherical or granular materials, rolling, mixing and lighting. Such as: chocolate polishing, peanuts, sugar, spices, manufacturing dumplings, pearl powder round, rolling desiccant, the production of chemical filler, aluminum hydroxide ball, alumina ball, ceramic ball molecular sieve, catalyst, Body, worm gear box, heating device, fan, electrical and other major components, it is driven by the motor through the V-belt worm, worm, driven sugar-coated pot rotation, under the action of centrifugal force, so that the material in the pot up and down rolling Friction, to achieve sugar coating, pills and lighting effect. According to customer needs to increase the frequency control, external heating, temperature control, liquid spray system, you can package film.





Packaging & Shipping

package picture.png

Payment Terms

 T/T, L/C, D/P, D/A, Escrow, Western Union,MoneyGram

Package

1.first check the machine,make sure everything is ok,then wrap the machine in plastic film ,and packed in wooden package.

We will reinforce the package to avoid damage during transport.

2.we will send you the picture before and after packing.

Delivery time

Within 10 working days after receiving the deposit.

Quality Guarantee Terms

Quality guarantee term is for 12 months. Malfunctions which are caused by machine itself and quality will be responsible for our company. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

shipping picture.png

Our Services

1.We have our own factory,can customize the product according to your needs.

2.We have 10 years export experience,can supply the service of production,inspection of goods and transport .

3.we test each machine before delivery,make sure customer get the good quality machine they ordered.

4.warranty time is for one year,professional timely advice and spare parts will be offered all the time.

Company Information





Weifang shishang Machinery co.,ltd ,which is a set design ,development,production,sales ,into an integrated enterprise,specialized in the production of packing machine,vegetable processing ,meat processing equipment,nuts processing line and so on. We have more than 10 year export experience ,so we can provide you professional advice and supply you the suitable machine. Welcome all customers to contact with us,and looking forward to cooperating with you.
