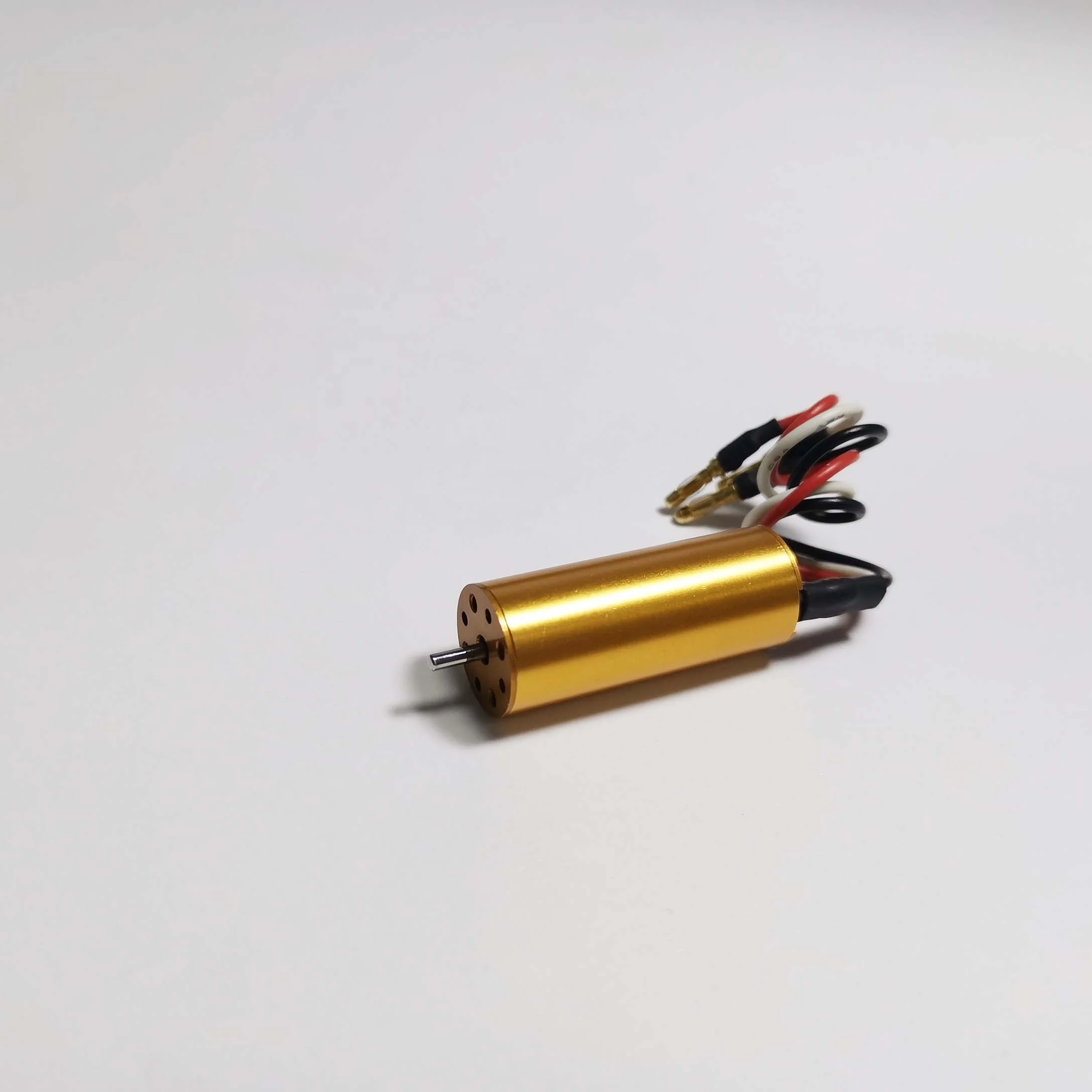

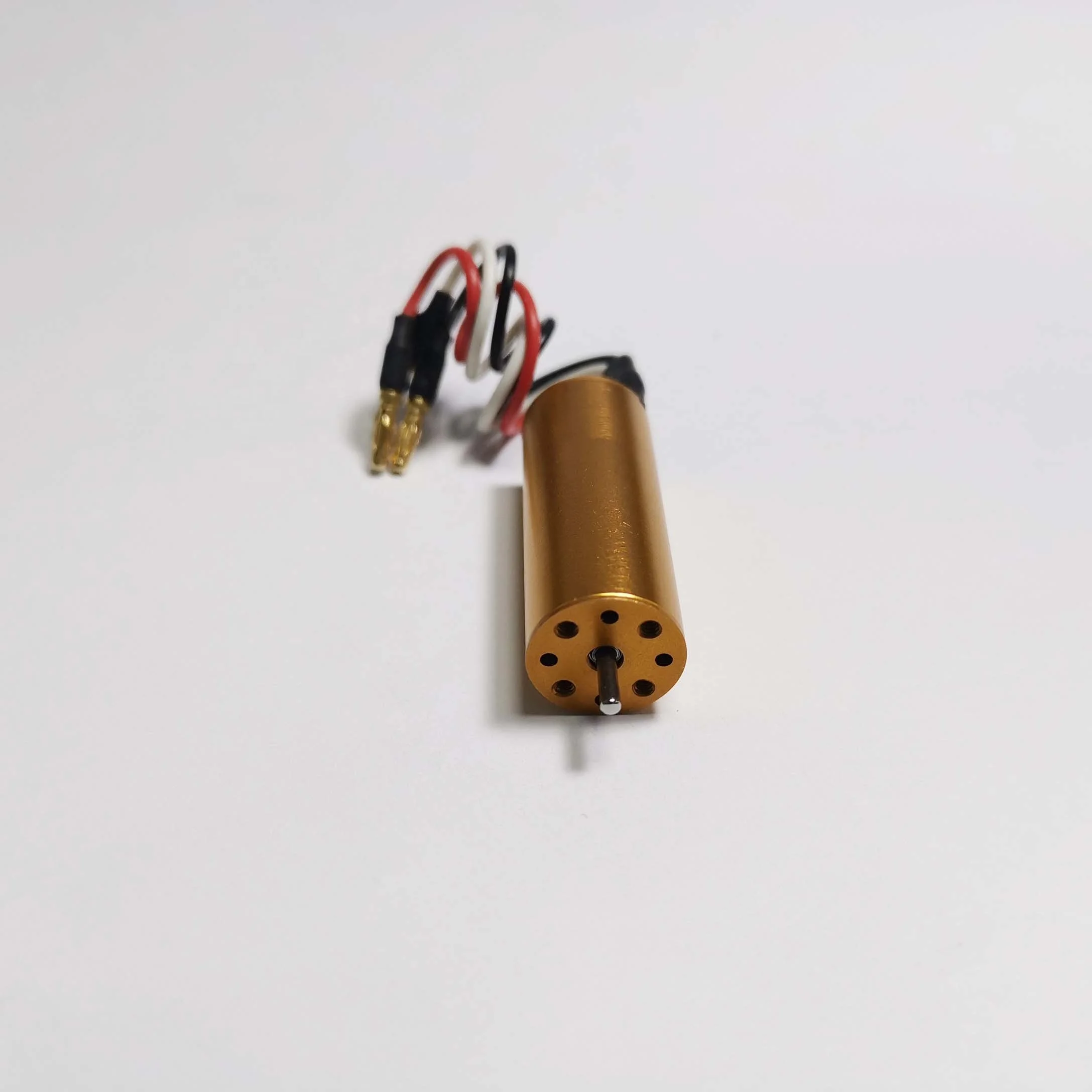

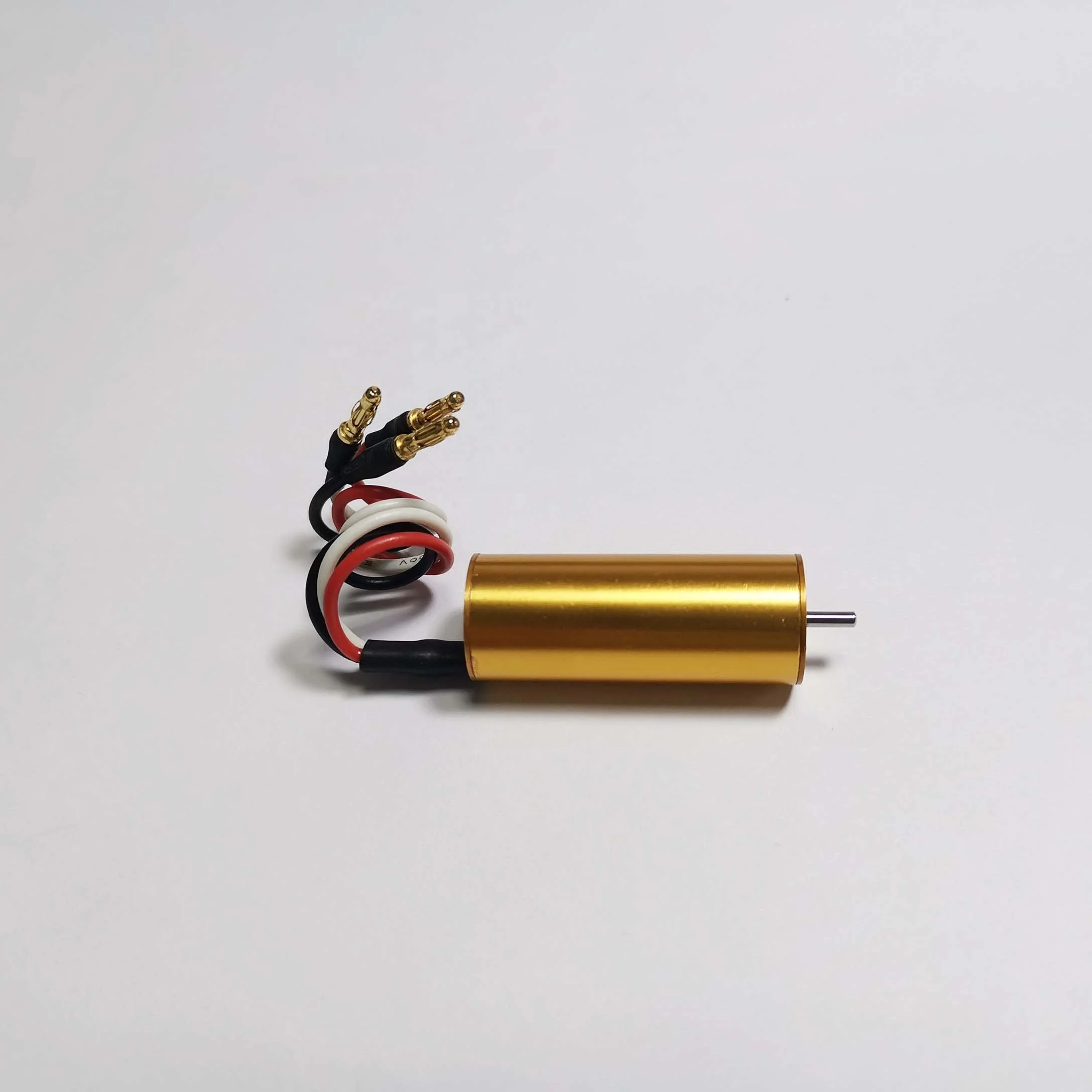

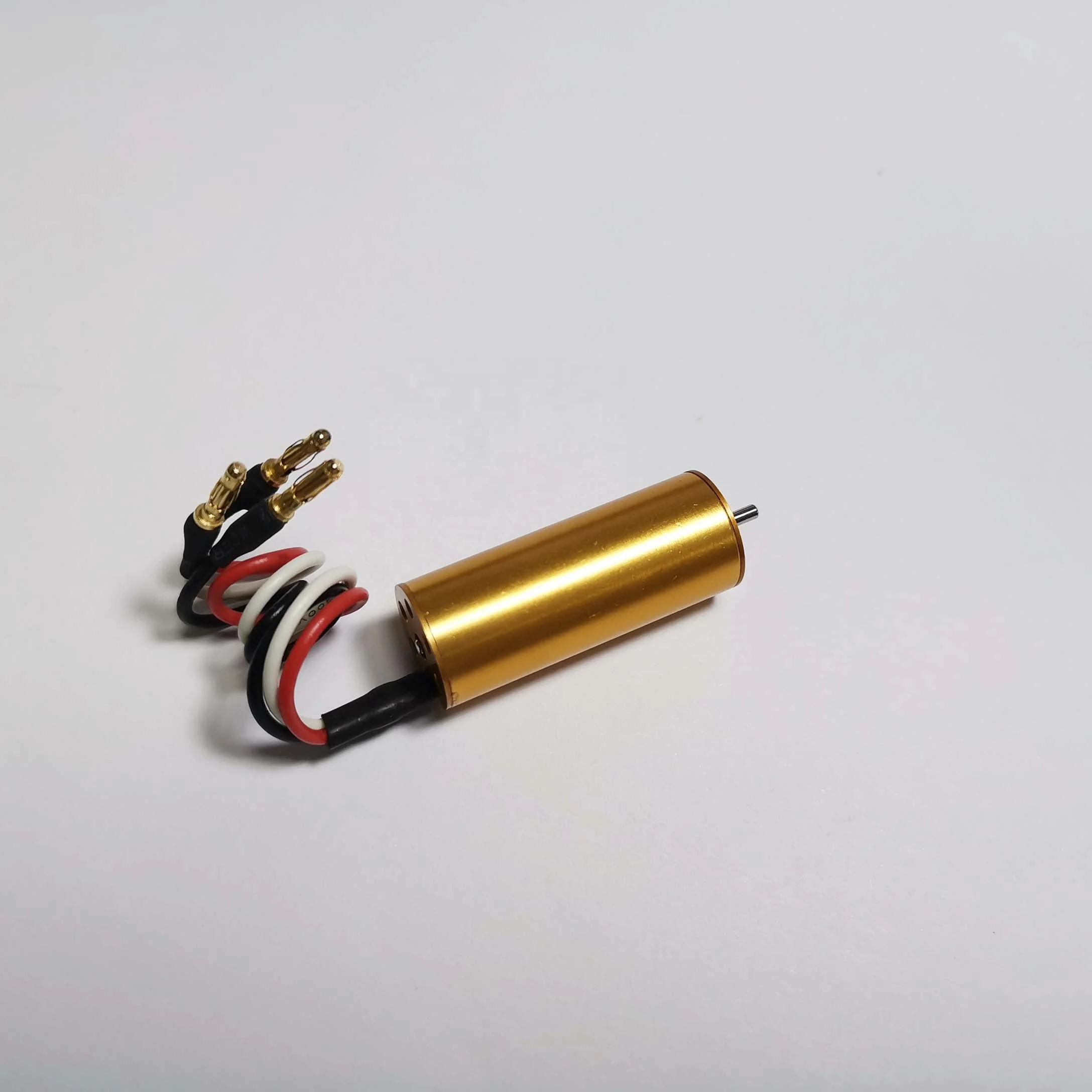

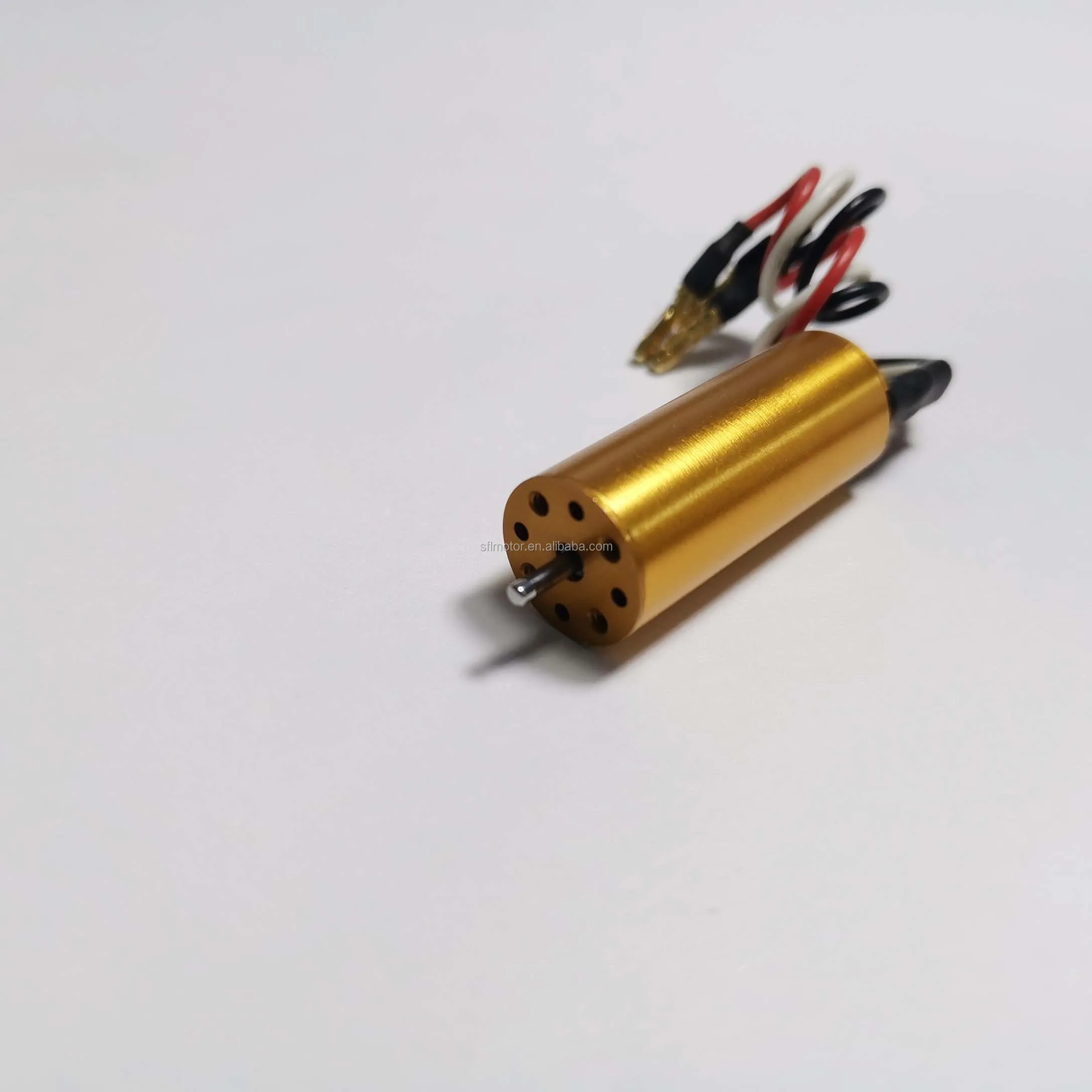

High precision dia12mm*30mm ultra long life bldc motor dental brushless 1230ZWW
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62248944682):
Product Overview
Description
Product Description
BRUSHLESS DC MOTOR
____________________________________________________________________________________
1230 Interior Rotor Without Sensor
Applications: Medical equipment, industrial equipment, navigation models, electrical
tools and mini household appliances,etc.
Operating Environment:-15~+50℃;15~90%RH
| Characteristics | ||||||
| -1-12.0 | -2-12.0 | |||||
| 1 | Voltage | V | 12 | 12 | ||
| 2 | Terminal resistance | Ω | 12 | 0.71 | ||
| 3 | No-load speed | rpm | 23040 | 43500 | ||
| 4 | No-load current | A | 0.05 | 0.42 | ||
| 5 | Load torque | mNm | 2.0 | 5.0 | ||
| 6 | Load speed | rpm | 12080 | 36420 | ||
| 7 | Load current | A | 0.45 | 2.31 | ||
| 8 | Max output power | W | 2.54 | 35.2 | ||
| 9 | Max efficiency | % | 62.1 | 68.9 | ||
| 10 | Back-EMF constant | mV/rpm | 0.52 | 0.28 | ||
| 11 | Torque constant | mNm/A | 5.0 | 2.65 | ||
| 12 | KV value | rpm/V | 1920 | 3630 | ||
| 13 | Rotor inertia | gcm2 | 0.21 | 0.21 | ||
| 14 | Weight | g | 15 | 15 | ||
| Options | ||||||
| Lead wires length, shaft length, special coils, gearheads, bearing type, encoder, driver | ||||||
| Characteristics Curve | ||||||
| 1230-1-12.0 | ||||||
 | ||||||
| Outline Drawing | ||||||
 | ||||||
Brushless Series
Adopt imported environmental friendly material, CNC machining and dynamic balance test, with the
features of low power consumption, low noise, durable in use, strong overload capacity, small electromagnetic
interference, small size, etc. Offer One-stop solution.
Application: medical instrument, industry equipment, aeromodelling plane, electric tool, beauty instrument,
smart home, car product, Office automation equipment.
| MODEL | SIZE | VOLTAGE | NO-LOAD SPEED | NO-LOADE CURRENT | KV VALUE | TORQUE CONSTANT |
| mm | v | rpm | mA | rpm/V | mN.m/A | |
| 1215ZWW | Φ12*15 | 3.6 | 36000 | 300 | 10000 | 0.92 |
| 4.5 | 15000 | 100 | 3333 | 2.63 | ||
| 7.4 | 43000 | 200 | 5811 | 1.56 | ||
| 1220ZWW | Φ12*20 | 5 | 18000 | 210 | 3600 | 2.52 |
| 6 | 17500 | 150 | 2917 | 3.1 | ||
| 7.4 | 23500 | 100 | 3176 | 2.95 | ||
| 1230ZWW | Φ12*30 | 3.7 | 18500 | 230 | 5000 | 1.95 |
| 9 | 18500 | 150 | 2056 | 4.65 | ||
| 12 | 12000 | 50 | 1000 | 9.65 |
