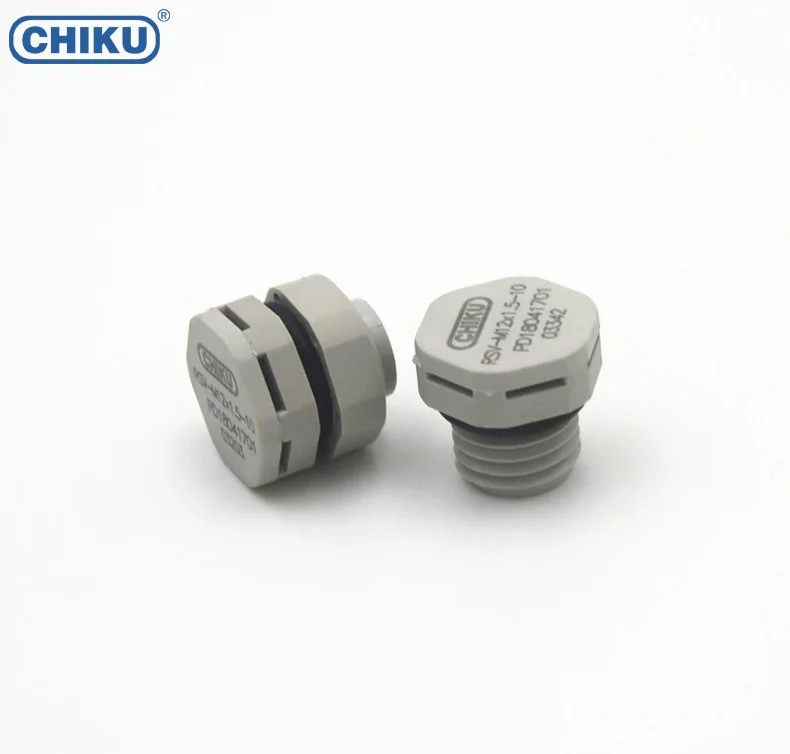

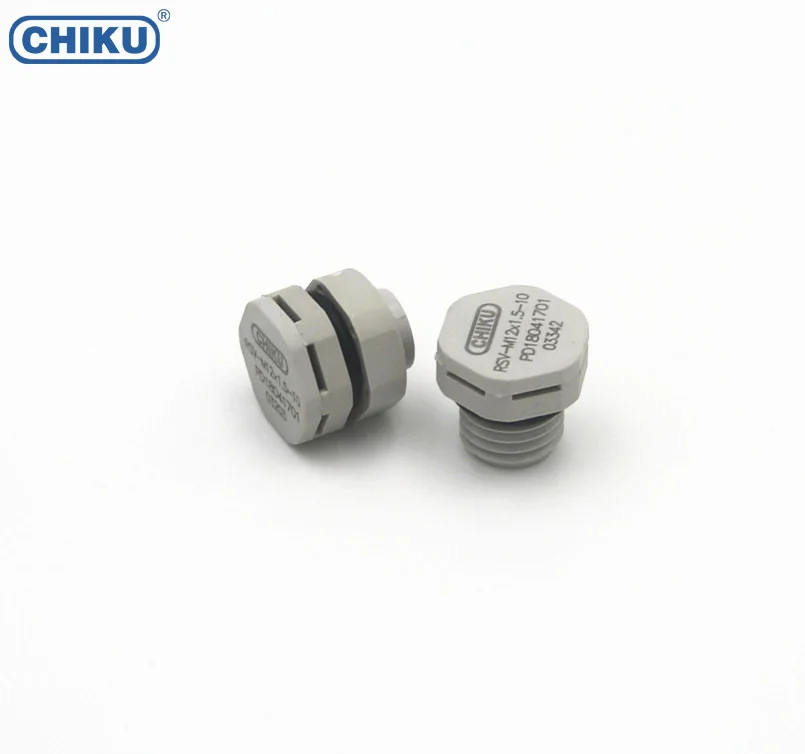

IP68 M12*1.5 Protective Vent,Ventilation Plug,plastic airflow vent
- Category: >>>
- Supplier: Jiangxi Huntec Electrical Technology Co. Ltd.
Share on (62248963781):
Product Overview
Description
Product Description

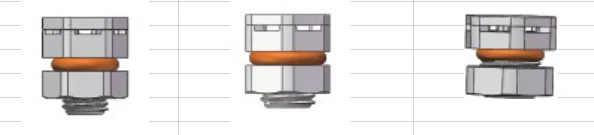

M6 to M40 Detailed Parameters:
| Ordering No. | RSV-M6*0.75 | RSK-M8*1.0 | RSK-M10*1.0 |
| Descriptions* | |||
| Product performance Characteristics | |||
| Air Permeability(ml)/min 0.07bar | 100-1200 | 150-1800 | 250-2700 |
| Membrane material | EPTFE | EPTFE | EPTFE |
| Membrane Characteristics | Oleophobic&Hydrophobic | Oleophobic&Hydrophobic | Oleophobic&Hydrophobic |
| Body Material | HDPE | PA66+25% glass fiber | PA66+25% glass fiber |
| Colors | BL / GY | BL / GY | BL / GY |
| Torque Wrench size | 10 | 12 | 14 |
| O-ring Material | Silica gel 60H shore hardness A | Silica gel 60H shore hardness A | Silica gel 60H shore hardness A |
| Clamping Nut meterial | PA66 | PA66 | PA66 |
| Fammability Level | V0 | V0 | V0 |
| Anti-UV(1000H) | 4-5 Level | 4-5 Level | 4-5 Level |
| Salt Resistance | 10<0.1% | 10<0.1% | 10<0.1% |
| Anti bacterial Level(GB/T 2423.16) | 1 Level | 1 Level | 1 Level |
| Anti High&Low temperature | -40°C-120°C | -40°C-120°C | -40°C-120°C |
| IP Level | IP66/IP68 | IP66/IP68 | IP66/IP68 |
| Ordering No. | RSV-M12*1.0 | RSK-M12*1.5 | RSK-M24*1.5 |
| Descriptions* | |||
| Product performance Characteristics | |||
| Air Permeability(ml)/min 0.07bar | 350-4000 | 350-4000 | 7500-19000 |
| Membrane material | EPTFE | EPTFE | EPTFE |
| Membrane Characteristics | Oleophobic&Hydrophobic | Oleophobic&Hydrophobic | Oleophobic&Hydrophobic |
| Body Material | HDPE | PA66+25% glass fiber | PA66+25% glass fiber |
| Colors | BL / GY | BL / GY | BL / GY |
| Torque Wrench size | 16 | 16 | 36 |
| O-ring Material | Silica gel 60H shore hardness A | Silica gel 60H shore hardness A | Silica gel 60H shore hardness A |
| Clamping Nut meterial | PA66 | PA66 | PA66 |
| Fammability Level | V0 | V0 | V0 |
| Anti-UV(1000H) | 4-5 Level | 4-5 Level | 4-5 Level |
| Salt Resistance | 10<0.1% | 10<0.1% | 10<0.1% |
| Anti bacterial Level(GB/T 2423.16) | 1 Level | 1 Level | 1 Level |
| Anti High&Low temperature | -40°C-120°C | -40°C-120°C | -40°C-120°C |
| IP Level | IP66/IP68 | IP66/IP68 | IP66/IP68 |
| Ordering No. | RSV-M32*1.5 | RSK-M40*1.5 |
| Descriptions* | ||
| Product performance Characteristics | ||
| Air Permeability(ml)/min 0.07bar | 10000-30000 | 20000-50000 |
| Membrane material | EPTFE | EPTFE |
| Membrane Characteristics | Oleophobic&Hydrophobic | Oleophobic&Hydrophobic |
| Body Material | HDPE | PA66+25% glass fiber |
| Colors | BL / GY | BL / GY |
| Torque Wrench size | 48 | 58 |
| O-ring Material | Silica gel 60H shore hardness A | Silica gel 60H shore hardness A |
| Clamping Nut meterial | PA66 | PA66 |
| Fammability Level | V0 | V0 |
| Anti-UV(1000H) | 4-5 Level | 4-5 Level |
| Salt Resistance | 10<0.1% | 10<0.1% |
| Anti bacterial Level(GB/T 2423.16) | 1 Level | 1 Level |
| Anti High&Low temperature | -40°C-120°C | -40°C-120°C |
| IP Level | IP66/IP68 | IP66/IP68 |
Applications:
 In Telecommunications &Telecommunications. |
In Lighting Field | dust/water | Air |
In Automotive Field |
In Solar & Photovoltaic Field | dust/water |
