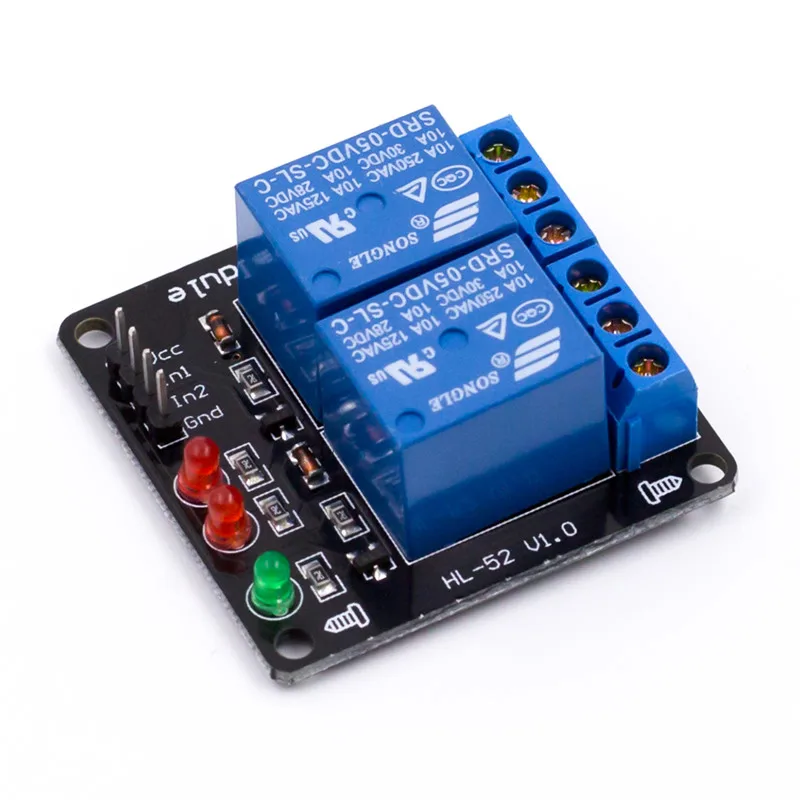

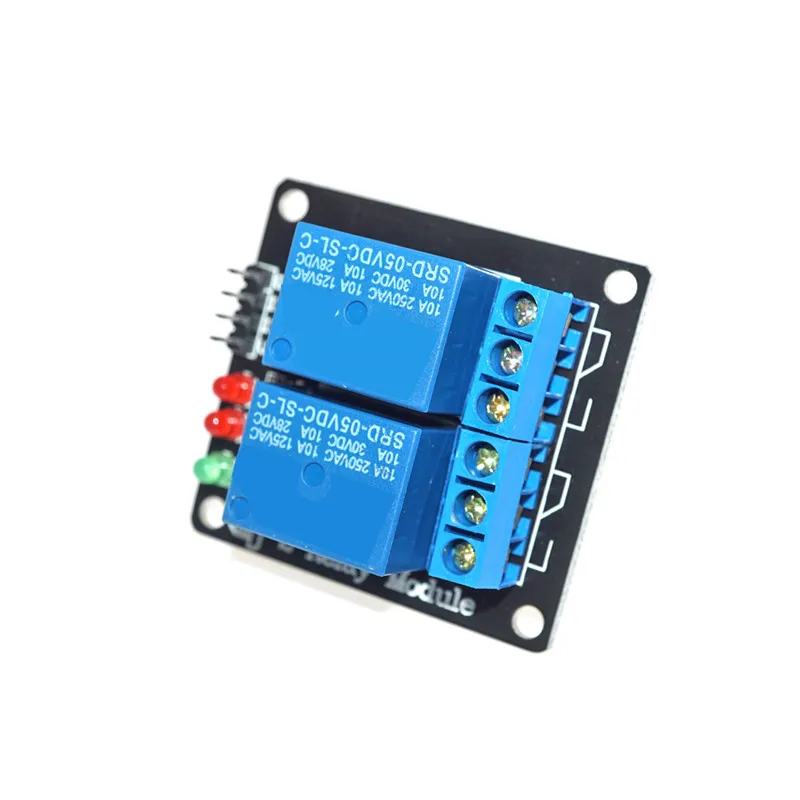

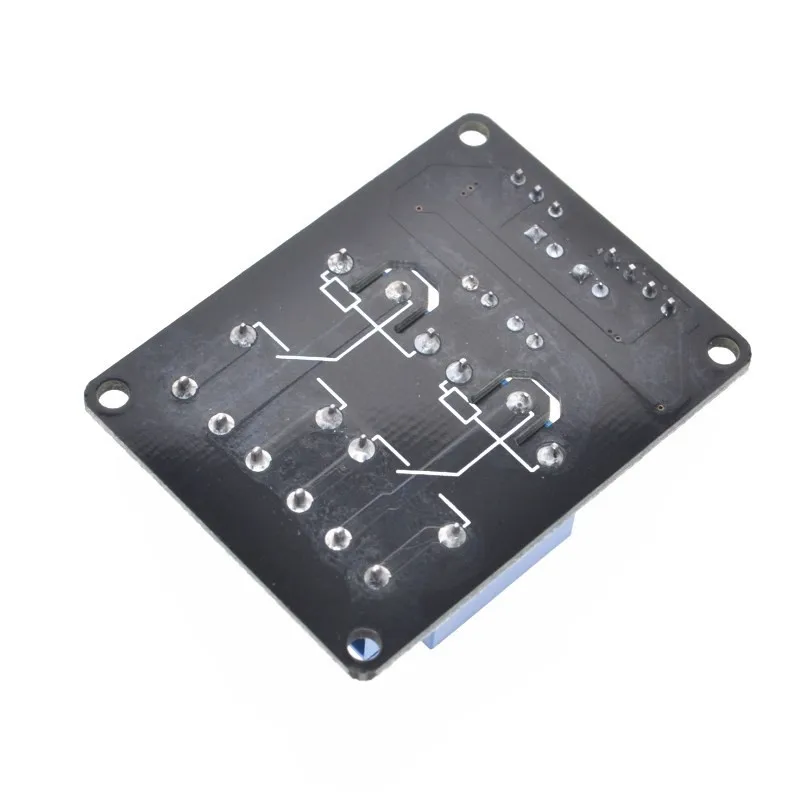

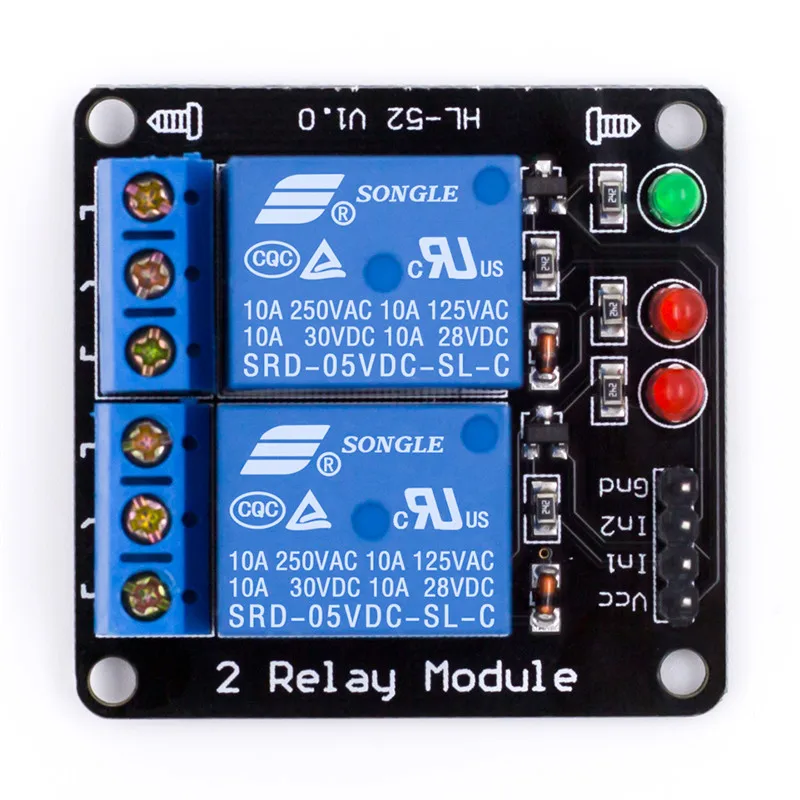

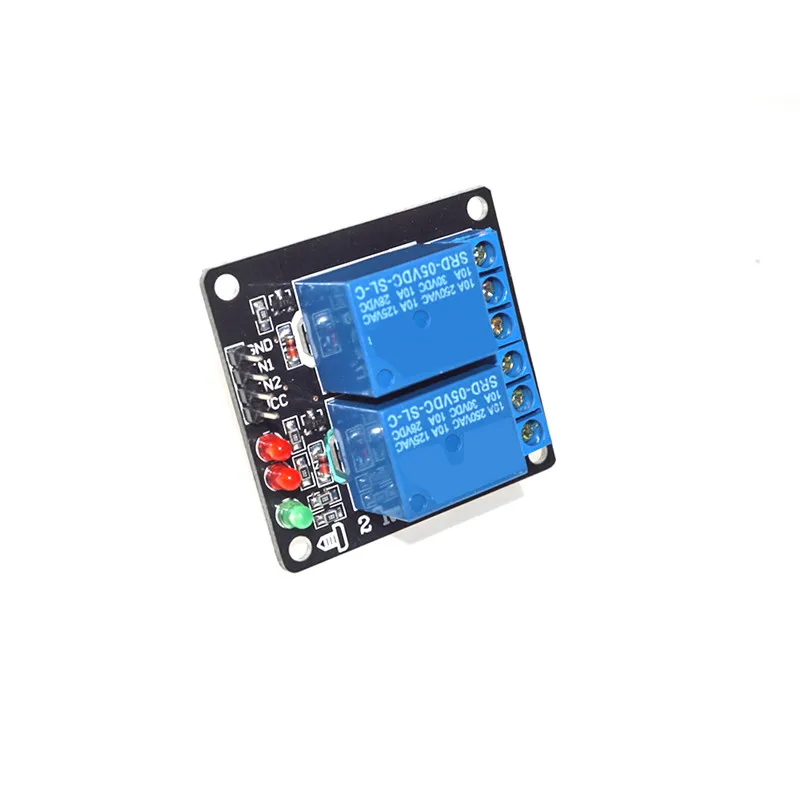

5V 12V 24V 2 Channel Relay Module Optocoupler isolation support high and low level trigger for MCU

Product Overview

Description

5V 12V 24V 2 channel relay module optocoupler isolation support high and low level trigger for MCU

Description:

1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A;
2, SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;
3, the module voltage 5V, 12V, 24V to choose from;
4, the module can be set high or low triggered by jumper;
5, fault-tolerant design, even if the control line is broken, the relay will not operate;
6, power indicator (green), relay state indicator (red)
7, interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
8, module size: 50mm * 26mm * 18.5mm (L * W * H)
9, has 4 mounting bolts holes, hole 3.1mm, 44.5mm * 20.5mm spacing
