Model CB 150D Portable Electric Aluminum Hydraulic Bus Bar Cutter

Product Overview

Description

Model CB-150D Portable Electric Hydraulic Bus-Bar Pipe Bender Manual Bar Bender



Application

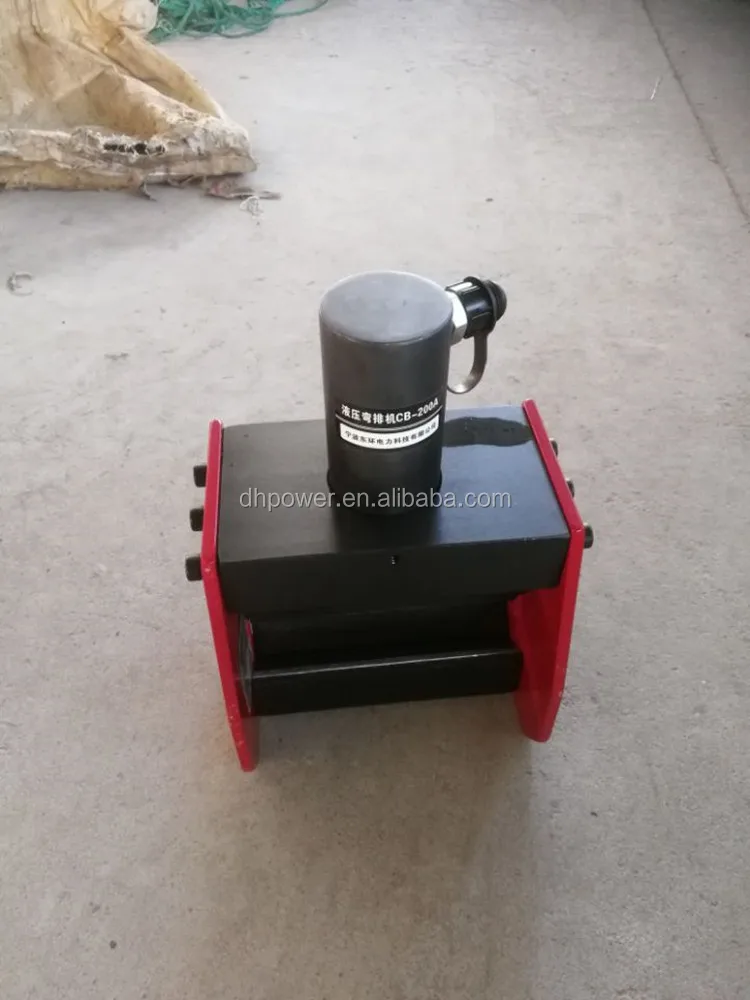

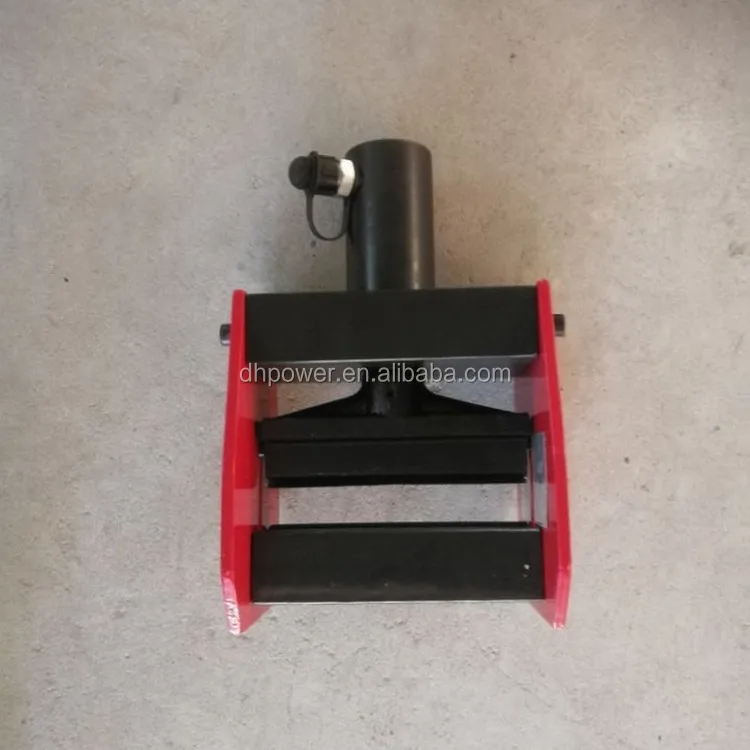

16T CB-150D portable hydraulic bus bar bender is durable due to fixed structure, and bending plane is adopted for support. Equipped with scale plate, it can look for the bending angle. And bending range is from 0 to 90 °. Working with a manual hydraulic pump or an electric hydraulic pump.

Specification



Item number	06242	06242A
Model	CB-150D	CB-200A
Bending force	170KN	170KN
Max thickness of sheet	CU/AL plate 10mm	CU/AL plate 12mm
Width of sheet	CU/AL plate 150mm	CU/AL plate 200mm
Height	approx.250mm	approx.340mm
Weight	approx.N.W17KG G.W20.5KG	approx.N.W27KG G.W30.4KG
Package	wooden case	wooden case
