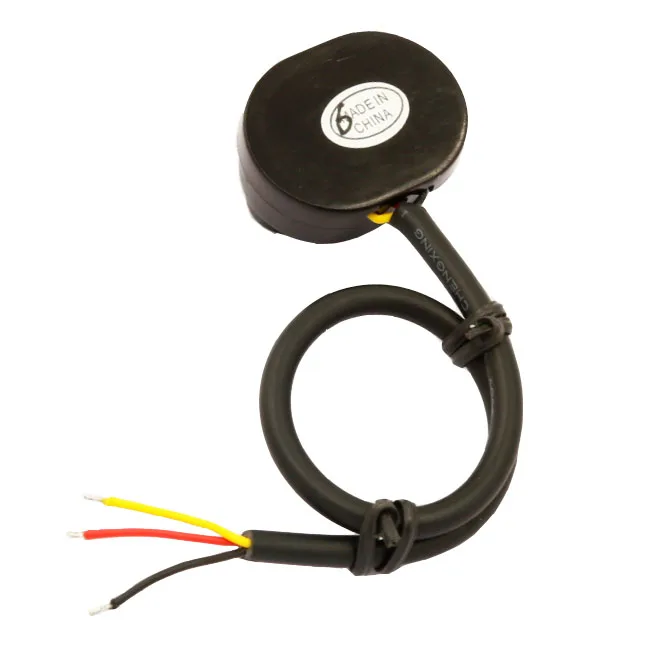

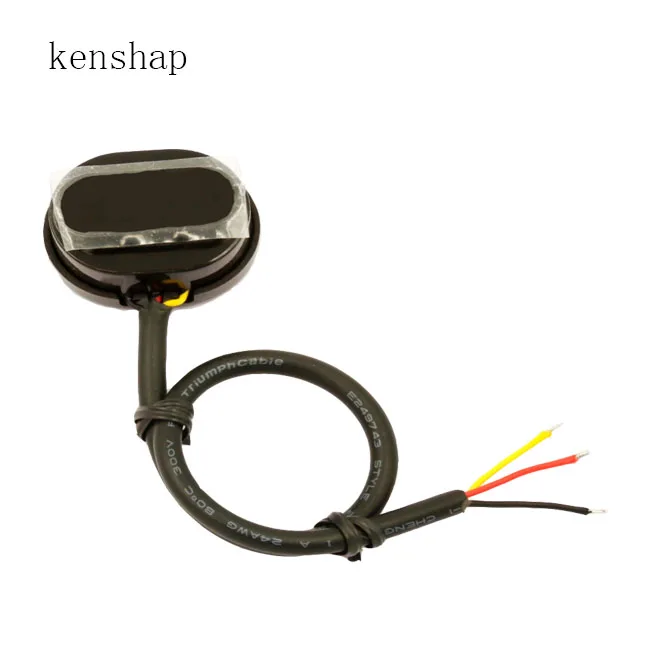

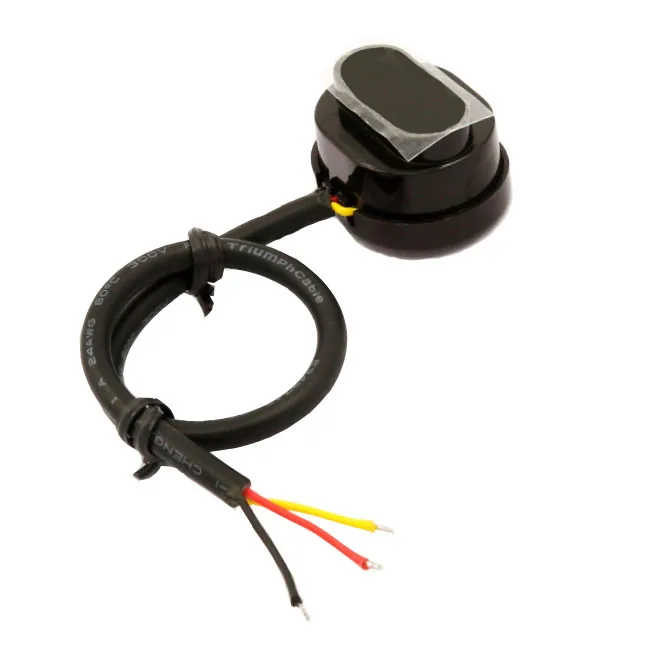

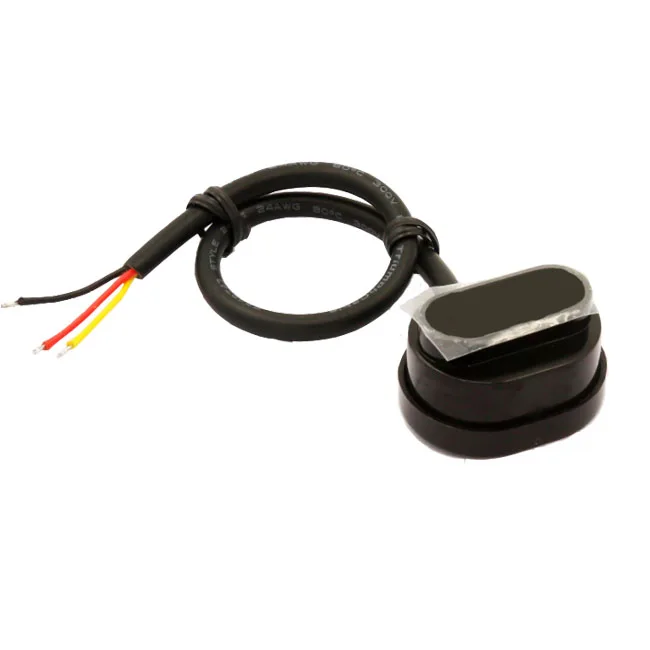

Infrared sensor Infrared diffuse reflection sensor

Product Overview

Description

Overview



Quick Details



Place of Origin	Guangdong,China(Mainland)		Brand Name	kenshap
Model Number	LYXD-IR01A-AVR		Usage	Automatic Infrarde Tap Sensor
Input Voltage	DC 5V-24V		Output Voltage	DC 3.3V
Color	Brown		Line Lenhth	200mm
Quiescent Current	≤10uA		Scan cycle	500ms(Custmizable)



Supply Ability



Supply Ability:     5000 Piece/Pieces per Week





Packaging & Delivery



Packaging Details       500PCS/ctn



Port                              ShenZhen



Lead Time                   With 5 working days



The LYXD-IR01A-AVR is an intelligent non-contact sensing distance adjustable infrared sensor.Can be used for intelligent lighting,alarms,trash cans,faucets,urnals,sanitary ware,etc.



Features:



1  Contactless sensor switch;

2  Excellent anti-interference ability;

3  Small detection angle;

4  1-200cm sening distance linear adjustment;

5  Penetrating transparent organic materials such as glaww,acrylic,PC cover...;

6  After induction,multiple output modes can be customized;

7  PCB board structure shape and module sensing scheme can be customized;

8  Application:face recognition,robots,smart sensor sanitary ware,home security,etc.



Specifications:



1 \ Power supply:   ≥DC5V,  ≤DC24V;

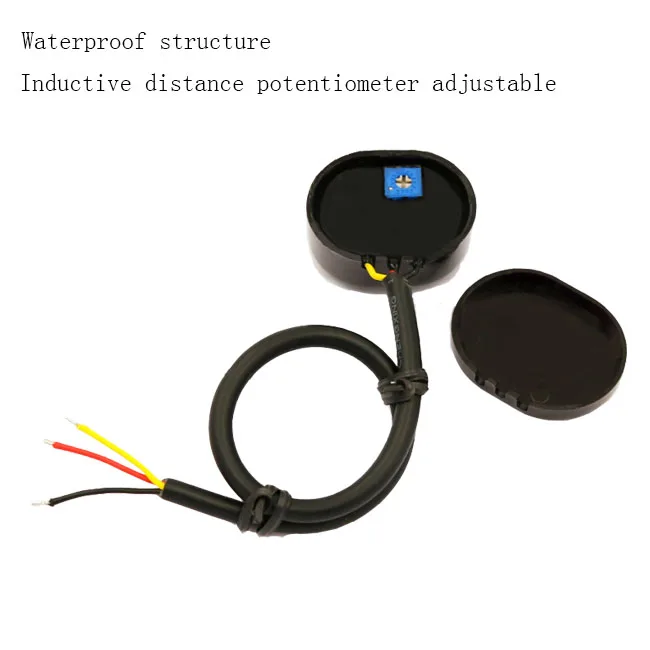

2  \ Induction range: 1cm-200cm (adjustable,clockwise  →farther,counterclockwise→closer);

3 \ Sensor angle:10-15°

4  \ Sensor type:valid;

5  \ Power consumption:<10uA;

6  \ Output mode:high and low level output;

7 \ Indication:Red indication;

8  \ Working temperature:-10-50℃.

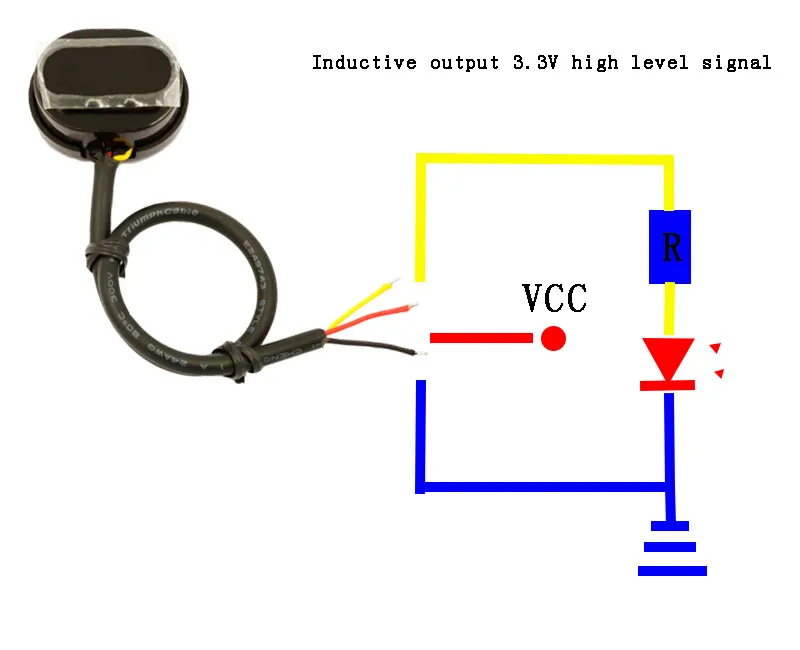

Application wiring diagram:











Note:



Customized by customers:including product function,PCB shape,plastic mold design and processing...!
