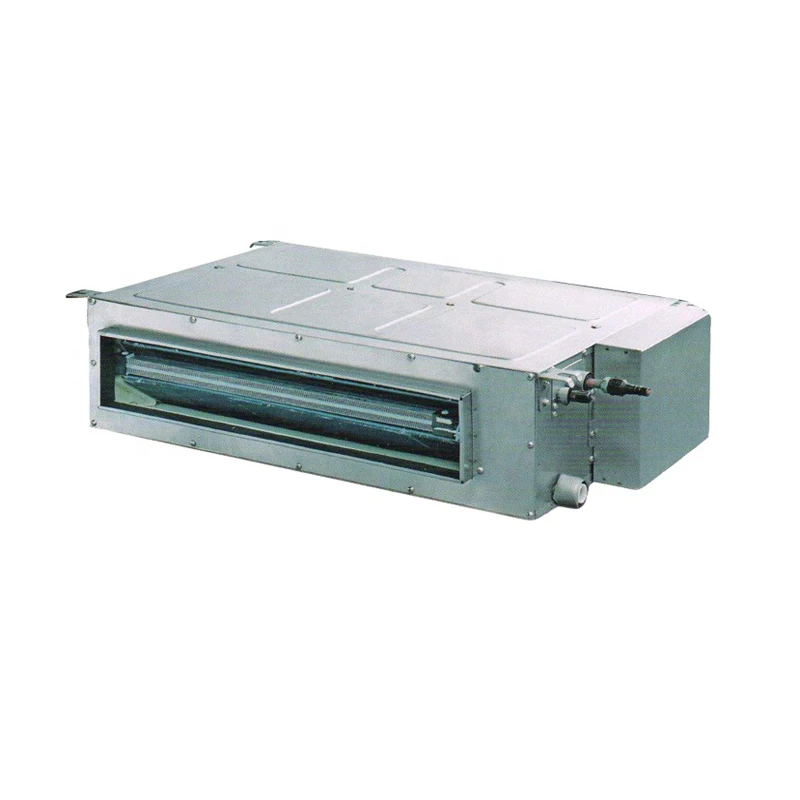

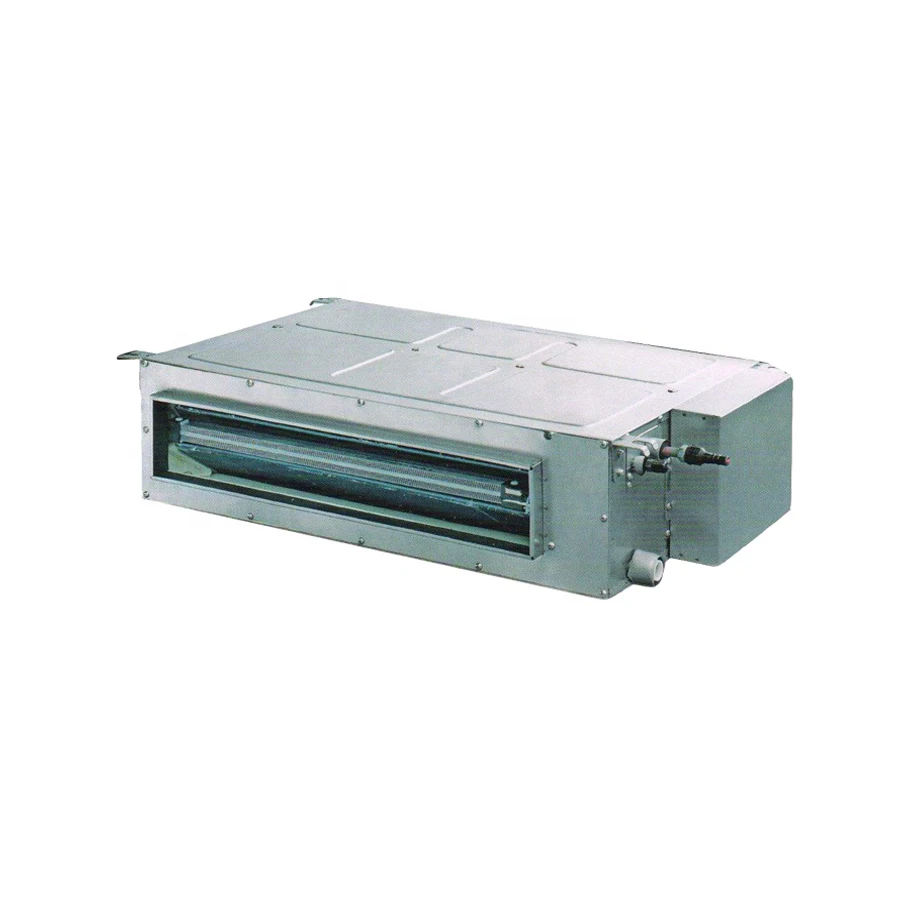

Центральный комнатный потолочный кондиционер, вентилятор охлаждения воздуха
- Category: Other Air Conditioning Appliances >>>
- Supplier: Puremind Technology Co. Ltd. Zhuhai
Share on (62249371280):
Product Overview
Description
| Model | GMV-N(R)28PLS/PMD | GMV-N(R)36PLS/PMD | GMV-N(R)50PLS/PMD | GMV-N(R)71PLS/PMD | |
| Cooling Capacity | kW | 2.80 | 3.60 | 5.00 | 7.10 |
| Heating Capacity | kW | 3.20 | 4.00 | 5.60 | 8.00 |
| Air Volumn | m3/h | 450 | 540 | 700 | 1100 |
| Noise(H/L) | dB(A) | 30/22 | 32/25 | 35/27 | 36/30 |
| Static Pressure | Pa | 10/15 | 10/15 | 10/15 | 10/15 |
| Power Supply | 220V~50Hz | ||||
| Input Power | Cooling | 0.065 | 0.07 | 0.08 | 0.12 |
| Heating | 0.065 | 0.065 | 0.08 | 0.12 | |
| Connection Pipe | Gas Pipe | 9.52 | 12.7 | 12.7 | 15.9 |
| Liquid Pipe | 6.35 | 6.35 | 6.35 | 9.52 | |
| Connection Way | Bell-mouth connection | ||||
Drain-pipe (Out diameter*Wall Thickness) | mm | 25*2.5 | |||
| Dimension(W*D*H) | mm | 710*450*200 | 710*450*200 | 1010*450*200 | 1310*450*200 |
| Net Weight | kg | 19 | 20 | 25 | 30.5 |
| Recommended power cord | mm2*piece | 1.0*3 | 1.0*3 | 1.0*3 | 1.5*3 |
Can be used with the following central air-conditioning mainframe:
