Simulated Environmental High Frequency Temperature Humidity Vibration Table Test Machine Price

Applications:

This Simulated Environmental High Frequency Temperature Humidity Vibration Table Test Machine Price complied with national standard, able to satisfy special testing requirements ,is widely applied for electronic and electric products, automotive parts ,components and materials by high low constant temperature ,temperature change, shock, damp heat vibration etc combined environment simulation reliability test.

Features:

With high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel. Insulation material adopt fire resistant high strength PU polyurethane foaming thermal insulating material. More than 20% energy saving is achieved &thanks to the introducing of Japan & German advanced refrigerator control technology. Control system and control circuit components all introduced with famous brand.

Standard Compliance:

1. IEC68-2-1 (GB2423.1-2008)

2. IEC68-2-2 (GB2423.2-2008)

3. IEC68-2-3 (GB2423.3-2006)

4. IEC68-2-30 (GB2423.4-2008)

5. IEC68-2-14 (GB2423.22-2008)

6. MIL-STD-810D (GJB150.3A-2009)

7. MIL-STD-810D (GJB150.4A-2009)

8. MIL-STD-810D (GJB150.9A-2009)

Vibration table configuration:

1. Air-cooling series electrical vibration system

2. Water-cooling series electrical cooling system

3. Digital random vibration controller

4. Digital sine vibration controller

Moving method:

1. High low temperature (damp heat) test chamber with slide rail

2. Match with vibration table via moving high low temperature (damp heat) test chamber on slide rail

3. Vibration table with slide rail

4. Match with high low temperature (damp heat)test chamber via vibration table moving on slide rail .

Connection Method:

1. Adopt connecting shaft connection method (match with vertical vibration)

2. Vibration table get into the chamber via connecting shaft ,match with the test chamber to reach combined testing effects .

3. Vertical, horizontal combined vibration ,can customize design

Product specification:

Performance parameters:

Temp. Range	B:-20~150℃   C:-40~150℃   D:-70~150℃
Humidity Range	20-98%RH
Temp. Fluctuation	≤±0.5℃
Temp. Deviation	≤±2℃
Temp. Uniformity	≤±2℃
Humidity Fluctuation	≤±2.5%RH
Humidity Deviation	Temperature 75%RH: ≤+2,-3%RH;Humidity 75%RH: ≤±5%RH

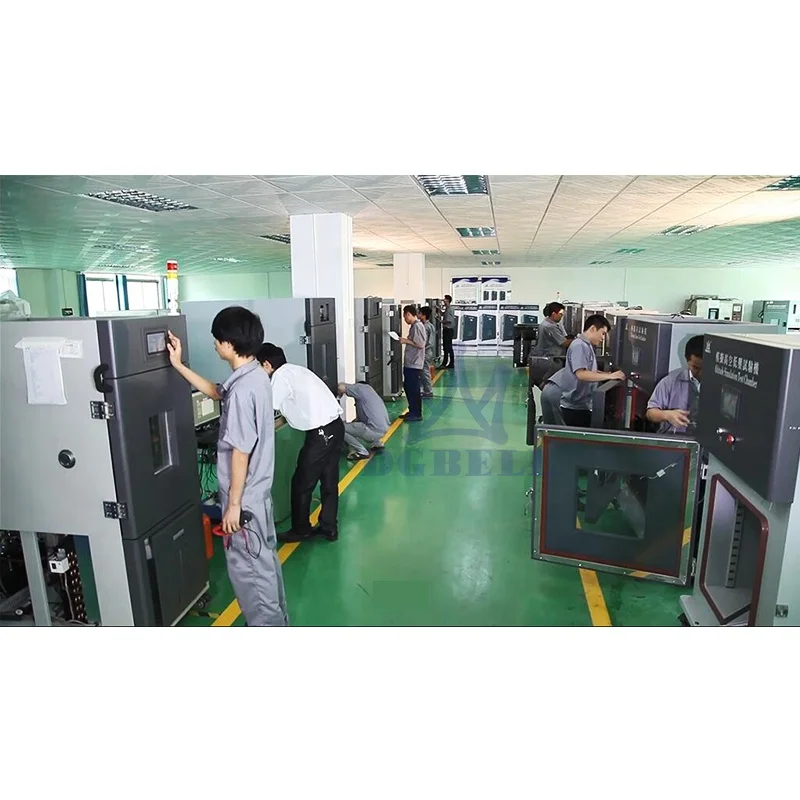

GuangDong Bell Experiment Equipment Co., Ltd is located in Dong Cheng District, Dong Guan City Guangdong Province, with register capital of RMB16.8 million. The factory covers an areas of 20,000 square meters with a building area of over 12,000 square meters. We are a high-tech enterprise specialized in manufacturing Battery Safety Test Equipment, Environmental Test Equipment and Mechanical Test Equipment, with more than 10 years’ experience of R&D.

Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification. Enable us to provide excellent equipment and service to satisfy various customers, especially the customized non-standard equipment. Our experienced and well trained engineer team provides installation and after-sales service, making Bell to be the leading manufacturer of test equipment in China.

This is a set of pictures from the EV battery supplier of a German Automotive’s test lab!

Really amazing! Neat devices are arranged together.

In this lab, more than 70 devices were purchased from us.

The supplier purchased:

• 48 sets of Double-deck Temperature Cycling Test Chambers


• 26 sets of Explosion-proof Temperature Cycling Test Chambers

They are all used in conjunction with EV battery charge & discharge testing.

Packing:

1.    Fully packed with PE film;

2.    Wooden box;

3.    Machine is fastened to the corners of the containers;

4.    If export to European countries, the wooden box will be fumigated;

5.    Customized package is available.

FAQ:

1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

-Yes, we are manufacturer of Simulated Environmental High Frequency Temperature Humidity Vibration Table Test Machine Price. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3.  Do you accept customization service? Can I have my logo on the machine?

-Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine

4.  what about the products' quality?

-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.

5.what about the packing of equipment?

-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
