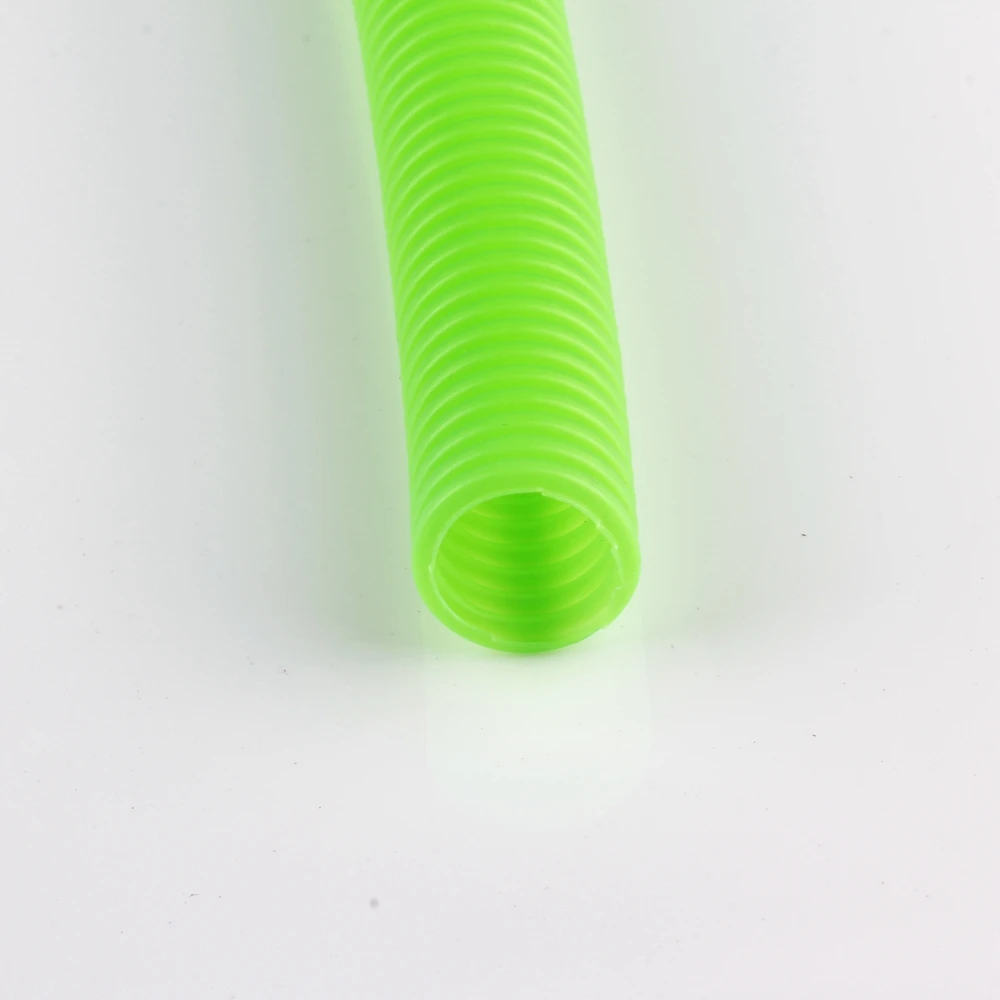

23.5mm green PP Dog Cat Cord Protector,Corrugated Tube Conduit,Split Loom TUBING Cover Auto Home Marine
- Category: >>>
- Supplier: Dongguan Liansi Electronics Co. Ltd.
Share on (62249866246):
Product Overview
Description
Product Description

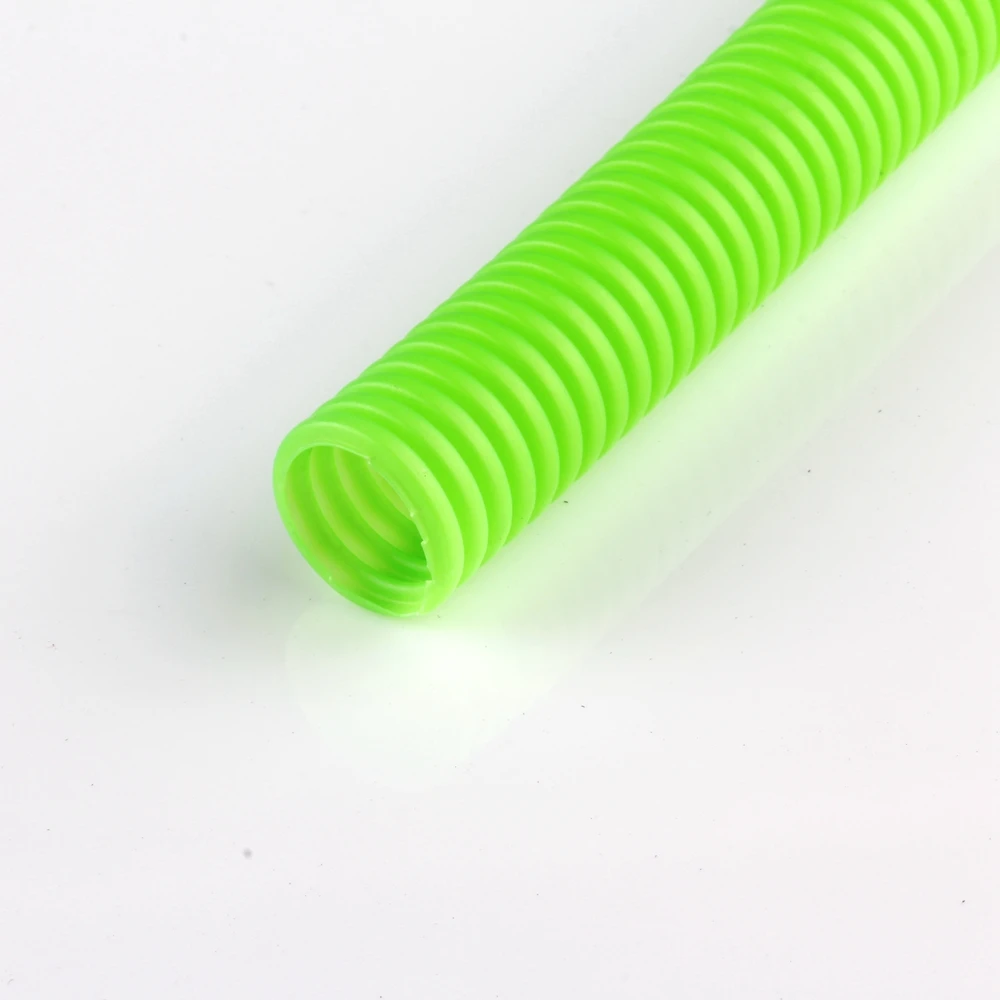

Corrugated Cable Conduit
Material : 1)MELG :PE 2)MNLG :PA 3)MDLG :PP
Operating range:
1) MELG: – 40°C -- +90°C
2) MNLG: –40°C -- +130°C
3) MDLG: –30°C -- +110°C
Certificate: RoHS
Other features: Highly abrasion resistance, resist acids, solvents and fuels resistance.
Cutting tool:Scissors
Operating range:
1) MELG: – 40°C -- +90°C
2) MNLG: –40°C -- +130°C
3) MDLG: –30°C -- +110°C
Certificate: RoHS
Other features: Highly abrasion resistance, resist acids, solvents and fuels resistance.
Cutting tool:Scissors
◆Corrugated flexible conduit offers a wide range technical properties for your cable and wire management applications, not only against mechanical damage, but also the influences of UV radiation, weathering and chemicals. The flexible body allows for the cables in the corner and elbow. We also supply the split style for easy installation and removal.
PE Material | PA Material | PP Material | (D*D)Specifivation | (R+10%)Bend radius |
LS-PE7 | LS-PA7 | LS-PP7 | 4.5*7.0mm | 5.0 |
LS-PE8.5 | LS-PA8.5 | LS-PP8.5 | 5.5*8.5mm | 8.0 |
LS-PE10 | LS-PA10 | LS-PP10 | 7.0*10.0mm | 10.0 |
LS-PE12 | LS-PA12 | LS-PP12 | 8.5*11.5mm | 15.0 |
LS-PE13 | LS-PA13 | LS-PP13 | 10.0*13.0mm | 20.0 |
LS-PE15.8 | LS-PA15.8 | LS-PP15.8 | 12.0*15.8mm | 30.0 |
LS-PE18.5 | LS-PA18.5 | LS-PP18.5 | 14.3*18.5mm | 40.0 |
LS-PE21.2 | LS-PA21.2 | LS-PP21.2 | 17.0*21.2mm | 45.0 |
LS-PE25 | LS-PA25 | LS-PP25 | 21.0*25.0mm | 50.0 |
LS-PE28.5 | LS-PA28.5 | LS-PP28.5 | 23.0*28.5mm | 55.0 |
LS-PE34.5 | LS-PA34.5 | LS-PP34.5 | 29.0*34.5mm | 60.0 |
LS-PE42.5 | LS-PA42.5 | LS-PP42.5 | 36.0*42.5mm | 70.0 |
LS-PE54.5 | LS-PA54.5 | LS-PP54.5 | 48.0*54.5mm | 80.0 |
Product Features
Application:
It is widely used for protecting wires and cables harnesses in automotive, equipment, railway etc. It also can be used for protecting the hydraulic hoses.
Certifications
Company Profile
Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant UL, ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.
From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.
Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days
Reception
WorkShop
Office
Exhibition
Related Products
19MM/3/4'' Self closing automotive split braided wire loom for wire
3mm 4mm Colorful PET Braided Expandable Cable Sleeve for wire cable
Expandable Braided Sleeving PPS Monofilament Yarn Cable Sleeve Black
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
