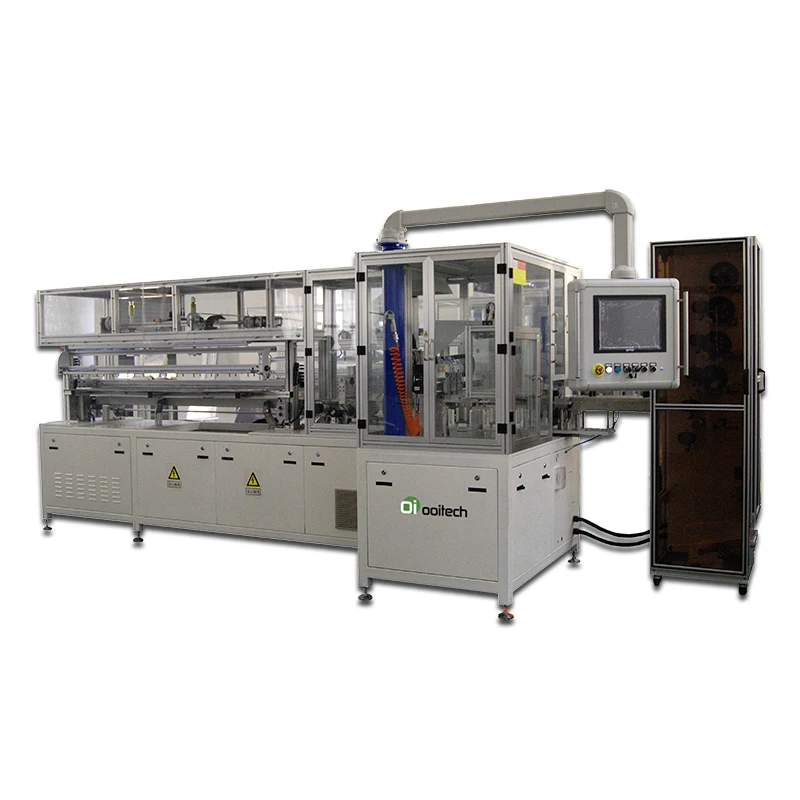

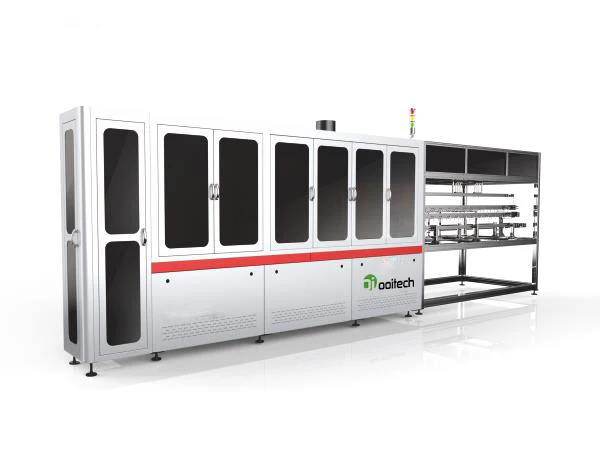

High Speed Full Automatic solar cell string welding machine
Product Description
Welding speed
1200pcs/H
Breakage rate
≤2‰(grade A)
Welding methods
Infrared welding
Apply flux
Spray welding ribbon
Cell bus types
4BB 5BB 6BB
Cell specification
156X156 1/2, 1/3 cells, Complete cells.
Cell spacing
1.5-40mm (according to cells size setting)
Use the width of the Ribbon
1.0mm,1.1mm,1.2mm;1.6mm;1.8mm; (optional)
Welding force
3N (1.6 Ribbon, 180 degrees)
Each series number of cells
1-12 (adjustable)
White weld
≤±0.3mm
Spacing bias
≤0.2mm
String length error
≤± 0.5mm (length 2000mm)
Linearity error
≤ ± 0.5mm (length 2000mm)

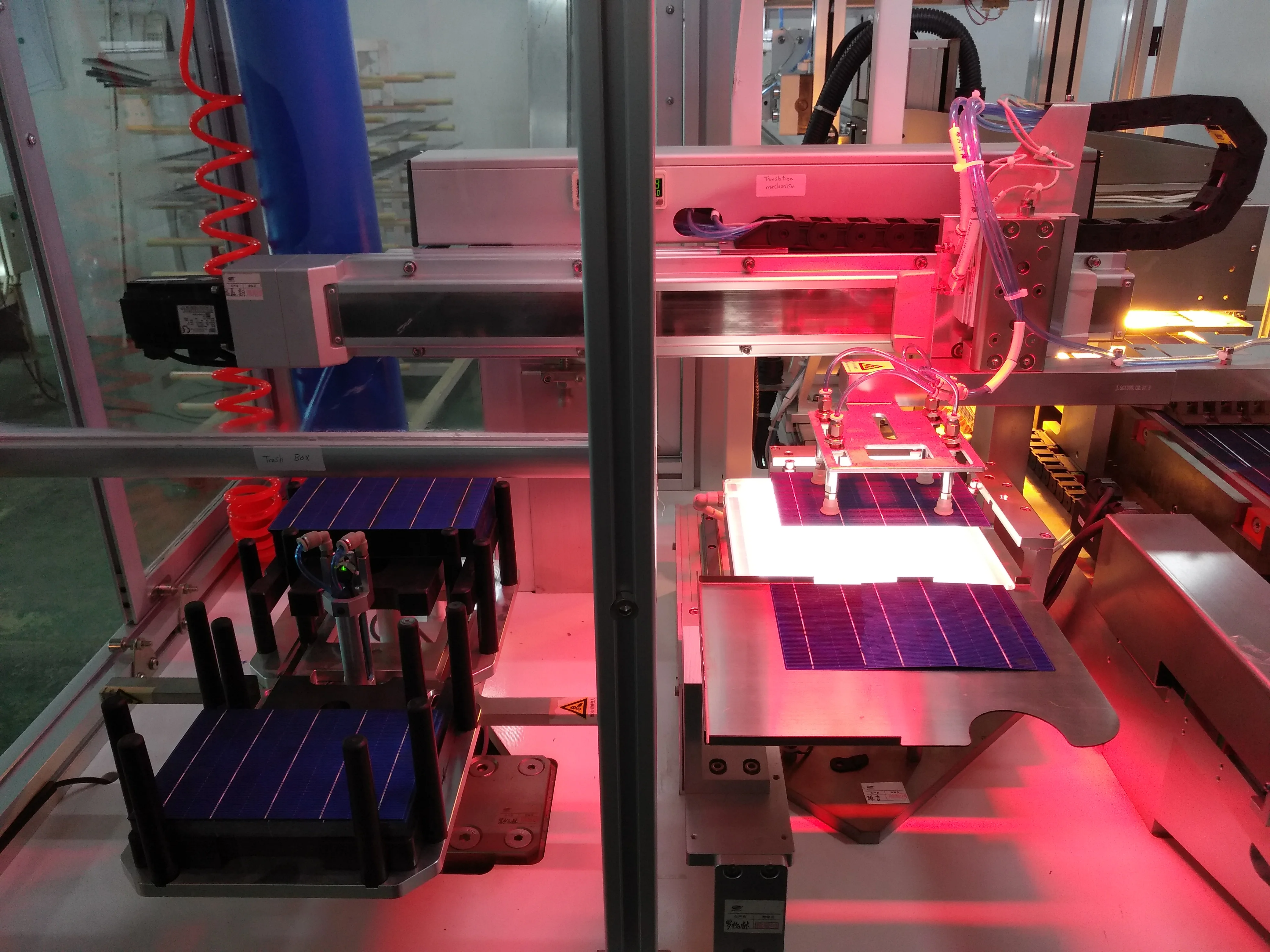

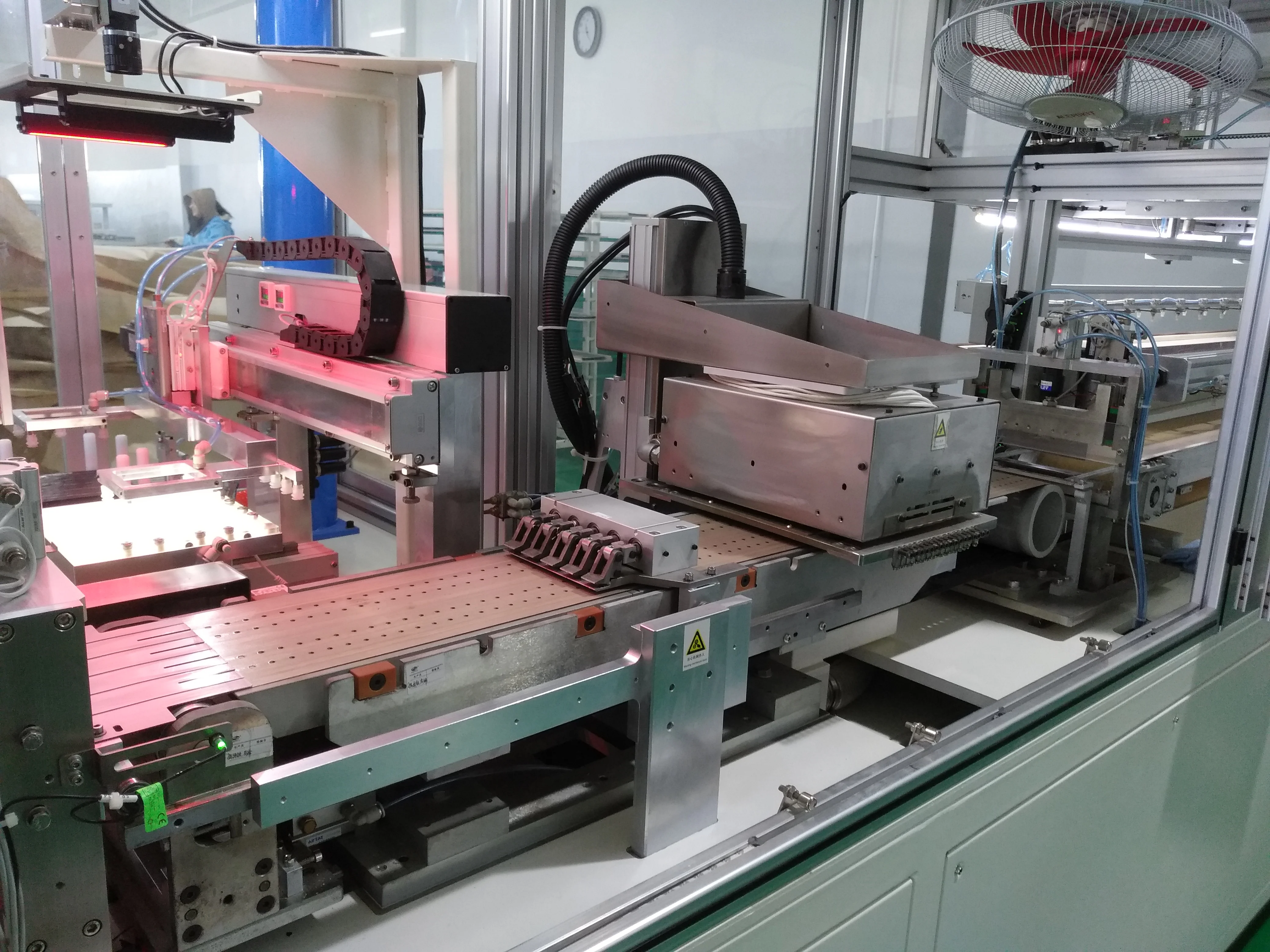

Tabber & Stringer SGT-1200 used for crystalline solarcells welding.it adopts Rotary cells feeder unit, cells moving unit, industrial CCD detection system, cell positioning unit , ribbon unwinding unit, ribbon arrangesing unit, ribbon layup unit, transfer cell adsorption units, welding unit, string cutting unit, string transfer unit, cell string turnover device and PLC controller.
1, steel bases, milling of mounting surface, stable structure;

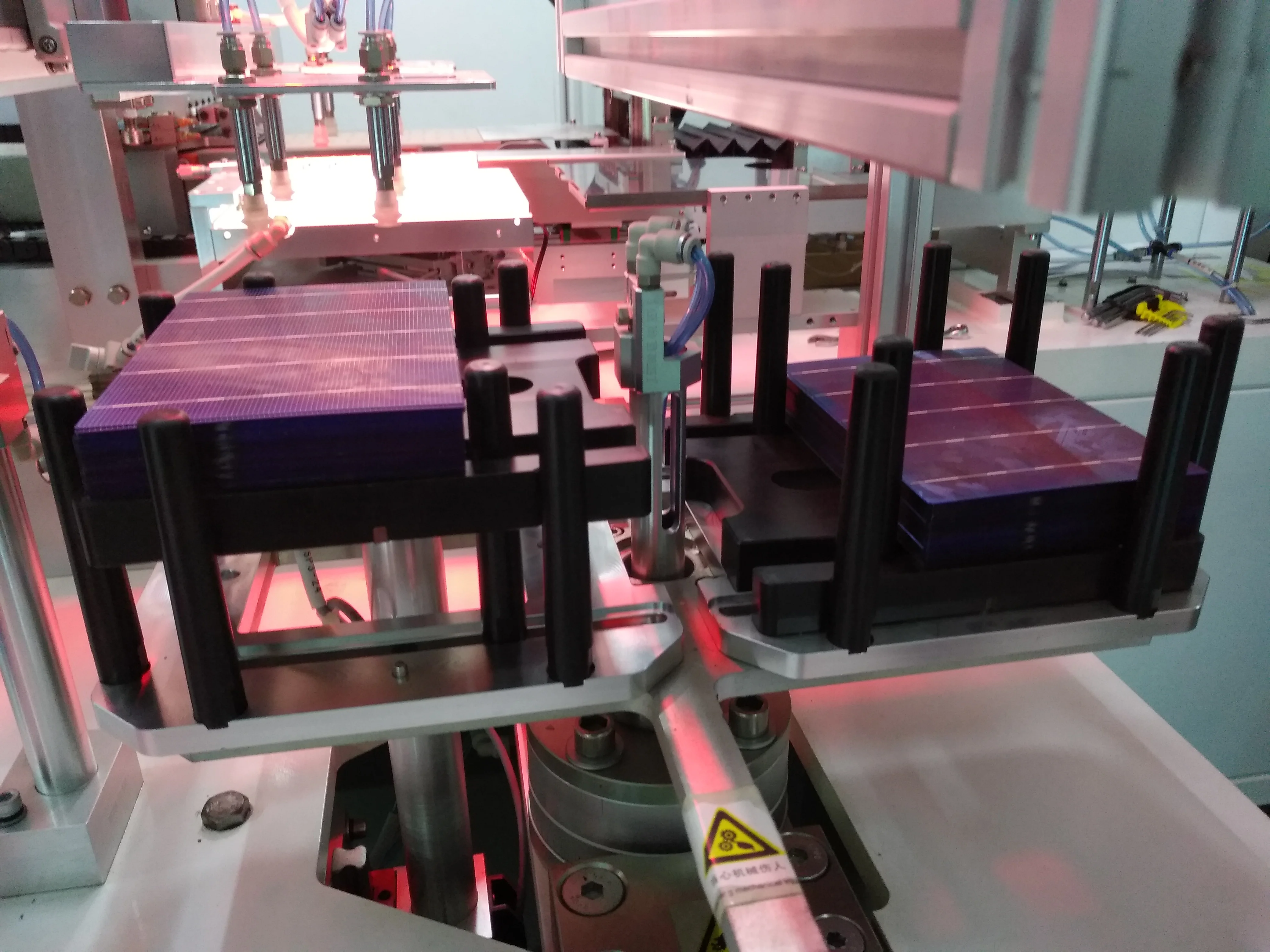

2, Rotary cells feeder unit, easy feeding;
3, 5 million px industrial CCD, high-precision detection and location;
8, PLC control systems, servo motor , with IO bus;
9, compatible with 156X156 3BB 4BB 5BB 6BB (replacement parts)
Packaging & Shipping
Company Information
FAQ
Q: Equipment Quality,Reliability Warranty?
1) Every machine in the detection process, through specialized testing equipment and facilities, before machine out of our factory machine text 24 hours. 2) All of our machine have 1 year quality Warranty from customer receive machine.Company have built life-long correspondence files.
Q: Why choose us ?
A: Doing business with Ooitech is SAFE and BENEFICIAL. Ooitech qualified Alibaba Trade Assurance
project,Which mean Alibaba will refund if there is any quality problem after your buying. We are onsite checked by Alibaba. The supplier assessment report can be download on our company
profile site. Reliable supplier ensures safety of your fund.CE and UL approved machines bring good
quality,and reasonableprice help you making profits from our machine.
Q: Do you have Training to Customer?
A: We will supply with the machine operation manual in English version. For installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer. User can dispatch representatives to our factory for 2-3 days for training.We are responsible for training them free of charge. While all the charges including traveling charge and accommodation will be afford by the user.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
