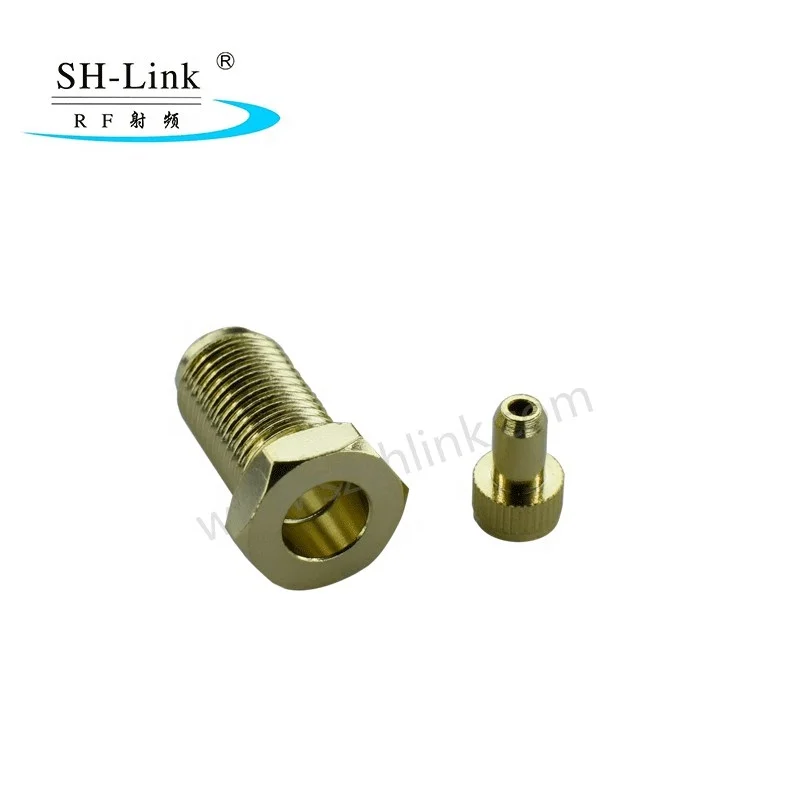

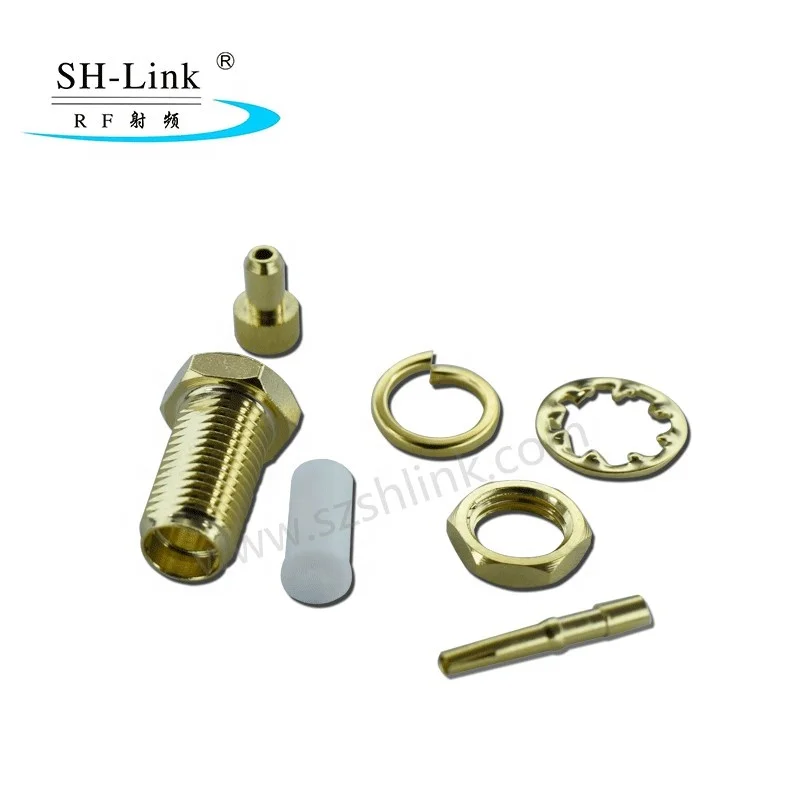

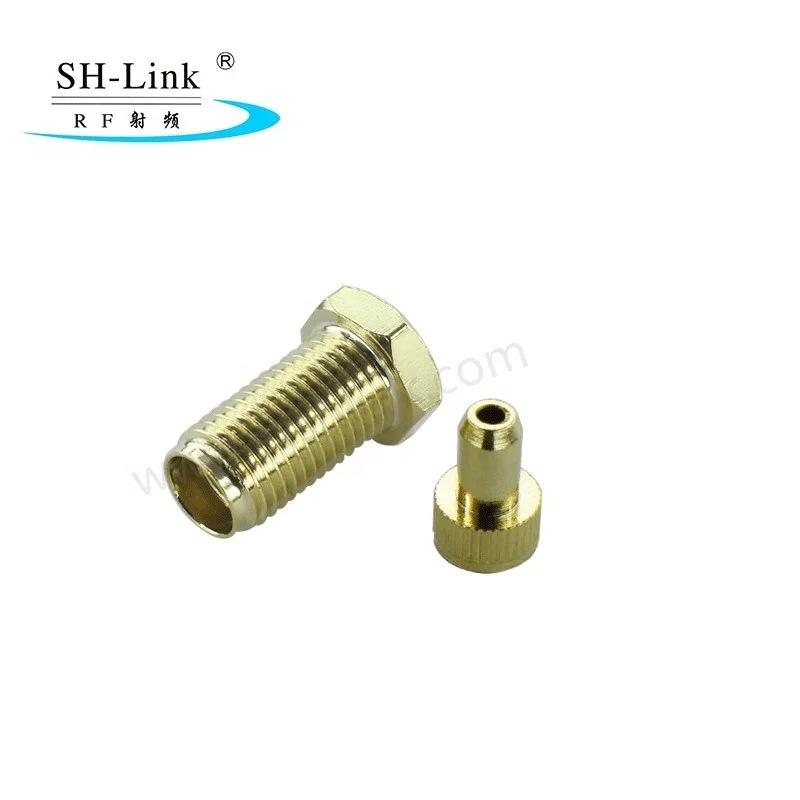

RF coaxial SMA Bulkhead mount female connector for pigtal cable RG174

Product Overview

Description

RF coaxial SMA Bulkhead mount  female connector for pigtal cable RG174



DESCRIPTION:

TYPE SMA is a Kind of RF coaxial connectors that is widely applied, with small-sized thread coupling. Characteristic impedance is 50Ω.The characteristic of connectors is in wide frequency range,excellent performance,high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WIAN SYSTEM,controlled program,microwave equipment and the digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.



MAJOR TECHNICAL CHARACTERISTICS:



Temperature range	-55—+155℃(PE Cable -40—+85℃)
Vibration	98m/S²(10-2000Hz)10g
Impedance	50Ω
Frequency range	DC-12.4GHz(Semi-Rigled Cable DC-18GHz)
Working voltage	335V r.m.s at sea level
Withstanding voltage	1000V r.m.s at sea level
Contact resistance
Center contact	≤3mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥5000MΩ
Center conductor retention force	≥0.28N
Coupling nut retention force	≥180N
Insertion loss	≤0.15dB/6GHz
Voltage Standing Wave Ratio
Straight      flexible cable	≤1.10+0.02f
semi-rigid cable	≤1.07+0.018f
Right angle  flexible cable	≤1.20+0.03f
semi-rigid cable	≤1.17+0.02f
Durability(mating)	≥500(Cycles)
