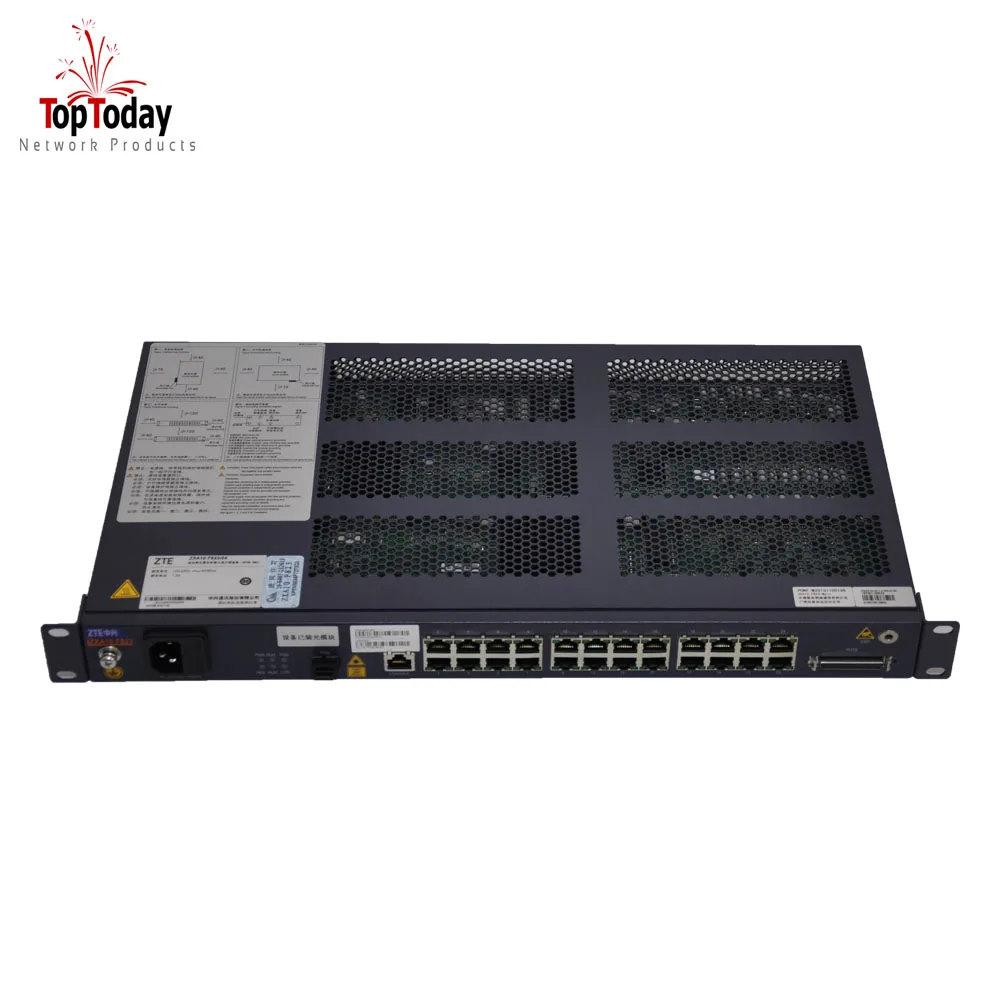

ZTE F821 GPON EPON MSVG MSVE EI8E V16I V24I DSL MDU switch

Product Overview

Description

ZTE F821 GPON EPON MSVG MSVE EI8E V16I V24I DSL MDU switch



Descriptions

ZXA10 F821 is a GPON Optical Network Unit used in an FTTB/FTTO scenario. ZXA10 F821 supports VoIP, data and TDM services access. It builds a multi-tenant network center with computer technology and broadband optical network access technology, which connects various business appliances and equipments into the network to share Internet/voice connections so as to provide users with rich, diversified, personalized, convenient, comfortable, safe and effective services. ZXA10 F821 provides 1/2 GPON interfaces to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/FTTO access.



Specifications

Optical port (line terminal)	1/2 *GPON interface (SC/UPC)
User network interface	Three slots mix plug in line card   1* 10/100/1000Base-T in main control card   8 *E1/T1 per line card    8 *10/100Base-T per line card
Transmission Rate	Line terminal: 2.488Gbps downstream and 1.244Gbps upstream User side interface: 10/100/1000Mbps or 10/100Mbps auto-negotiation
Transmission Distance	Link distance: 0 ~ 20km max.
Transmission Wavelength	Receiving: 1,490 nm Transmitting: 1,310 nm
Receiving Sensitivity	Better than -28dBm
Transmitting Optical Power	1dBm~+5dBm
Overload Optical Power	-8dBm
Physical Performance	Power consumption: 26W  Dimensions: 255mm(D) x 482.6 mm(W) x 43.6 mm(H) Working temperature: -30oC ~ 55oC  Working humidity: 5% ~ 95%  Weight: 4.5Kg  Power supply: -48V DC or 110V/220 V AC Mounting mode: Rack/Cabinet/Desktop/Wall mounted Backup battery: 6AH/10AH (Optional)
Service Function	Service: VoIP, Internet, IPTV,TDM E1/T1 Support G.703/G.704, TDM CES mode Type C/D protection Flexible plug-in card design 802.1Q, 802.1P, 802.1ad andQoS policy IGMP snooping and controllable multicast Loop back detection  Auto event alarm Security management  Remote management Dying Gasp Optical power detection SIP/H.248/ MGCP G.711a/G.711u/G.723.1/G.729a/b, T.30/T.38 Up to 8T-CONTs and 256 GEM Ports
