Digital ultrasonic level measuring instruments indicator compact meter diesel fuel tank sensor
- Category: >>>
- Supplier: Wuxi Winsun Automation Instrumentation Co. Ltd.
Share on (62249923643):
Product Overview
Description
Product Description
The products are detected by ultrasonic wave. The measurement is accurate and the service life is long.
Product Detail
| Product Keywords | digital ultrasonic level measuring instruments,digital indicator compact ultrasonic level meter,diesel fuel tank ultrasonic level sensor |
Product overview

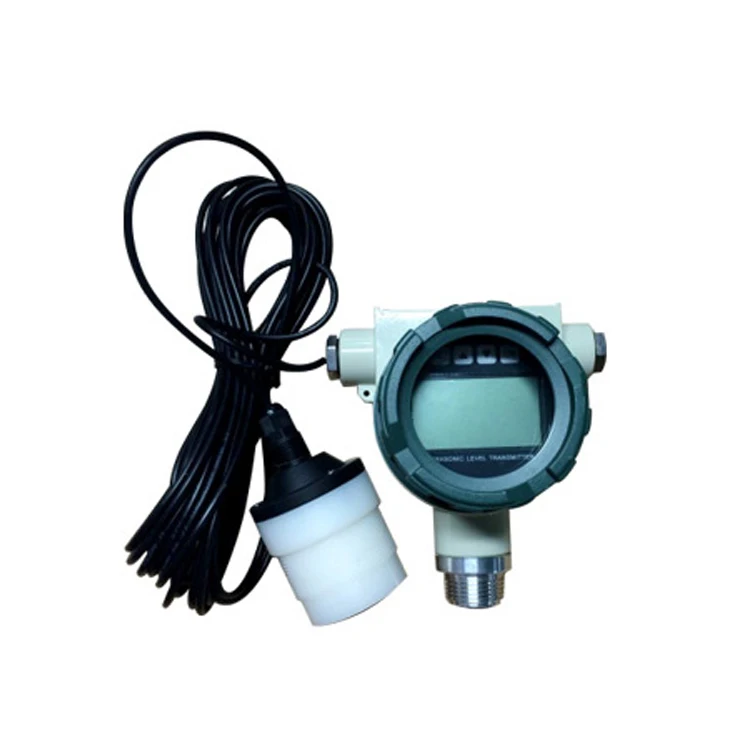

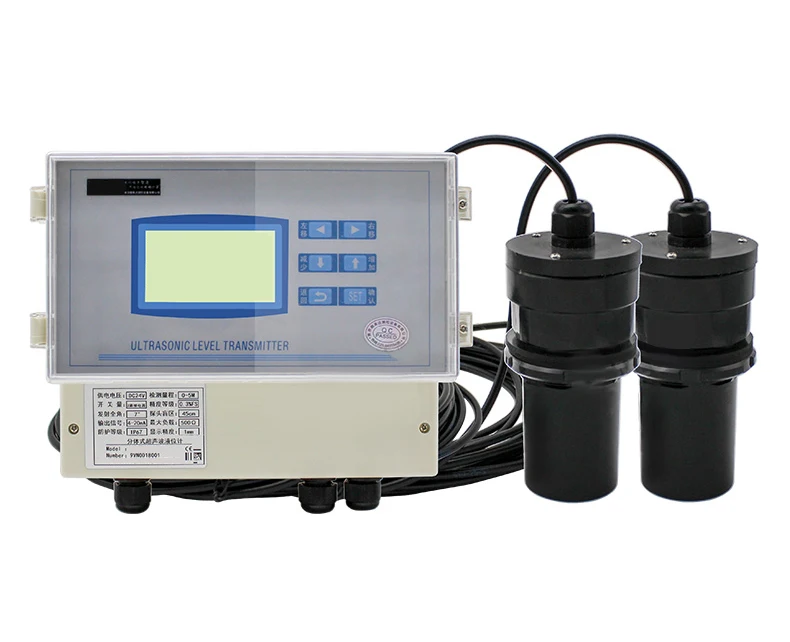

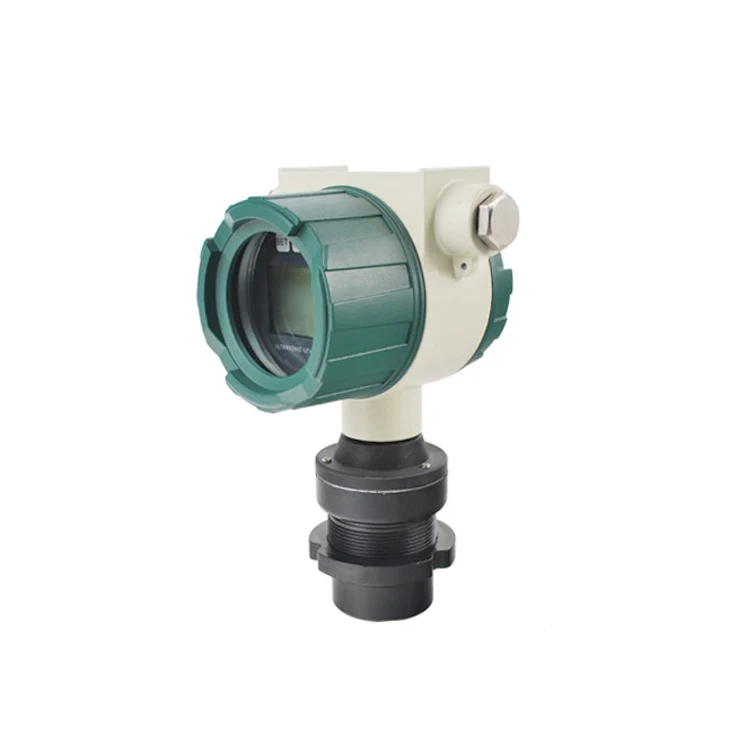

WPU-04Ultrasonic Level Transmitter is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installedand maintained. It can meet most of the material level measurement requirements without touching the medium.WPU-04 can be used to measure the height of a variety of liquid and solid materials.
Main parameters | |
Measure range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
Accuracy | 0.5%-1% |
Resolution | 3mm or 0.1% (Take the max.) |
Display language | English |
Analog output | Four wires 4-20mA/510Ω load | Two wires 4-20mA/510Ω load |
Relay out | AC250V/8A or DV30/5A |
Power supply | 24V DC or 220V AC±15% 50Hz |
Ambient temperature | Display instrument -20℃-60℃, probe -20℃-80℃ |
Communication | RS485(standard) or RS232 |
Ingress protection | Display instrument IP65, probe IP68 |
Probe installation | Depend on range and probe type |
