MITRE BAND SAW Machine H 430X Cutting Hydraulic Control Hydraulic Tension Hydraulic Clamping Provided 3200
- Category: >>>
- Supplier: Zhejiang Weilishi Machine Co. Ltd.
Share on (62249926296):
Product Overview
Description
Product Description
Horizontal band saw machine H-430X is a blanking tool which saws and cuts continuously. It is used to cut many kinds of metal materials like carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless acid resistant steel. If proper saw band is installed, non-ferrous and non-metallic materials can also be cut. This saw machine is a kind of blanking equipment suitable for sawing and cutting all kinds of metallic materials. It has marked advantages of precise blanking, high efficiency, low consumption of material and energy. Specially for the H beam, structure steel , I beam and some other rectangle shape steel.
1. Technical data/technical description
Item NO: |
| H-430X | |
Maximum Cutting Capacity | 0° | Round | 430mm |
Square | 430*430mm | ||
Rectangle | 430*430mm | ||
+45° | Round | 280mm | |
Square | 280*430mm | ||
Rectangle | 280*430mm | ||
-60° | Round | 220mm | |
Square | 220*430mm | ||
Rectangle | 220*430mm | ||
Saw blade | Speed | 20-82m/min | |
Size | 5750*34*1.1mm | ||
Tension | hydraulic | ||
Guide | CARBIDE | ||
Cleaning | brush | ||
Motor Output | Saw blade | 4KW | |
Hydraulic | 2.2KW | ||
Coolant | Cutter lubricant | ||
Tank Capacity | Hydraulic oil | 77L | |
Coolant | 3L | ||
Feeding | Mode | customization | |
Length | customization | ||
Rotation method | manual | ||
Vise Control | hydraulic | ||
Chip Clear | manual | ||
N.W | 3200kgs | ||
Size(L*W*H) | 2900*1700*2250mm | ||
2. The standard parts of machine
Name | Quantity | Remark | |
1 | band saw blade | 1piece | CHINA |
2 | brush | 2 piece |
|
3 | carbide | 1set/ 6 piece |
|
4 | tool box | 1set |
|
5 | belt | 1 piece |
|
6 | bearing | 1set /4 piece | |
7 | feeding table | / |
|
3. Feature of H-430X
Double column structure ----more steady
Rotation control ---manual,with hydraulic lock
Independent hydraulic system ----easy maintain
Safe protect the whole machine when it work
Double side mitre cutting

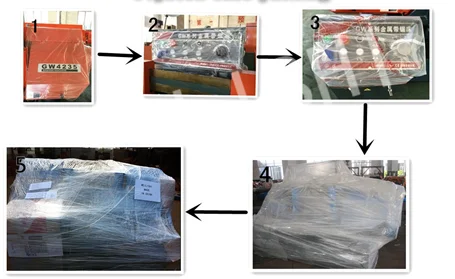

4. Packing
