OEM 6 lan vpn firewall router i5 CPU,Support BYPASS
- Category: >>>
- Supplier: Dongguan Haxun Technology Co. Ltd. [Guangdong China]Dongguan
Share on (62250060773):
Product Overview
Description
Computer Hardware developer and Manufacturer
IT Solutions Provider
Develop and produce Embedded Motherboard, Panel PC, Mini PC etc.
Support Intel atom D2550,D525/Celeron J1900
Support ODM,OEM
Customized LOGO,I/O ports,3G/4G,GPRS,WIFI,Bluetooth,wide voltage 8-28V
RAM up to 16GB DDR3
HDD up to 256GB SSD
Fanless firewall computer | K905-D2550 | K905-D525 | K905-J1900 | ||
CPU | •Intel® Atom™ D2550 Dual Core processor, 1.86GHz •Integrated Intel GMA 3600 | •Intel® Atom™ D525 Dual Core processor, 1.8GHz •Integrated Intel GMA 3150 | Intel® Celeron J1900 Four Cores processor, 2.0GHz, 2M Cache | ||
Main Memory | 1 x DDR3 , support up to 4GB DDR3 1600/ 1333 | 1 x DDR3 , support up to 4GB DDR3 1600/ 1333 | 1 x DDR3 , support up to 8GB DDR3 1600/ 1333 | ||
Storage | •1x 2.5" SATA HDD drive bay •1 x Mini SATA Slot | •1x 2.5" SATA HDD drive bay •1 x Mini SATA Slot •1 x Mini PCI-E slot for WIFI/3G | •1x 2.5" SATA HDD drive bay •1 x Mini SATA Slot •1 x Mini PCI-E slot for WIFI/3G | ||
Lan | •4 x Intel 82583V, 10/100/1000M | •4 x Intel 82583V, 10/100/1000M, Support BYPASS | •4 x Intel 82583V, 10/100/1000M, Support BYPASS | ||
Watchdog Timer | 255 levels, 0~255 sec | 255 levels, 0~255 sec | 255 levels, 0~255 sec | ||
BIOS | AMI 16MB DPI Flash ROM | AMI 8MB DPI Flash ROM | AMI 8MB DPI Flash ROM | ||
I/O Interface-Front | Power on/ off switch | Power on/ off switch | Power on/ off switch | ||

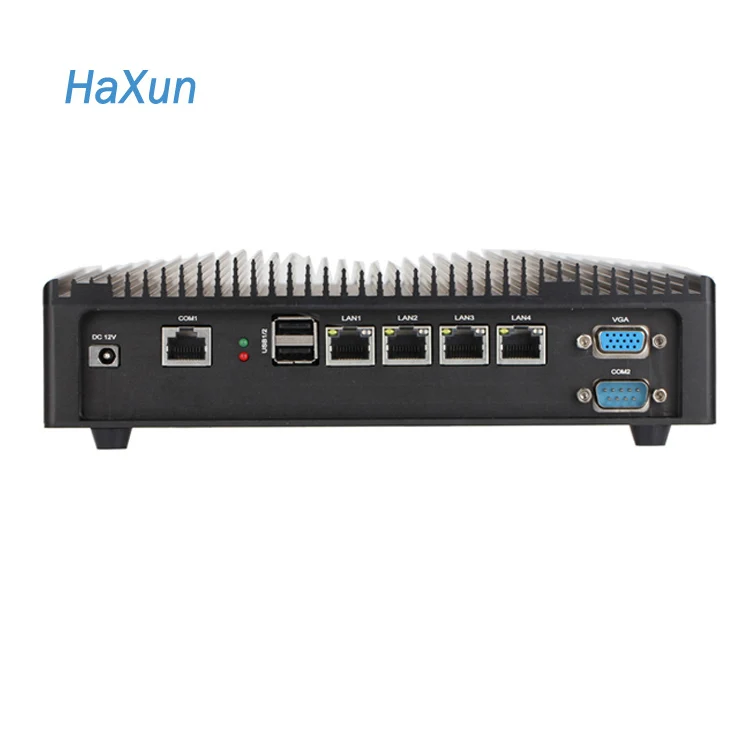

I/O Interface-Rear | •4 x RJ-45 •1x COM1( CISCO)+1x COM2(15PIN) •2 x USB2.0 •1 x VGA •1x DC IN | •4 x RJ-45 •1x COM1( CISCO)+1x COM2(15PIN) •2 x USB2.0 •1 x VGA •1x DC IN | •4 x RJ-45 •1x COM1( CISCO)+1x COM2(15PIN) •2 x USB2.0 •1 x VGA •1x DC IN | ||
Power Requirements | 12V DC IN | 12V DC IN | 12V DC IN | ||
Dimensions | 225 mm (W) x180 mm (D) x50mm (H) | 225 mm (W) x180 mm (D) x50mm (H) | 225 mm (W) x180 mm (D) x50mm (H) | ||
Construction | Aluminum Chassis | ||||
Environment | Operating temperature: Ambient with air flow: -10°C to 60°C (with industrial grade devices)(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) •Storage temperature: -20°C ~ 80°C •Relative humidity: 10% to 93% (Non-condensing) •Anti-Vibration: 5Hz~500Hz/1Grms/3Axis •Anti-Shock: 15G, 11ms Duration | ||||
Similar models
Super mini fanless pc K802
CPU:Intel® Atom™ N2800 Dual Core processor, 1.86GHz
Memory: 1/2/4GB RAM DDR3
Storage:500GB HDD/16/32/64/128/256GB SSD
I/O ports :4 x USB 2.0/2 x RJ45/1 x VGA/1 x HDMI /1 x Audio/2x COM/1x 12V DC IN/1x Antenna holes
Dimensions:176 mm (W) x 110 mm (D) x 59mm (H)
Fanless industrial pc K900
CPU: D2700/D2550/N2800
Memory: 2/4/8GB RAM DDR3
Storage:500GB HDD/16/32/64/128/256GB SSD
I/O ports :4 x USB 2.0/5x RS232/1 x VGA/1 x HDMI /1 x Audio/1x RJ45/1x 12V DC IN/2x Antenna holes
Dimensions:210 mm (W) x 180 mm (D) x 56mm (H)
Fanless industrial pc K700
CPU: Celeron J1900/i3,i5,i7 cpu
Memory: 2/4/8/16GB RAM DDR3
Storage:500GB HDD/16/32/64/128/256GB SSD
I/O ports :•6 x USB 2.0+2x RS232 Or 4 x USB 2.0+5x RS232/1 x RJ45/1 x VGA /1 x HDMI
/1 x MIC-in/1 x Audio/1x DC IN
/2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)
Dimensions:225 mm (W) x 188 mm (D) x 59mm (H)
1U mini computer K300
CPU: Celeron J1900/1037U/Atom D525
Memory: 1/2/4GB RAM DDR3
Storage:500GB HDD/16/32/64/128/256GB SSD
I/O ports :4 x USB2.0/2x COM1/2 x RJ45/1 x VGA/1x DC IN/1 x MIC-in/1 x Headphone-out/1x LPT/1x PS/2
Dimensions: 210*56*200mm
