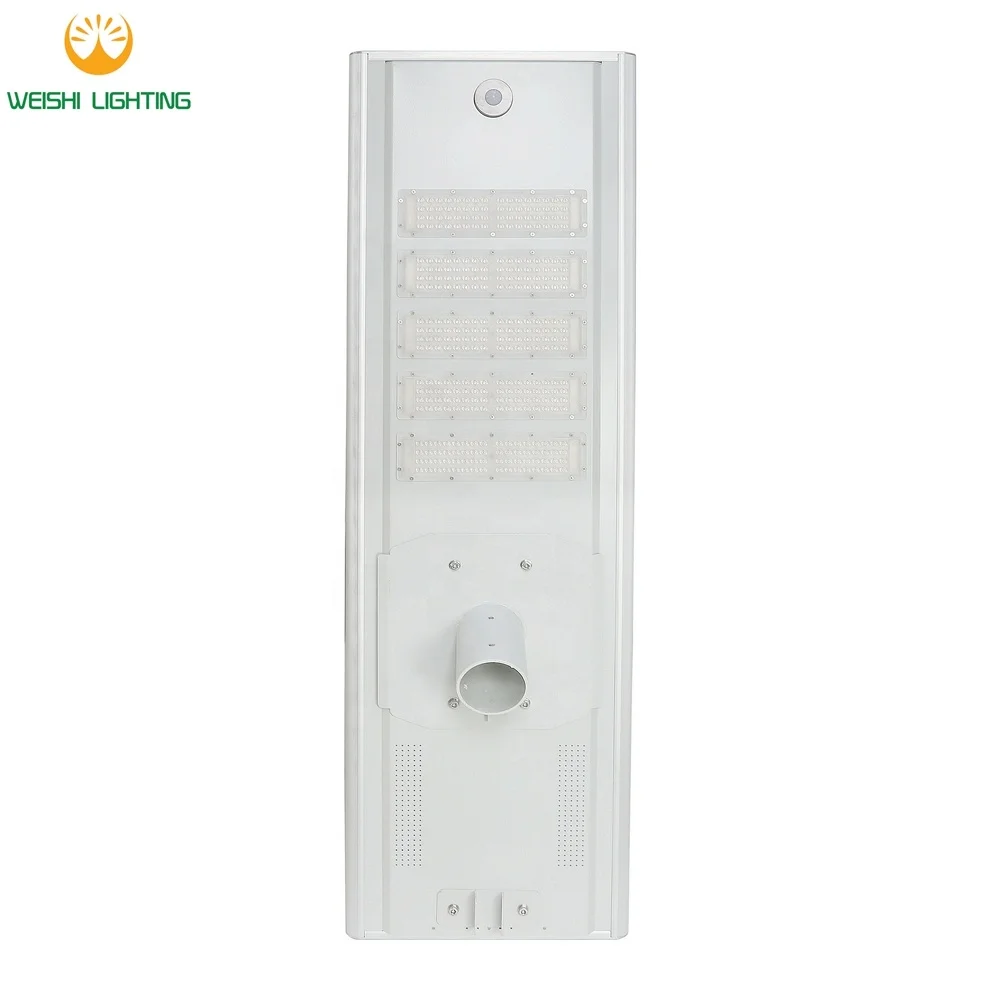

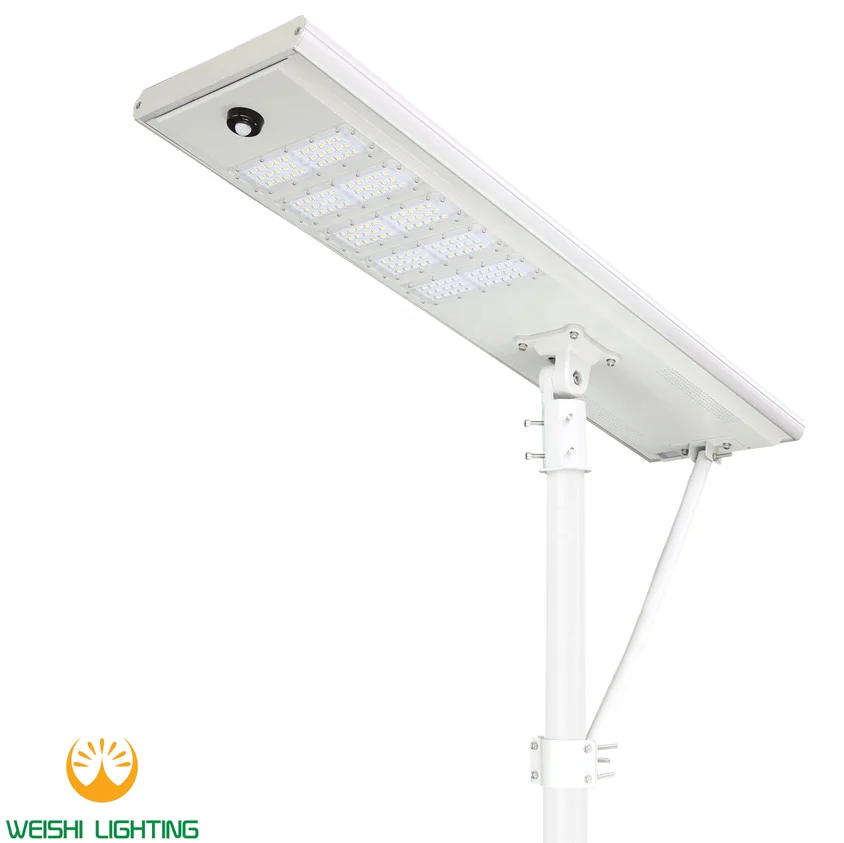

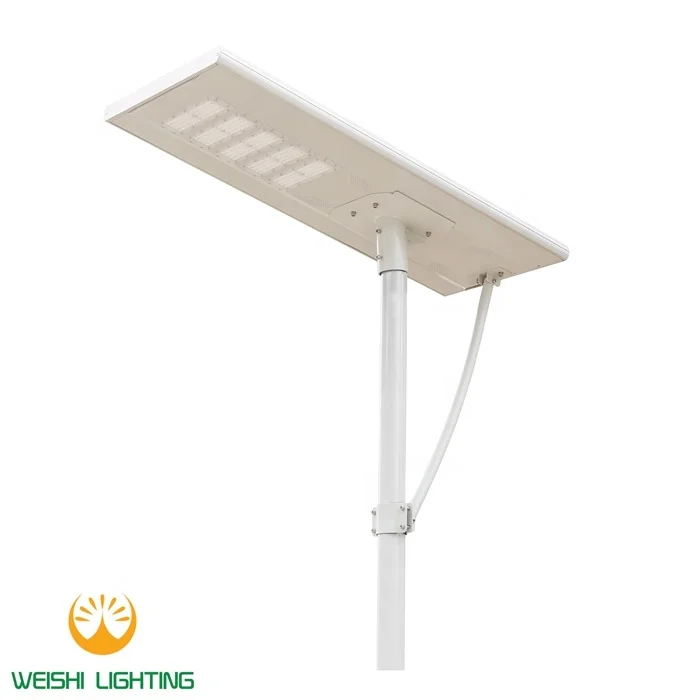

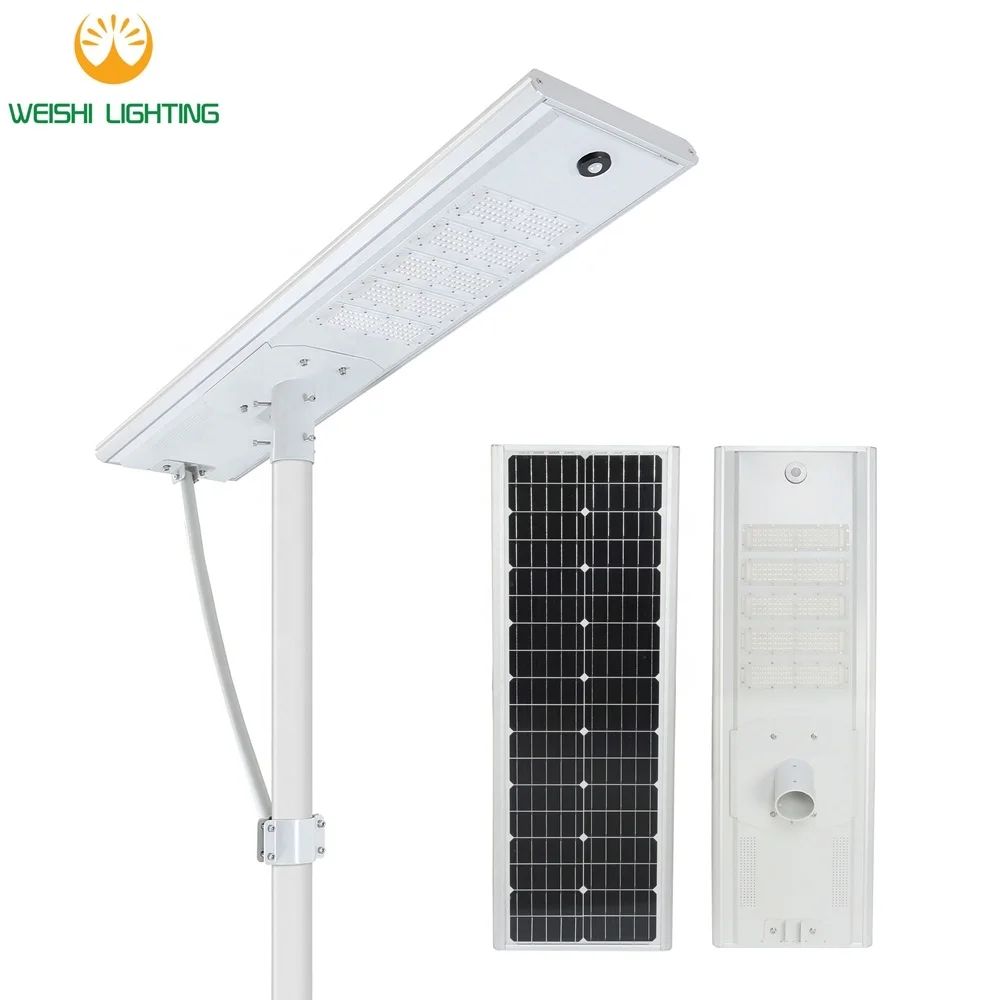

CCTV Camera Solar Road Light High Quality Lithium Battery All in One Solar Street Light 80w High Quality
- Category: >>>
- Supplier: Shandong Weishi Lighting Technology Co. Ltd.
Share on (62250466124):
Product Overview
Description
Product Links
ULTRA BRIGHTNESS ALL IN ONE SOLAR STREET LIGHT
PRODUCT SERIES
WSSS20
WSSS30 / WSSS40
WSSS60
WSSS80
WORKING PRINCIPLES
PRODUCT FEATURES
High Standard LEDs
√ >190lm/W High Quality LEDs
√ >125,000 hrs Usage Life
√ Multi Color Temperature Options
√ Modular Light Source Design to Create Lower Temperature
√ Waterproof LED Modules
√ PC Optical Lesns with Multi-Distribution Options
High Quality Solar Panels
- Grade A High Efficiency Monocyrstalline Solar Panels
- Usage Life >20 years
- High Standard Workmanship
- Strick QC Check to Make Sure Each One is Quaflied
Grade A LiFePO4 Lithium Battery Pack
√ Leading Brand Grade A LiFePO4 Battery
√ 2000 Cycles Usage Life
√ ISO 9001 High Standard Workmanship
√ Strict QC Management System
√ Wide Temperature Tolerance
√ High Standard Protection Module to Guarantee the Usage Safety
Intellectual Waterproof Dimmable Controller
- Leading Brand Controller for High Quality Reliability
- MPPT Type Available
- Intellectural Time Phase Dimming
- Combined with Microwave Motion Sensor
- Remote Available to Adjust Brightness
- IP67 Waterproof Connectors
- Modular LEDs for Lower Working Temperature
- Flexible Light Capacity
- High Efficiency Optical Lens
- IP66 Waterproof
- IP66 Waterproof Cable Connectors
- Waterproof Motions Sensor
- IP66 Waterproof LED Modules
- IP68 Solar Controllers
- High Thickness Aluminum Brackets and Light Panel
- Fine Workmanship Powder Coating Treatment
- Easy Opening Design for Future Maintenance
- High Strength Galvanized Steel with Powder Coating Finish for Strong Stability
- Tilt Angle can be Adjusted Based on Installation
- Stainless Steel 304 Fastening Pieces
- Large Capacity Lamps Come With Extra Supporting Bracket for Higher Stability
- Lamp Rear Supporting for a Balanced Design
- High Thickness Galvanized Steel Poles and Fastening Brackets with Powder Coating
- Adaptable for Multi-thickenss Diameter Poles
- Lamp Rear Supporting for a Balanced Design
- High Thickness Galvanized Steel Poles and Fastening Brackets with Powder Coating
- Adaptable for Multi-thickenss Diameter Poles
SPECIFICATIONS
SPECIFICATIONS | WSSS20 | WSSS30 | WSSS40 | WSSS60 | WSSS80 | ||||
LEDs Capacity | 20W | 30W | 40W | 60W | 90W | ||||
Recommended Installation Height | 4-5 meters | 5-6 meters | 6-7 meters | 6-8 meters | 8-12 meters | ||||
Solar Panel Capacity | 45W | 65W | 90W | 120W | 120W | ||||
Lithium Battery Capacity (12.8V) | 21Ah | 32Ah | 46Ah | 75Ah | 90Ah | ||||
LED Efficacy | >190lm/W / >220lm/W | ||||||||
Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | ||||||||
CRI | >75Ra | ||||||||
LED Life | >125,000 hrs (LM-80 Certified) | ||||||||
Light Distribution | 90°/Type I/Type II/Type III | ||||||||
System Voltage | 12V DC / 24V DC | ||||||||
Controller Type | IP68 PWM Intellectural Time Phase Dimming Controller (MPPT Type Available) | ||||||||
Motion Sensor | PIR/Microwave Motion Sensor Optional | ||||||||
Materials | Aluminum alloy, galvanized steel with powder coating, PC optical lenses | ||||||||
Installation | Pole Top / Side Arm Both Available | ||||||||
Tilt Angle | 5° - 30° optional according to the region of installation area | ||||||||
Supporting Bracket | no | no | yes | yes | Yes | ||||
Working Mode | Dusk to Dawn | ||||||||
Backup Days | 3-5 rainy and cloudy days | ||||||||
Protection Grade | IP65 | ||||||||
