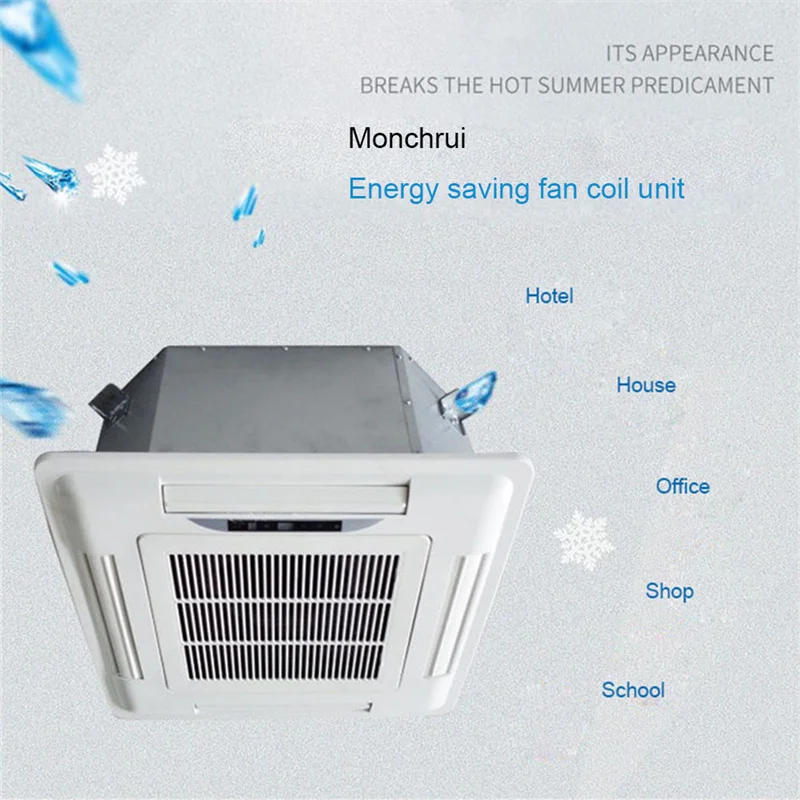

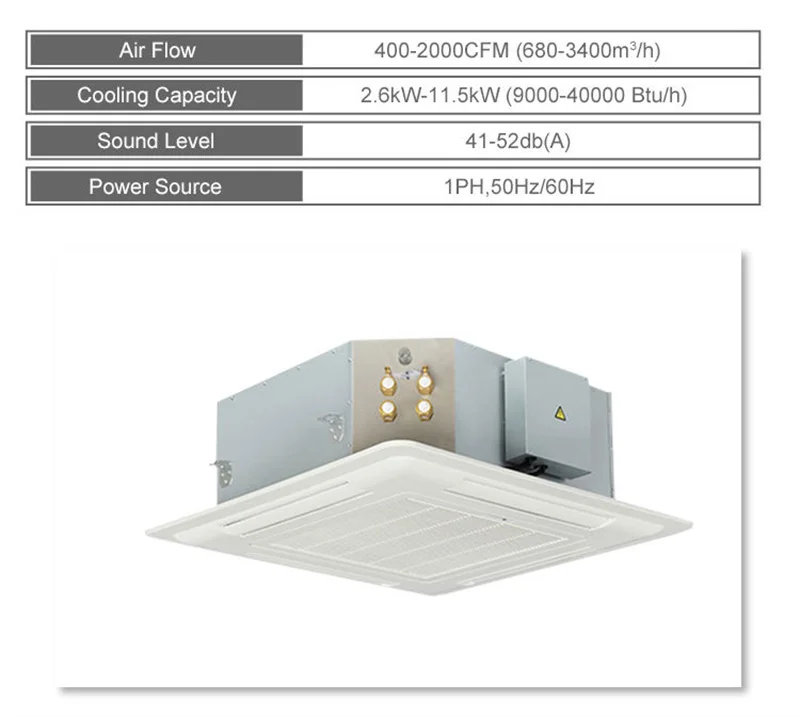

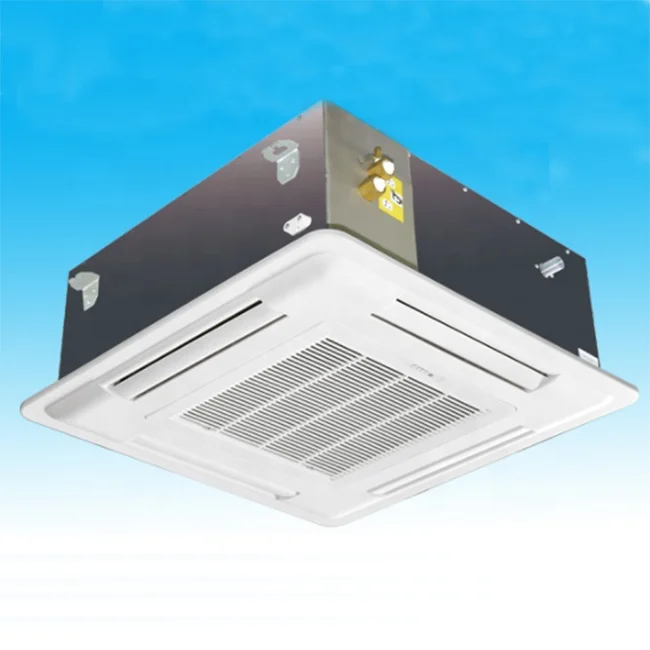

4-Pipe 4-Way Cassette - A series Fan Coil Unit
High Efficiency Coil Design

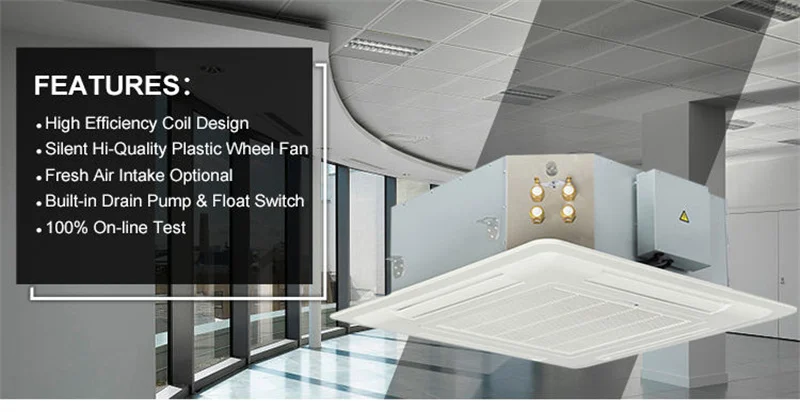

Silent Hi-Quality Plastic Wheel Fan

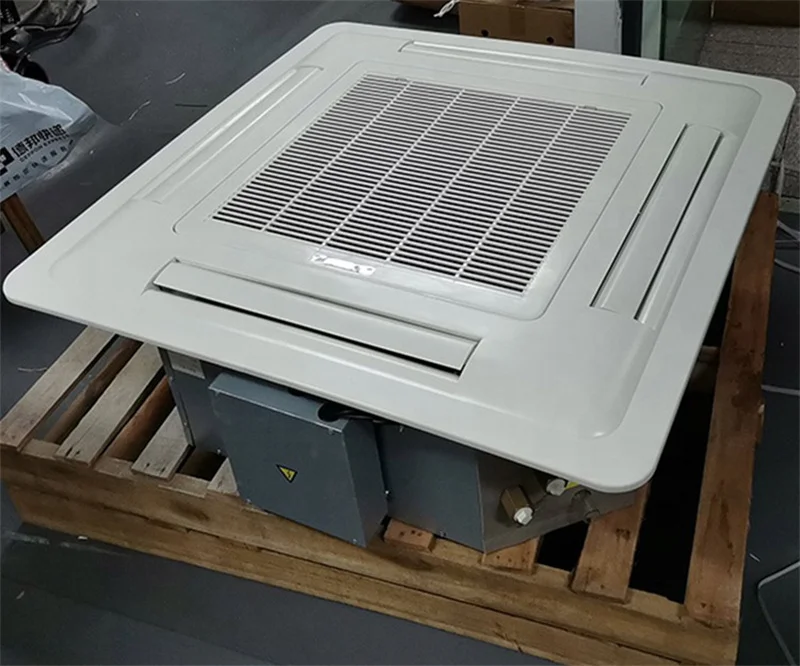

4-pipe 4-way Cassette - A series
Ø Wireless remote controller is standard; Wired wall controller is optional; Ø Auto reset, operation mode control; with room
sensor & coil sensor; Ø Daily timer or weekly timer Ø Auto-diagnose, protections and error code display; jumpers configurations on
electronic board Ø RS485 ModBus, master-slave network
sensor & coil sensor; Ø Daily timer or weekly timer Ø Auto-diagnose, protections and error code display; jumpers configurations on
electronic board Ø RS485 ModBus, master-slave network

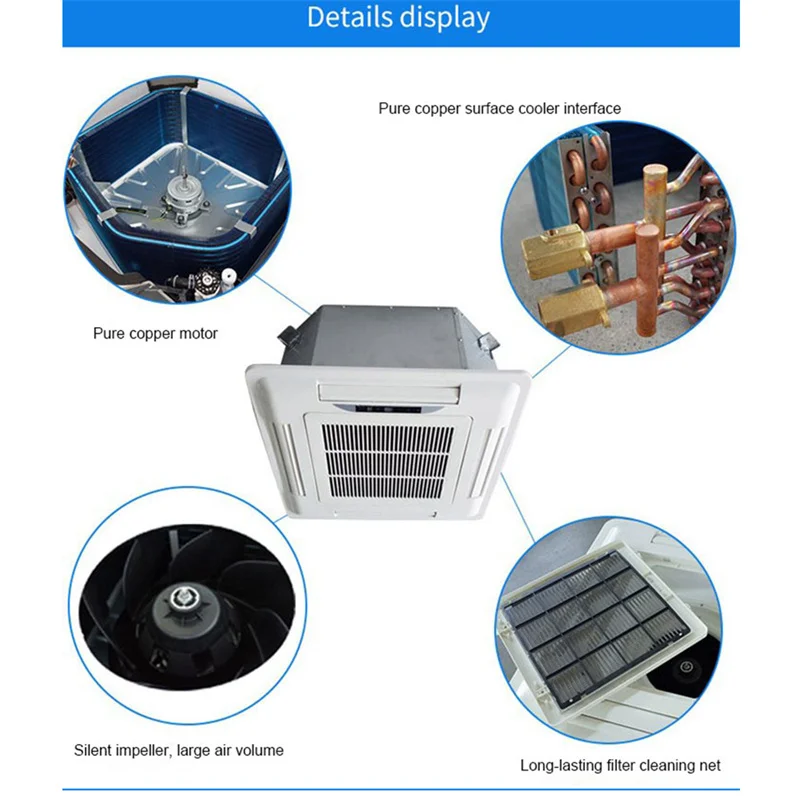

Design features

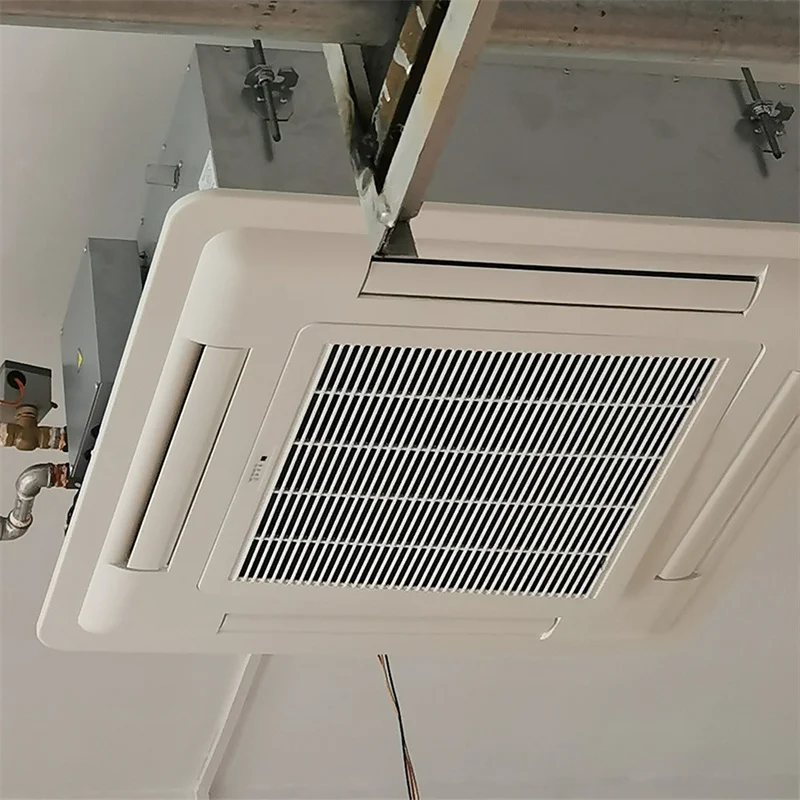

Suitable for hot/chilled water system, ceiling installation
1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation

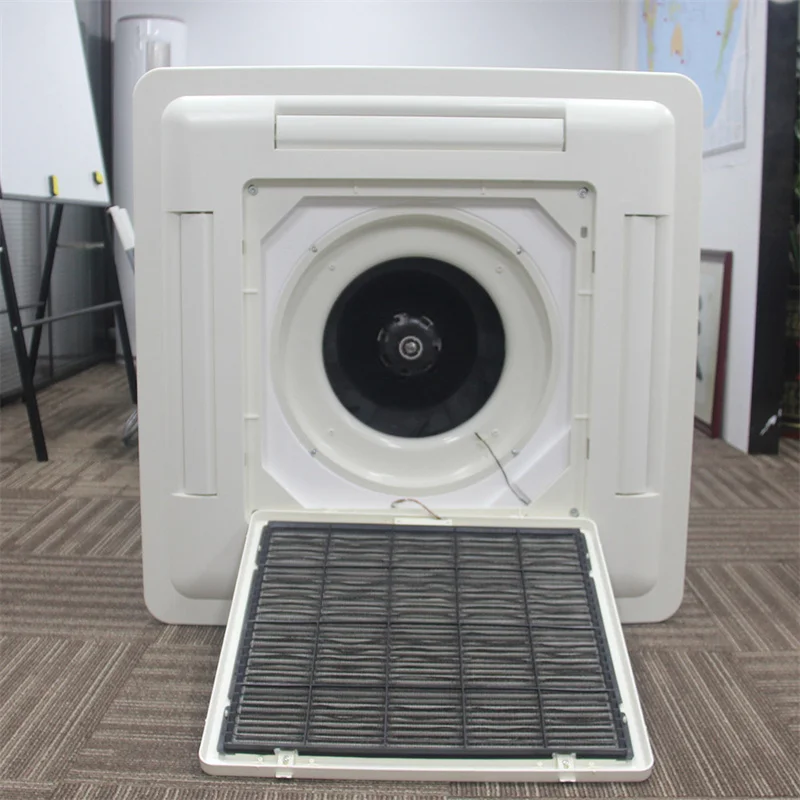

2 Panel Assembly

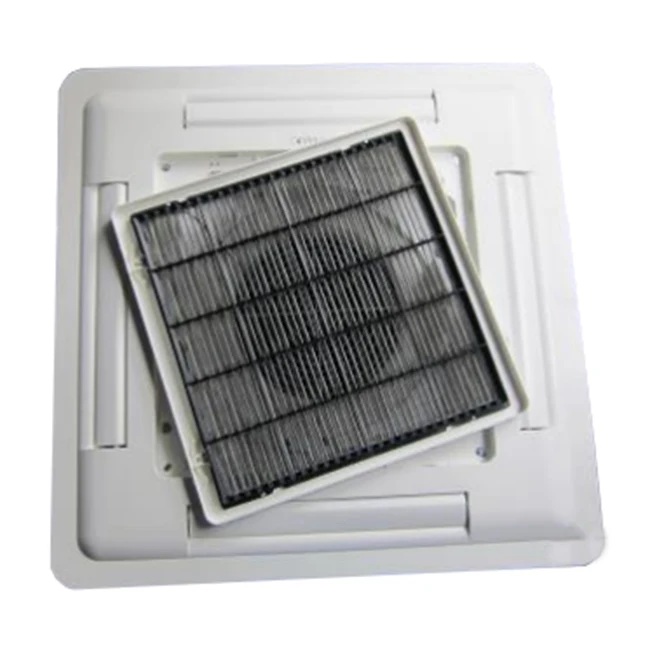

Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing
3 Plastic Whee/-Quite running
One-time injection forming no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less ibration low noise on the wheels and motors each wheel will be balanced under Go. 5mm/s
4 Fresh air intake
Fresh air intake is optional
5 High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks bt 30bar(3Mpa air pressure. with 3 4 pipe connections and air bleed vent
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a conden sates draining pump and a safety float
7 Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor
1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation
2 Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing
3 Plastic Whee/-Quite running
One-time injection forming no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less ibration low noise on the wheels and motors each wheel will be balanced under Go. 5mm/s
4 Fresh air intake
Fresh air intake is optional
5 High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks bt 30bar(3Mpa air pressure. with 3 4 pipe connections and air bleed vent
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a conden sates draining pump and a safety float
7 Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor

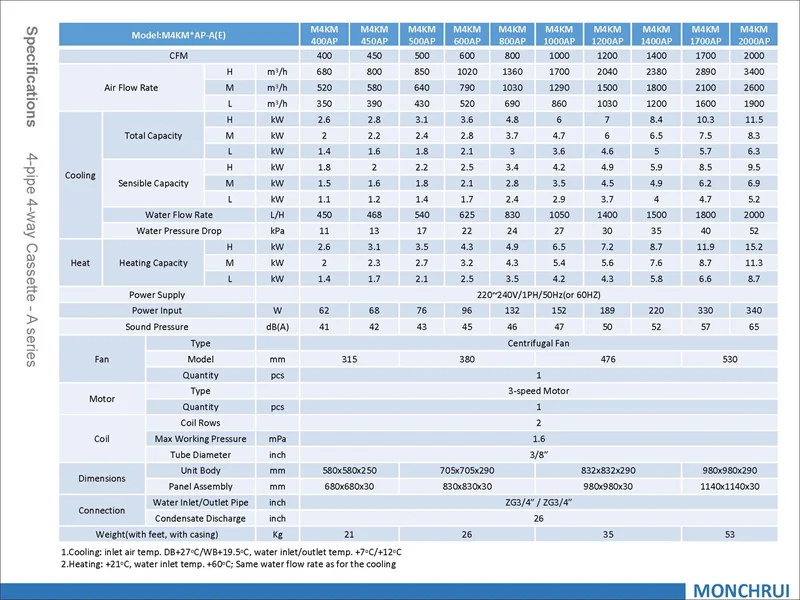

PRODUCT SPECIFICATIONS

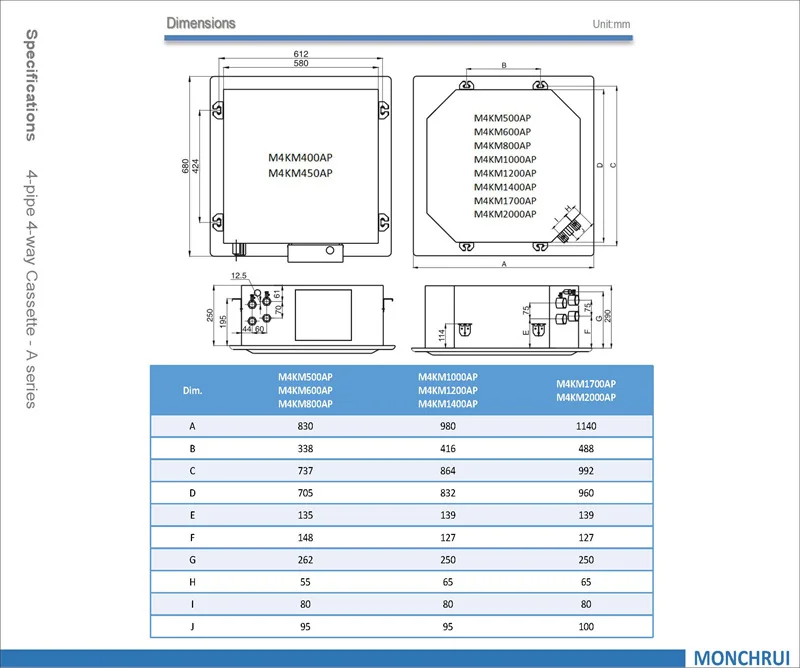

Specifications 4-pipe 4-way Cassett A series | ||||||||||||||
Model:M4KM*AP-A(E) | M4KM 1000AP | M4KM 120AP | M4KM 1400AP | M4KM 1700AP | ||||||||||
CFM | 1000 | 1200 | 1400 | 1700 | ||||||||||
Air Flow Rate | High | m3/h | 1700 | 2040 | 2380 | 2890 | ||||||||
Medium | m3/h | 1290 | 1500 | 1800 | 2100 | |||||||||
Low | m3/h | 860 | 1030 | 1600 | 1900 | |||||||||
Cooling | Total Capacity | high | kw | 6 | 7 | 8.4 | 10.3 | |||||||
Medium | kw | 4.7 | 6 | 6.5 | 7.5 | |||||||||
Low | kw | 3.6 | 4.6 | 5 | 5.7 | |||||||||
Sensible Capacity | High | kw | 4.2 | 4.9 | 5.9 | 8.5 | ||||||||
Medium | kw | 3.5 | 4.5 | 4.9 | 6.2 | |||||||||
Low | kw | 2.9 | 3.9 | 4 | 4.7 | |||||||||
Water Flow Rate | L/H | 1040 | 1050 | 1500 | 1800 | |||||||||
Water Pressure Drop | kPa | 27 | 30 | 35 | 40 | |||||||||
Heating | Heating Capacity | High | kw | 6.5 | 7.2 | 8.7 | 11.9 | |||||||
Heating Capacity | Medium | kw | 5.4 | 5.6 | 7.6 | 8.7 | ||||||||
Heating Capacity | Low | kw | 4.2 | 4.3 | 5.8 | 6.6 | ||||||||
Power Supply | 220~240V/1PH/50Hz(or 60HZ) | |||||||||||||
Power Input | kw | 152 | 189 | 220 | 330 | |||||||||
Sound Pressure | dB(A) | 47 | 50 | 52 | 57 | |||||||||
Fan | Type | Centrifugal Fan | ||||||||||||
Model | mm | 476 | 530 | |||||||||||
Quantity | 1 | |||||||||||||
Motor | Type | 3-speed Motor | ||||||||||||
Quantity | 1 | |||||||||||||
Coil | Coil Rows | 2 | ||||||||||||
Max. Working Pressure | mPa | 1.6 | ||||||||||||
Tube Diameter | inch | 3/8” | ||||||||||||
Dimensions | Unit Body | mm | 832x832x290 | 980x980x290 | ||||||||||
Panel Assembly | mm | 980x980x30 | 1140x1140x30 | |||||||||||
Connection | Water Inlet/Outlet Pipe | inch | ZG3/4” / ZG3/4” | |||||||||||
Condensate Discharge | inch | 26 | ||||||||||||
Weight(with feet, with casing) | kg | 35 | 35 | 35 | 53 | |||||||||
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC 2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling | ||||||||||||||

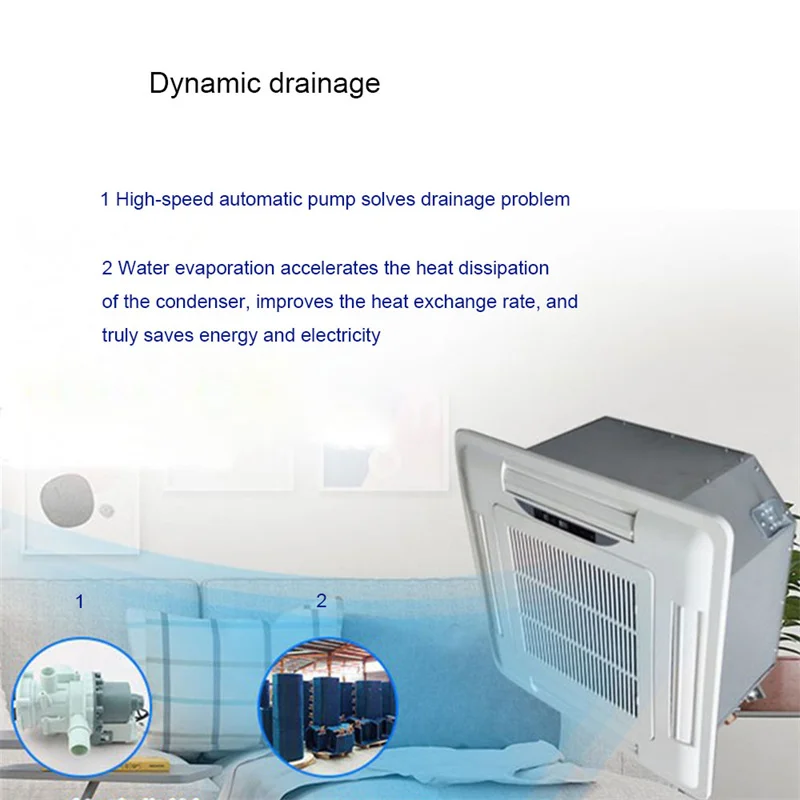

Dynamic drainage
1 High-speed automatic pump solves drainage problem
2 Water evaporation accelerates the heat dissipation of the condenser, improves the heat exchange rate ,and truly saves energy and electricity
2 Water evaporation accelerates the heat dissipation of the condenser, improves the heat exchange rate ,and truly saves energy and electricity

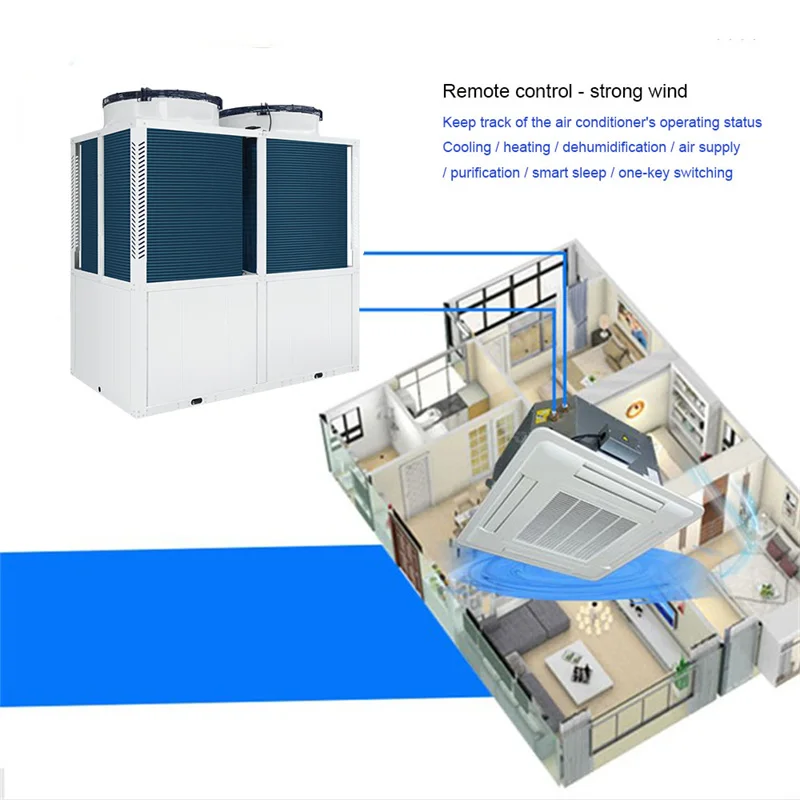

Remote control + strong wind
Keep track of the air conditioner's operating status: cooling / heating / dehumidification / air supply / purification smart sleep / one -key swithing

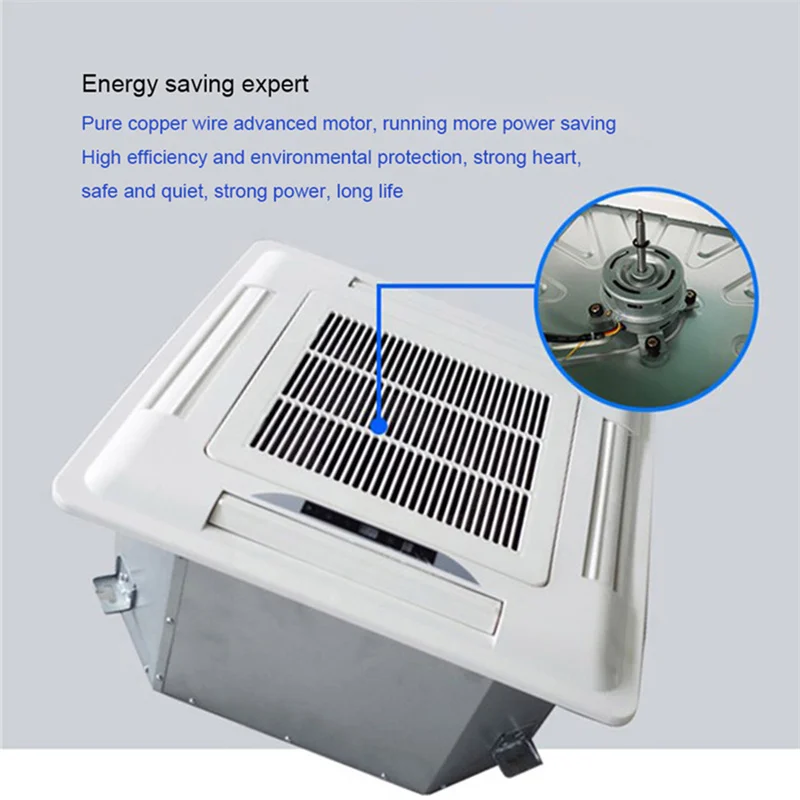

Energy saving expert
Pure copper wire advanced motor running more power saving High efficiency and environmental protection, strong heart, safe and quiet ,strong power, long life
EC(Electrical Commutation) motor fan is a DC brushless inverter fan, infinitely variable speed, high efficiency and energy saving, and more accurate air volume control.

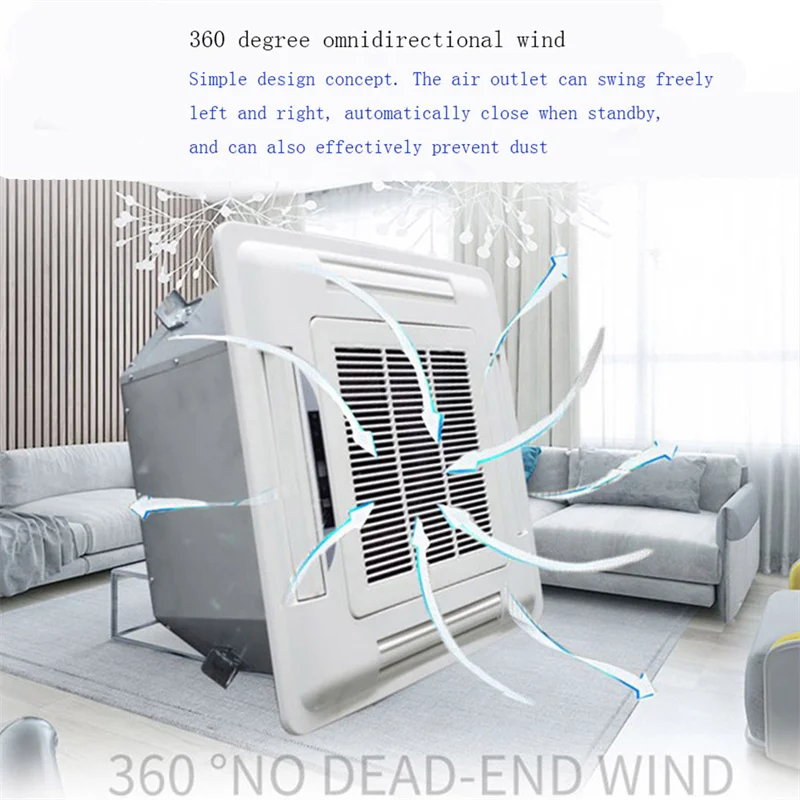

360 Degree omnidirectional wind
Simple design concept. The air outlet can swing freely left and right, automatically close when standby, and can also effectively prevent dust

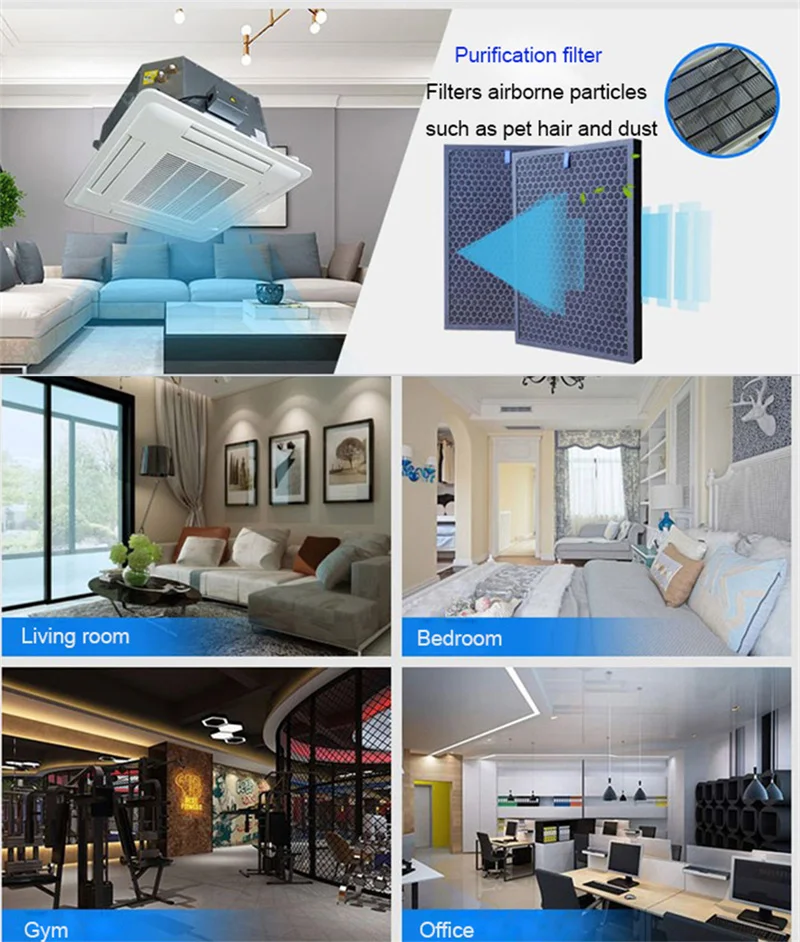

Purifying filter
Filters airborne particles such as pet hair and dust
