YTS100 100hp Remote Operated Skid Steer Crawler Wheel Loader

Product Overview

Description

YTS100 100hp Remote Control Skid Steer Crawler Loader

 REMOTE -series skid steer loader

parameter

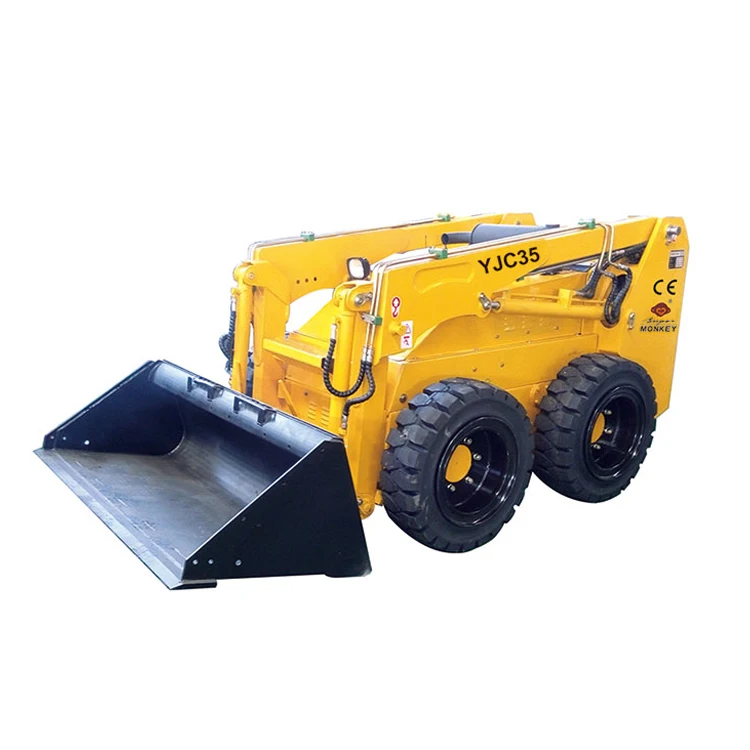

	Model	YJC35	YTS100
	Operating load (kg)	500	1200
	Max Speed(km/h)	10	12/18
	Rated flux (L/min)	60	88
	High Flow Flux (L/min)		140
	Tire(track) model	8.5-15	320*84
	Rated power (Kw)	29.5	74
	Fuel tank capacity (L)	60	90
	Self weight bucket (kg)	2300	4500
	Bucket capacity (m3)	0.3	0.55

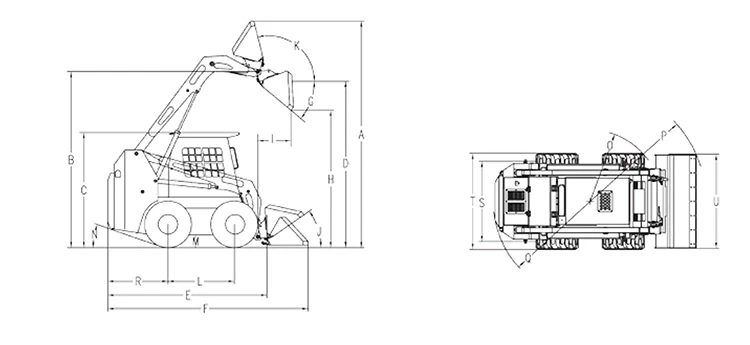

A	Overall operating height (mm)	2825	4070
B	Height to bucket hinge pin (mm)	2200	3150
C	Height to top of cab (mm)	1355	2160
D	Height to bottom of level bucket(mm)	2033	2983
E	Overall length ithout bucket(mm)	2300	3000
F	Overall length with bucket(mm)	2950	3700
G	Dumping angle at maximum height(° )	40	40
H	Dumping height(mm)	1525	2450
I	Dumping reach(mm)	790	700
J	Rollback o bucket on ground(° )	30	30
K	Rollback of bucket at full height(° )	104	104
L	Wheelbase(mm)	897	1500
M	Ground clearance(mm)	140	200
N	Angle of departure(° )	20	20
O	Front turning radins without bucket(mm)	1098	1365
P	Front tuning radius(mm)	1760	2200
Q	Rear tuning radius(mm)	1296	1742
R	Rear axle to bumper (mm)	964	938
S	Tread width,enterline to centerline (mm)	1080	1654
T	Width (mm)	1350	1994
U	Bucket width (mm)	1400	2030
