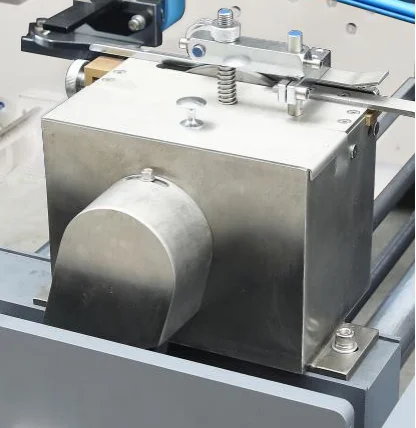

Automatic Folder Gluer Corrugated Box Making Machine Carton GK C1600
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (62250571763):
Product Overview
Description
>>> Product Introduction

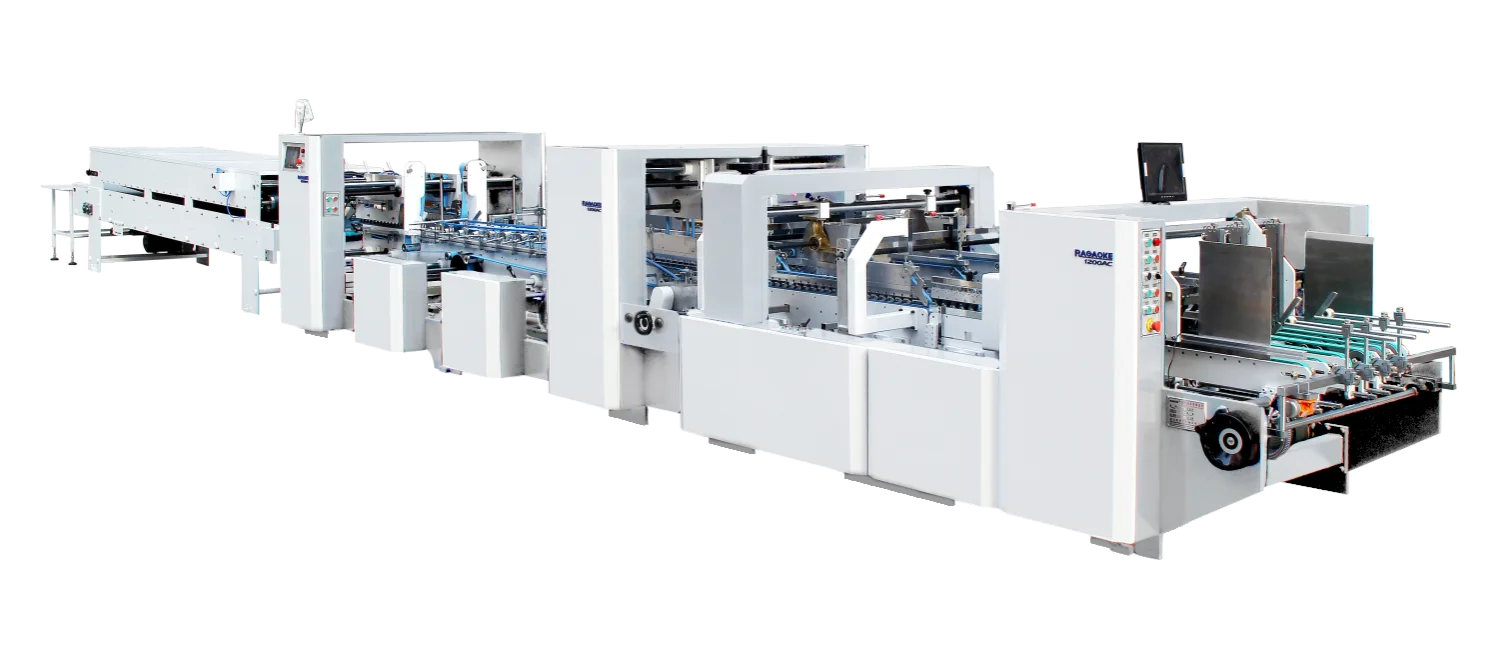

Automatic Gluing Folding Machine(GK-C1200/C1450/C1600)

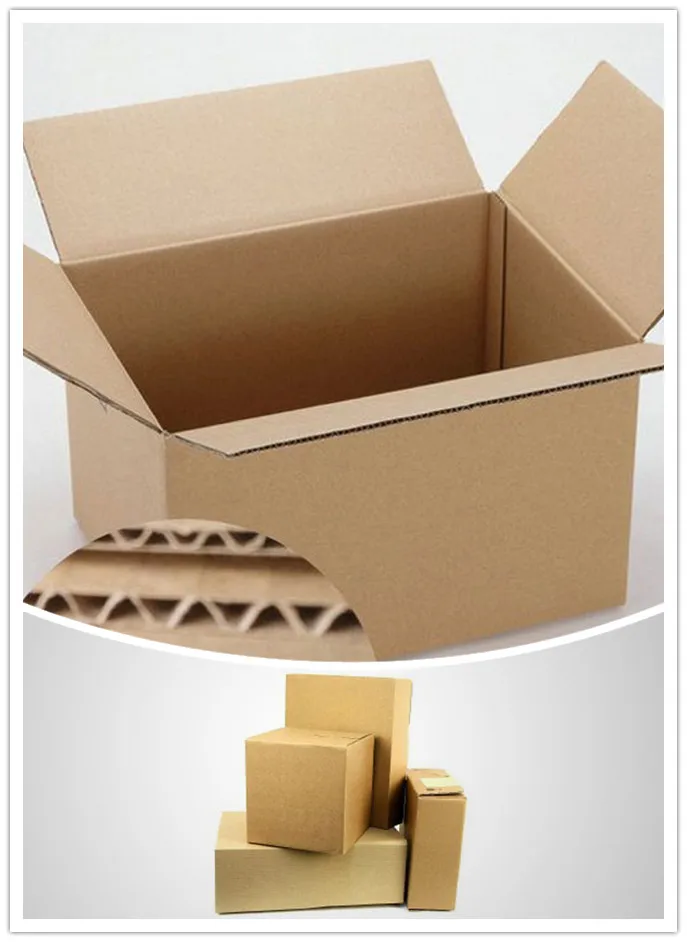

C Series folding gluing machine, adapt electrical plate adjustment,PLC and imported electrical components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and opreate. This machine is specilized for cardboard and corrugated cartons, its correction function make corrugated cartons perfectly meeting the requirments of packaing industry.(we can customized for other sizes)
>>> Specification
Name | GK-C Corrugated and Carton Box Gluing Machine | ||||||
Model | GK-C1200 | GK-C1450 | GK-C1600 | ||||
Paper Material | Cardboaed 210-800g, A/B/E Corrugated | ||||||
Max. Liner speed | Max. 260 meter/minute | ||||||
Feeding way | Automatically and continuously feeding | ||||||
Way of folding | Fold 1 and fold 3 are 130° and 180° | ||||||
Glue Material | Water-base cold glue | ||||||
Power Supply | 3P380V50HZ | ||||||
Total power | 12kw | 20kw | 20kw | ||||
Weight | 8T | 9T | 10T | ||||
Over dimension | 13.5x1.85x1.6m | 13.5x2.1x1.6m | 15x2.3x1.6m | ||||
>>> The Machine Components

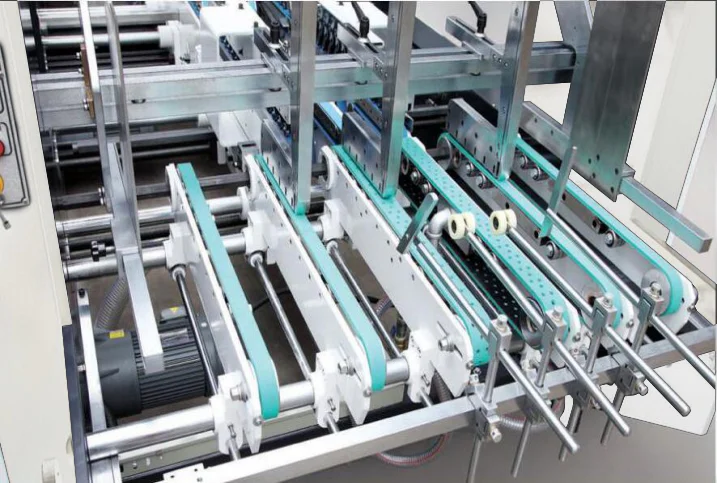

Feeder Section
1.Adjustable feeding belts to ensure easy adjustment,stable and smoothly feeding.
2.Continuously Variable Speeder to ensure feeding internal and stable transmission.
3.One-touch Pneumatic Knife, easy to adjustment of feeding belts.
Aligner Section
1.The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
2.Pressing drive pressure can be adjusted up and down to accommodate differentpaper board thickness.
Crash Bottom Lock (Optional)
1.3-board tracking structure,upper gluer can make bottom-locked box automatic gluing and forming, can be used for the
special-shaped cartons.
2.The entire bottom-lock parts is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold
box and the other types of box, Bottom-folding speed is 50-200 pcs per min,stable and reliable.

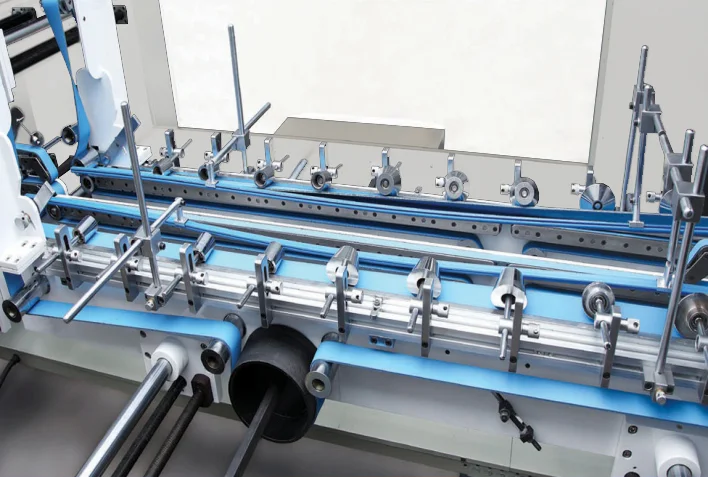

Pre-folding Section
1.Double-board structure with a set of pre-folding knife.
2.Pre-fold angle is 180 degrees and 135 degrees, especially suitable for small but high cartons,more satisfactory while rapid prototyping.
Trombone Section
1.Full press section continuous and automatic box collection mechanism that ensures a neat transfer to the press section
guaranteeing a well aligned flow.
Transmission
1.Driven by independent motor,feeding belt has a function of air suction.
2.Upper section moves back and forward,allowing for different box length.
3.Pneumatic pressure regulator ,which can effectively ensure the uniform of fitting pressure ,makes machine easy to adjust.
1.Adjustable feeding belts to ensure easy adjustment,stable and smoothly feeding.
2.Continuously Variable Speeder to ensure feeding internal and stable transmission.
3.One-touch Pneumatic Knife, easy to adjustment of feeding belts.
Aligner Section
1.The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
2.Pressing drive pressure can be adjusted up and down to accommodate differentpaper board thickness.
Crash Bottom Lock (Optional)
1.3-board tracking structure,upper gluer can make bottom-locked box automatic gluing and forming, can be used for the
special-shaped cartons.
2.The entire bottom-lock parts is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold
box and the other types of box, Bottom-folding speed is 50-200 pcs per min,stable and reliable.
Pre-folding Section
1.Double-board structure with a set of pre-folding knife.
2.Pre-fold angle is 180 degrees and 135 degrees, especially suitable for small but high cartons,more satisfactory while rapid prototyping.
3.Packed with special track device.
4.Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
4.Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Trombone Section
1.Full press section continuous and automatic box collection mechanism that ensures a neat transfer to the press section
guaranteeing a well aligned flow.
Transmission
1.Driven by independent motor,feeding belt has a function of air suction.
2.Upper section moves back and forward,allowing for different box length.
3.Pneumatic pressure regulator ,which can effectively ensure the uniform of fitting pressure ,makes machine easy to adjust.
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
>>> Our Exhibition

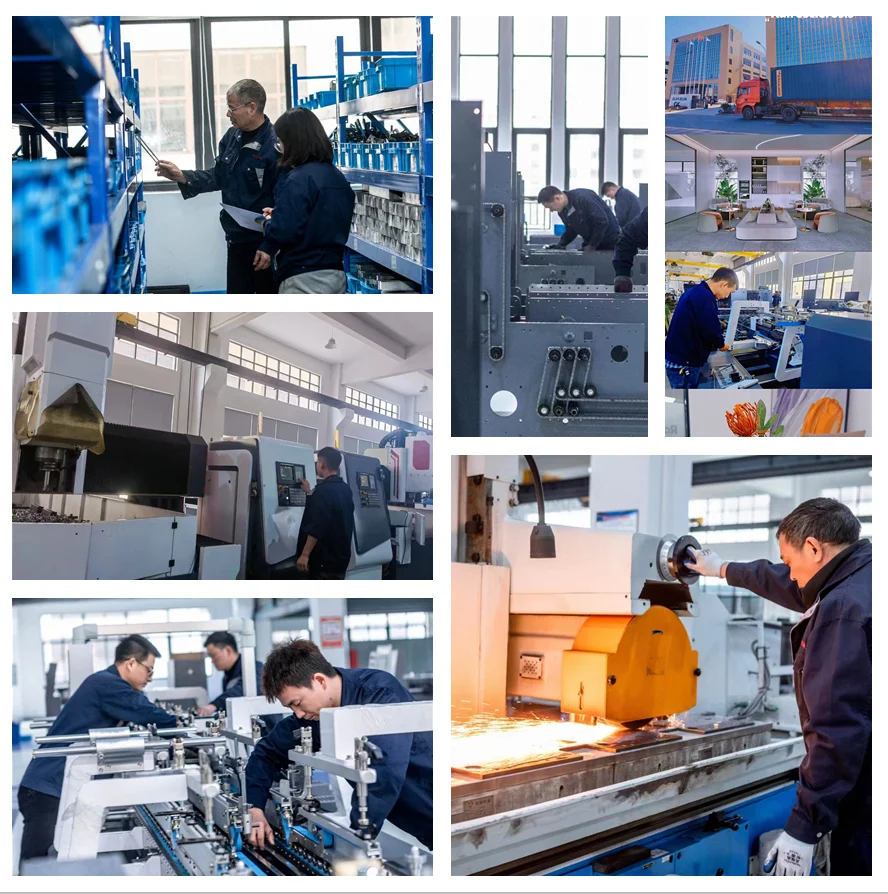

>>> Company Introduction
Ruian Gaoke Machinery Co., Ltd, was established in 2006. As a professional manufacturer, we not only do manufacturing, but also do researching, marketing and offering after sales servicerd b. We supply quality equipment, effective and convenient solutions for cardboard box and corrugated box folding industry, printing and packaging industry, We have got CE certificate in 2008.
We persist on the business philosophy of technology and innovation, casting quality, and pursuit of excellence.
Since the establishment of the company, we pay attention to developing and bringing in professional technicians and setting up a
young elite team, our products are quite popular in Southeast Asia and Europe because of their high quality.
Ten years witness our growth. Now our company space covers more than 10000 square meters.
We persist on the business philosophy of technology and innovation, casting quality, and pursuit of excellence.
Since the establishment of the company, we pay attention to developing and bringing in professional technicians and setting up a
young elite team, our products are quite popular in Southeast Asia and Europe because of their high quality.
Ten years witness our growth. Now our company space covers more than 10000 square meters.
>>> Shipping &Packing
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries,
Also some are according to the customer's requirement.
Also some are according to the customer's requirement.
Different Folder Gluer Available as below:
folder gluer | folding gluing machine | window patching machine |
folder gluer machine | folding and gluing machine | box making machine |
automatic folder gluer | used folding gluing machine | paper box making machine |
automatic folder gluer machine | paper bag folding gluing machine | making machine |
folder gluer machine spare parts | automatic folding carton box gluing machine | cardboard box making machine |
flexo folder gluer | carton folding and gluing machine | sweet box making machine |
4 6 corner automatic folder gluer machine | paper folding gluing machine | paper box machine |
carton box folder gluer | automatic mini box folding gluing machine | corrugated box making machine |
semi automatic folder gluer machine | corrugated box folding gluing machine | corner pasting machine |
carton folder gluer | box gluing machine | folding carton box gluing machine |
lock bottom folder gluer | Gluing machine | folding machine |
>>>FAQ
1. Q: What is the machine warranty?
A: One year.
2. Q: Does your machine with CE certificate?
A: Yes.
3. Q: What is the production time while placing order?
A: About 35 days
4. Q: What is the delivery time?
A: Within 30 days after get the payment.
5. Q: Can your company handle shipping for customers?
A: Yes. (Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6. Q: Does the packing strong?
A: Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7. Q: How about after-sales service process?
A: When your machine has problem, contact your sales and we will solve your problem soon as possible.
8. Q: Are you manufacturer?
A: Yes, we are manufacturer with 10-year experience and profession.
9. Q: Do you have stock product to sell?
A: Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need
custom one for you, and your order will be highly attention to manufacture.
10. Q: Do you inspect the finished products?
A: Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine.
11. Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C. We are professional
manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
