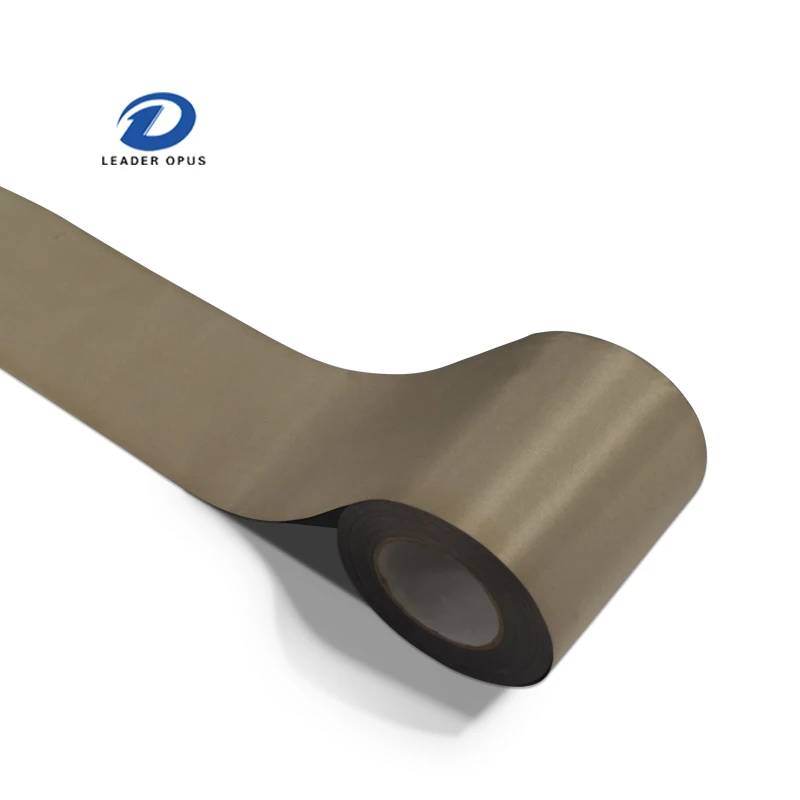

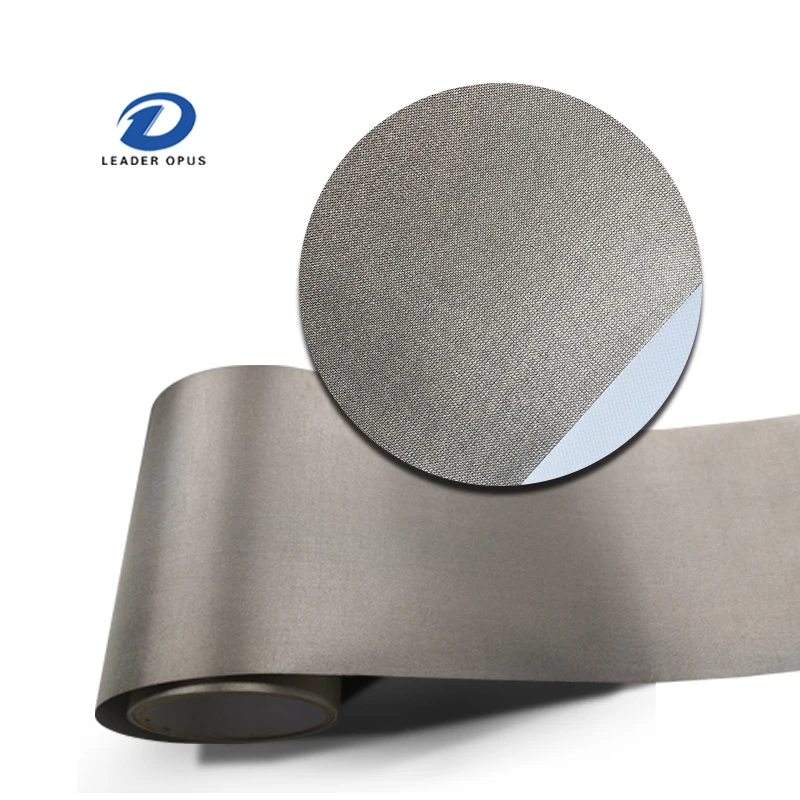

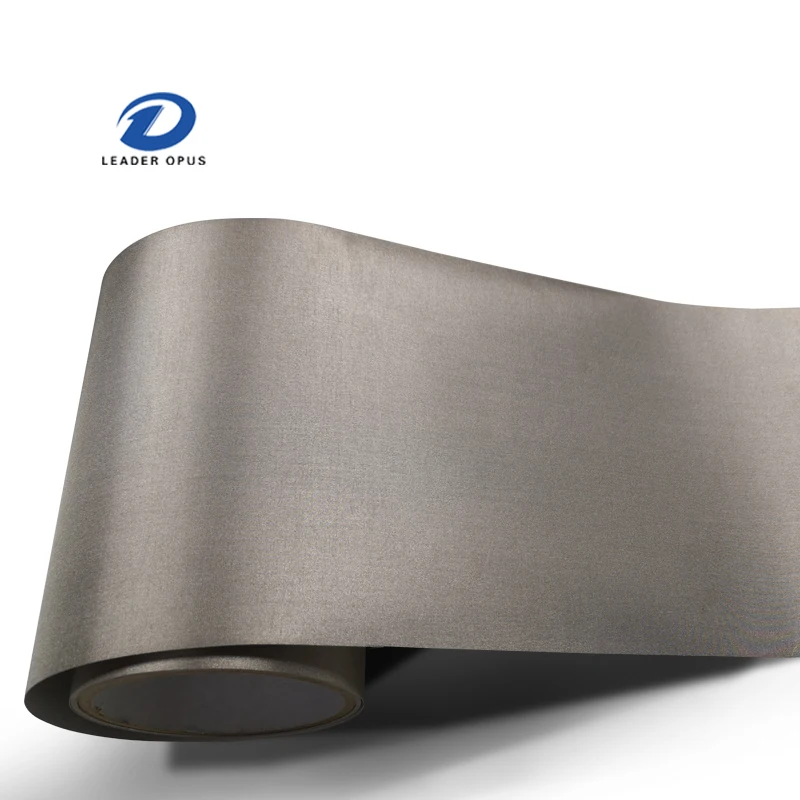

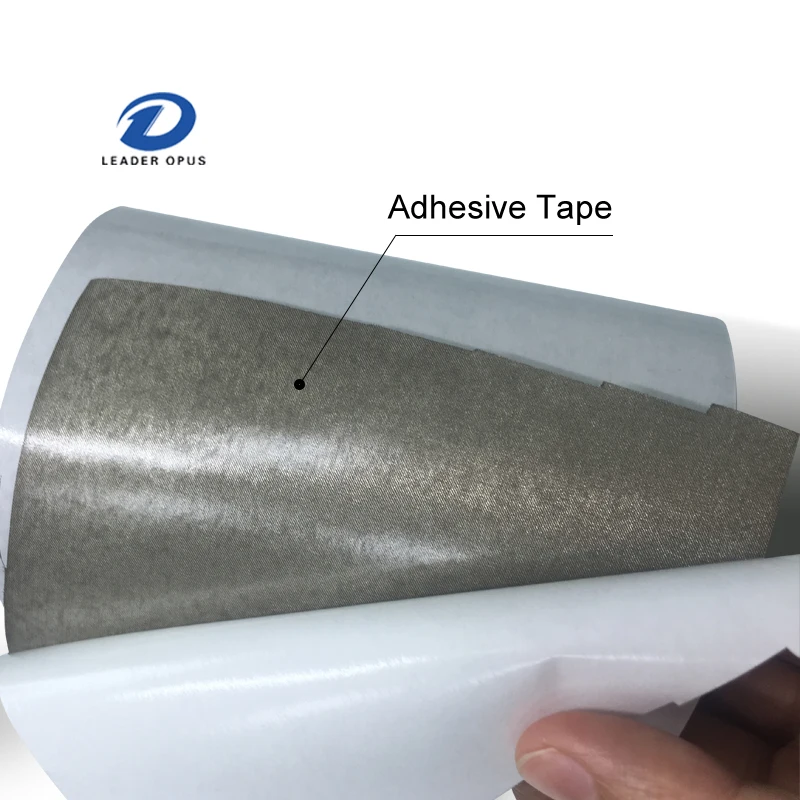

Die cutting flexible electrical conductive fabric adhesive tape with good shielding effects
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62250598322):
Product Overview
Description
The conductive fabric adhesive tape we provided has many outstanding features, including:
* East to die cutting and application
* Excellent Shielding Effectiveness
* Low cost conductive tape for wide electrical applications
* Very flexible conductive fabric foam improves the production
* Fire retardant as well as RoHS compliant foam avaliable
Technical data of conductive tape | ||||
Item | Technical Data | Description | ||
Thickness | 0.03-0.45 mm | Tolerance:+/-0.02mm | ||
Width | 1070 mm | Tolerance:+/-20mm | ||
Length | 50 m | Tolerance:+/-0.5m | ||
Adhesion | >0.8 kg/inch | ASTM D3330 | ||
Holding Power | ≥1440 minute | ASTM D3654 | ||
Resistance | Vertical impedance：≤0.05 Ω/inch2 | ASTM D390 | ||
Surface impedance：≤0.05 Ω/inch2 | ||||
Temperature Range ℃ | -10~85℃ | Thermometer ASTMB117-03 | ||
Shielding Effectiveness | 75~110 Db | 10MHz~3GHz SJ20524-2004 | ||
Application | Figure for EMI/ESD/RFI/SAR,Mobile Phone,PDA,Digital camera,Camcorder,LCD,PDP,Set-top Box,Note-PC,Net-Work, System, Cable Shield | |||
Material data of conductive tape | ||||||
Item | Material | Thickness | Description | |||

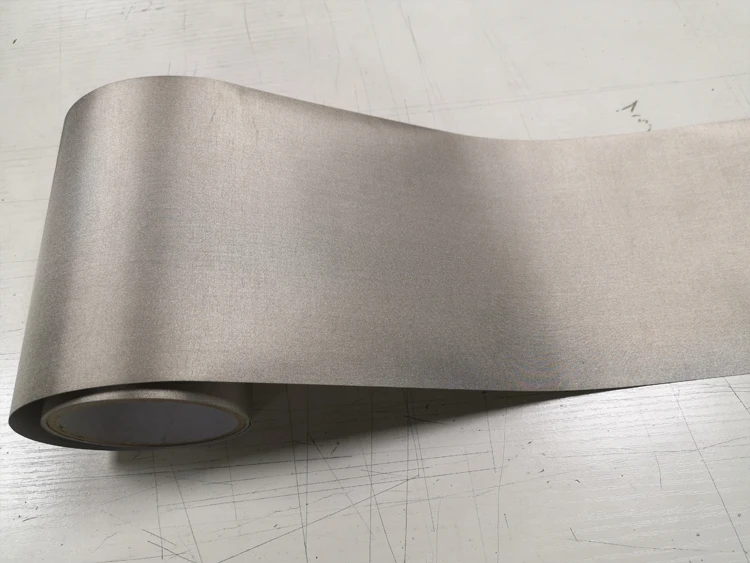

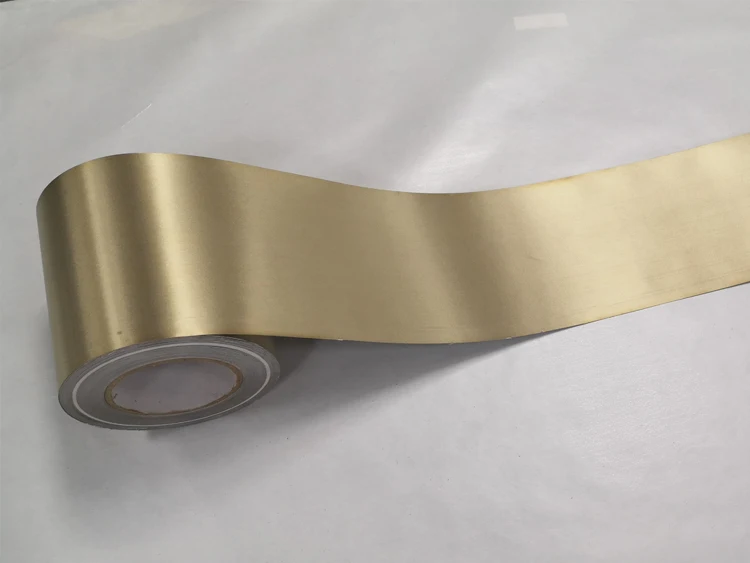

Base Material | Ni-Cu-coated Carbon coated Gold coated Antioxidant Copper foil Aluminum foil | 0.03/0.05/0.07/0.1/0.15/0.2/0.25/0.3/0.35/0.4 | Cloth Fabric | |||
Adhesive | Conductive Acrylic Adhesive | 0.01/0.045/0.05 | Acrylic+Cu+Ni | |||

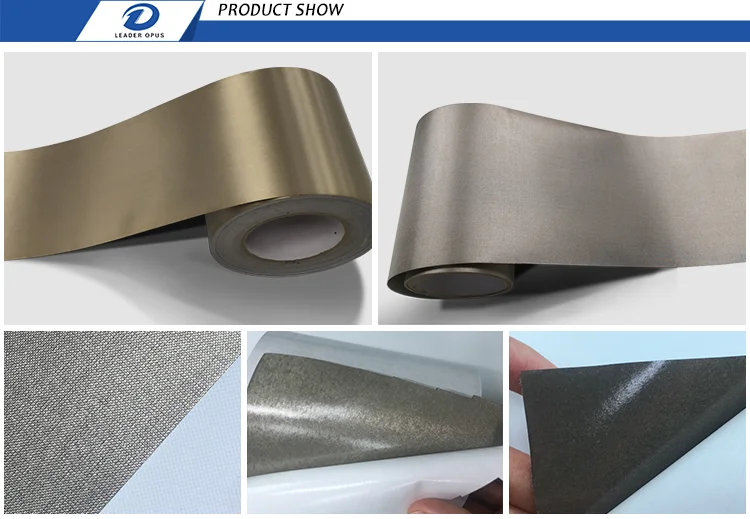

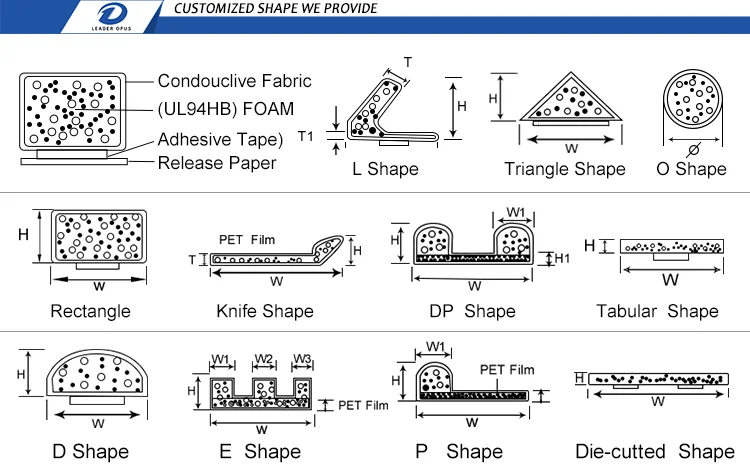

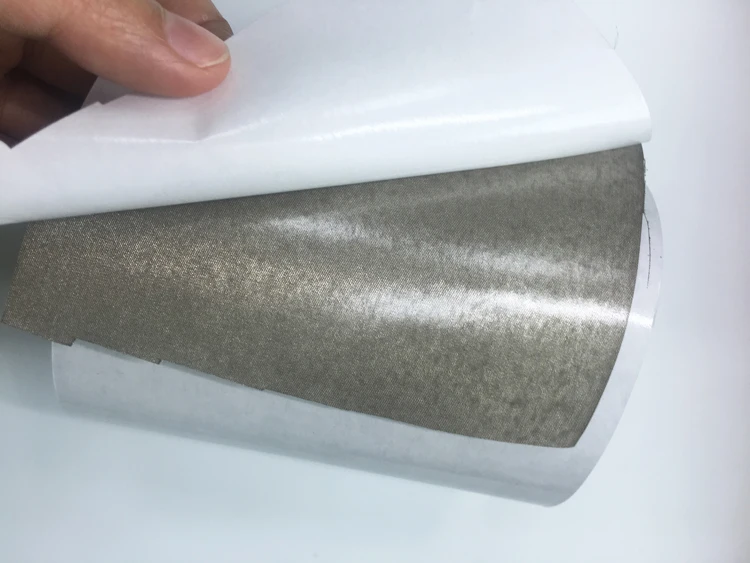

Product structure of conductive tape
Our conductive fabric tape has excellent shielding effectiveness. It is composed of Conductive Woven Fabric, Conductive Acrylic Adhesive(PSA), Release Paper

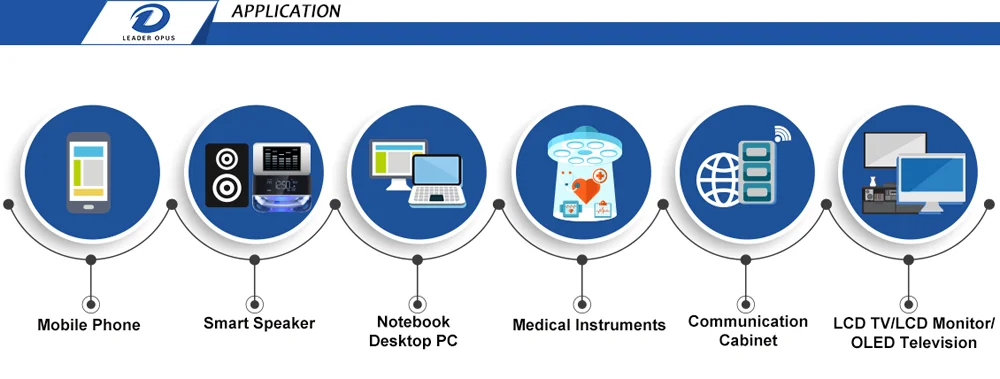

Application range of eclectrical conductive tape
The conductive adhesive tape is widely used for EMI/ESD/RFI/SAR,Mobile Phone,PDA,Digital camera,Camcorder,LCD,PDP,Set-top Box,Note-PC, Net-Work, System, Cable Shield

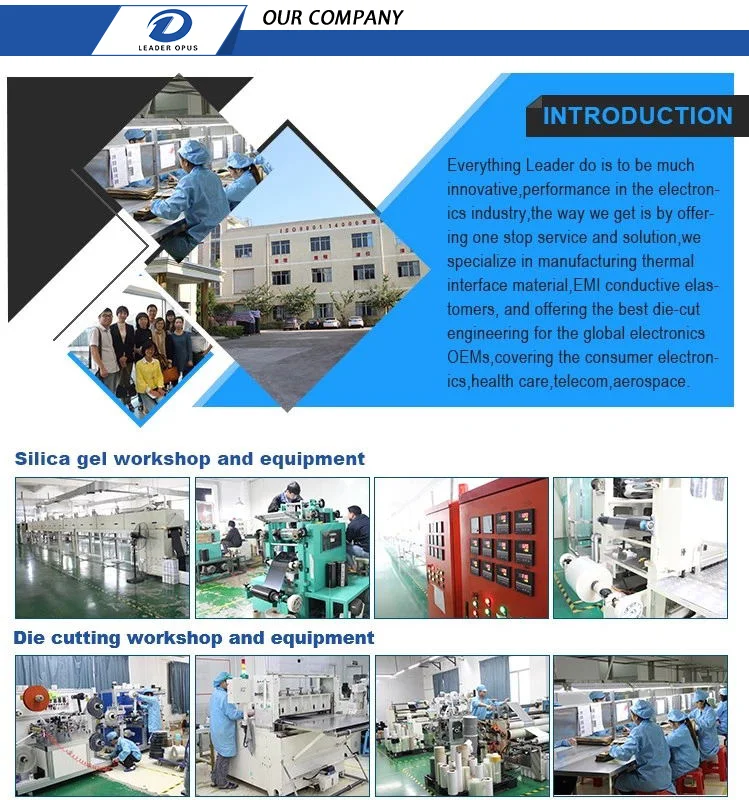

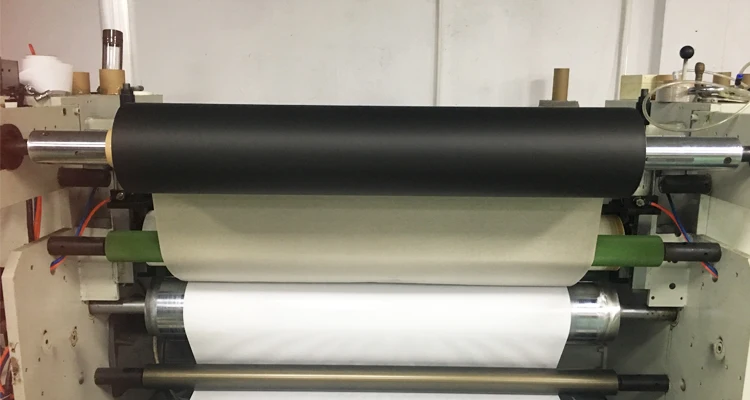

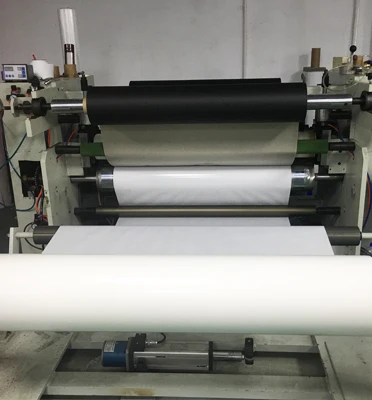

Conductive Cloth Tape Manufacturing Equipment
We provide high quality conductive cloth tape at factory price. Our EMI shielding products manufacturing equipment is advanced and can ensure the quality and EMI shielding effectiveness.
Company Profile
Our Service

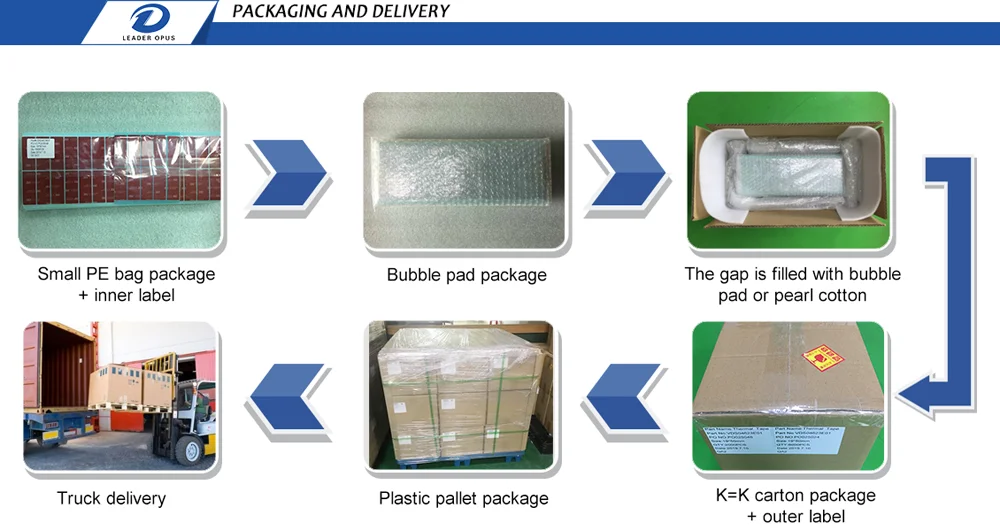

Packing & Delivery
3. Carton packaging: the material of carton is K=K, the sealing tape is crossed to ensure the firmness of sealing. Generally, one carton is no more than 20kg;
4. Card board packaging: plastic card board packaging is neatly arranged, packed with tic-tac-toe to ensure the stability of the card board;
Packing Details:
1. Small packaging: product information is clarified with label;
2. Inner packaging: filling the gap with high quality and adequate EPE bags and bubble pad to protect the product from damage during transportation;3. Carton packaging: the material of carton is K=K, the sealing tape is crossed to ensure the firmness of sealing. Generally, one carton is no more than 20kg;
4. Card board packaging: plastic card board packaging is neatly arranged, packed with tic-tac-toe to ensure the stability of the card board;
Delivery Details:
3-30 days after order of conductive foam.
Our Certifications
The conductive tape with adhesive fabric shielding functions is certificated with UL, RoHs, REACH, ISO9001, ISO1004, OHSMS and more.
Customer Visits
FAQ
Q: MOQ?
A: There is No MOQ for most conductive tape, some should negotiate.
Q: Can you help to design the shape of conductive fabric tape?
A: Sure, we have a profession R&D team to helping design and offer you suitable solutions.
Q: What are necessary factors for quotation to be made?
A: Application
Material size details, part No.
Drawing with details (2D/3D/draft by hand)
Q: Can I take sample?
