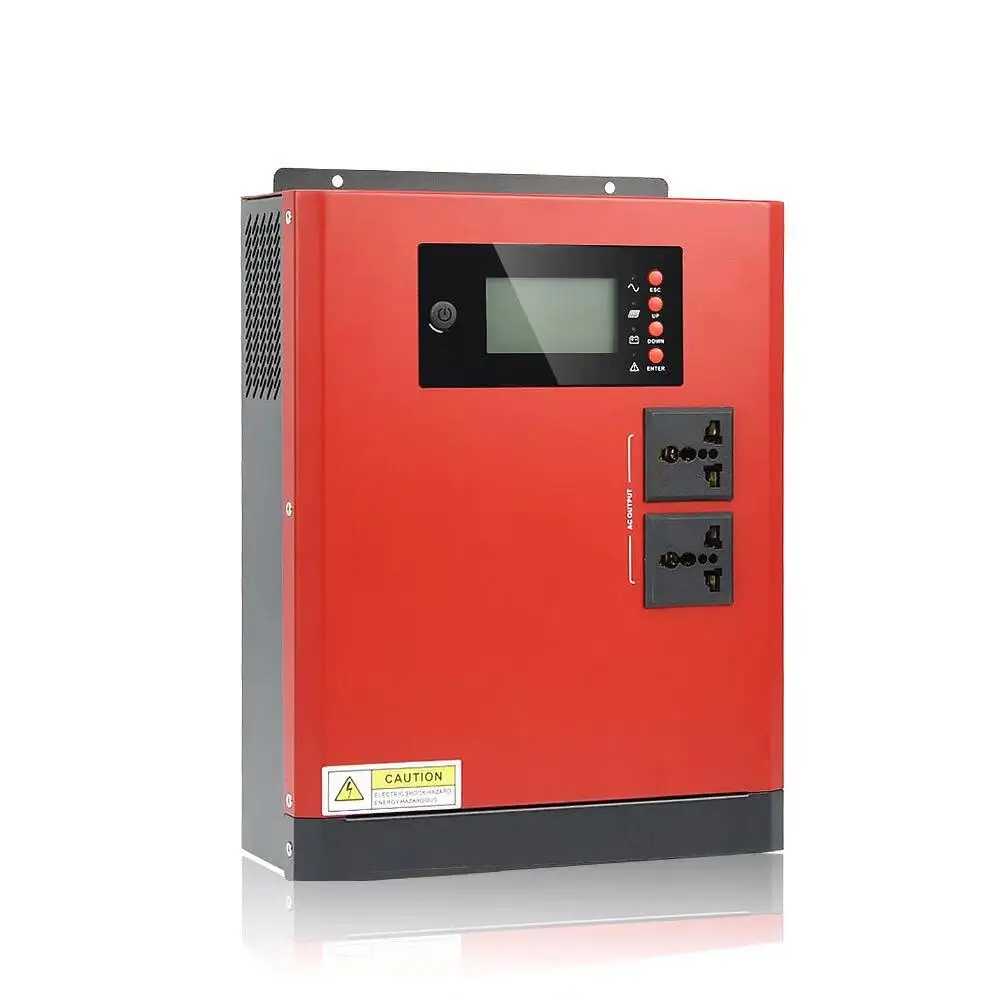

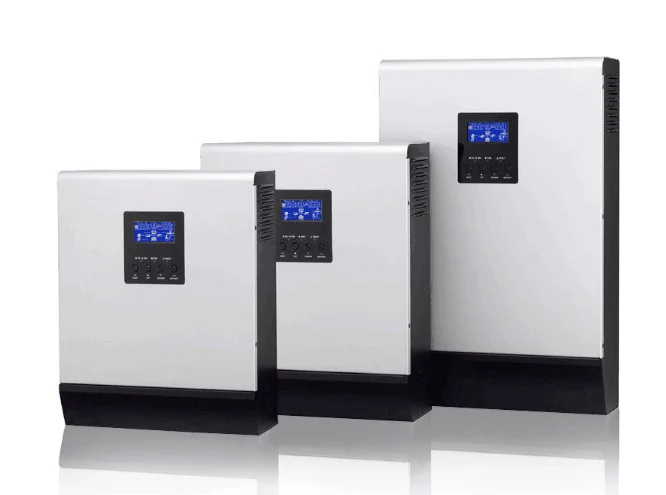

Off grid hybrid MPPT solar inverter 1200va 2400va

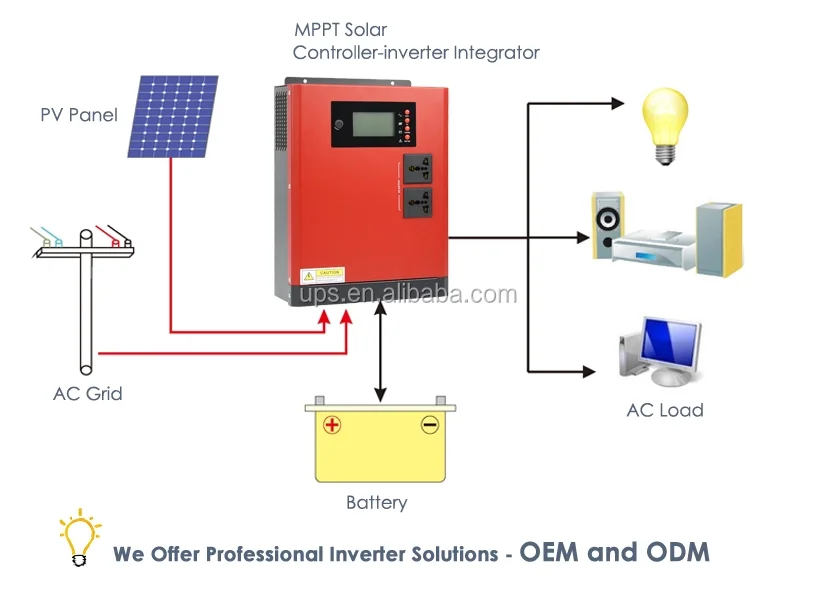

The Victor XM series is designed to power your home appliances or precious 3C electronics. It also can handle motor-type loads with high surge power such as vacuums, small freezers, or drills. With built-in solar charger, it can convert solar power to battery power and provide continuous power to connected equipment during night time.
Model | Victor XM-1200-12 | Victor XM-2400-24 |
RATED POWER | 1200VA/800W | 2400VA/1500W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (UPS mode) | |
90-280 VAC (INV. Mode) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% | |
Transfer Time | 20 ms typical | |
Waveform | Simulated Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage | 12 VDC | 24 VDC |
Floating Charge Voltage | 13.7 VDC ±0.25 VDC | 27.4 VDC ±0.5 VDC |
Maximum Charge Current | 10A or 20A | |
SOLAR CHARGER | ||
System Voltage | 12VDC | 24VDC |
MPPT rated power | 500W | 1000W |
Operating Voltage Range | 15~80 VDC | 30~80 VDC |
Maximum Charging Current | 40A | |
Max. PV Array Open Circuit Voltage | 102 VDC | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 282 X 221 X 73 | |
Net Weight (kgs) | 3.2 | 3.5 |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | –15°C - 60°C | |
Products Details
| Details: |
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
