eddy current non ferrous magnetic metal separator for magnet machine

Product Overview

Description

         eddy current non ferrous magnetic metal separator for magnet machine



 Introduction of dry magnetic separator

When material flows onto the drum, a stationary magnetic assembly inside the magnet drum shell captures tramp metal and holds it securely to the drum’s stainless steel surface.with contaminants removed, the good product falls freely to a discharge point. As the drum rotates, cleats sweep the ferrous magnetite through and out of the magnetic field.the tramp metal is discharged separately, creating continuous self-cleaning separation.

Applications of dry magnetic separator

(1),minerals and mining

(2),waste recovery (tramp iron or metal )

(3),sand & gravel

(4),ore beneficiation ( garnet,black gold,coltan,tin ore )

(5),food feed ,grain and seed

(6),glass and ceramics

(7),abrasives,refractory & foundry

(8),cement

(9),coal handling

(10),chemicals ,fertilizers,& pharmaceuticals

(11),wood industry

(12),plastics

(13),slag processing

(14),protection for crushers,grinders,mills





Design options of dry magnetic separator



Technical specifications of dry magnetic separator

Model no	belt width (mm)	diameter of  drum (mm)	length  of  drum (mm)	magnetic intensity (mT)	rotary speed (r/min)	iron remove capacity(t/h)		weight (kg)
						powdery	bulk
CTZ-32/40	400	320	500	300	20-30	0.8	10	120
CTZ-32/50	500	320	600	300		1	15	150
CTZ-40/50	500	400	600	300		2	20	240
CTZ-50/50	500	500	600	300		3.5	30	360
CTZ-32/65	650	320	750	300		2	20	210
CTZ-40/65	650	400	750	300		2.8	30	350
CTZ-50/65	650	500		300		4.5	40	420
CTZ-63/65	650	630		300		7	45	830
CTZ-40/80	800	400	950	300		8	55	470
CTZ-50/80	800	500		300		10	65	600
CTZ-63/80	800	630		300		10	80	800
CTZ-80/80	800	800		400		12	100	980
CTZ-63/100	1000	630	1150	350		12	120	1200
CTZ-80/100	1000	800	1150	400		15	140	1300
CTZ-100/120	1200	1000	1400	400		20	180	1580
CTZ-125/140	1400	1250	1600	400		30	250	1950



 Note: 1 mT = 10 gauss

5000 gauss, 6000 gauss, 8000 gauss can be made according to custom require.

can be customized into wet high intensity magnetic drum separator







OEM and ODM of dry magnetic separator

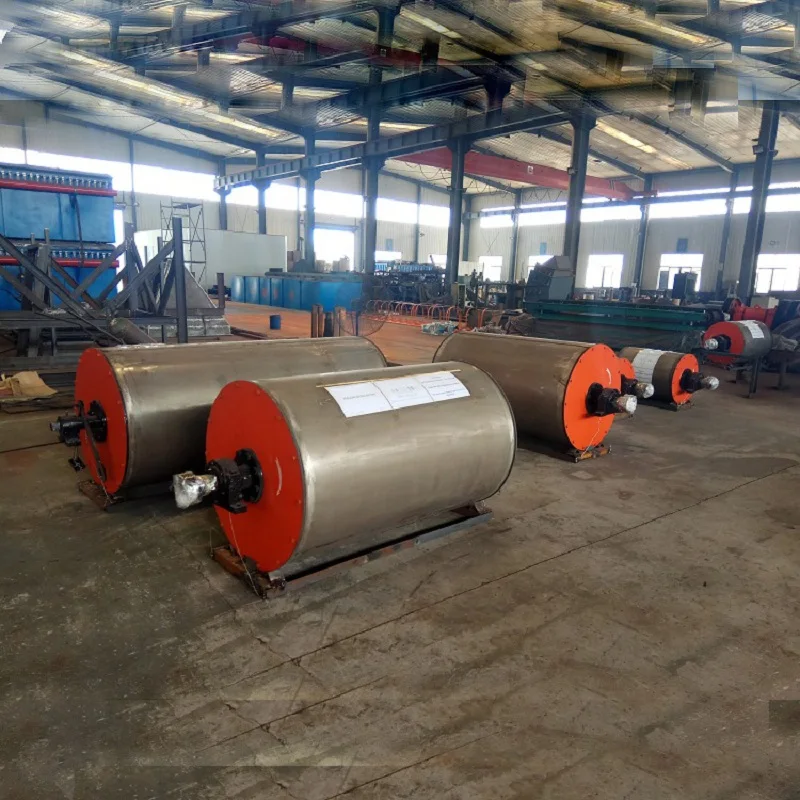

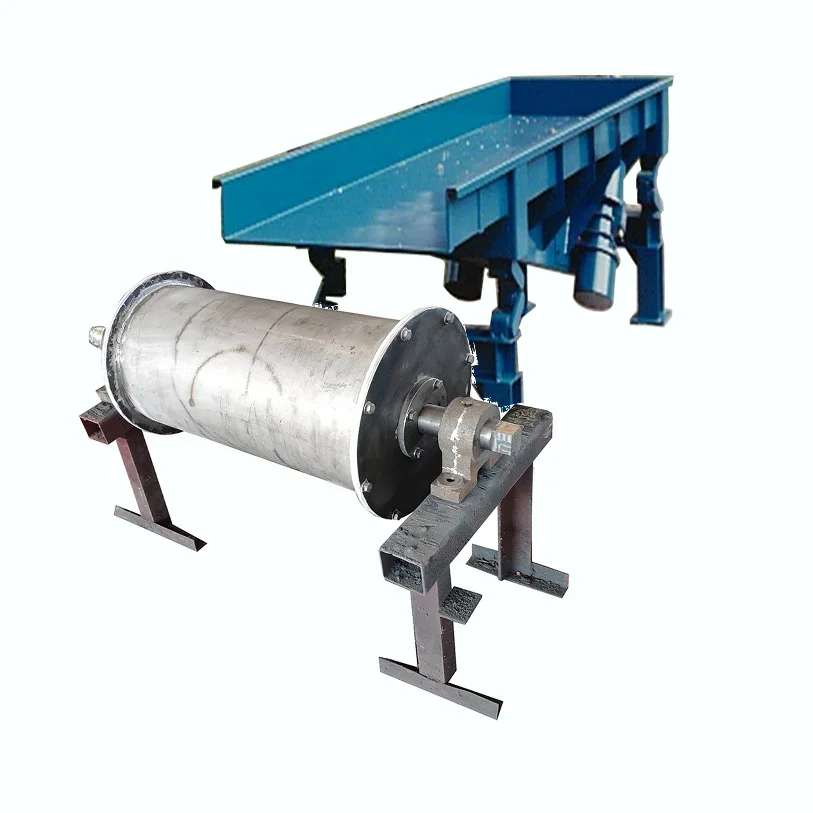

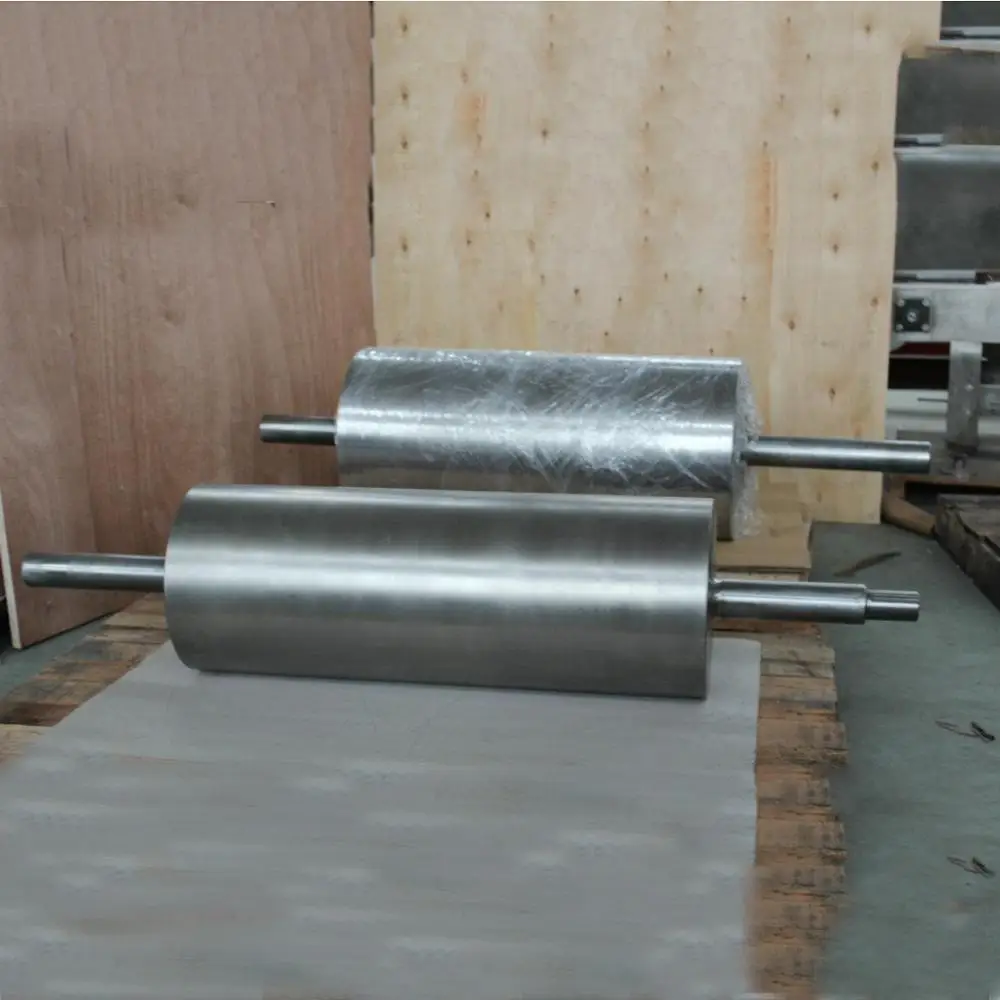

Magnetic drum Separator of dry magnetic separator
