China supplier high quality wet shotcrete machine for sale
- Category: Shotcrete Machine >>>
- Supplier: Qingdao Co-Nele Group Co .ltd.
Share on (62250761496):
Product Overview
Description
Product Description

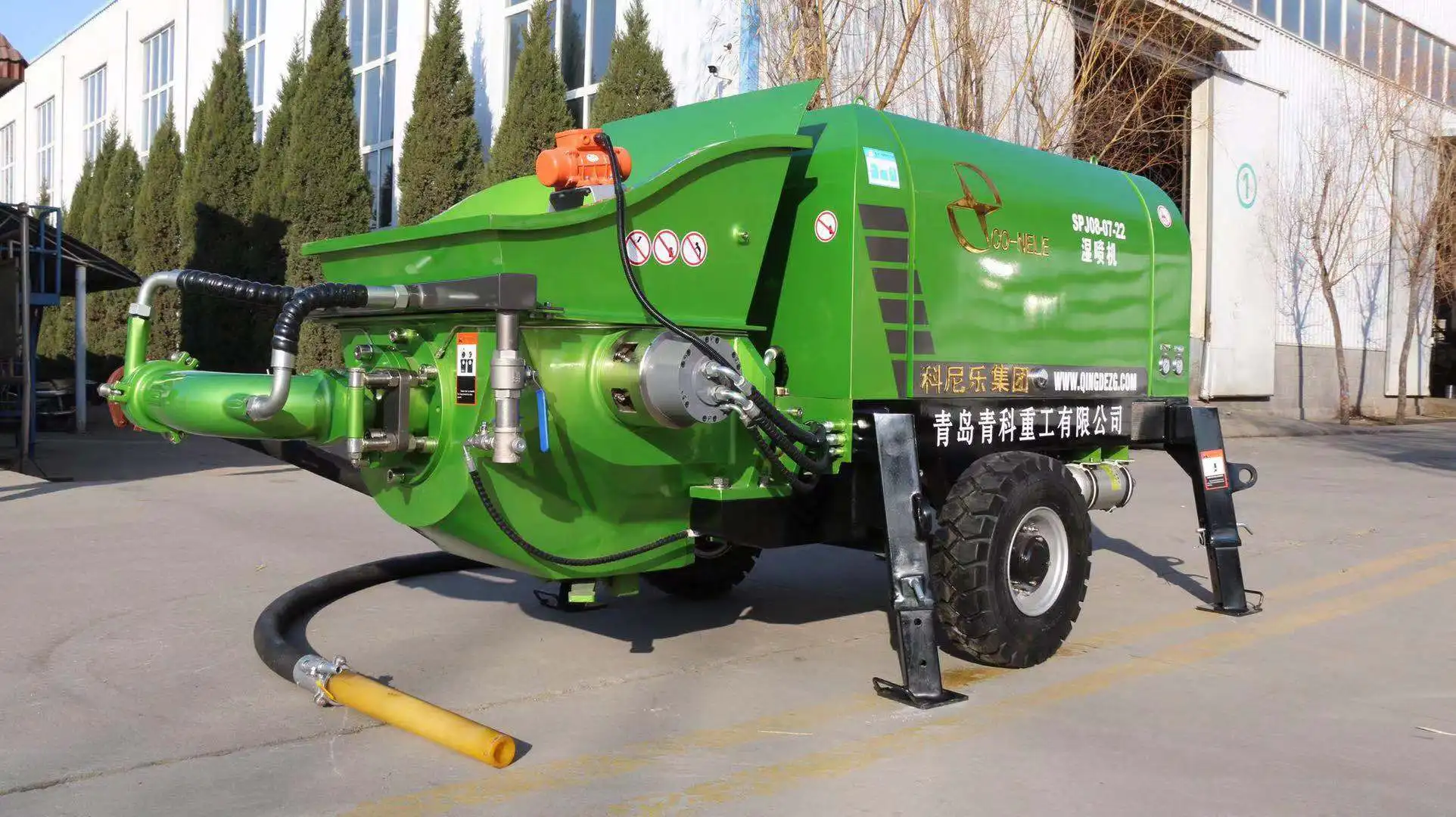

Wet shotcrete machine for sale
SPJ08-07-22 concrete wet spraying machine have 1-8m3/h spraying capacity and are powered by 380V/50Hz, electric motors. Concrete wet spraying machine have rugged construction for long usage life and a compact design for easy operation. It is widely used in mine roadway, railway and highway tunnels, water conservancy culverts, underground engineering and other construction.
Technical parameter
The parameter name | Unit | Parameter | |
Performance | The maximum theoretical spray output | m³/h | 0-8 |
The maximum theoretical pumping pressure | Mpa | 7 | |
The maximum pumping frequency | Time/min | 16 | |
Distributing valve form |
| S valve | |
Delivery cylinder specification | mm | Φ140*800 | |
Discharging outlet diameter | mm | 125 | |
Delivery hose | mm | Φ80 | |
The dia.of spray gun | mm | Φ50 | |
Feeding height | mm | 700 | |
Power system | The rated voltage | V | 380 |
Main motor power | KW | 22 | |
Rated speed | r/min | 1470 | |
Hydraulic system | Hydraulic circuit form |
| Open circuit |
The main system MTP | Mpa | 25 | |
The hydraulic oil tank volume | L | 120 | |
Other parameters | The maximum aggregate size | mm | 15 |
Delivery pipe diameter | mm | Φ57 | |
Whole machine weight | kg | 2000 | |
Towing speed | Km/h | ≤8 | |
Overall dimensions(length*width*height) | mm | 3400*1500*1550 |

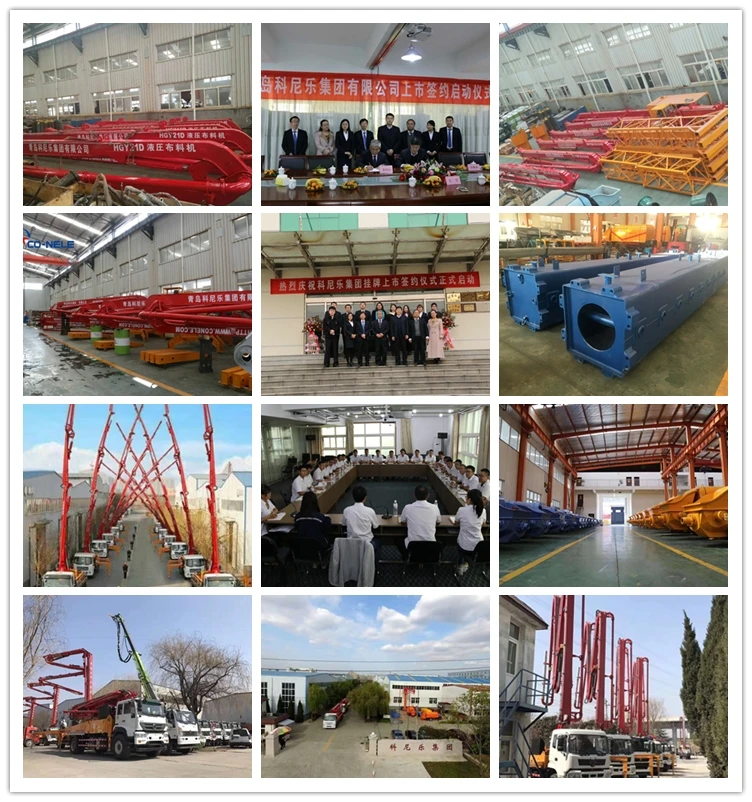

Company Information

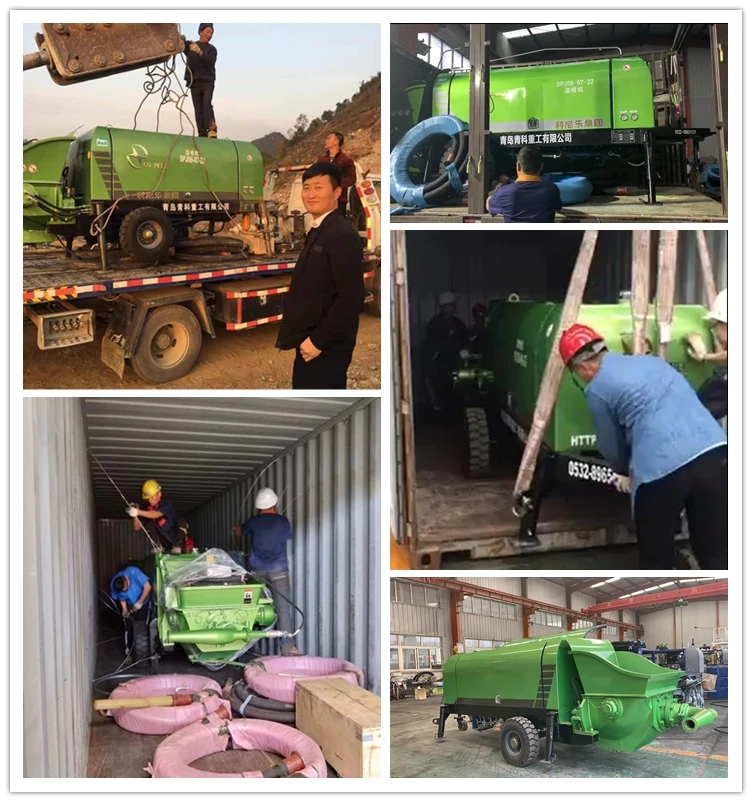

Packaging & Shipping

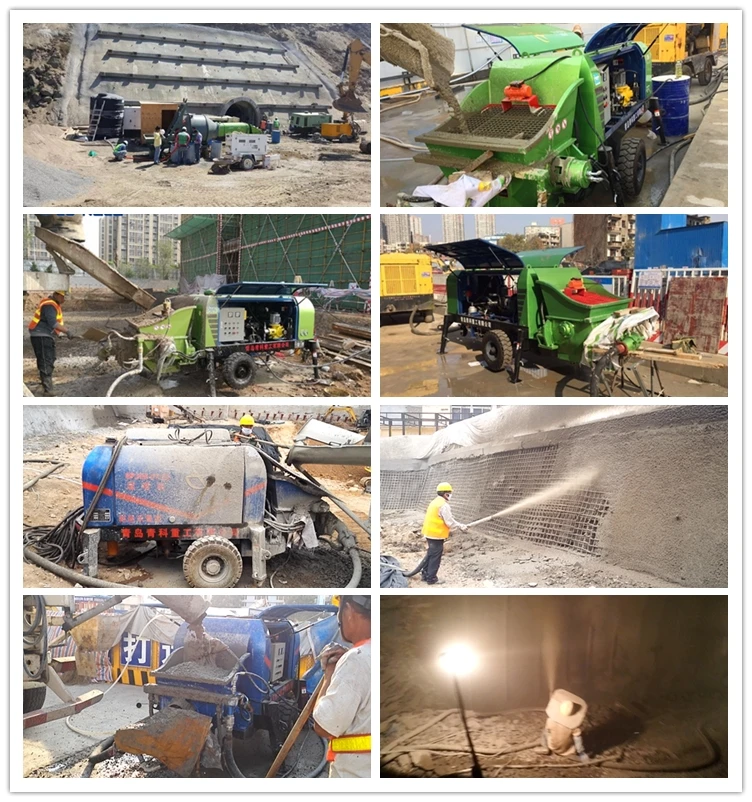

Projects
Certifications
Trade Shows
Our Services
Pre-sales:
Warranty: 12months
Spart parts: provide with genuine spare parts with the highest quality, exact fitness and appropriate function.
Installation & Maintenance: provide with installation of complicated machinery and equipment
Training: provide training service. The trainng sections include product training, operation training and others
After-sales:
24x7 online service
One stop solution for purchasing, optimized product recommendation
Worksite assemble service
Engineer training for customers
