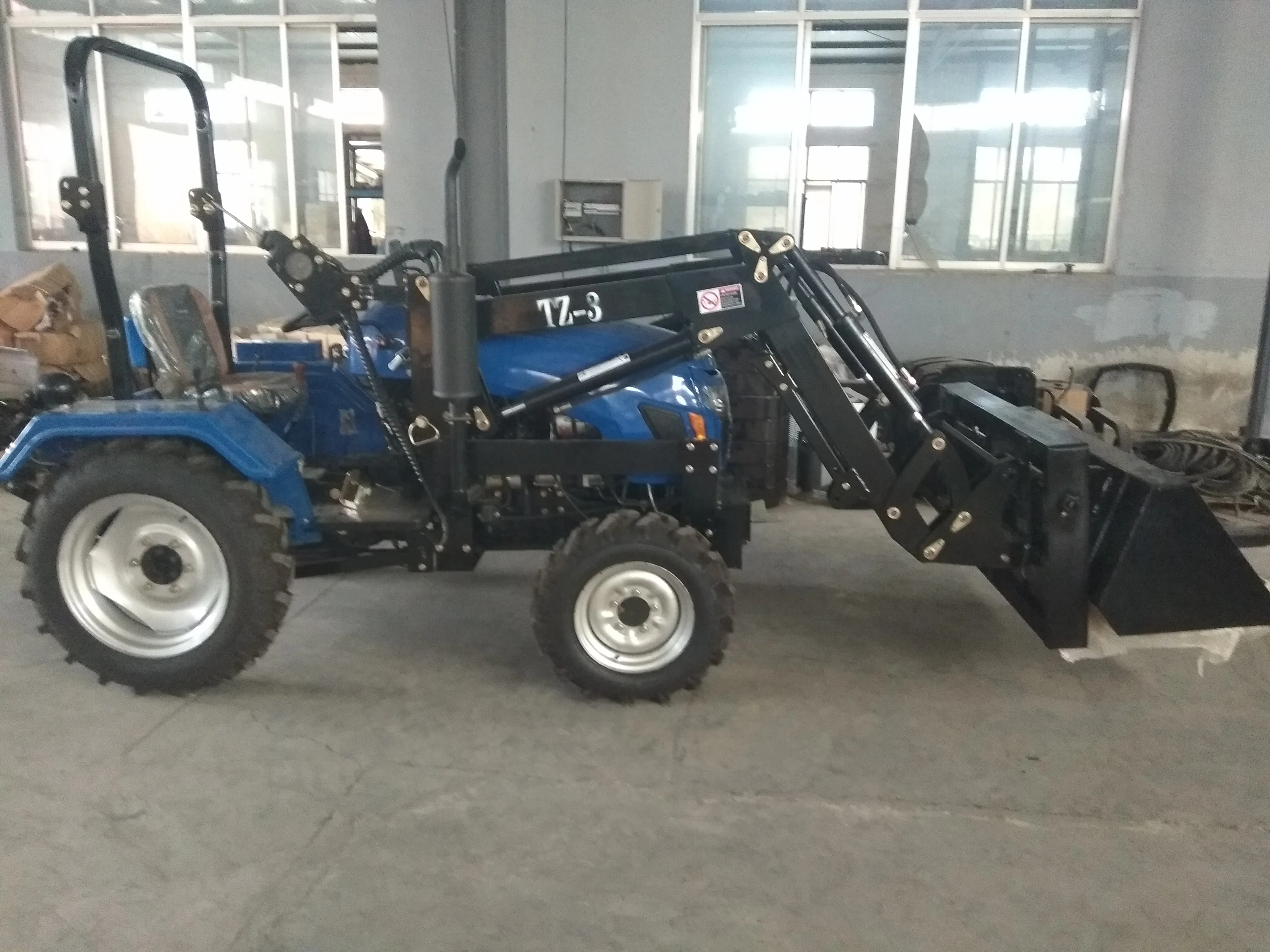

4wd mini farm tractor with fork,4 in1 bucket

Product Overview

Description

model:TY254

4WD  4WHEEL DRIVEN.

WEIGHT: 1100KGS

FRONT WHEEL TREAD:1300MM. BACK WHEEL TREAD:1400MM.

WheelBase: 1600MM.

min. ground base:300MM

DIMENSION: 2500x1400x1500mm

engine model:JD295

type:vertical, 2-cylinder, water cooled and4-stroke

rated power(HP):25HP.

rated rev(r/min):2400

fuel:dieseloil                                                                         front tyre:6.00-14    rear tyre:7.50-20    clutch:

dry-friction, single stage or dry-friction, two stage

steering

mechanical type or hydraulic type

Transmission box:(4+1)×2(with creeper)

suspension type

post postitioned tri-point suspension catalogue o or i

pto shaft

(r/min)type and rev.

non-independent type 540 or non-independent type 540/1000, 540/720 or             semi-independent type 540/1000,540/720

spline size:

i35 rectangle spline with 6 teeth(6×28.91×34.79×8.69)
