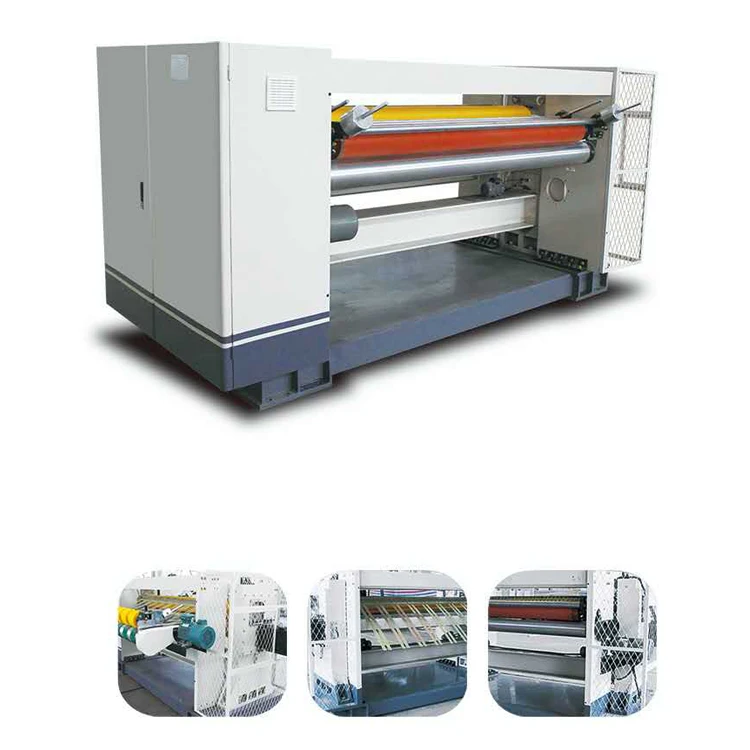

Carton machine to making corrugated cardboard single face line/computer

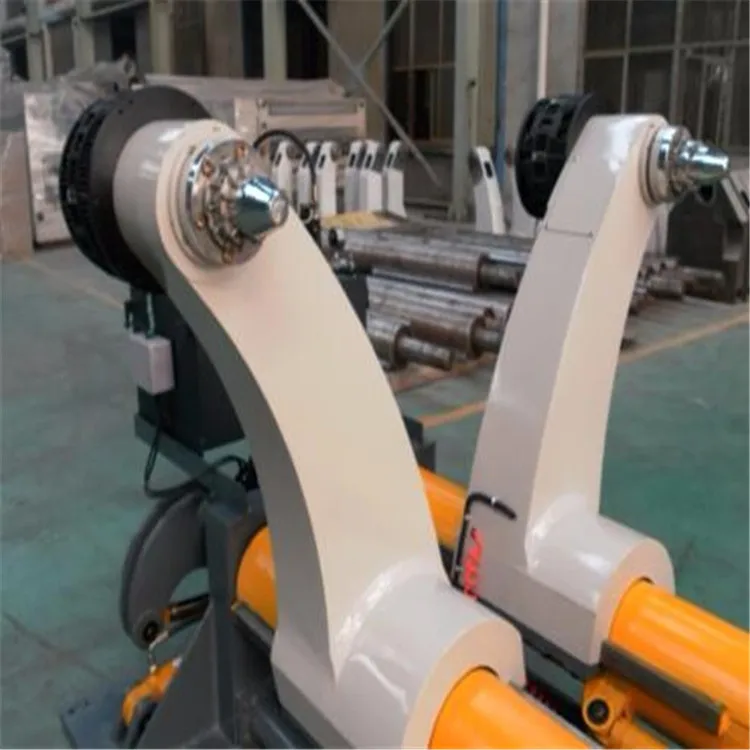

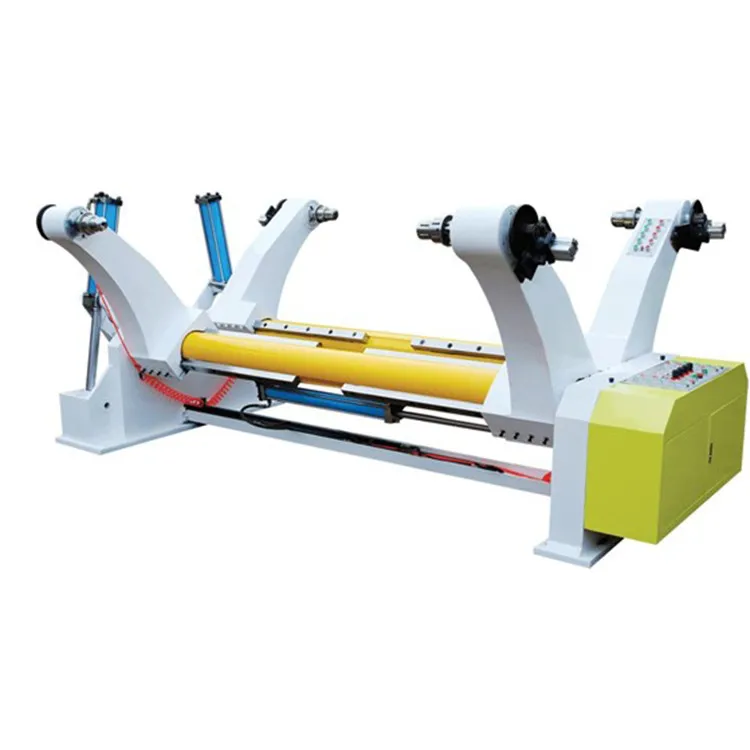

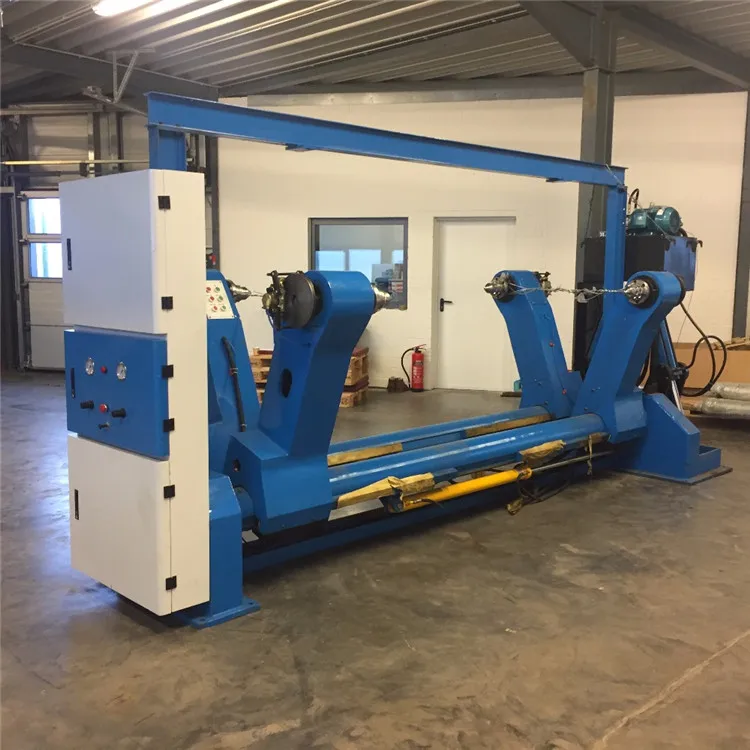

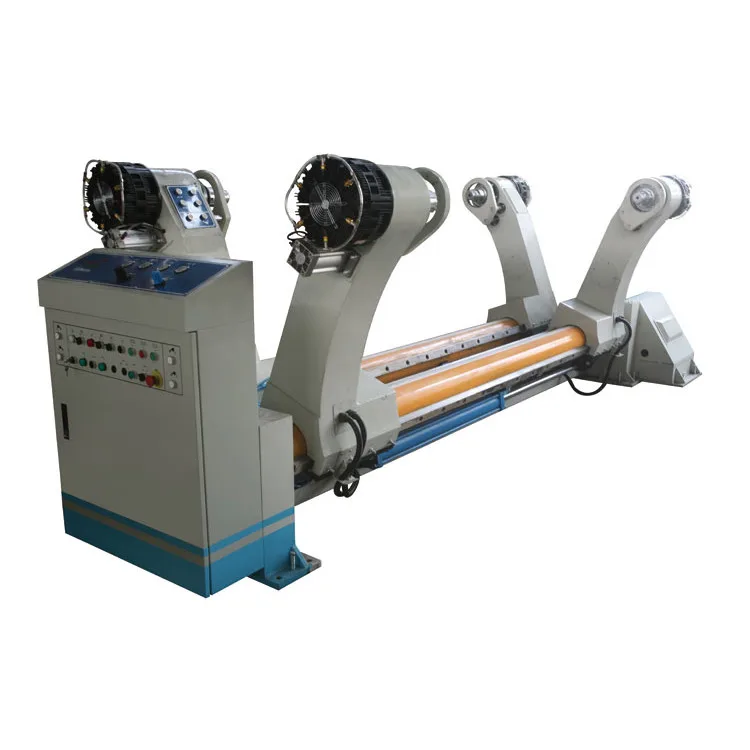

Symmetrical structure, can carry two craft paper at one time, which can work without brake.

Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic

pressure. feeding craft / reel paper quickly.

Brake: pneumatic brake

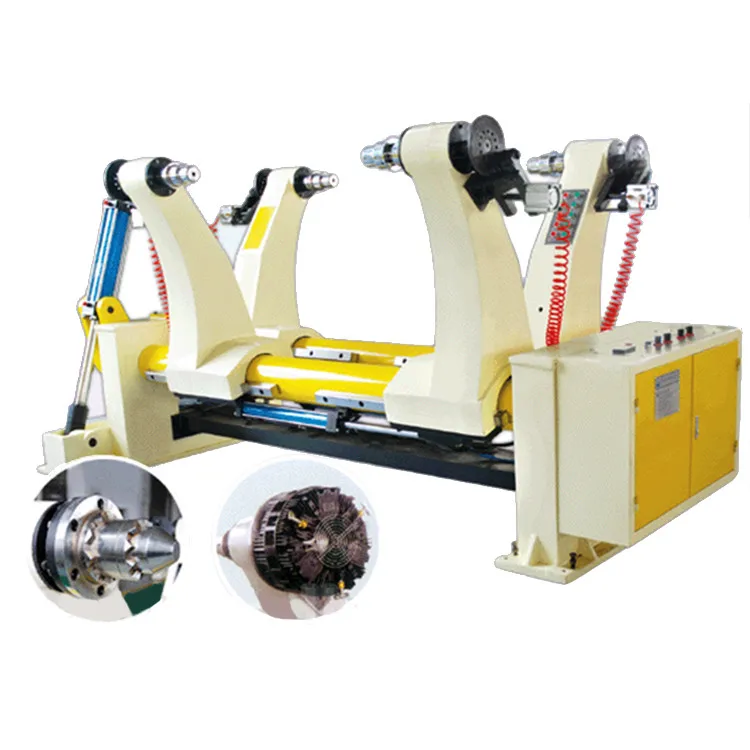

Double Level Auto Expander, Expander head:3/4 inch Double Level.

Specifications of stand:

1,Reel Stand driven by hydraulic

2,Kfat paper range

Width:   Max:2200mm      Min:1000mm

Diameter:Max:1500mm     Min:350mm

Max Weight:2500Kg(One side)

3,Main roller dia:215mm

4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa

5,Power: 380V  50Hz

Specifications of hydraulic system:

1Working Pressure(MPA):16---18Mpa

2Hydraulic Cylinder Range(Lift/Down):110×440mm

3Hydraulic Cylinder Range(Clamp/Loosen):80×800mm

4Hydraulic Station Motor Power:4KW     Short Time(S2) Working Type  Nominal voltage:380V  50Hz

5 Hydraulic Station Electromagnetic Valve Working Power:220V     50 Hz
