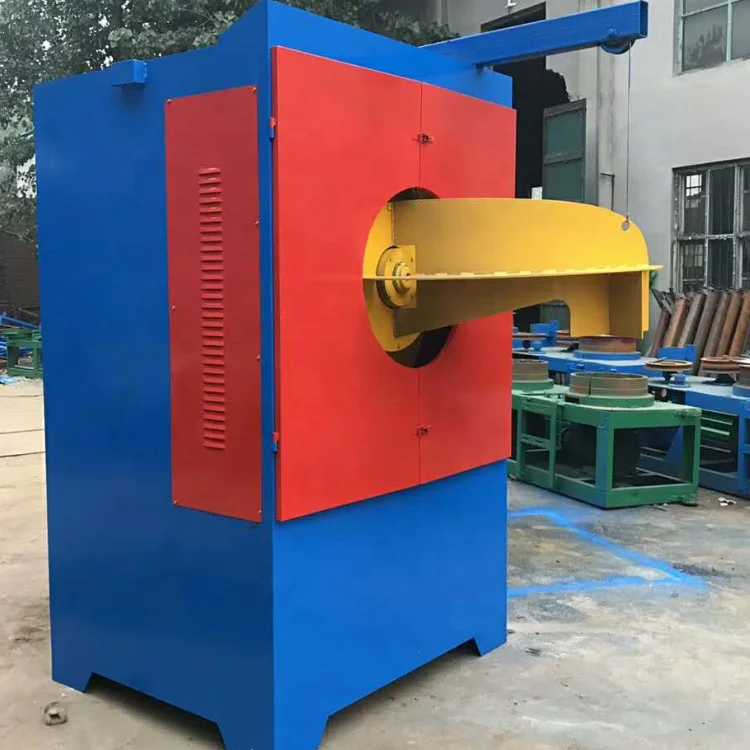

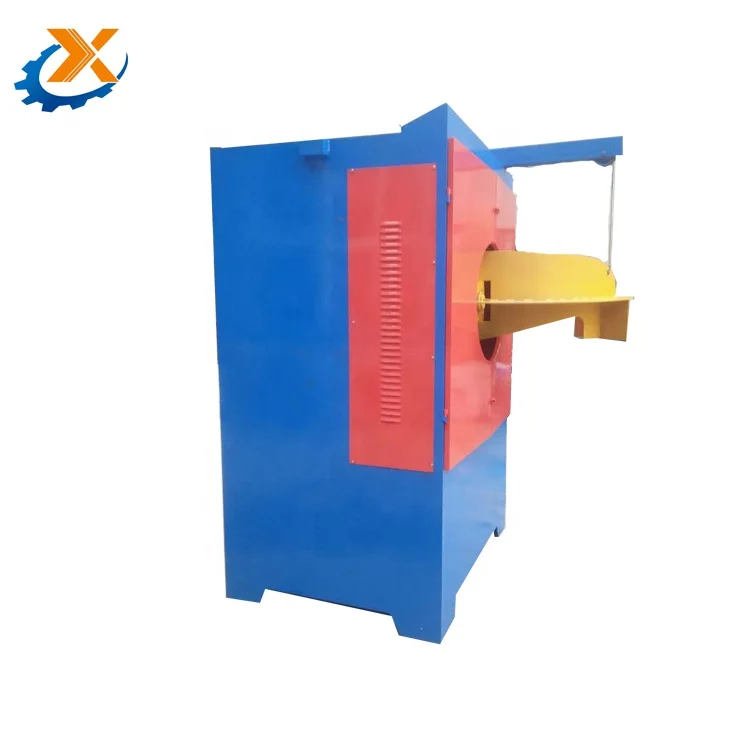

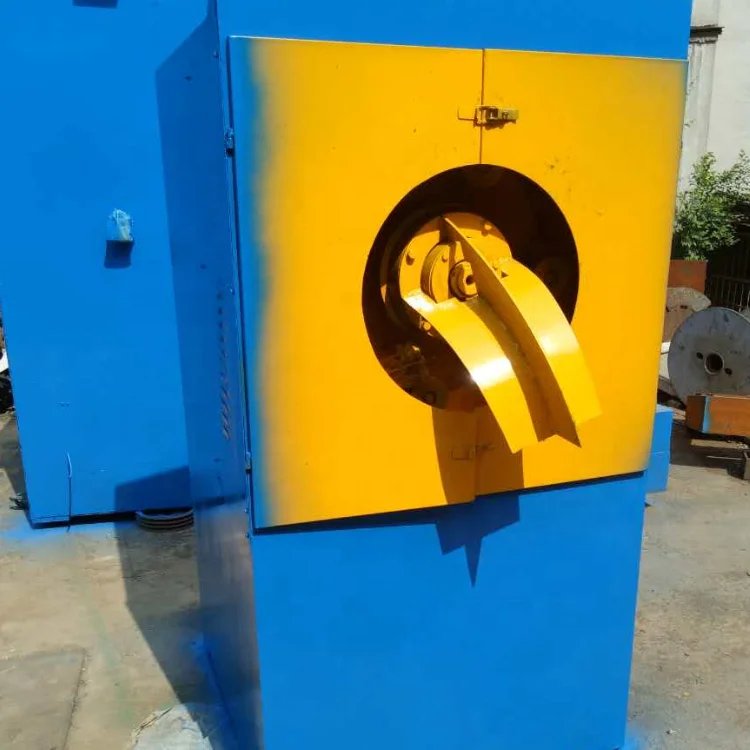

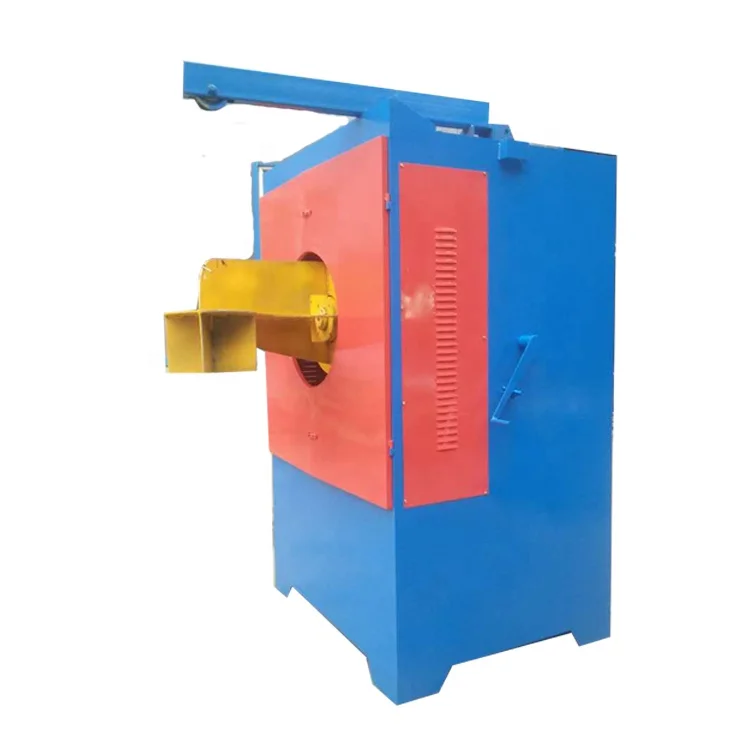

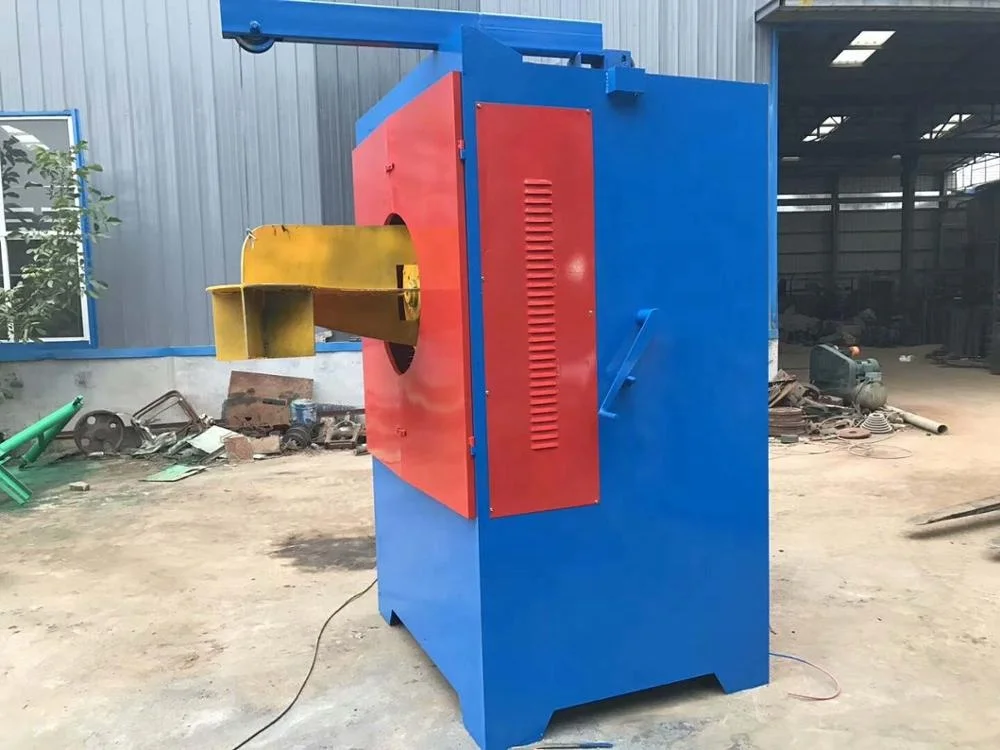

Hebei Xingxiang elephant nose coiler wire take up machine for Galvanizing production line match usage with wire drawing machine
- Category: >>>
- Supplier: Hebei Xingxiang Machinery Manufacture Co. Ltd.
Share on (62250869083):
Product Overview
Description

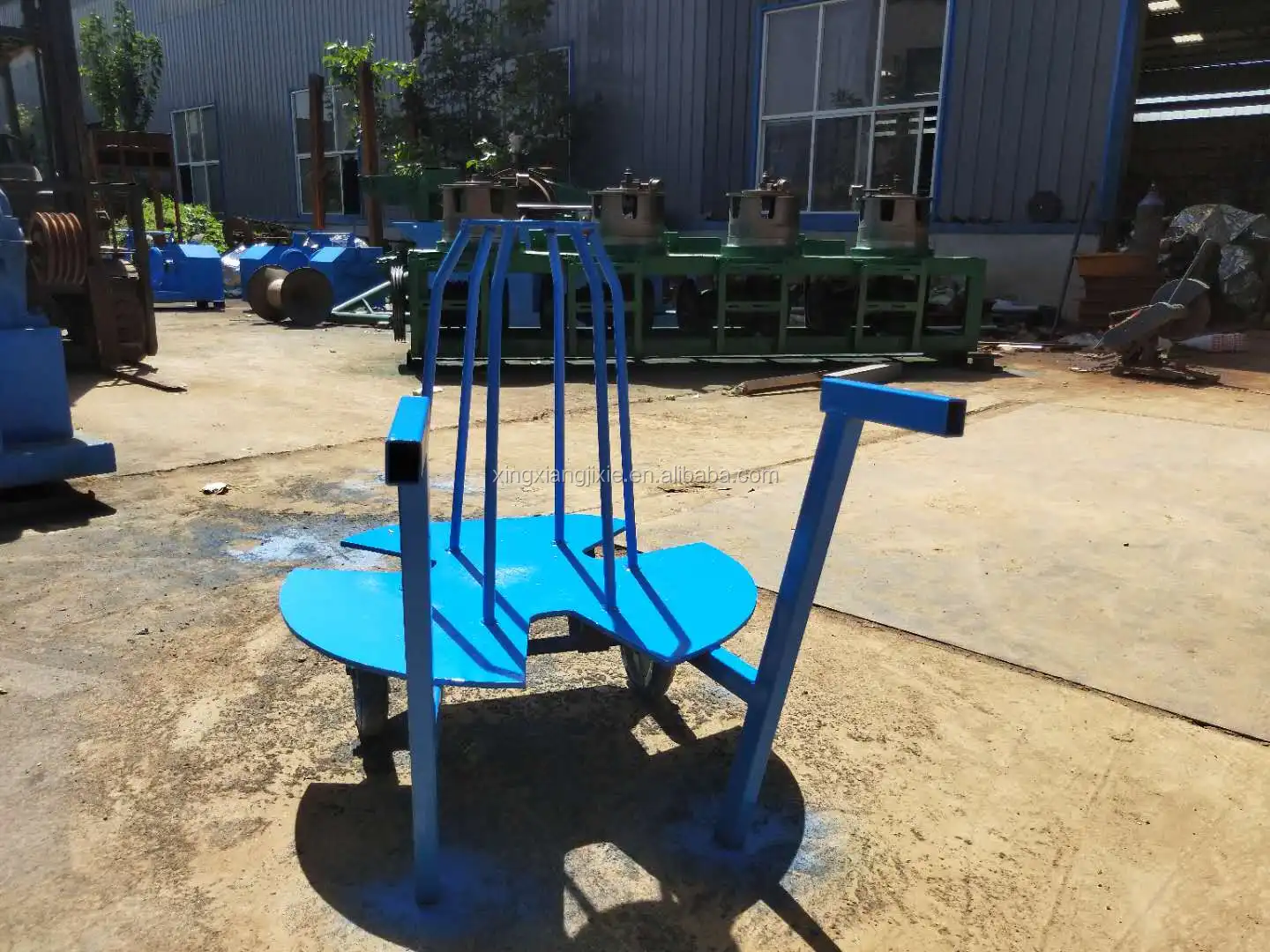

Hebei Xingxiang elephant nose coiler wire take up machine for Galvanizing production line match usage with wire drawing machine
suitable for wire drawing machine set and can take up wire continuously, controlled by frequency conversion, with higher load intensity and coiling speed
Maximum Coiling Wire Diameter(mm) | 5mm |
Control Method | Frequency Conversion Control |
Maximum Coiling Speed (m/s) | 10m/s |
Diameter of Wire Coiler Tank (Φ) | Φ600, Φ500, Φ500 |
Weight(t) | 1t |
The trunk-type take-up machine improved by our company is used for the heavy wet wire drawing machine and straight line wire drawing machine in order to discharge wires with a big weight of coll.It is suitable to discharge the big weight of coll which high-strength spring steel wires has a high request in flatness . The machine can discharge any weight wires in 1000kg at any time without stopping.Because we add the correction mold and the air & water cooling system,the quality of steel wires is improved.
The machine is also suitable for the fine drawing after the heat treatment,which meets users’ requirement of discharging wires in a big weight of coll.
Main Technical Parameters
Model | ZX350 | ZX450 | ZX600 | ZX760 |
Capstan diameter | Φ350mm | Φ450mm | Φ600mm | Φ760mm |
Applicable dia of wires | Φ0.8-1.2mm | Φ1.4-1.7mm | Φ1.8-3.5mm | Φ3.8-5.5mm |
Take-up speed | Optional by the user m/min | |||
Motor power | 7.5-11KW | 11-15KW | 15-30KW | 30-45KW |
Note | The mechanical speed ratio and the drum diameter are optional via the user | |||
