Small diesel train carriage for sale manufacturers
US $50000-$150000

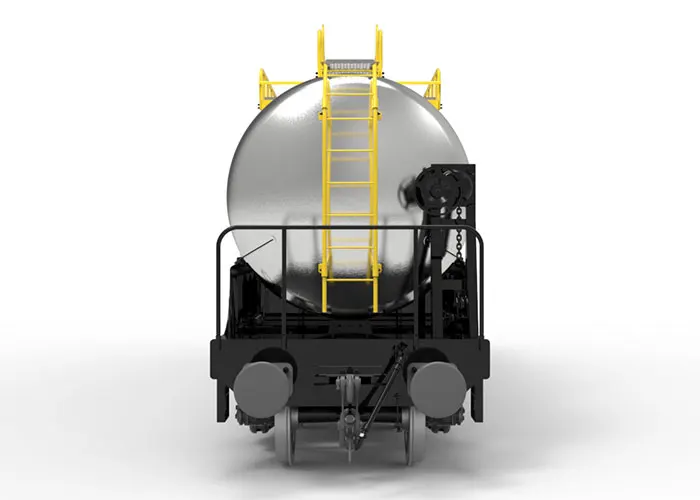

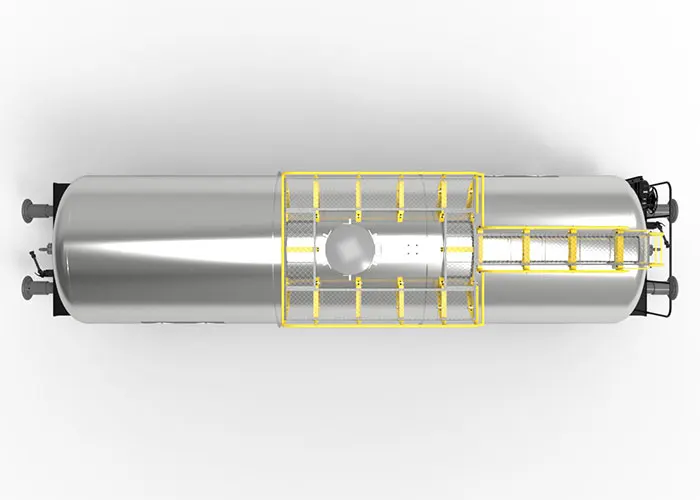

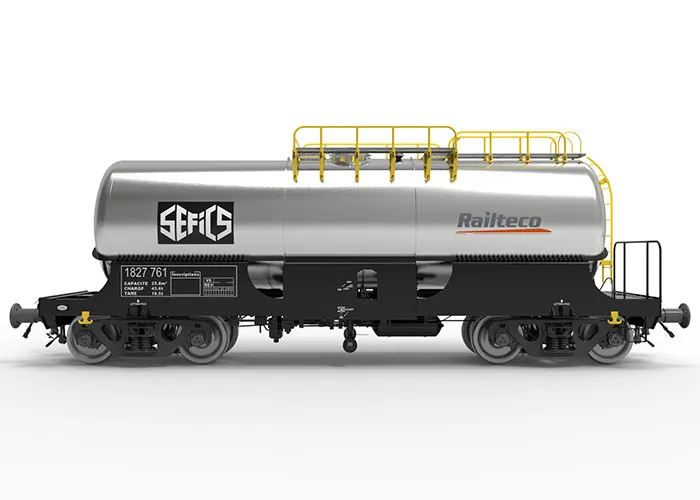

Acid Tank Wagon
- Category: Train Carriages >>>
- Supplier: Jiangsu Railteco Equipment Co. Ltd.
Share on (62250955816):
Product Overview
Description
Product Description
Phosphoric acid tank wagon
Brief description:
Phosphoric acid tank Wagon is specially designed and manufactured to transport phosphoric acid. Loading hatches is covered with manhole cover, unloading hatches is equipped with one 5 inches internal valve, T branch pipe and two ball vales. The wagon is loaded from the top after the top cover is opened. Top cover is manually operated from wagon top platform. The wagon is unloaded from the bottom hatches. Internal valve and ball vale manually operated from both wagon sides, each ball vale separately. The goods are unloaded from two sides of wagon. The tank and tank fittings adopt 316L stainless steel. The wagon design meets the requirements of EN, UIC standard.
Parameters:
Tare weight | ≤17.4t |
Payload | 43.6t |
Capacity | 27.5m³ |
Axle load(bogie) | 18t |
Track gauge | As per client |
Maximum operating speed | 80km/h |
Length over coupler | 10530mm |
Rmin(single wagon) | 70m |
Break type | UIC |
Coupler type | Screw coupler |
Bogie type | Cast type |
Hydro test pressure | 0.459MPa |
Safety valve working pressure | 0.15MPa |
Type of load | Top |
Type of unload | Bottom(both sides) |
