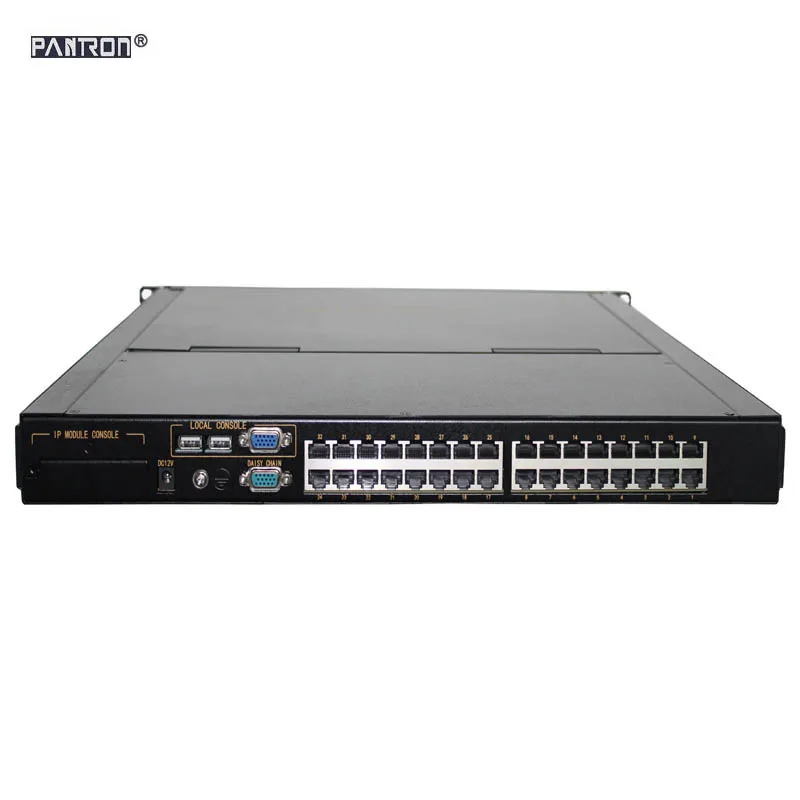

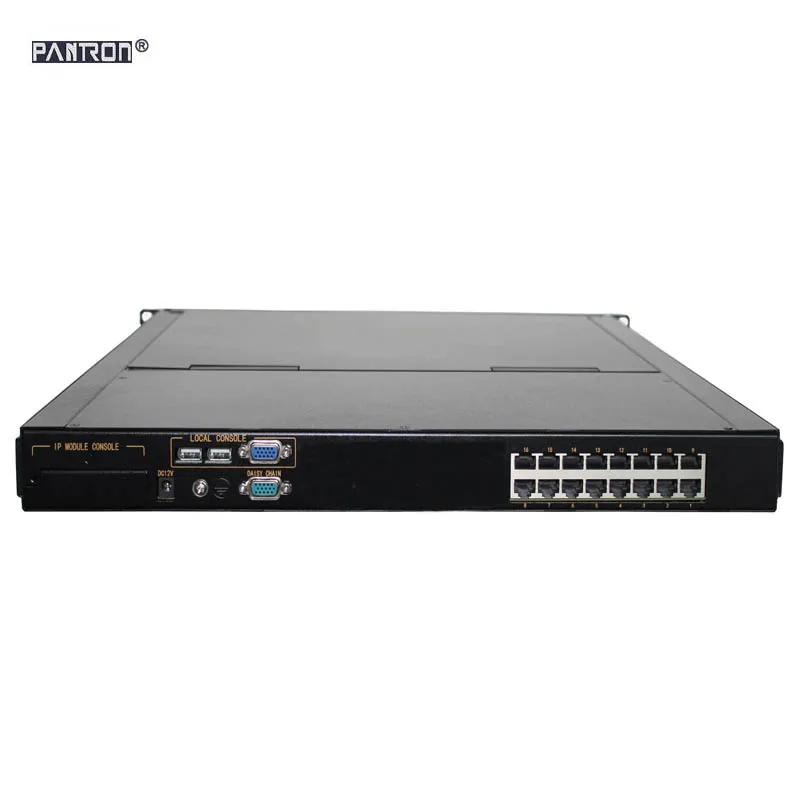

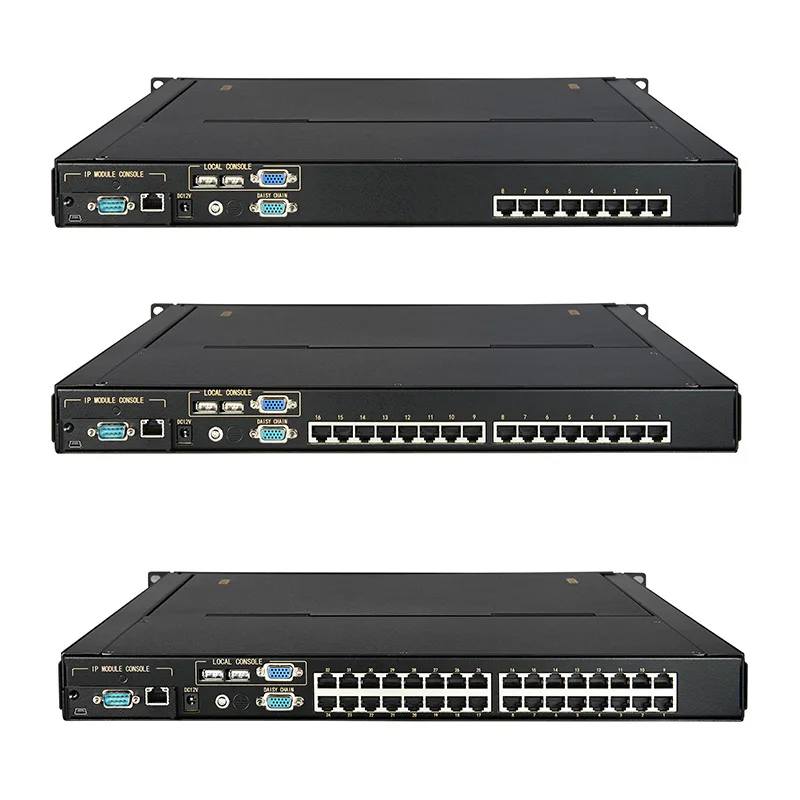

IP Module Console 8ports/16ports/32ports 1U rack mount RJ45 KVM Switch
- Category: KVM Switches >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62251037147):
Product Overview
Description
Product Description
Main features
« CAT5 KVM with 8port /16port / 32port in 1U.
« Using RJ-45 interface and support DDC2B.
« Password security protection.
« With 21 electronic gain adjustment .
Specification
Model | KVM - 1008C | KVM - 1016C | KVM - 1032C | |
computer connection | Direct : 8 | Direct : 16 | Direct : 132 | |
computer connection | MAX : 256 | MAX : 512 | MAX : 1024 | |
Connection port | Control port : Display , keyboard & Mouse | |||
PC port : USB port, VGA , R-45 port | ||||
OSD Switch | Support | |||
Switch Mode | Hotkey, OSD menu | |||
Switch scan time | 1~255 sec ( adjustable by OSD ) | |||
Pre-electronic key | To select the appropriate server through electronic key | |||
Input | AC 100V~240V 47-63Hz Power :1W | |||
Cabinet material | high strength and anti-corrosive rigid plate | |||
Color | Insulated black paint ( Optional ) | |||
Dimension | 182mm x 482mm x 44mm | |||
Package | 550mm x 230mm x 145mm , 550mm x 330mm x 145mm | |||
Weight | About 6KG | |||
Environment
| Storage Temp | -30℃ ~ 65℃ | ||
Operating Temp | -10℃ ~ 60℃ | |||
Humidity | 0%~95% | |||
Certificated | CE , FCC , RoHS , CCC | |||
Ordering information
| KVM - 1008C | 1U Rack mount KVM switch, W/ 8 RJ-45 port , W/ 12V power supply |
| KVM - 1016C | 1U Rack mount KVM switch, W/ 16 RJ-45 port , W/ 12V power supply |
| KVM - 1032C | 1U Rack mount KVM switch, W/ 32 RJ-45 port , W/ 12V power supply |
Packing List:
1 * Box
1 * Power adaapter
1 * user manual
T-dongle (Optional )

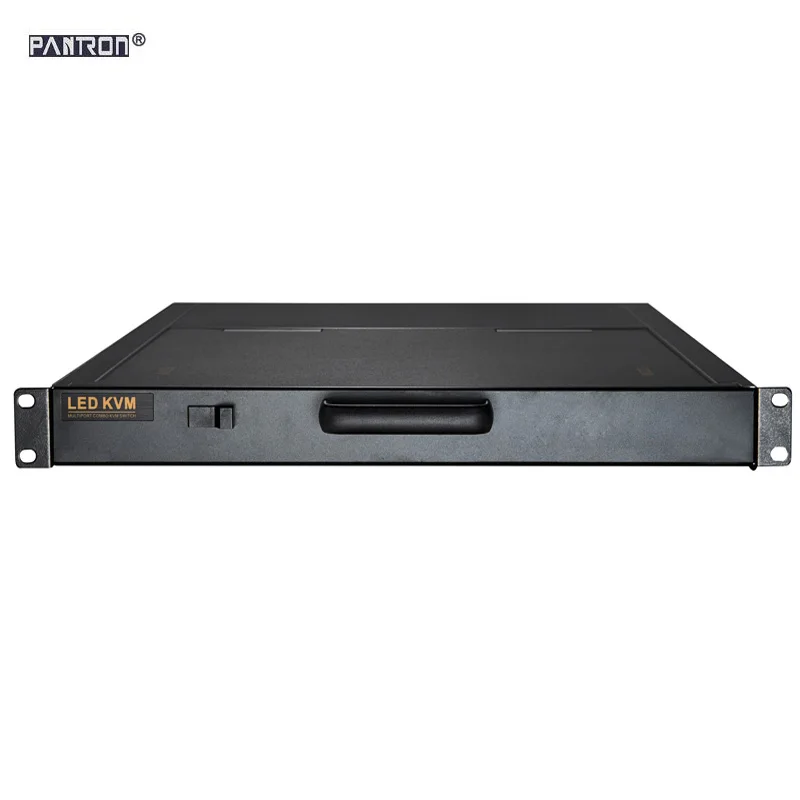

Front View :
12-48hours UV Test before shippment
