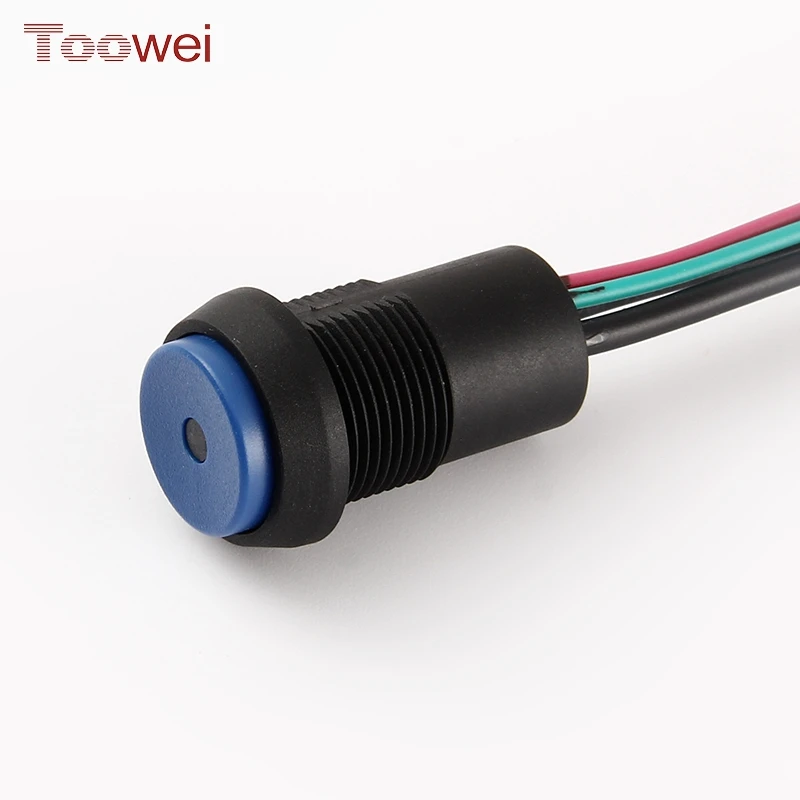

5A 250VAC momentary led light illuminated waterproof push button switch with cable wire
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (62251255359):
Product Overview
Description
5A 250VAC momentary led light illuminated waterproof push button switch with cable wire

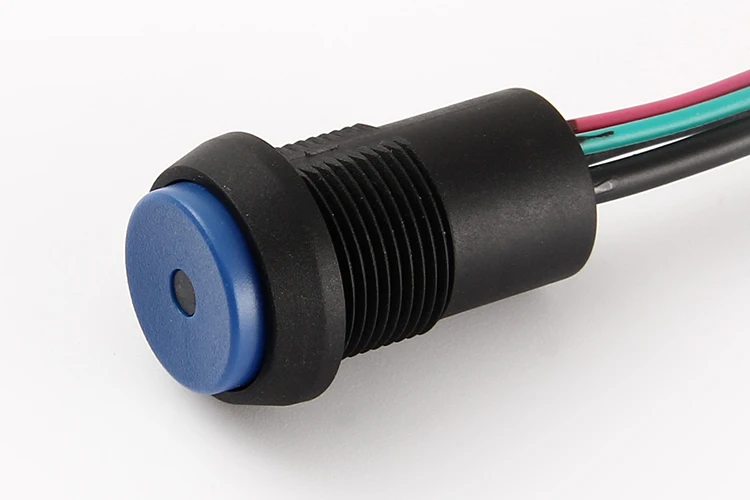

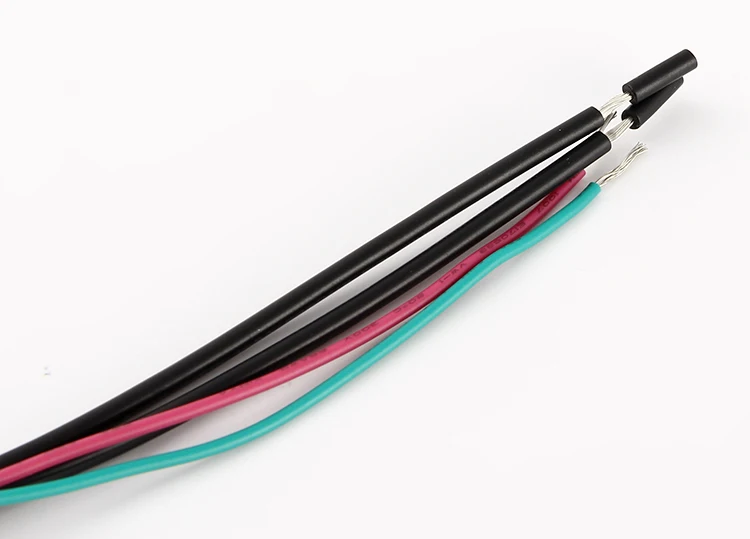

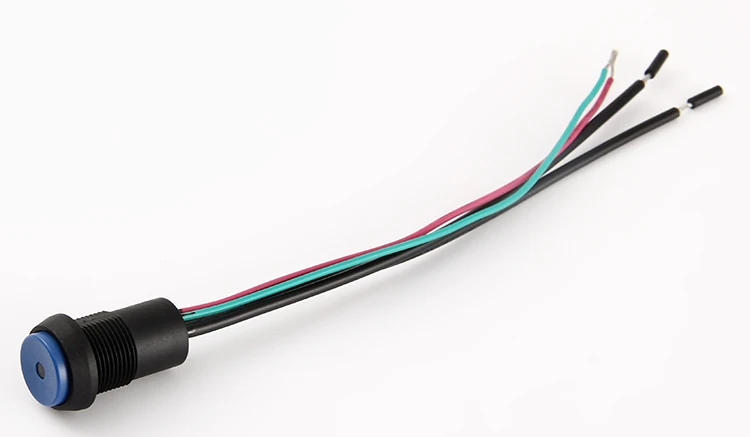

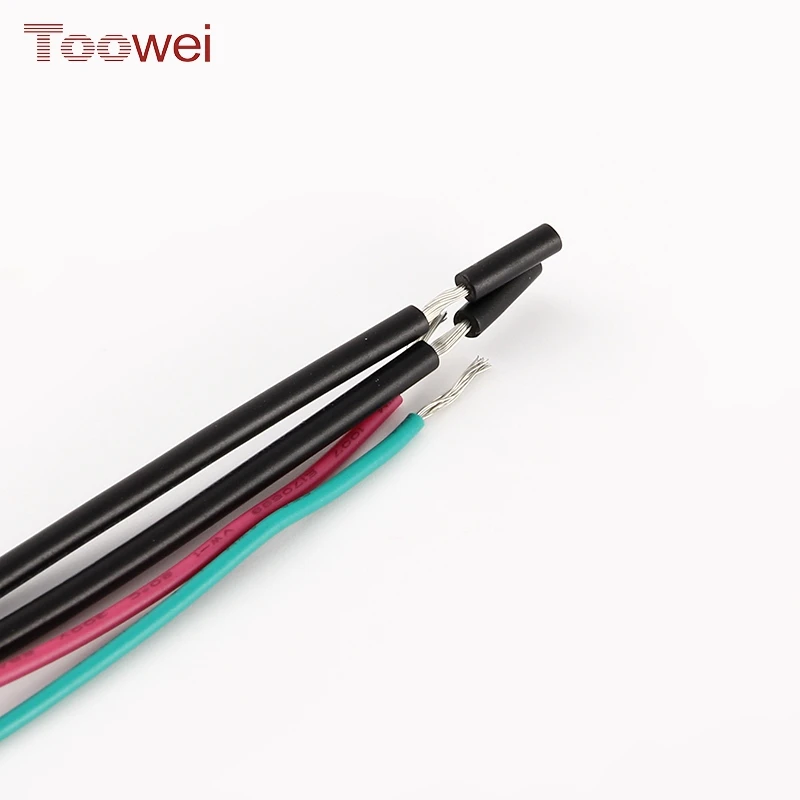

Product display
| Technical Parameters | |
| Rating value | Max Current: 3A Max voltage: 250VAC |
| Operating Force | 5N-6N |
| Ambient temperature | -25℃~+85℃ |
| Withstand voltage | 1000VAC 50/60hz |
| Insulation resistance | ≥100mΩ/min |
| Contact resistance | ≤ 50mΩ |
| Electrical life | 50,000 times |
| Mechanical life | 100,000 times |
| Humidity | below 85% RH |
| Solderable soldering iron | 340±5° 1~2S |
| Solder resistance soldering iron | 340±5° 3~5S |
| Protection degree | IP67 |
| Outside case material | Dupont Nylon PA66, stainless steel |
| Installation size | 16mm |
Model and Meaning:
| A3 | 16 | ||||||
| A300 code | Dimension | Terminal | Function | Led | Button Color | Button form | shell material |
| Waterproof button | 16:Φ16mm | 6:Welded 7:Leaded | 1: self-locking | 0: no light (N) | 1:Red(R) 2.Black(B) 3.Gray(GR) 4:Blue(BL) 5:Orange(O) 6:Yellow(Y) 7: Green(G) 8:White(W) 9:Metal(M) | 1:#button | 5:metal stainless steel 8:Black plastic |
Related Products
Product flow
Company Profile
Exhibition
Packing&Shipping
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2 days, mass production time needs about 1 weeks , based on quantity.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.Usually MOQ 500pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by EMS ,DHL, UPS, FedEx or TNT. It usually takes 1 week to arrive.Airline and sea shipping also optional.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 30 days warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. If there is any faulty , if our question , samples is available. We can promise it .
