Static Grounding Alarm Wholesale Truck Security

Explosion-proof electrostatic grounding alarm

Product size: 25*12*34cm
This is a static grounding alarm - fixed, model is JDB-2 type of static grounding alarm for fixed location of the loading and unloading places, can be used indoors or outdoors. Outside the box by electrolytic galvanized plate phosphating spray processing, design of new waterproof, rust proof and durable.
The utility model can be conveniently installed on the ground and the wall, and the JDB-2 type electrostatic grounding alarm can not only transfer the static electricity generated in the process of the liquid transportation to the earth, but also can automatically detect the grounding condition throughout the whole process. Fixed type rainproof box design, installation and fixed site. Mobile small size, easy to use, can be freely moved to any place to use.

Characteristics of electrostatic ground alarm:
1.JDB-2 type electrostatic ground alarm device using ultra low power design, during the normal use without the need to replace the battery.

The operation is convenient, 24 hours of uninterrupted Duty

Overall with epoxy resin sealing, anti-corrosion, waterproof, put tide.

provide sound alarm, timely understand the working conditions.

JDB-2 type static earthing alarm detection of electrostatic grounding resistance less than 55 ohm

continuous alarm 8 minutes, automatically enter the sleep state, to connect the line immediately wake up.

static grounding clamp strong elastic force, breaking paint rust, ensure reliable grounding.

Technical parameters of electrostatic ground alarm:
1. power supply: high performance built-in battery or lithium battery (not completed)
2 working current: <20μA
3.. Operating temperature: -60 C -40 C
4 response time: <1s
5.JDB-2 type electrostatic grounding alarm detection resistance: <55Ω
6. explosion-proof rating: Ex ia II CT4 Ga
7. alarm mode: sound alarm(>90dB,30cm diameter)
8.Cable length: static grounding clamp wire  is 5 meters long, 3 meters long(custom-made)

JDB-2 type static earthing alarm used range:
mobile tank truck,Tank farm,Alcohol plant,gas station,paint factory, pharmaceutical factory, chemical factory, Liquid chemical unloading plant, processing plant,others electrostatic grounding place.

Packaging Details of electrostatic ground alarm:

Packing details:CARTON BOX WITH Anti fall air cushion  Carton and wooden box with plastic film, container (we can change the shape of the packaging according to customer requirements).

Port:Qingdao

Lead time:Received your payment and arrange the shipment

Products show of electrostatic ground alarm:

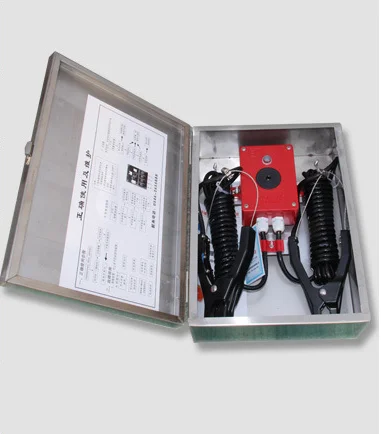

Fixed static grounding alarm
1.Static grounding alarm

2.Instruction manual

3.Installation Notes

4.Quality certificate

5.Battery

6.Expansion screw

7.Product size:340*250*125mm

Mobile static grounding alarm
1.Static grounding alarm
2.Instruction manual
3.Installation Notes
4.Quality certificate
5.Battery

Product size:340*250*125mm
