Price:$567.00 - $597.00

Quantity:


Product Overview

Description


20000 watt frequency inverter


AC Three phase


Rated power: 22kw


Rated current: 45A


Rated voltage: 380v(input 380v, output 0v-380v)


Frequency: input 50/60hz; output 0-600hz


Product Introduction





XPD3000 series inverter is a new product produced by XPD. It uses advanced space voltage vector SPWN control technology, adopts high performance power module and DSP chip, and has built-in current control loop, external support for a variety of extended IO card PG card (ABZ signal, complementary code form and differential form) and a variety of extended communication card (extended Modbus PROFIBUSDPCANOPEN). XPD3000 series inverter has good dynamic characteristics and super overload ability, to meet the customer's high quality, high reliability product requirements. Applicable to fan, pump and general mechanical load of the vector inverter.





Technical characteristics:





* Unique waterproof, dust-proof, serious pollution situation applicable


* Unique metal case with good heat dissipation


* Adopting advanced spray molding technology, fine color and beautiful appearance


* After phosphating, the sheet metal has good anti-rust and anti-corrosion performance


* Fan with IP54 grade, stable and reliable performance





Product Show:

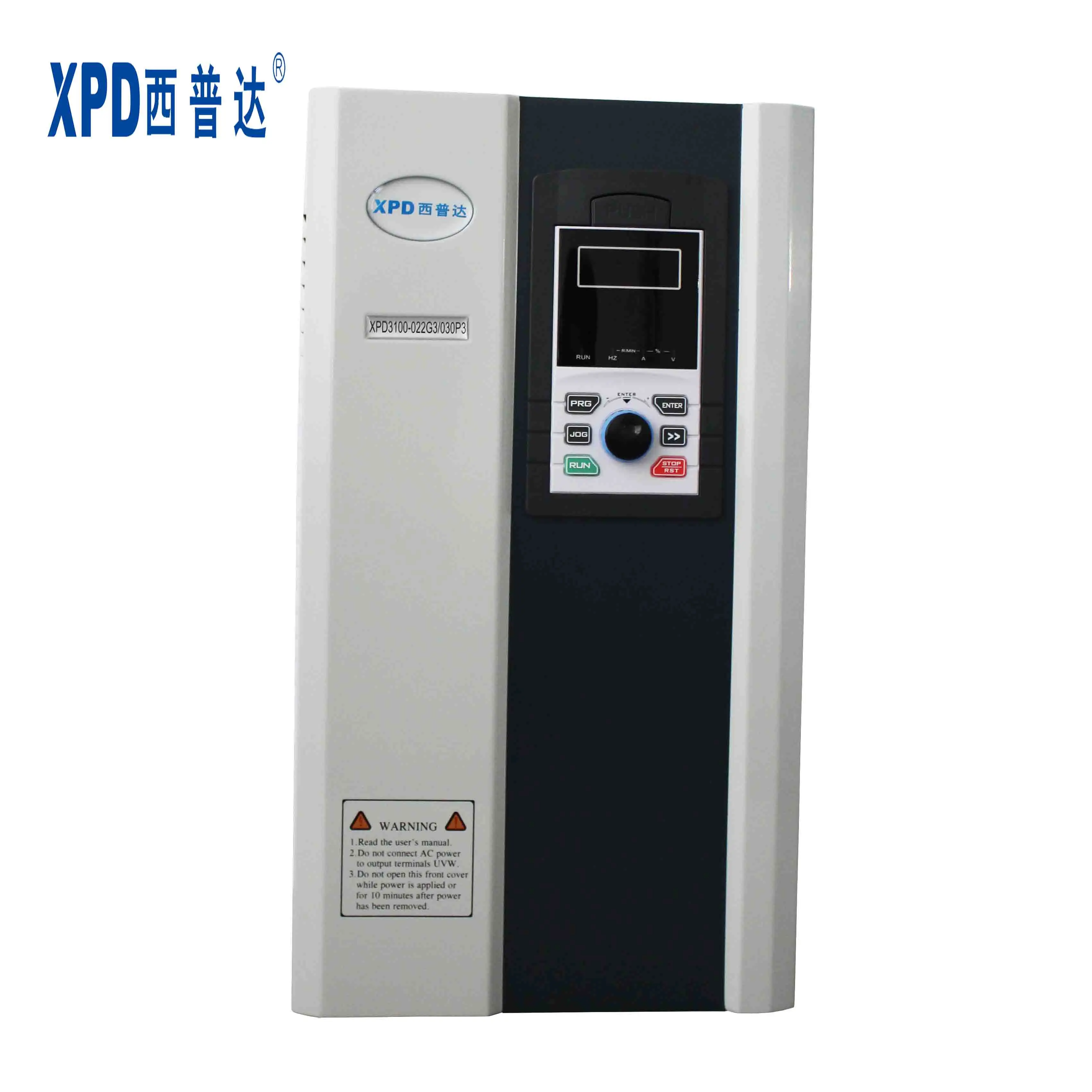

022G3-3022G3-2022G3-1


Technical Parameters:







































































































































































































































Three phase 380v
ModelPower   Capacity     (kva)Input     Current(A)Output       Current(A)Brake UnitDC ReactorControl Panel
XPD3000-1R5G3/2R2P33.0/4.05.0/5.83.8/5.5Standard built-in---  LED   Keyboard
XPD3000-2R2G3/4R0P34.0/5.95.8/10.55.5/9
XPD3000-4R0G3/5R5P35.9/8.910.5/14.69/13
XPD3000-5R5G3/7R5P38.9/1114.6/1813/17
XPD3000-7R5G3/011P311/1718/2617/25
XPD3000-011G3/015P317/2126/31.225/30    LED & LCD       keyboard
XPD3000-015G3/018P321/2431.2/39.230/38
XPD3000-018G3/022P324/3039.2/46.538/45
XPD3000-022G3/030P330/4046.5/6245/60
XPD3000-030G3/037P340/5762/7860/76
XPD3000-037G3/045P357/6978/9376/91Optional externalOptional external
XPD3000-045G3/055P369/8593/114.591/112
XPD3000-055G3/075P385/114114.5/153.5112/150
XPD3000-075G3/090P3114/134153.5/180150/176
XPD3000-090G3/110P3134/160180/214176/210
XPD3000-110G3/132P3160/192214/256210/253
XPD3000-132G3/160P3192/231256/307253/304
XPD3000-160G3/185P3231/240307/360304/350Standard built-in
XPD3000-185G3/200P3240/250360/385350/377
XPD3000-200G3/220P3250/276385/425377/415
XPD3000-220G3/250P3276/335425/479415/465
XPD3000-250G3/280P3335/375479/535465/520
XPD3000-280G3/315P3375/420535/600520/585
XPD3000-315G3/355P3420/475600/674585/650
XPD3000-355G3/400P3475/535674/785650/720
XPD3000-400G3/450P3535/600785/850720/820
XPD3000-450G3/500P3600/670850/930820/890
XPD3000-500G3/560P3670/750930/1055890/1000
XPD3000-560G3/630P3750/8401055/11551000/1120
XPD3000-630G3/710P3840/9471155/13101120/1270
XPD3000-710G3/800P3947/10671310/14751270/1430
XPD3000-800G3/850P31067/11331475/15751430/1520
XPD3000-900G3/1000P31200/13341668/18501610/1790
XPD3000-1000G3133418501790







Application:

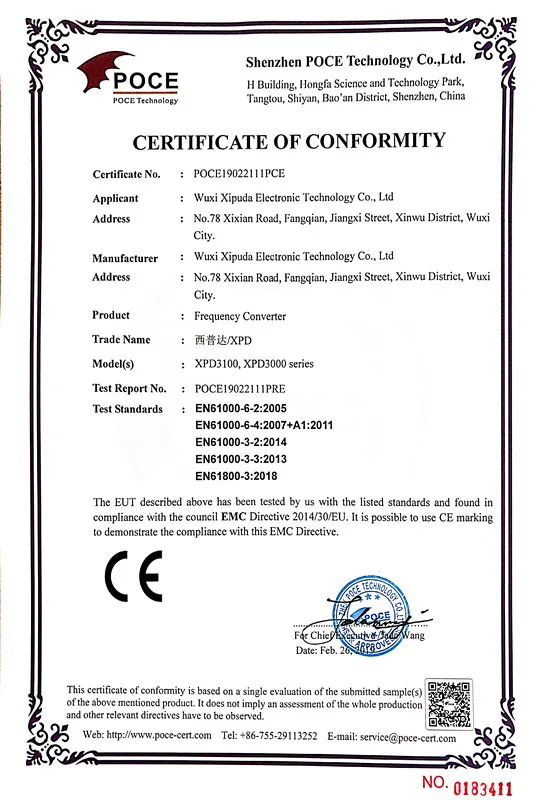

Certification:

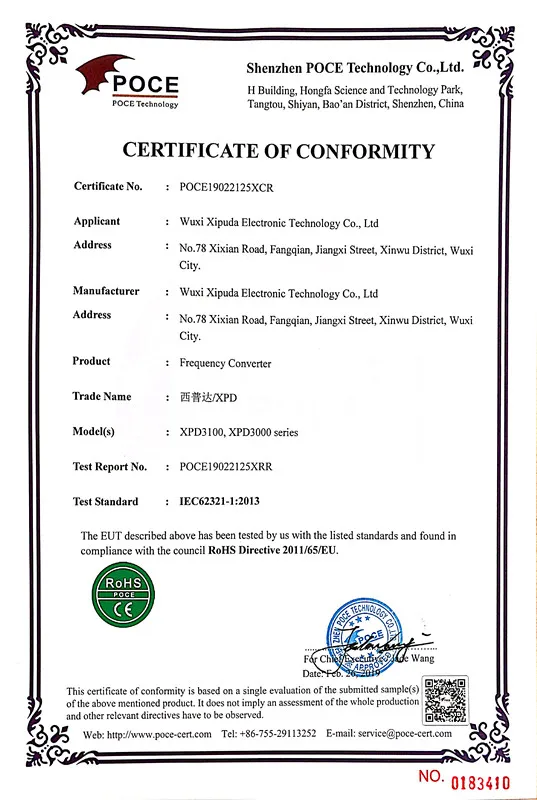

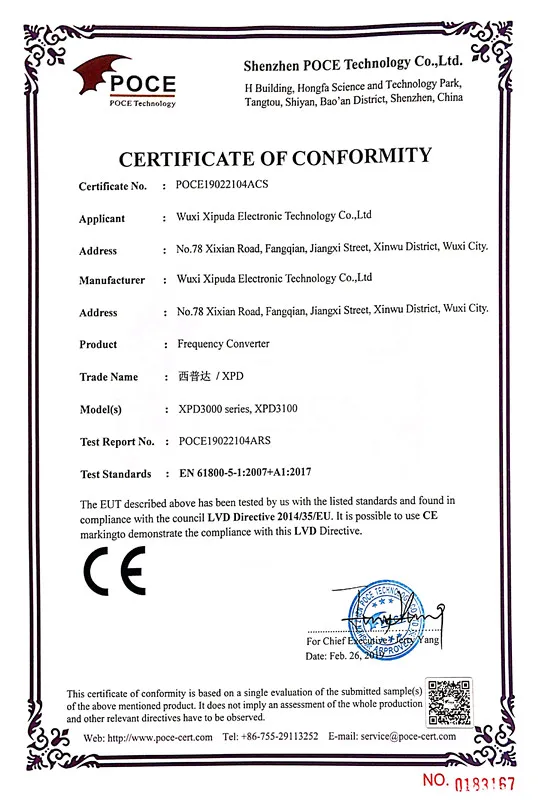

EMC_LVD_ROHS_
