FG-30 Pharmaceutical lab fluid bed dryer machine with heating system
Product Description
Application
This machine is suitable for drying operation in pharmaceutical, chemical and food industries.
Working Principle
Under the suction of induced draught fan, the heated and purified air will form into high-speed hot air flow to turn the materials in material chamber into fluid state under the function of stirring and negative pressure. The water will be evaporated quickly and discharged to dry the material.
Characteristics
1.Round structure inner fluid bed to avoid dead angle 2.The hopper can be set with stirring function to avoid wet material caking, especially for powder material, which is easy to clump together because of electrostatic adsorption. 3.It adopts manual rotation to discharge the finished products, convenient, fast and complete; it also can be designed with automatic inlet and outlet system as required. 4.This machine can be connected with high-efficiency wet mixing granulator and swing straightening granulator to suck the wet materials (powder and granules) into chamber for drying under the function of negative pressure, avoiding multiply transfers of materials.
Technical Parameter
Model
Item
FG-15
FG-30
FG-60
FG-120
FG-200
FG-300
FG-500
Material container volume (L)
45
100
220
420
670
1000
1500
Material container diameter (mm)
550
700
1000
1200
1400
1600
1800
Production capacity (KG/batch)
15
30
60
120
200
300
500
Steam pressure (MPa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Steam consumption (Kg/h)
20
60
120
140
180
310
400
Compressed air pressure (MPa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Compressed air consumption (m3/min)
0.6
0.6
0.9
0.9
1.1
1.1
1.5
Fan power (KW)
3
5.5
11
18.5
22
30
45
Electric heater power (KW)
12
21
30
48
87
163
185
Noise (dB)
With isolating treatment, the noise of draught fan is less than 75 dB.

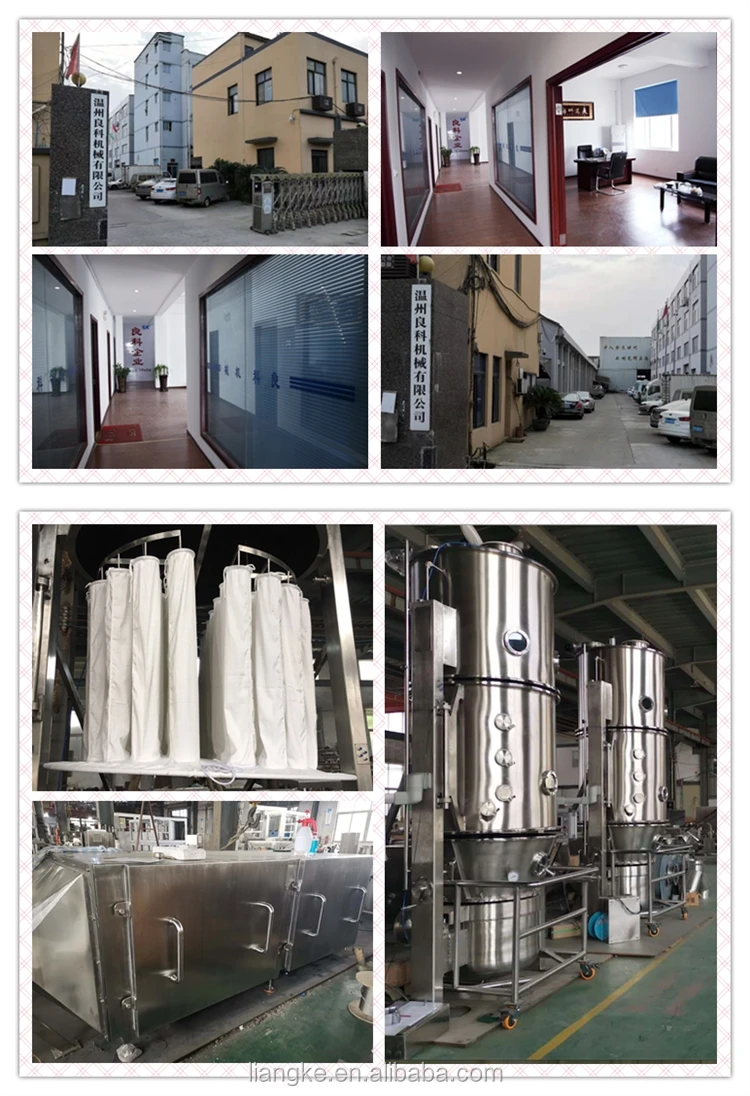

Company Information
Wenzhou Liangke Machinery has specialized in production of solid preparation process machine for more than 20 years, including wet granulator, roll compactor, fluid bed dryer, mixer, tablet press, coating machine, capsule filling machine etc. Also engaged in pharmaceutical trade,chemical trade as well as food trade with qualified team and mature technology.
Packaging & Shipping
Our Services
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to * Sample testing support. use the machine. * View our Factory. * Engineers available to service machinery overseas.
