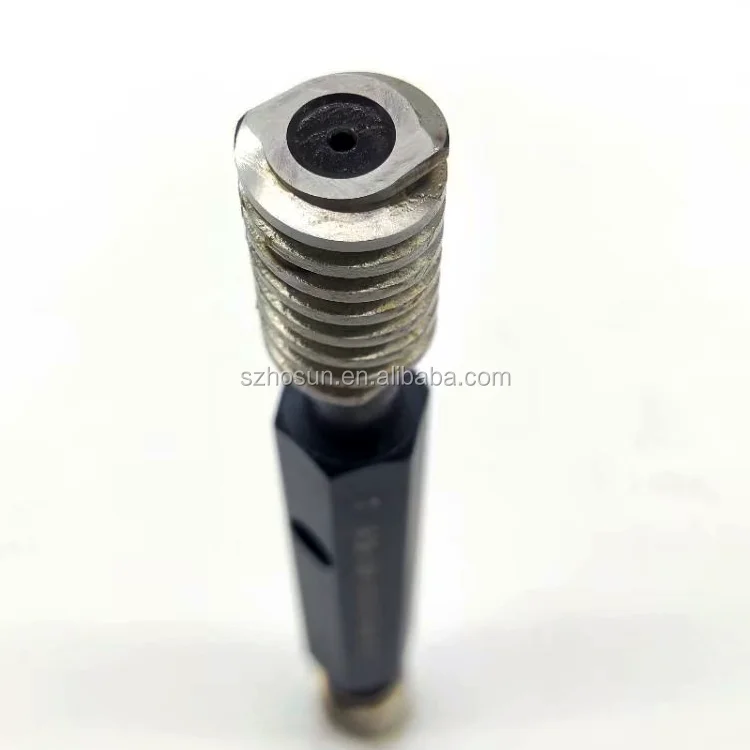

Высокоточный трапециевидный измеритель резьбы ACME
- Category: Gauges >>>
- Supplier: Shenzhen Hosun Precision Co. Ltd.
Share on (62251870306):
Product Overview
Description
Product Description
ACME Thread Gages
ACME screw threads were intended to replace square threads and a variety of threads of other forms used chiefly for the purpose of traversing motion on machines, tools, etc. Acme screw threads are now extensively used for a variety of purposes
The ACME thread forms are with 29° thread angle, their thread height is half of the pitch, the peak and crest are flat
Supply Specification :

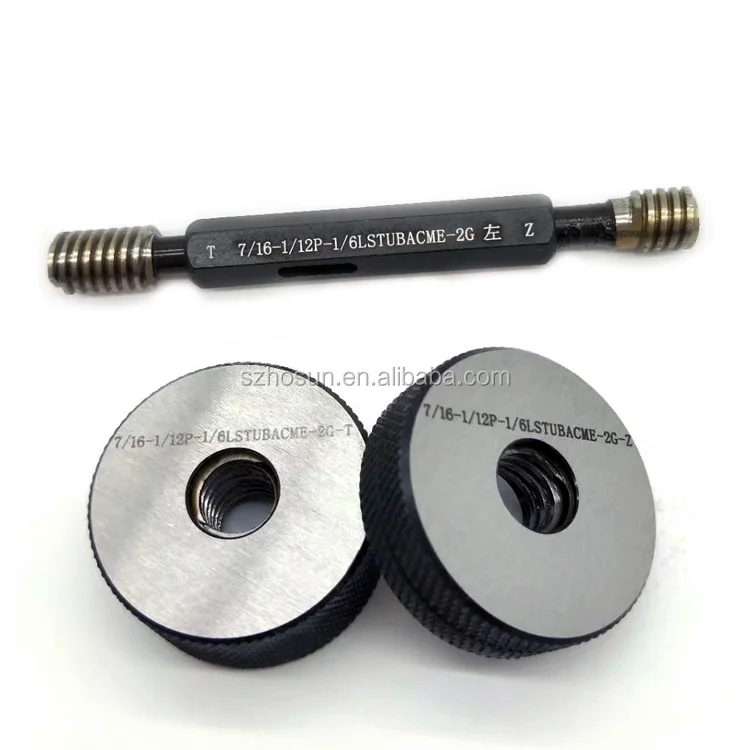

General-purpose ACME , Centralizing ACME, Stub-ACME thread plug gage & ring gages are all available
Material :
Made of high performance tool steel GCR15 , high hardenability, high hardness and fatigue strength, good dimensional stability
Tolerance :
- ·General-purpose ACME ：Classes of fit: 2G, 3G, 4G , 2G is the perfect choice
- ·Centralizing ACME：Classes of fit: 2C, 3C, 4C, 2C is the perfect choice
- ·Stub-ACME： Classes of fit: 2G
Quality Assurance :
- ·These ACME thread gages are produced according to ASME B1.5
- ·Each gages are brand new , rigorously tested to ensure that the dimensional data is qualified before leaving the factory
- ·If you still need a calibration certificate from a third-party laboratory, please let us know in advance, this need extra cost
What Thread Check:

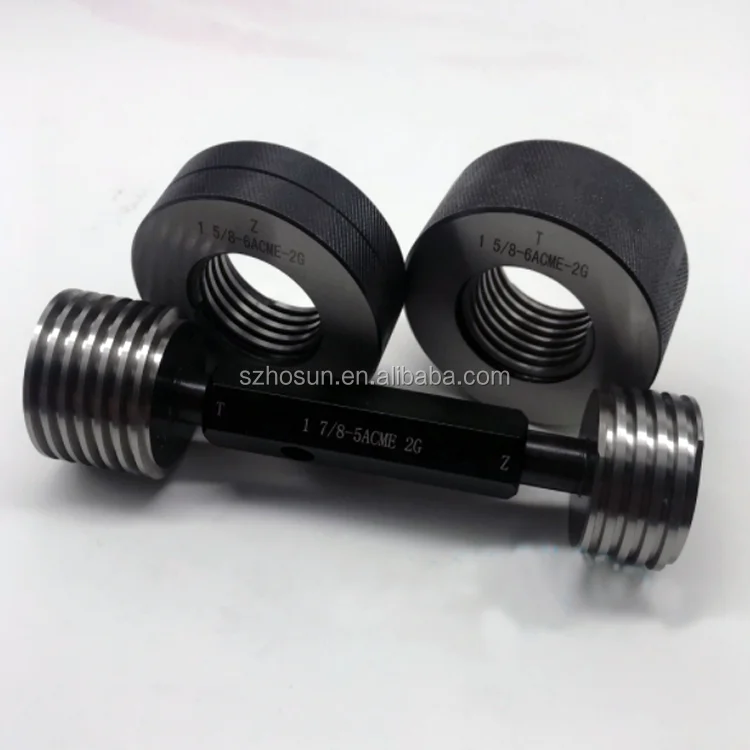

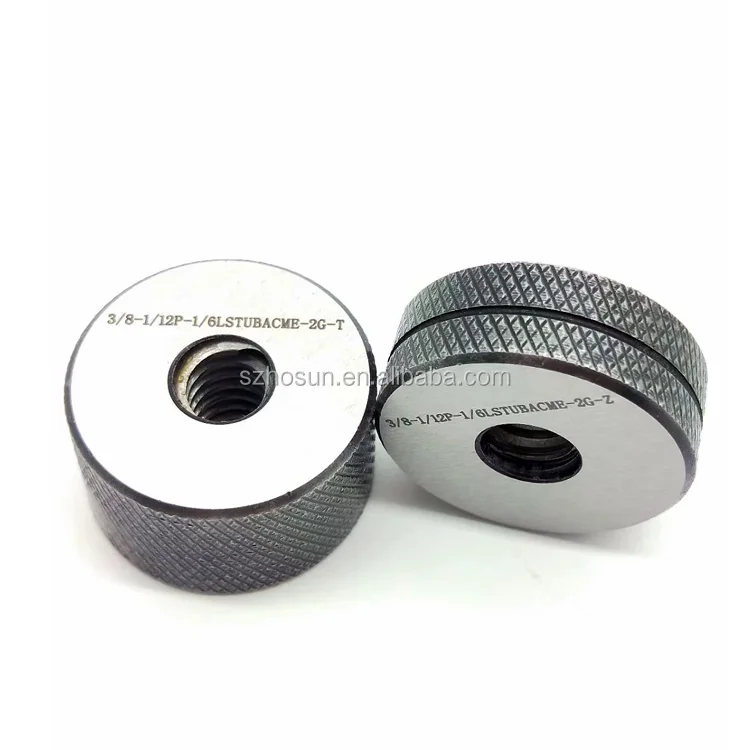

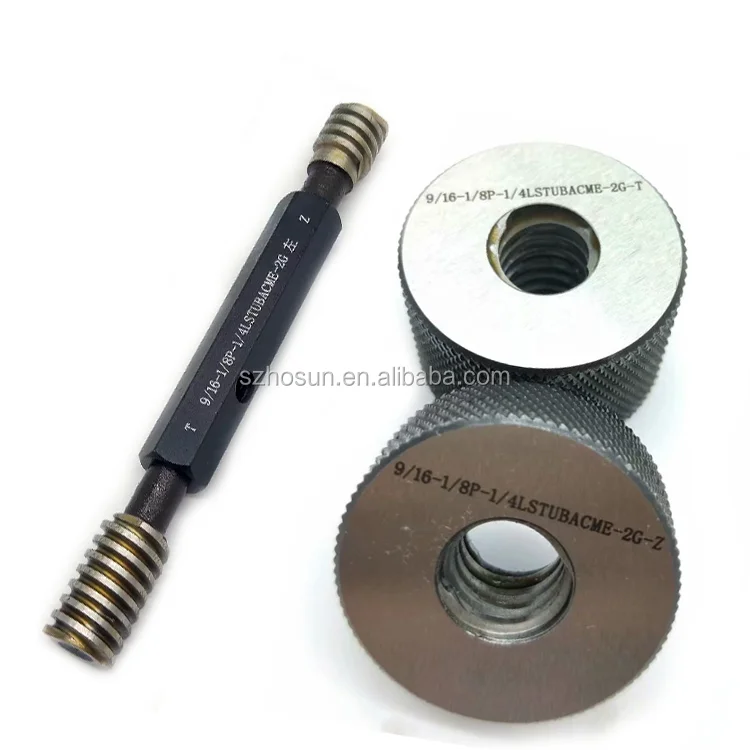

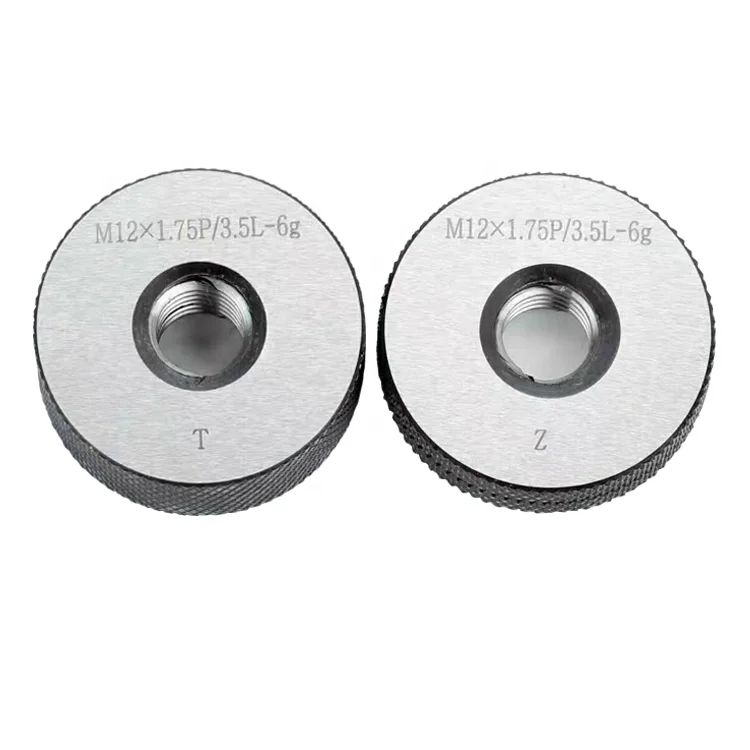

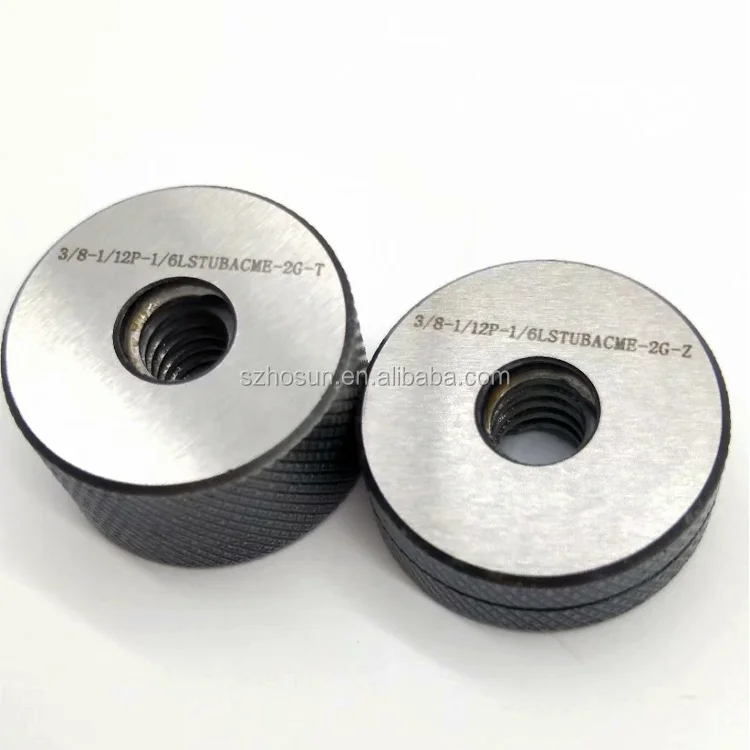

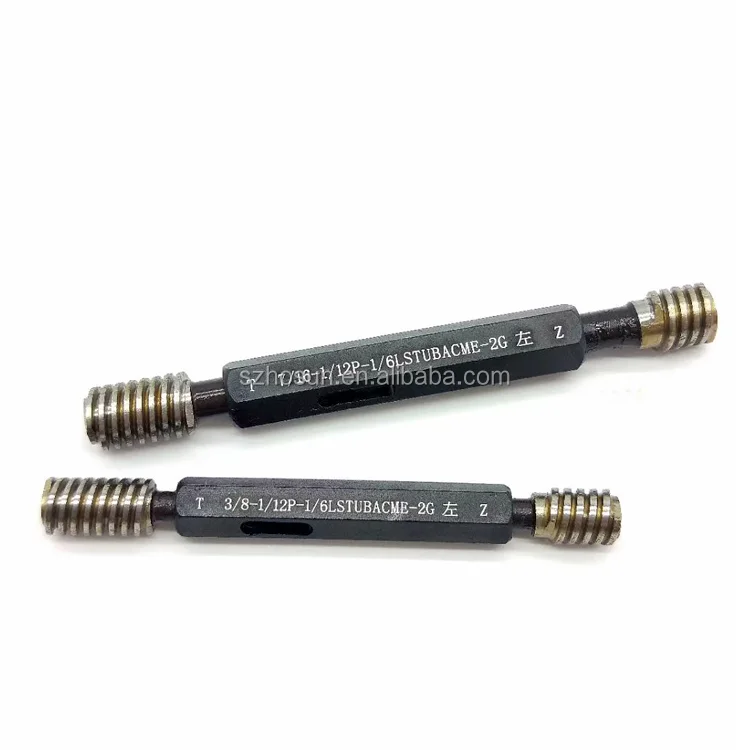

Plug gauge used to check internal thread, Ring gauge used to check external thread , LH&RH are available
We provide laser marking service , the size will be engraving on the gages ，your logo will also be available
we can supply
1. Metric thread plug gauge & ring gauge from M1 to M100 ,accuracy 6H, 5H, 6G; 6g, 6h etc
2. US specification thread plug gauge& ring gauge (suitable for US standard) from No.0 – 80UNF ,accuracy 2B, 3B, 2A, 3A (UNC, UNF, UNE, UN, UNS etc) and taper pipe thread series NPT, NPTF, NPSM, ACME, STUB ACME, BUTT, etc
3.UK thread plug gauge & ring gauge (suitable for European countries standard) from size 1/8 – 40 BSW , BSF and taper pipe thread series with G, RC/R, PT, BA etc
4.For thread insert hole check , ST thread plug gauge and TS ZS thread ring gauge
5.For threaded hole positioning and measuring thread hole center distance Thread positioning gauge (thread vertical gauge, thread gauge)
6.Oil Pipe Series Gauge API series
7.Other series thread gauges: Pg, V1, V2, SM
Related Products
About us

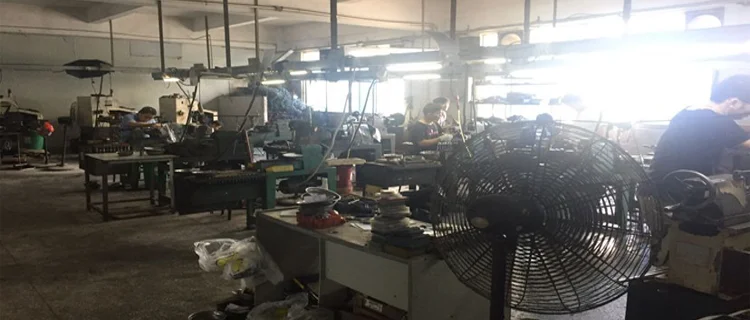

Shenzhen Hosun Precision Co.,Ltd, localed in shenzhen city ,China mainland,joined Alibaba in 2018 to develop international trade
Dedicated to mainly produce high precision mold hardware parts and measuring tools , welcome customized non-standard products from your request
Packing & Delivery
Packing :

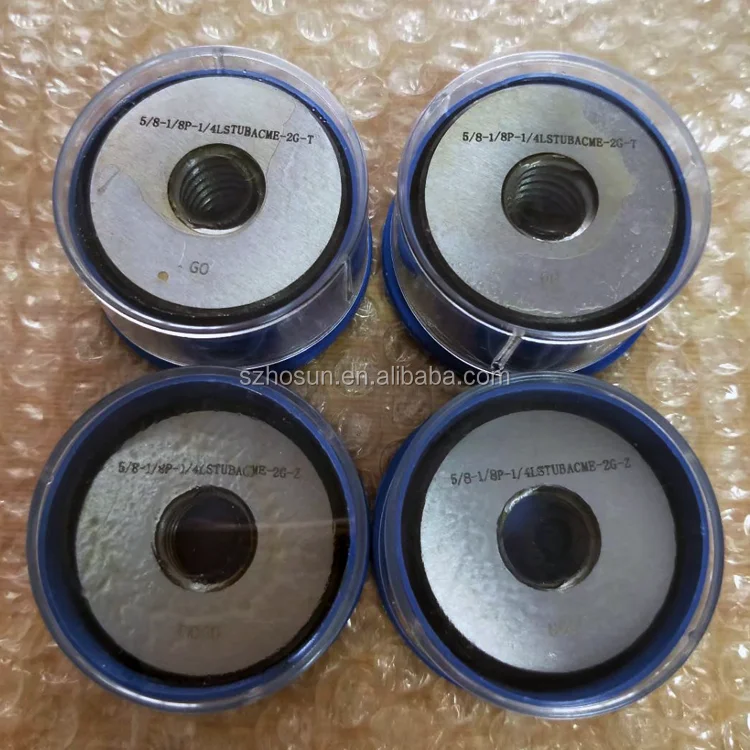

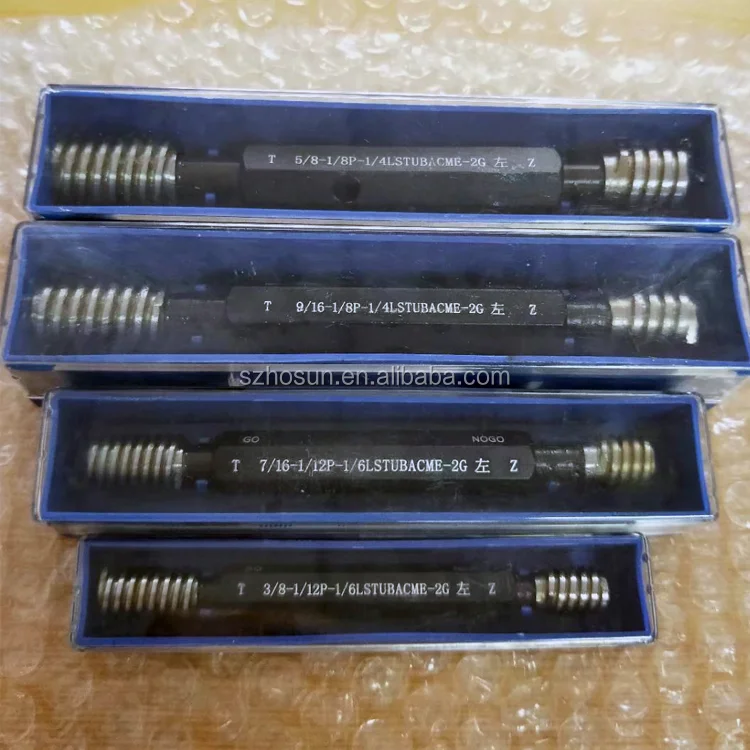

Each thread gauge has itself plastic box and then we will use a buggle box pack , last put into carton , when you received the parcel , you will satisfied
Delivery :
Standard sizes are in stock , the leadtime is about 1to 3 workdays
Non-standard sizes need to produce , usually it will take 20 to 30 workdays
We will use the below express to send , so that you can get it soon
Our Service
In our company , you all will have a feeling " customer is god "
No matter pre-sale or after sales , We all try our best to offer the great service
Great service is our mission :
Sincere Communication
Enthusiasm
Patience
Dedication
