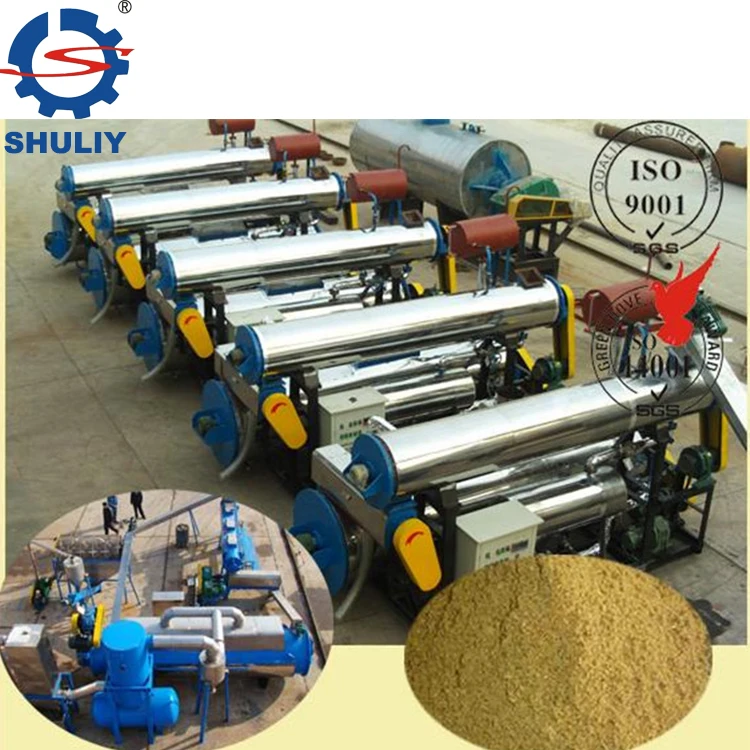

Fish Meal Production Line/Fish Powder Production Line

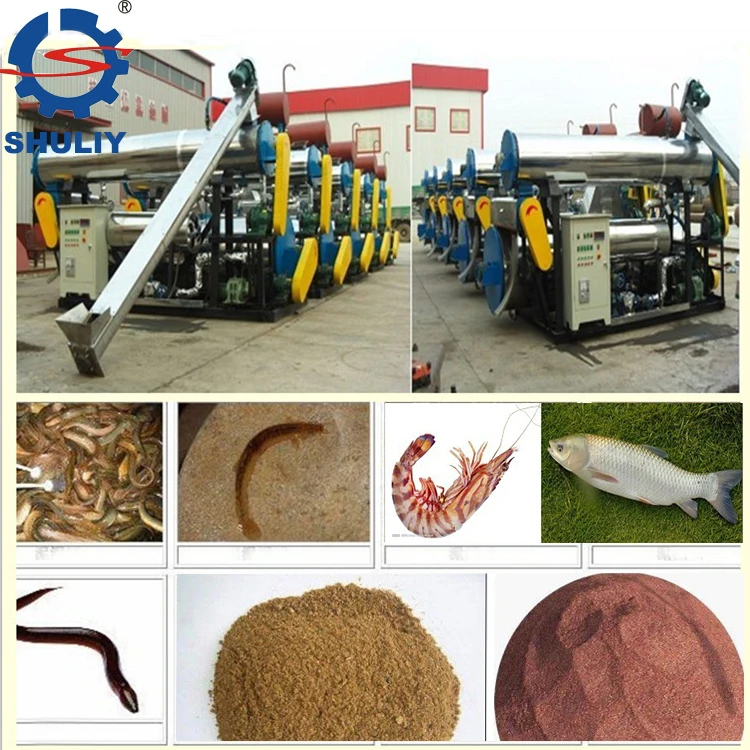

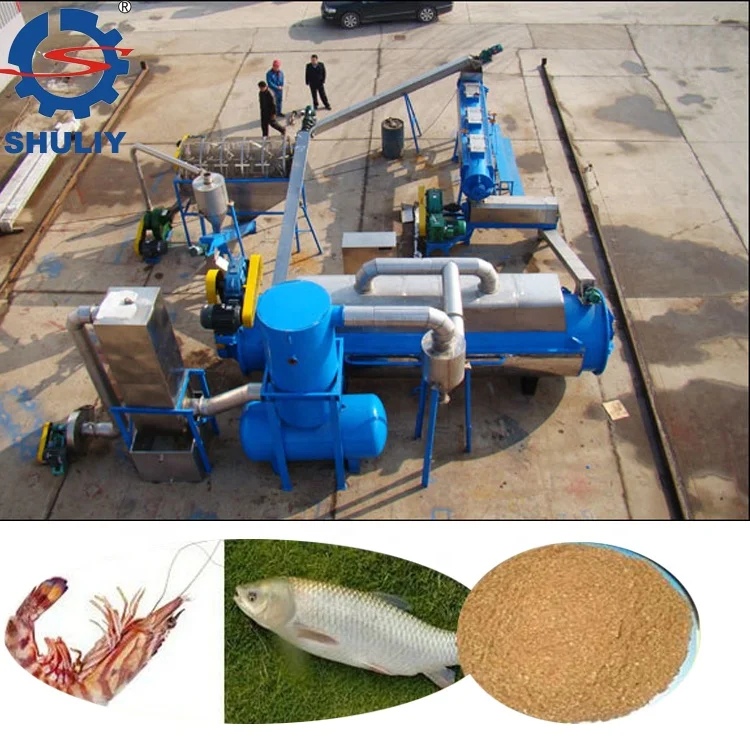

Summary Introduction of Fish Meal Production Line

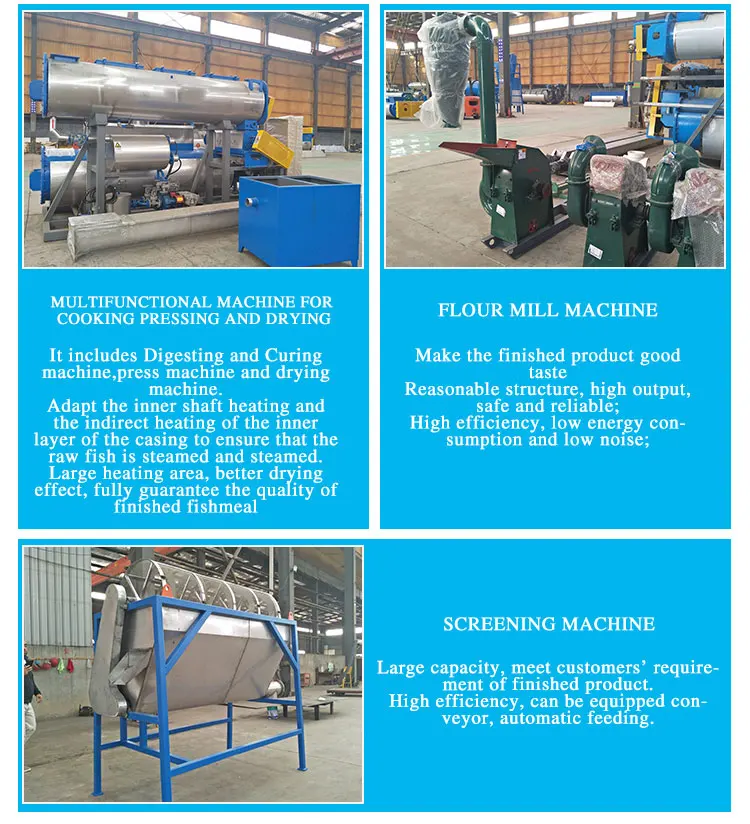

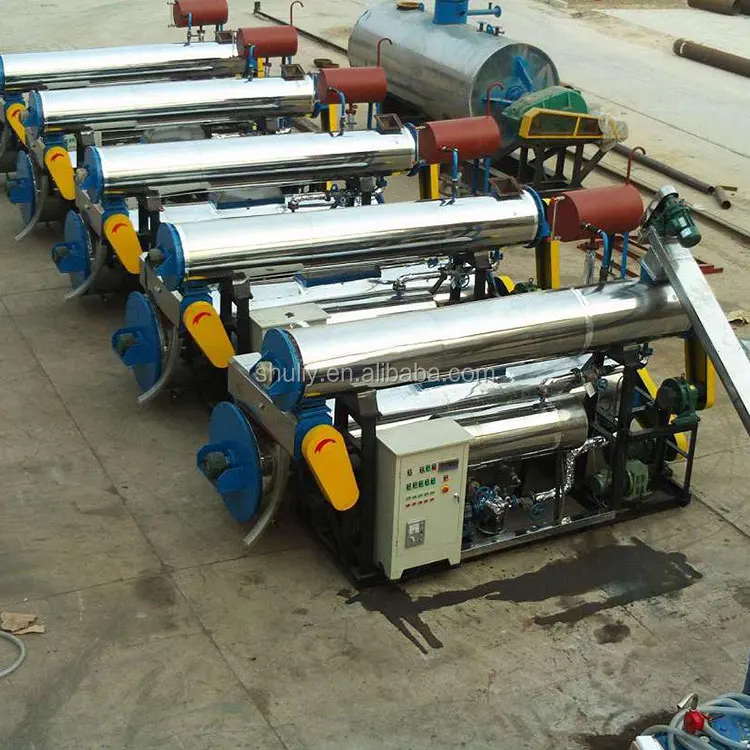

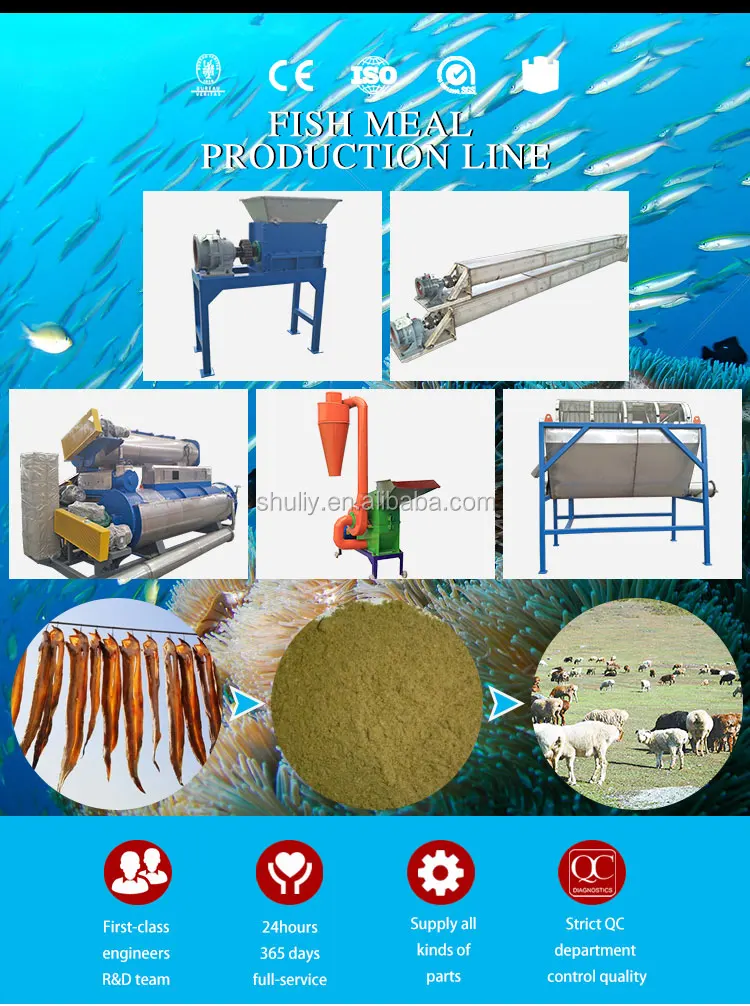

Fish Meal Production Line includes crusher machine, screw conveyor, cooking machine, pressing machine, drying machine, grinding machine, oil-water separation machine, screening machine etc.
Application
Raw Material:Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals), food waste, other aquatic products, like shrimp,loach,etc.
Finished Product:the feed for different kinds animal such as dog, cat, cattle, fish, duck, chicken etc.

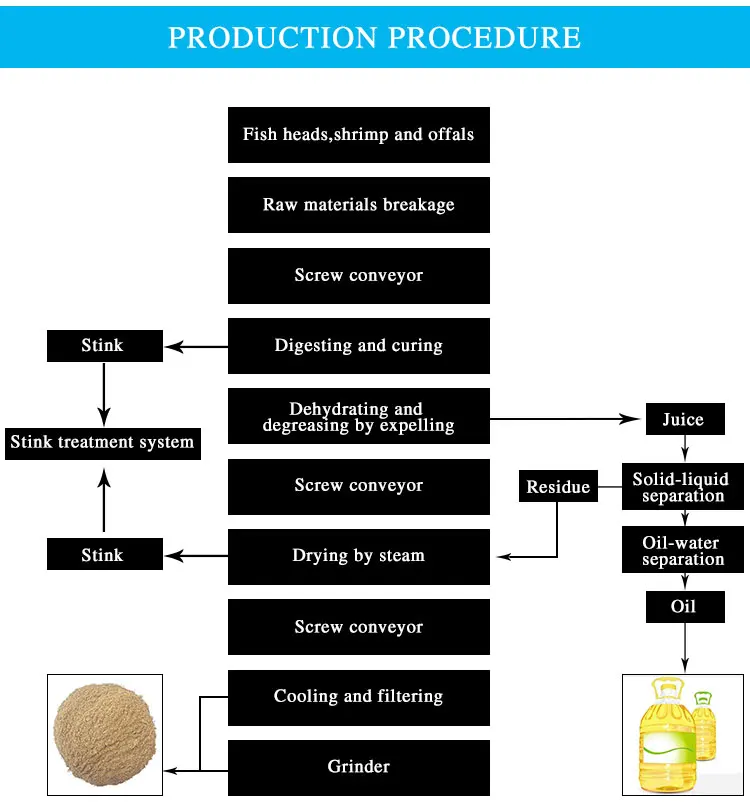

Working Flow

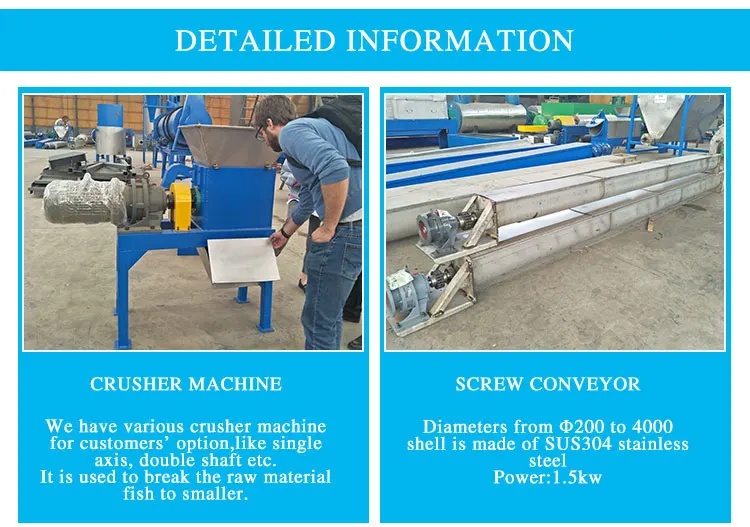

1. Put the raw materials into crusher. The crusher has single shaft, double shaft and other types for customers choice;
2. The material is sent to the cooking machine through screw conveyor, using steam/electric heating.
3. After the material is processed by screw pressing, dry it to finished product.

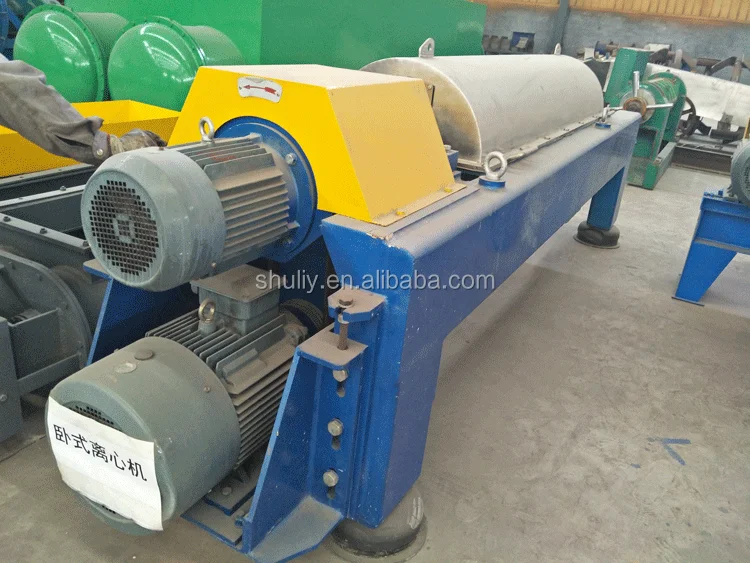

4. The fish oil will be separated from liquid by centrifugation and natural sedimentation method, and the soluble protein liquid is concentrated by vacuum and dried to high quality fish meal;
5. The dried material is ground into powder by a mill;
6. At the same time, can use filter to make fine particles;
Detailed Information
For the Fish Meal Production Line, we can equip and customize the machine according to customers’ requirement of capacity.
The Parameter of 2t/day Small Fish Meal Machine
Description | Dimension | Details |
Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |

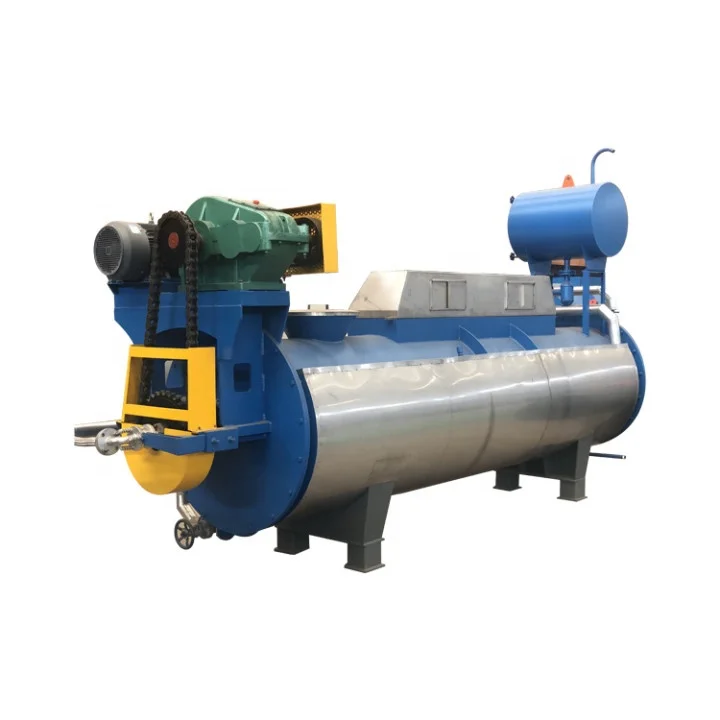

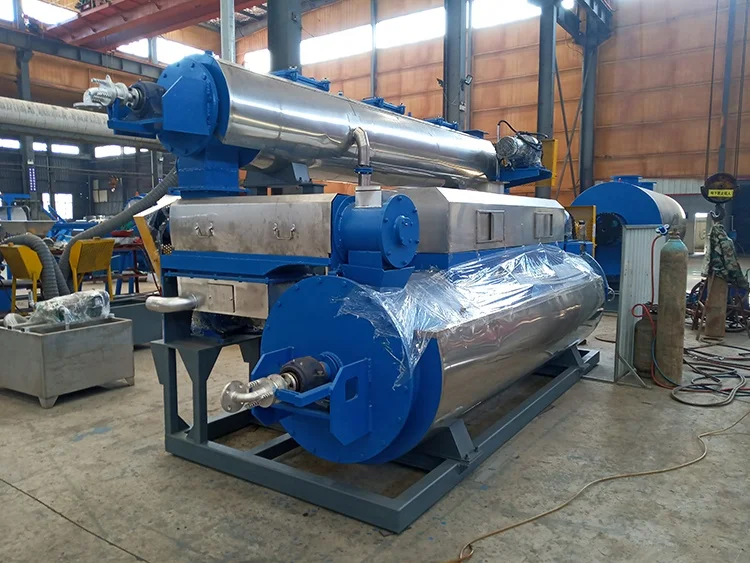

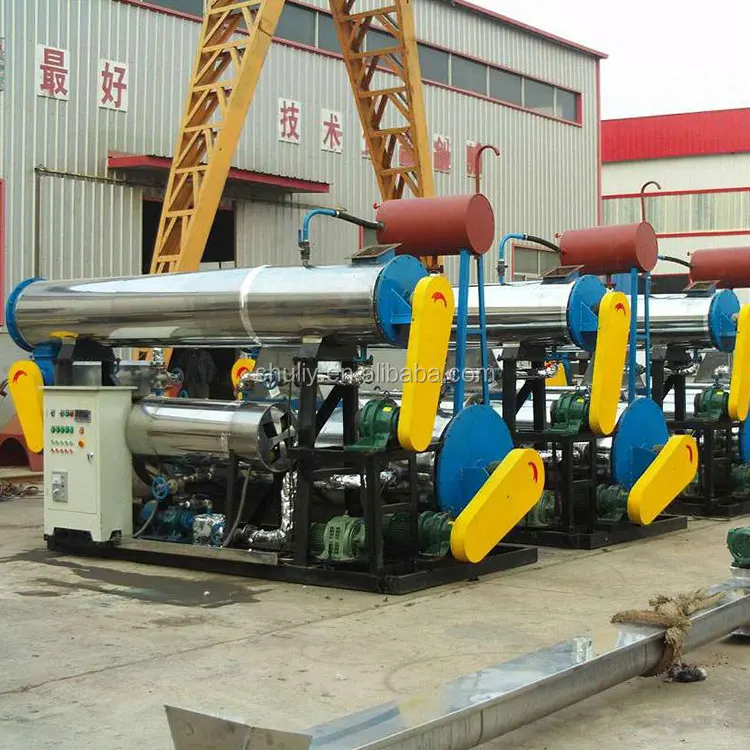

Electrical cooker | φ377×3500 | material of outer heat preservation made of SUS430, thickness: 0.7mm; Inner and outer cylinder made of Q235B driving power: 1.5kw (speed adjusted by magnetization) |
Screw Press | φ219×1000 | outer cover made of SUS430, thickness 0.7mm; Seive mesh applied SUS304; driving power: 1.5kw. |
Dryer | φ820×3500 | inner and outer cylinder made of Q235B; preservation made of SUS430, thickness:0.7mm; driving power: 4kw, V=30r/min; |
thermal oil pump |
| driving power:1.5kw |
electric control box |
| electric control box 1 set |

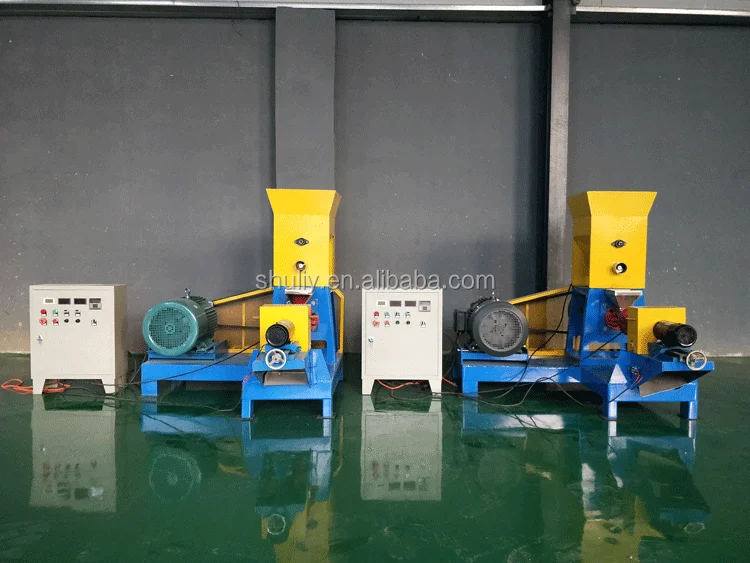

Other Animal Feed Machine for Reference
If you are interested in this machine, pls click the picture for more detailed information.
Packaging & Shipping
Our company
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce food machine, agricultural machine, nut machine, woodworking machine, aerators, toothpicks, feed machine and so on. We not only provides customers with cost-effective products, but also provides first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
Buyer Feedback
FAQ
Q1: Are you manufacturer or trade company?
A1:We are a professional manufacturer for producing fish meal machine and other machinery over 10 years.
Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.
Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.
Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.
