XH A231 TF Bluet Digital Amplifier 15W 15W audio amplifier With Volume adjustment DC 12 24V digital audio power amplifier
- Category: >>>
- Supplier: Shenzhen Sharphy Electronic Co. Ltd.
Share on (62252117232):
Product Overview
Description
Bluet digital amplifier board 15w + 15w Stereo Audio AMP With Tone board TF card Play Digital audio power amplifier
Product Name: TF / Bluetooth Digital Amplifier
Product model: XH-A231
Input voltage: DC12-24V
Input current: 24V3A recommended
Audio input: support TF card and Bluet
Bluetooth signal: 0-15 meters (unobstructed)
Number of channels: two channels
Output power: 2*15W
Output impedance: 12V4ohm 24V8ohm

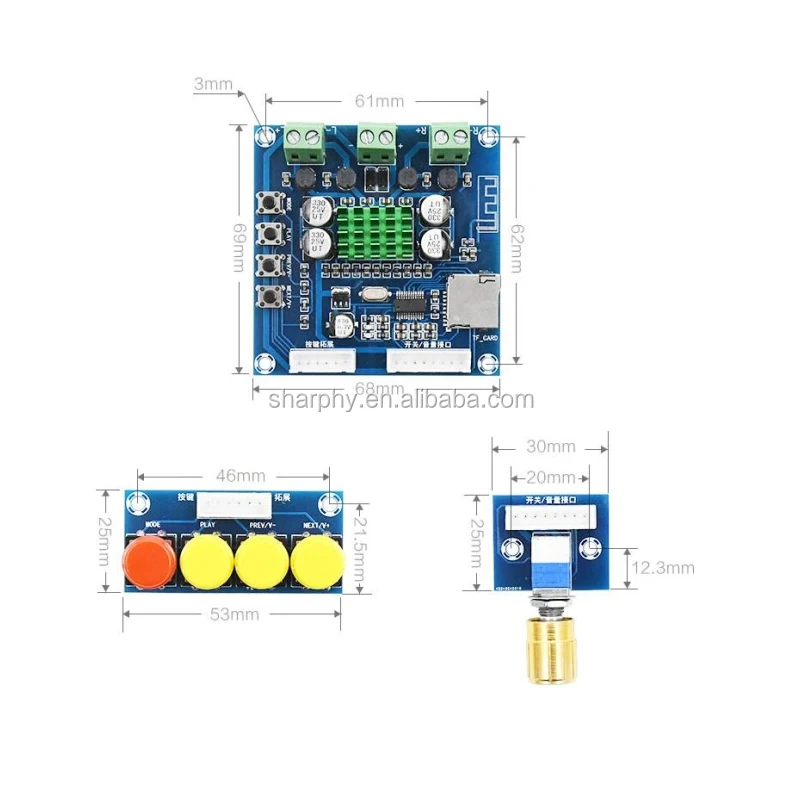

Appearance size: 69*68*18mm
Installation size: 62*61/![]()
3mm
Cable length: 225/200mm
Product heavy star: 68g

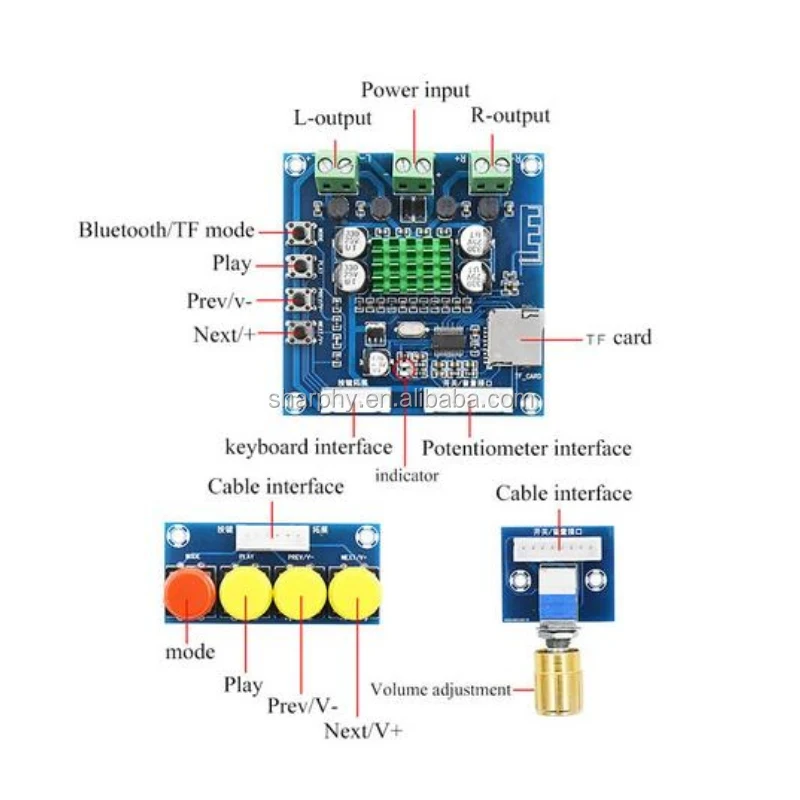

Key Function:
mode: Bluet, TF switch mode(after change the mode need press the play key)
play: play / pause mode
Prev / V-: short press to switch the previous song, long press to decrease the volume
Prev / V +: Short press to switch the next song, long press to increase the volume
Product model: XH-A231
Input voltage: DC12-24V
Input current: 24V3A recommended
Audio input: support TF card and Bluet
Bluetooth signal: 0-15 meters (unobstructed)
Number of channels: two channels
Output power: 2*15W
Output impedance: 12V4ohm 24V8ohm
Appearance size: 69*68*18mm
Installation size: 62*61/
Cable length: 225/200mm
Product heavy star: 68g
Key Function:
mode: Bluet, TF switch mode(after change the mode need press the play key)
play: play / pause mode
Prev / V-: short press to switch the previous song, long press to decrease the volume
Prev / V +: Short press to switch the next song, long press to increase the volume
Product description:
This double channel digital power amplifier board, the input voltage is DC12-24V, support TF card and Bluet two audio input modes, Bluet effective distance is 0 ≤ 15 meters (unhindered connection), the specific connection distance depends on the strength of their own Bluet signal; There are four functional keys on board, and equipped with extended keystroke board and volume adjusting potentiometer, which can realize mode switching, pause playing, switching songs, volume adjustment, switching machine and so on. The amplifier also has a dual channel audio output, which can load the 4Ohm horn at a minimum under the condition of 12V power supply, and the power of 24V is 2 ≤ 30w. Very suitable for electronic production, school learning kit applications.
