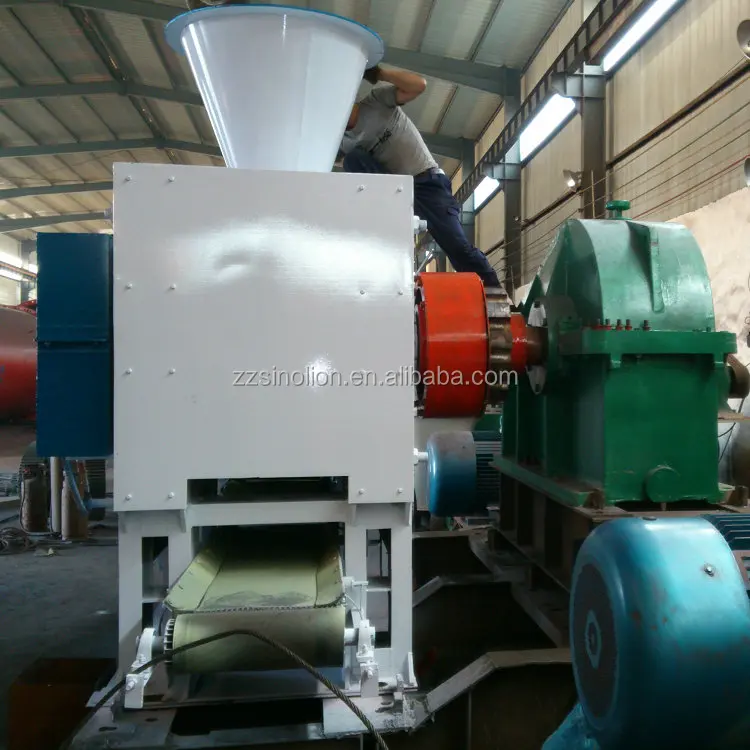

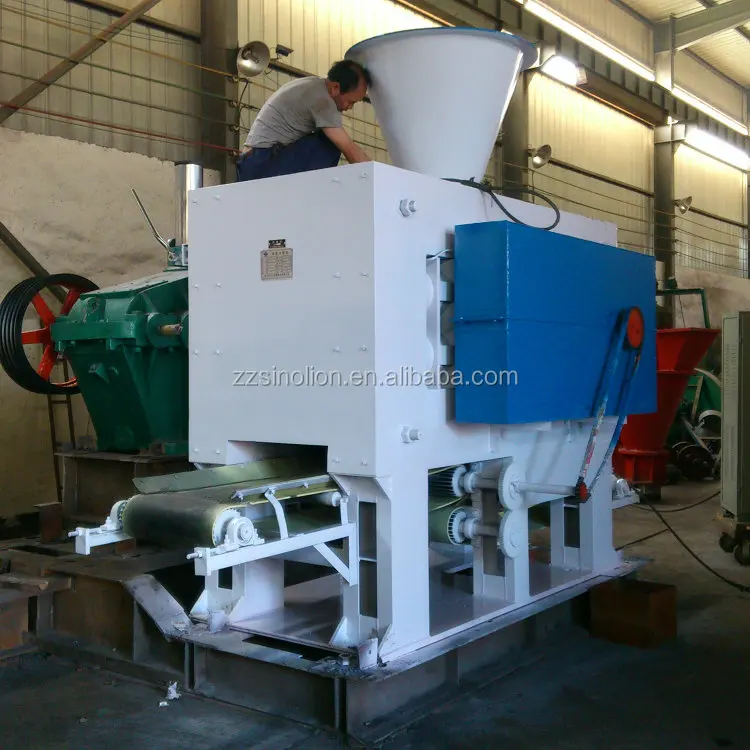

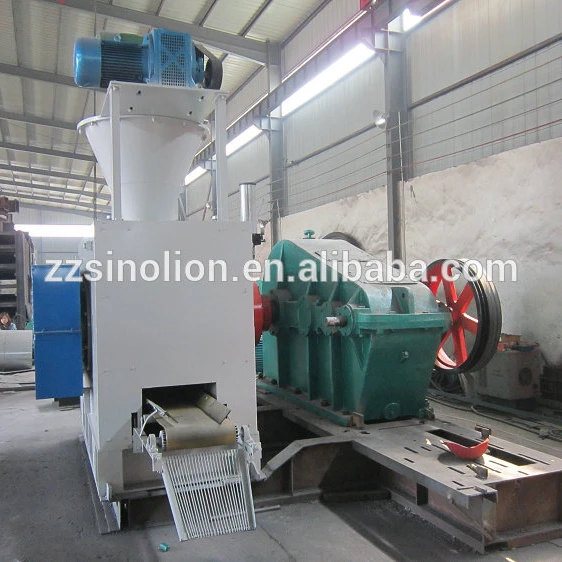

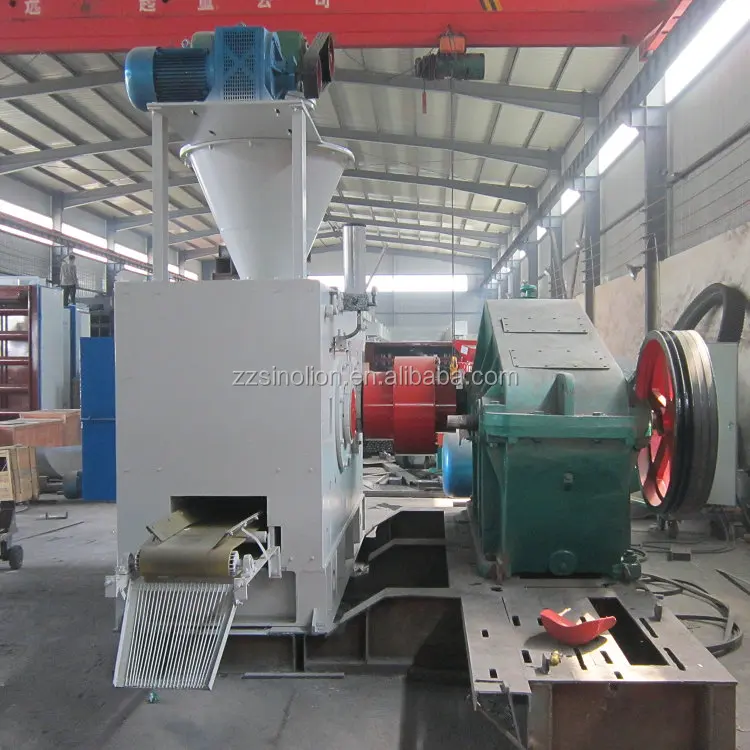

Mineral powder ferro iron briquette machine factory price
Brief introduction of ferro iron briquette machine
Ferro iron briquette machine
can be used to press coal, iron powder, coke, aluminum, iron scrap, iron oxide, carbon, charcoal, slag, gypsum powder, tailings, sludge, kaolin, activated carbon,ect. Through continuous and meticulous research, our employees found that the use of wear-resistant alloy material can solve the problem that the pressure roller can not be used for a long time, and the service life of the pressure roller is increased by three to four times.
can be used to press coal, iron powder, coke, aluminum, iron scrap, iron oxide, carbon, charcoal, slag, gypsum powder, tailings, sludge, kaolin, activated carbon,ect. Through continuous and meticulous research, our employees found that the use of wear-resistant alloy material can solve the problem that the pressure roller can not be used for a long time, and the service life of the pressure roller is increased by three to four times.
working principle of ferro iron briquette machine:
Raw materials are quantitatively and evenly fed though the middle material silos to the prepressing feeding device. Raw materials in the prepressing feeding device are forced to pressure in the middle of the two rollers of mineral powder briquette machine by pre compression spiral. After prepressing and excluding gas, raw materials are sent to arc slot mouth of the two rollers. There are ball sockets uniformly distributed on the surfaces of the two rollers. The two rollers move together through the meshing transmission of the gear deceleration device. Then materials between the two rollers are pressed into certain shapes. After that, the two rollers separate slowly, and the shaped materials fall down from the ball sockets because of their own gravities, so as to complete the balling process.
Feature of ferro iron briquette machine:
1.\tGood price with CE ISO.
2.\tDifferent type:roller type, hydraulic type, high pressure type mineral briquette machine
3.\tStrong structure, high briquetting ratio because the mineral briquette machine excellent design
4. Briquette machinecan be the single machine or whole production line.
5.\tRoller material can be 65Mn, 9Cr2Mo, Alloy Steel, -high-chromium alloy and so on
6.\tFinal product size 15-70mm and shape can be round, pillow &square shape.
7.\tEngineer available for installation in customer country for mineral briquette machine. Provide the matched binder for the briquettes making.
8.\tEngineer available for installation in customer country.
Technical Parameter
Model | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power (kw) | Capacity(t/h) |
KF500-370-280 | 40.17 | Φ370*280 | 8-10 | 11 | 6.5-7.5 |
KF650-500-300 | 40.17 | Φ500*300 | 8-10 | 37 | 8.5-9.5 |
KF850-650-300 | 40.17 | Φ650*300 | 8-10 | 55 | 10.5-11.5 |
KF1250-750-350 | 50 | Φ750*350 | 7-9 | 110 | 13.5-14.0 |
KF1450-850-350 | 63 | Φ850*350 | 7-9 | 132 | 15.0-16.0 |
KF560-1000-350 | 50 | Φ1000*350 | 7-9 | 150 | 17.0-20.0 |
Detailed Images

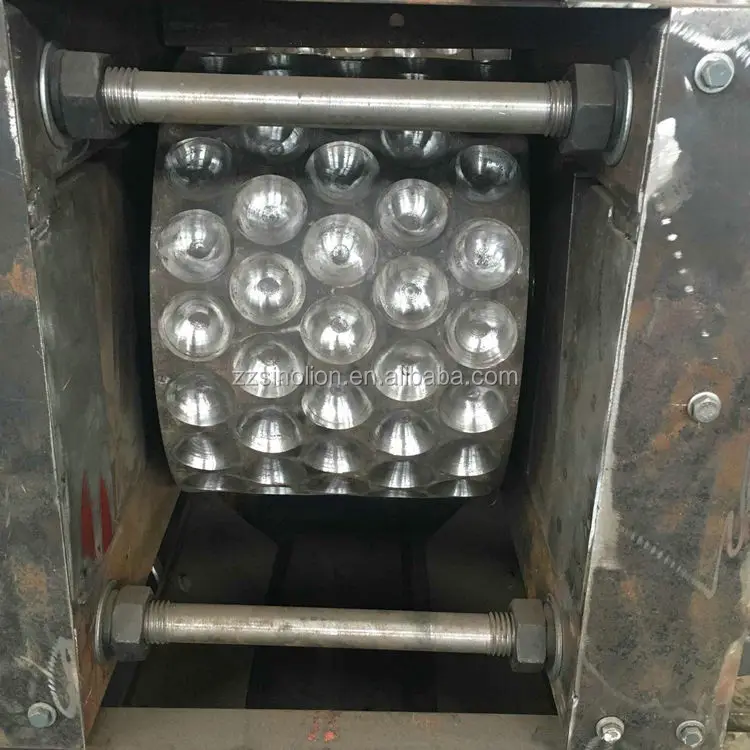

Roller material
The ferro iron briquette machine roller adopts 65Mn or 9Cr2Mo or high chrome alloy, and treated by heat processing for 3 times, and the final roller can use 7200-9000 hours under 7*24 hours non-stop running in right operation.

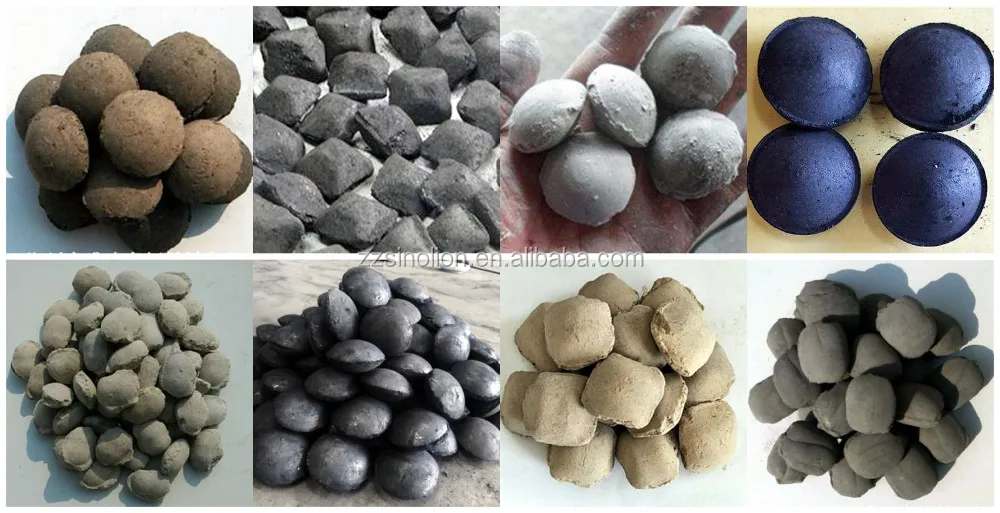

Briquette Shape.
The final briquette out from our ferro iron briquette machine can be oblate, pillow and oval shape.The briquette size between 20-75mm.
Please confirm briquette shape and size before briquette machine.

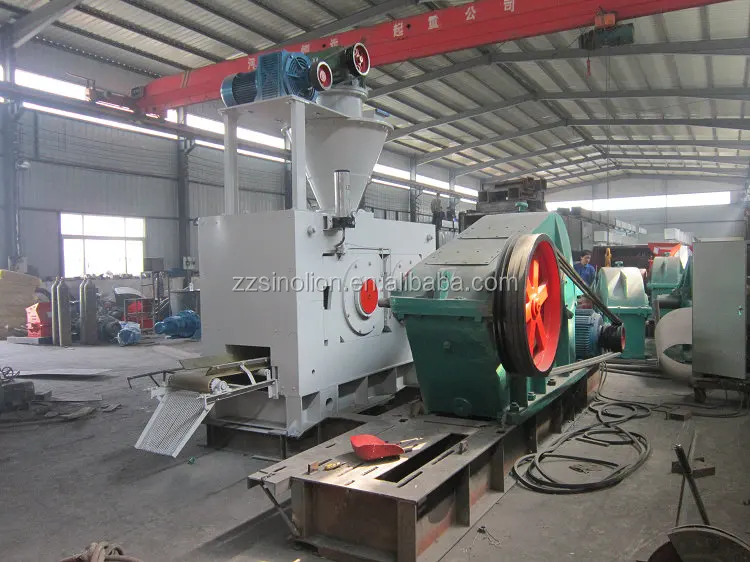

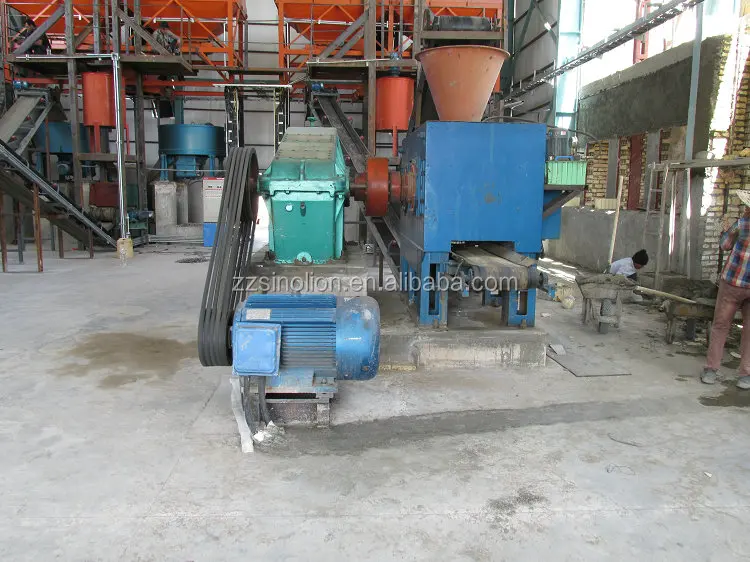

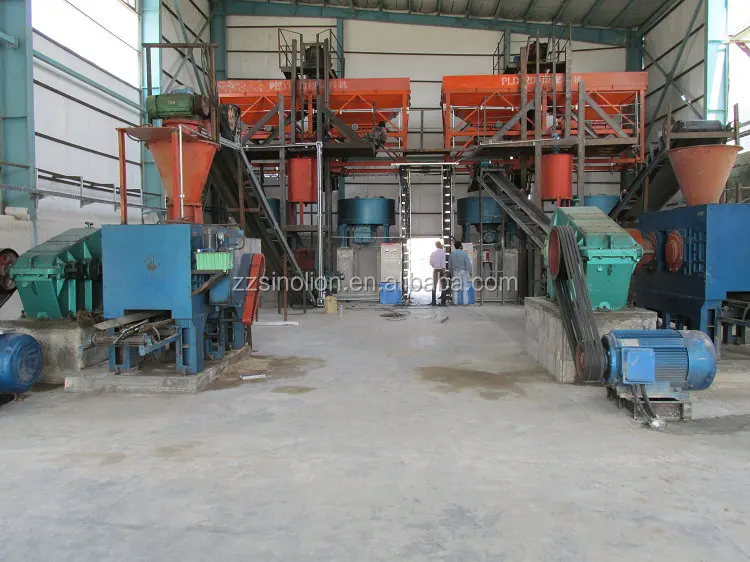

Production Line
Packing & Delivery
Our Company
Zhengzhou Sinolion Machinery Co.,Ltd .
With over 30 years of experience in this industry, Zhengzhou Sinolion Machinery Co., Ltd. understands the needs and expectations of our customers well and we strive to accommodate them. We take pride in our work and you can trust our ability to get your job done right at the first time. With a courteous and knowledgeable Sales Team, we can answer any of your questions or concerns with confidence and our service technicians are trained to understand all of the dynamics of the quality equipment we sell and serve, guaranteeing customer satisfaction every time.

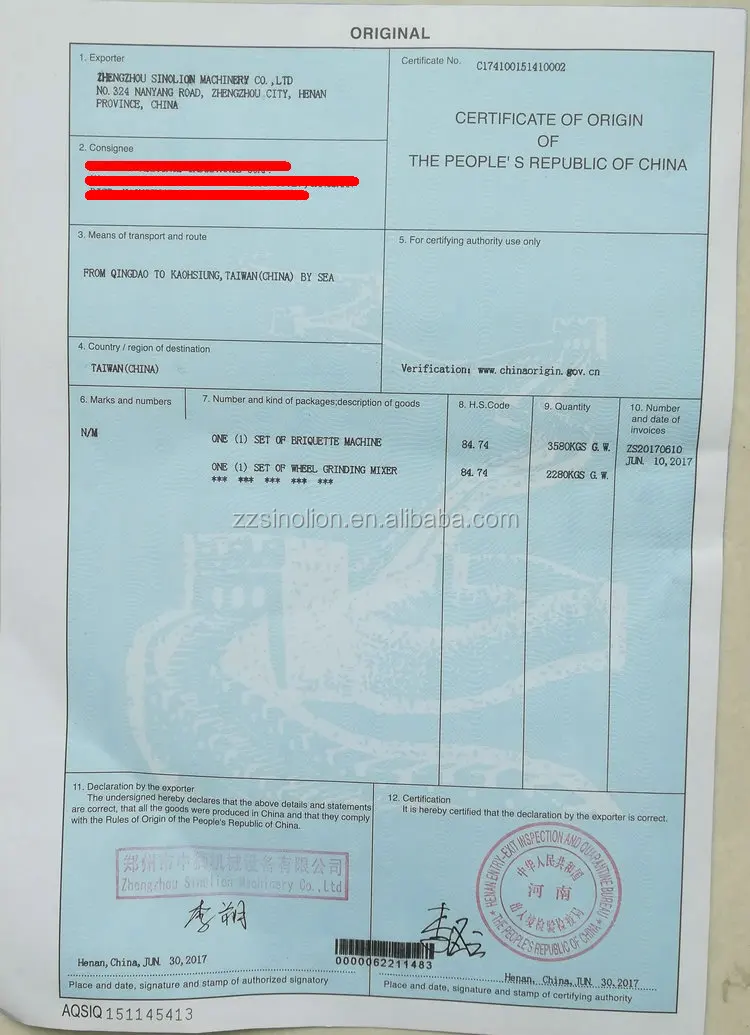

Certifications
FAQ
· Q: Can only one set ferro iron briquette machine complete briquetting?
A: No, before briquetting, the raw materials should be in 0-5mm, the water content of raw materials should be 8-15%, aslo some raw materials maybe need binder in process,so in general the complete briquettes production line include Drying --- Hopper --- Crusher--- Mixer--- briquette machine--- Briquette Dryers, but if you had those auxiliary equipment,you can only order briquetting machine.
· Q: What is the binder in process?
A: It is depend on the properties of your raw materials, and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
· Q: How about the hardness of briquettes?
A: Our ferro iron briquette machine adpot 9Cr2 forging steel to make rollers, with a hydraulic station, the whole pressure is very high, the briquettes will not broken when it drop up from 5meters high.
· Q: After ordered a ferro iron briquette machine, how do we slove the equipment installing?
A: For a small single briquette machine, we offer you user manual, customer will install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally.
· Question : What's the delivery time after I pay the deposit?
A: We will clear delivery time in slaes contract, Single briquette machine often deliveried within 10-15 working days after receipt of the pre-payment. Complete briquette production line will delivery within 25-40 working days after receipt of the pre-payment.
