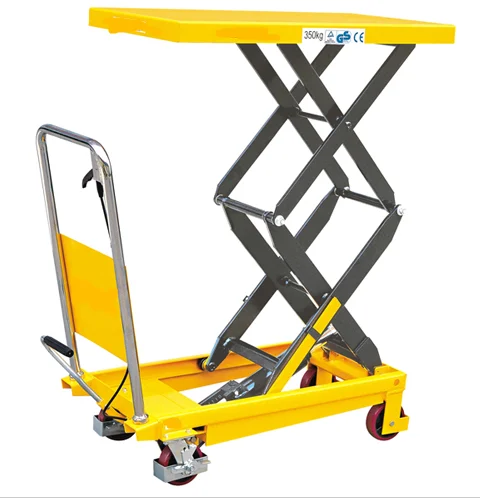

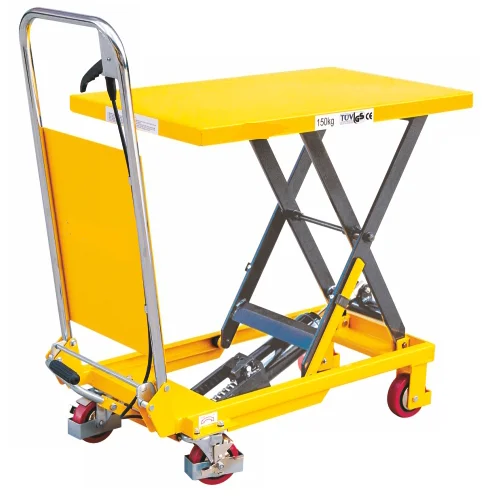

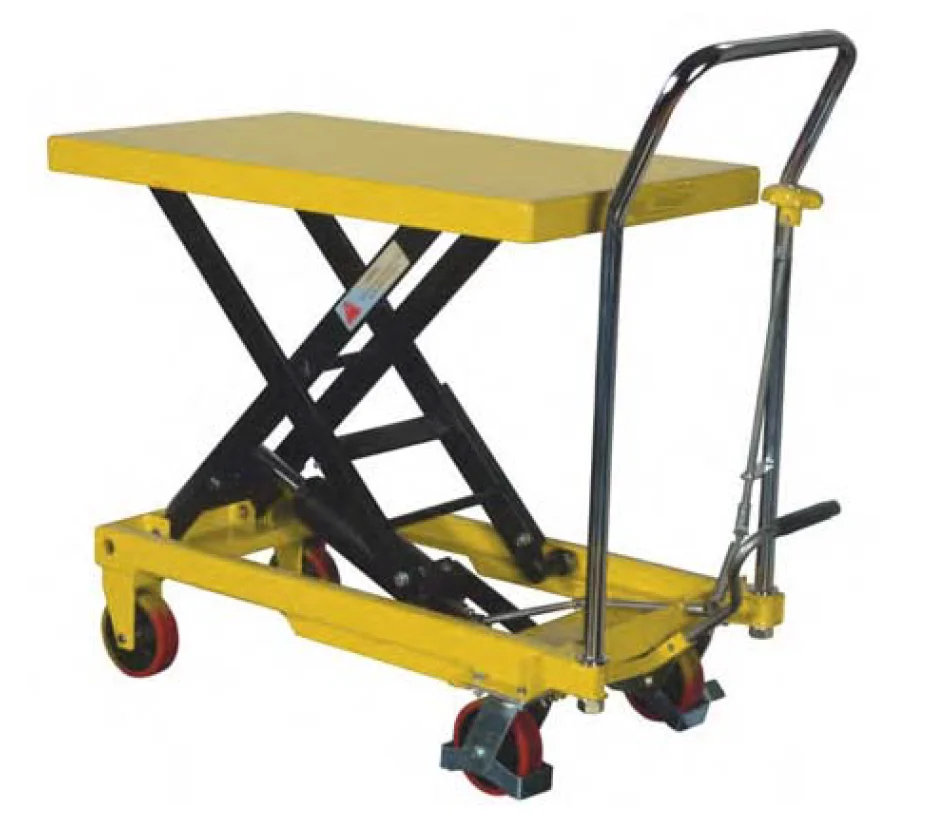

Hydraulic Lifting Mechanism Scissor Lift Table Platform CE CERTIFICATE
- Category: >>>
- Supplier: SPON TECHNOLOGIES CO. LTDSPON LTD
Share on (62252316285):
Product Overview
Description
| MODEL | SLT150 | SLT300 | SLT500 | SLT800 | SLTS350(Double Scissors Lift Table) | |
| Capacity | kg | 150 | 300 | 500 | 800 | 350 |
| Max. lift height | h12(mm) | 740 | 900 | 900 | 1000 | 1300 |
| Min. height of table | h13(mm) | 225 | 340 | 340 | 420 | 350 |
| Lifting height | h3(mm) | 515 | 560 | 560 | 580 | 950 |
| Table size | l×b5×s(mm) | 740×450×35 | 855×500×50 | 855×500×50 | 1000×510×55 | 910×500×50 |
| Total height | h14(mm) | 935 | 970 | 970 | 996 | 970 |
| Overall length | l1(mm) | 830 | 925 | 925 | 1150 | 980 |
| Foot pedal cycles to max height | ≤25 | ≤32/≤45 | ≤32/≤45 | ≤70 | ≤60 | |
| Wheel diameter | d(mm) | 100 | 127 | 127 | 150 | 127 |
| Qty./20’ Container | PCS | 192 | 120 | 120 | 52 | 110 |
| Service weight | kg | 44 | 82 | 87 | 115 | 105 |
| Carton size | mm | 880×480×265 | 950×530×390 | 950×530×390 | 1190×630×460 | 1010×530×390 |
