BG 80D High speed automatic pharmaceutical film coating machine for tablet

Product Overview

Description

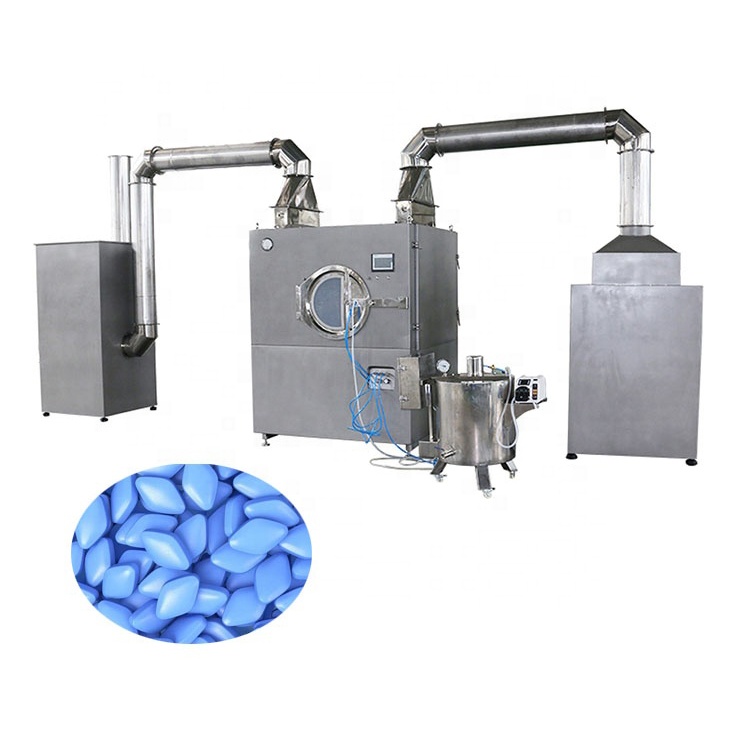

BG-80D High speed automatic pharmaceutical film coating machine for tablet



The product is an ideal film coating machine in current pharmaceutical industry at home. It can be applied in many fields like pharmacy, food, biological products, etc.. The machine is particularly applied to coat tablets, pills, and candies with all kinds of organic or water-soluble film. As a film coating machine, it is widely applied in pharmacy and food industry



Features

1. PLC and temperature module controlling system with the touch screen produced by Siemens Germany are applied to provide picture displaying, convenient operation, energy-efficiency, cleanliness and safety, and convenient cleaning, which meets the standard of GMP.

2. Components, which drugs are exposed to, such as high efficiency film coating mainframe, high efficiency hot air filter, dust removal fan and spray device, are all made of imported stainless steel of good quality.

3. The procedures are all controlled by PLC touch screen, automatically or manually.

4. Coating is processed in totally closed environment to prevent dust and slurry from spilling. The surface of box is polished and its light pollution is eliminated.

5. The driver system applies explosion-proof decelerating motor and chain-wheel transmission device, which can make frequency conversion continuously variable.

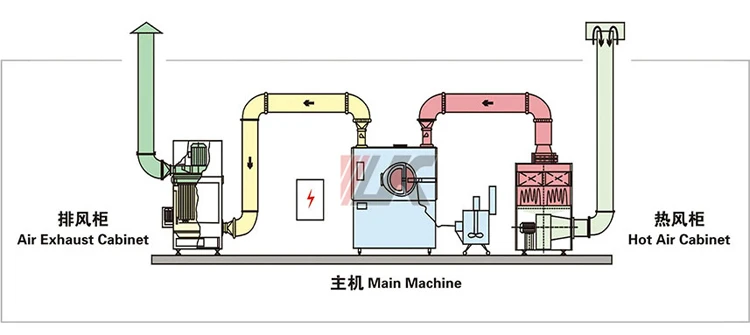

6. High efficiency hot air filter can directly capture air from outside, heat the air after primary, intermediated and high efficiency filter, and then provide the air for the mainframe. The air can meet the standard of 100,000 class cleanliness. Dust removal fan can exhaust air to the outside to avoid the influence on central air-conditioning and to save energy.

7. Spray gun is the WA-101 spray gun imported from Japan of good atomization, non-clogging nozzle, adjustable spray volume and angle, and simple structure which is convenient to clean.



Technical Parameters

Items		Parameters
Production quantity		80kg every time
Speed range of film coating roller		3-24 r/min
Diameter of material inlet		380mm
Diameter of film coating roller		930mm
Diameter of roller mesh		3mm
Motor power of mainframe		1.5KW (The mainframe is totally closed)
Air source (supplied by the user)		0.8  m3/min    Pressure: ≥0.4 MPa.
Dimensions		1390×1040×2080mm (L×W×H)
PLC	It can make the frequency conversion continuously variable and set, adjust, display and memorize the technical parameters, operation speed, air inlet speed, spray force and flow during the operation of the complete machine.
Hot air cabinet	Motor power of hot air filter		1.5KW  (explosion-proof)
	Filter precision		0.5μm
	Filter cleanliness		100,000 class
	Air inlet speed		2356m³/h (with a class-3 filter)
	Hot air temperature		40~80℃ (adjustable)
	Dimensions		930×750×2080 mm (L×W×H)
	Weight		350Kg

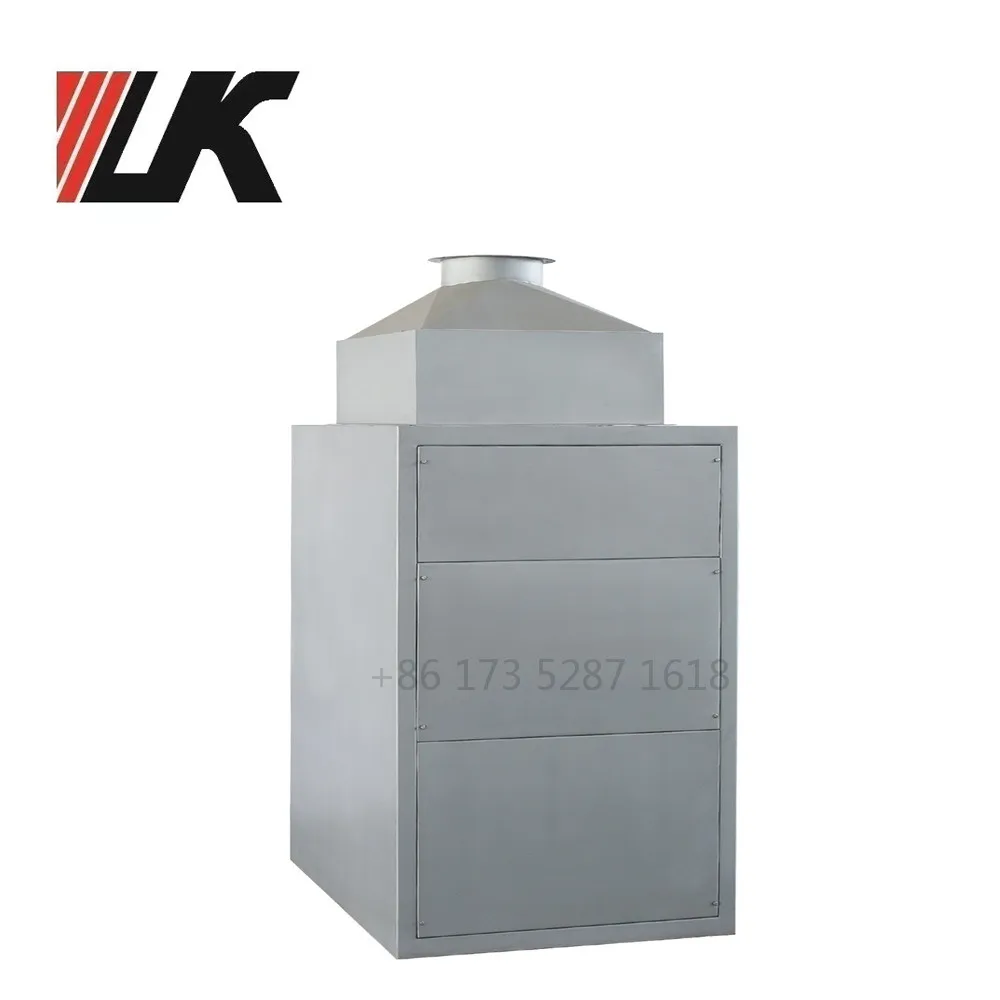

Dust removal cabinet	Motor power dust removal fan		3KW  (explosion-proof)
	Air outlet speed		5268 m3/h
	Surface material		Matt stainless steel
	Dimensions		830×830×1850mm (L×W×H)
	Weight		350Kg
Spray gun		Imported spray gun with uniform atomization, adjustable spray shape, position and angle
		This machine is equipped with 2 spray guns.

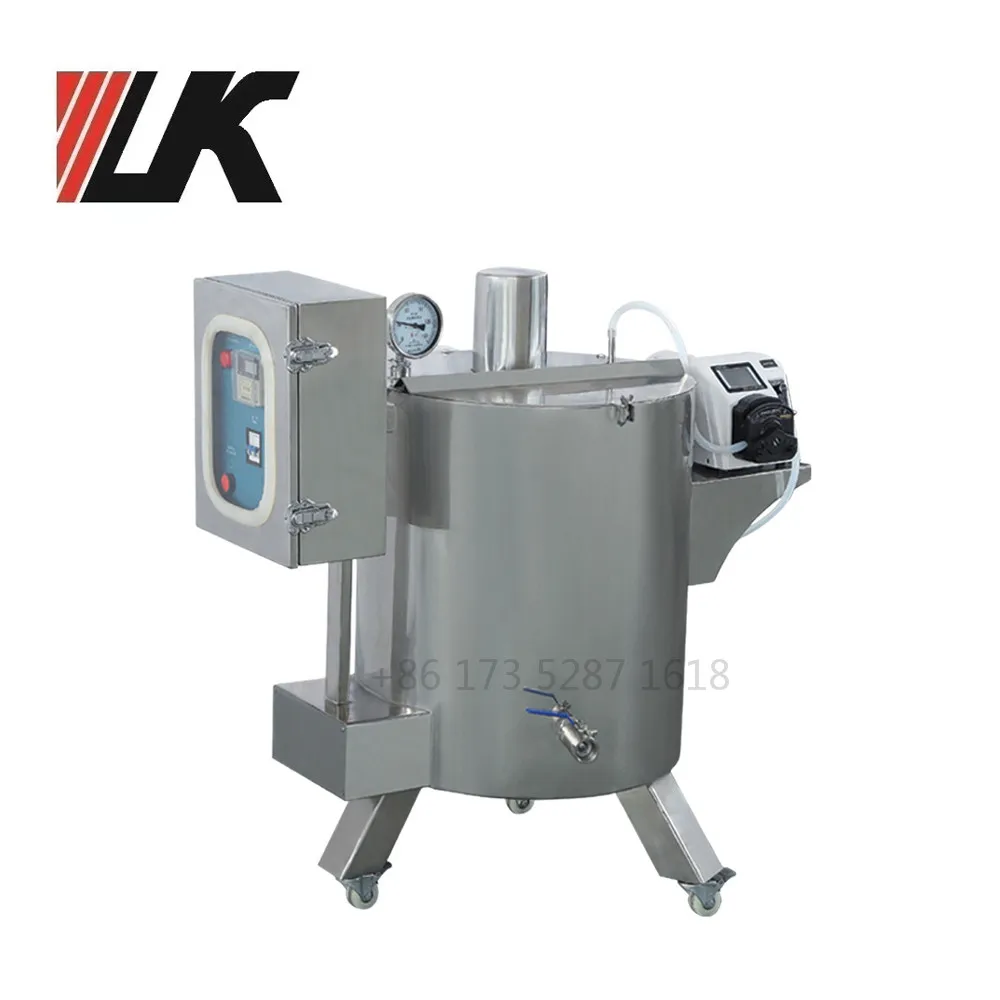

Motor power of peristaltic pump		0.25KW
Peristaltic pump speed		100-700 r/min
Mainframe weight		750Kg
