Low Price Mineral R Type Quicklime Barite Powder Crusher Pulverizer Raymond Grinding Mill Machine For Sale
- Category: >>>
- Supplier: Henan Yuhong Heavy Machinery Co. Ltd.
Share on (62252632907):
Product Overview
Description
4 ADVANTAGES OF PRODUCT STRUCTURE
1. Independent Production System: Independent production system can process material from bulk material to powder.
2..High Quality Wear-resisting Material: Major parts of Raymond mill adopts quality steel, wear-resistant parts adopts high quality wear-resisting material, good wear-resisting property of complete machine, stable operation.
3.Uniform Fineness, Sieving Rate 99%: Even final product size, sieving rate could reach 99%, incomparable performance.
4.Main Machine Transmission: Sealed gear case and belt wheel, smooth transmission, reliable performance.

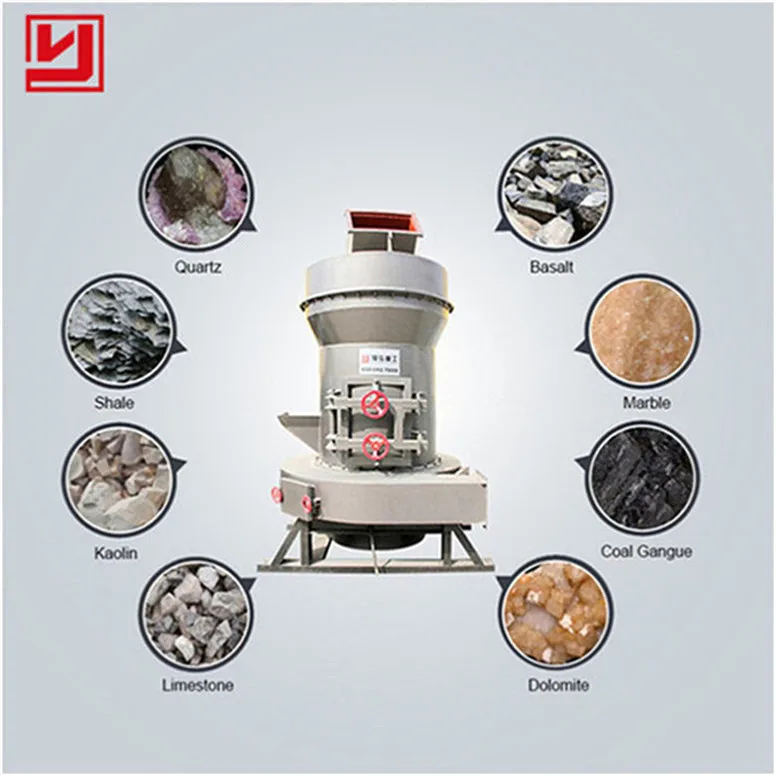

APPLICABLE MATERIALS
The MTW European Trapezium Mill can process the non-flammable and non-explosive mineral materials of hardness less than 9 on Moh’s scale, and the humidity less than 6%, such as: quartz, feldspar, calcite, talcum, barites, fluorite, tombarthite, marble, ceramic, bauxite, manganese ore, iron ore, limestone, dolomite, potassium, bentonite, medical stone, rock phosphate, active carbon, carbon black, potassium, coal, etc.

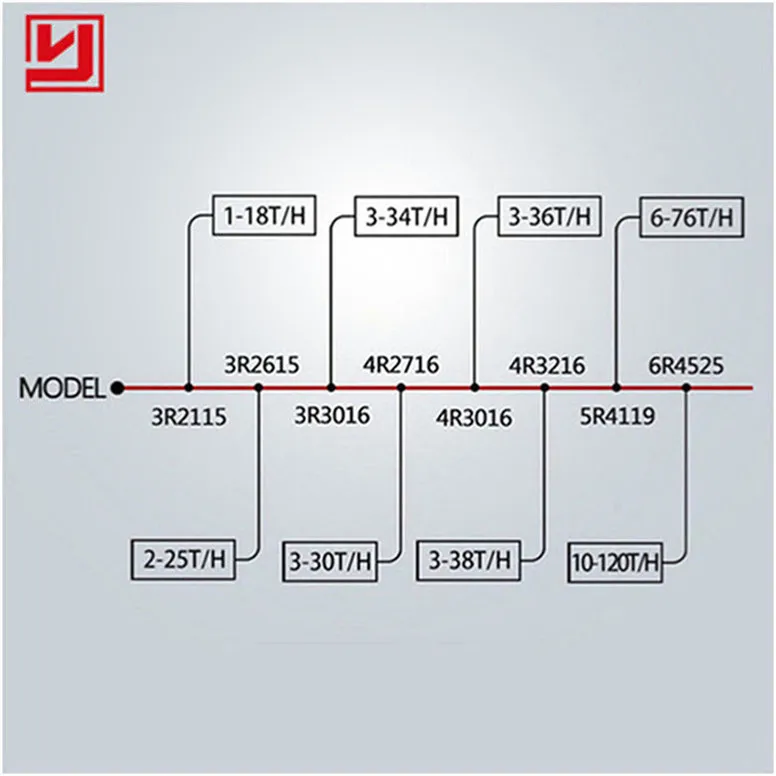

PRODUCT PARAMETERS
Model | Max Feeding Size | Finished Products Size | Shift Output | Inner Diameter of Ring | Diameter of Roller | Height of Roller and Ring | Main Motor Powder |
Dimensions |
Weight |
(mm) | (mm) | t/h | (mm) | (mm) | (mm) | (KW) | (L*W*H)(mm) | (kg) | |
3R2115 | 15 | 0.125-0.044 | 1-18 | 640 | 210 | 150 | 15 | 4500*2800*5800 | 3600 |
3R2615 | 20 | 0.125-0.044 | 2-25 | 780 | 260 | 150 | 18.5 | 5970*4000*5000 | 3800 |
3R3016 | 15-25 | 0.125-0.044 | 3-34 | 910 | 300 | 160 | 30 | 7500*4500*6200 | 7000 |
4R2716 | 15-25 | 0.125-0.044 | 3-30 | 830 | 270 | 160 | 22 | 5970*4000*5000 | 3900 |
4R3016 | 15-25 | 0.125-0.044 | 3-36 | 910 | 300 | 160 | 30 | 7500*4500*6200 | 7500 |
4R3216 | 25 | 0.125-0.044 | 3-38 | 970 | 320 | 160 | 37 | 9900*5800*8500 | 14000 |
5R4119 | 30 | 0.125-0.044 | 6-76 | 1280 | 410 | 190 | 75 | 7850*8000*9700 | 25700 |
6R4525 | 30 | 0.125-0.044 | 10-120 | 1770 | 450 | 250 | 132 | 8850*10500*11000 | 47000 |
PRODUCTION LINE
The MTW European Trapezium Mill system consists of MTW grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.
1. Big lump materials are crushed into required size by jaw crusher.
2. The out-let materials are elevated to buffering hopper through elevator.
3. After that the materials are fed into the mill to be ground by ring and rollers.
4. The ground powders move up with the air flow to pass the separator and be collected as the finished product.
5. Those powders failed to pass the separator will fall down and be ground again.
6. Air flow passing through separator will go to the air blower for recycling.
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for Raymond Mill material?
A2: Our Yuhong has a high standard on choosing material of Raymond Mill.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
