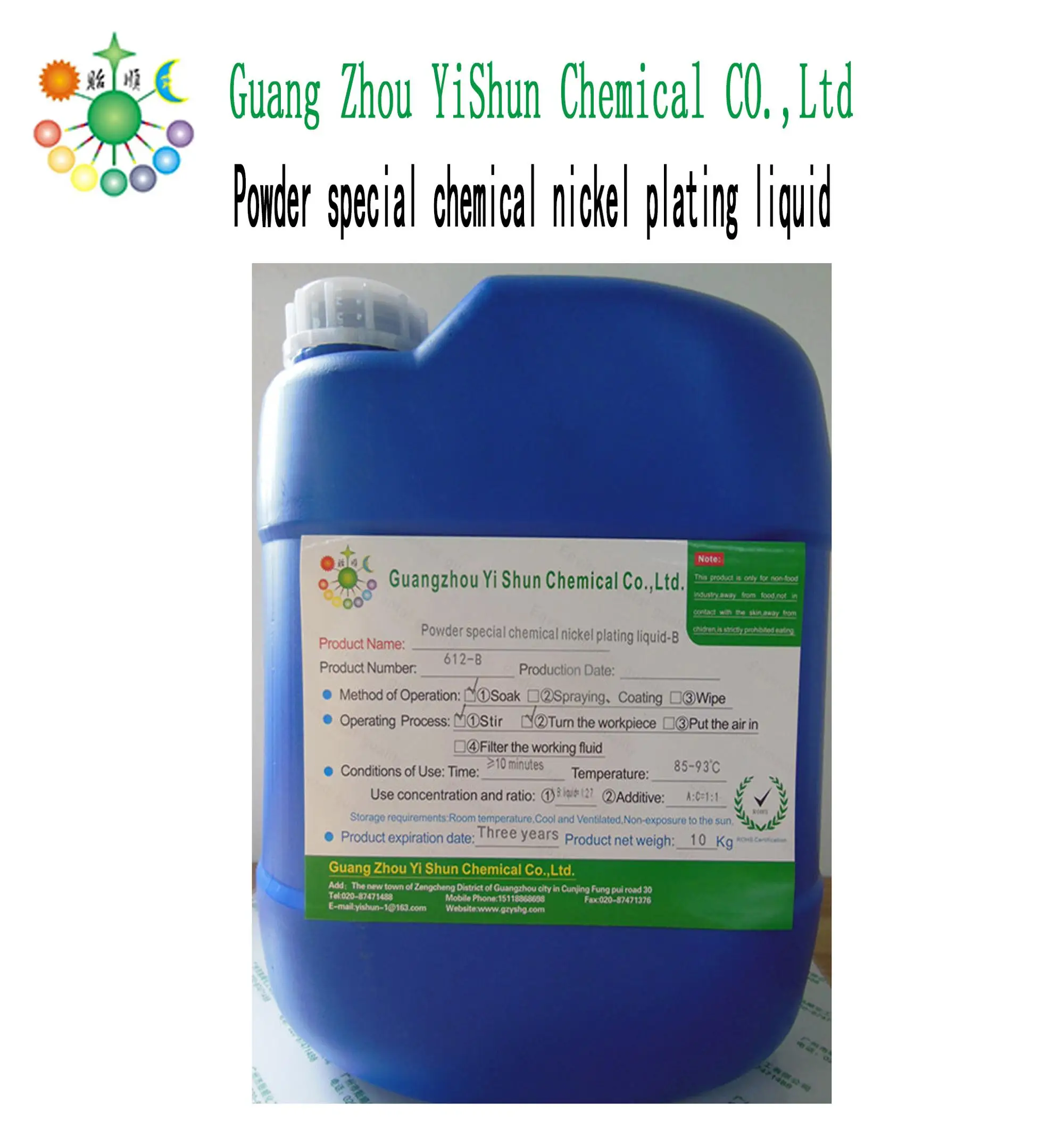

 Micro powder special chemical nickel plating liquid

First, product number :Q/YS.612 (Yi Shun brand)

Second, Product application scope and advantages:

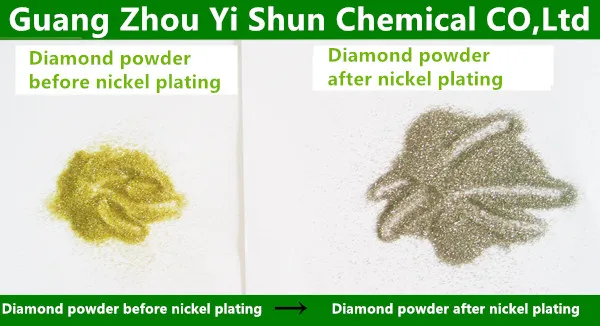

This product is special in chemical nickel plating on the surface of various powder, suitable for alpha -AhO₃ alumina powder (Φ≥3μm), diamond powder (Φ≥3μm), and graphite powder surface (Φ≥3μm). Make chemical nickel plating on the plating layer. The powder coated by this product has excellent dispersion properties. Particles are not linked and not form a group, a single body can be plated coating completely. And nickel plating process only need artificial or mechanically agitate to disperse without ultrasonic.

 Third, product index:

1. This product is composed of A, B, C three components.

2. A agent was dark green, the proportion is more than 1, odorless.

3. B agent liquid is light yellow, transparent, slight and mild acidity

4. C agent is a colorless transparent liquid, there is a small amount of ammonia smell

Fourth, Operation process:

Coarse powder→washing and neutralization→washing and activation Q/YS.628→Do not wash and directly drying(60℃,1-2h)→Don't wash and grinding sieving→chemical nickel plating 90℃,PH:4.8±0.2 ,mechanical agitation→washing,stewing,settlement→drying(105℃,1-2h)→Subsequent treatment, such as: heated treatment, electroplating, etc..

Fifth, note:

Matters needing attention:

1 there will be constant loss during chemical nickel plating, so it is best to add devices quantitatively and continuously , and control the pH value in the range of 4.8±0.2, by the way adding A and C two agent.

2.Nickel plating temperature control in 85 degrees -93 degrees Celsius, preferably with automatic temperature control equipment.

3. Nickel plating need to keep the mechanical stirring so that the coating is uniform

4. do not put into too much powder at a time because of the very large surface area of the powder, loading ratio should also be small diameter: l powder 3-5g/ 3-5 m, Phi: powder 5-10g/ 5-10 m, Phi: powder 10-30g/ 10-30 M L. The smaller diameter of the powder,Load ratio should be smaller,Φ:3-5μm micro-powder 3-5g/L,Φ:5-10μmicro-powder 5-10g/L,Φ:10-30μm micro-powder 10-30g/L.

Packaging:This product A agent, B agent and C agent for a group. A:10kg B:10kg C:10kg

Delivery time:The same day
