100 ton hydraulic press cylinder hydraulic ram hydraulic cylinder
- Category: >>>
- Supplier: Linqing City Dingtai Machinery Co. Ltd.
Share on (62252897544):
Product Overview
Description
Product Description

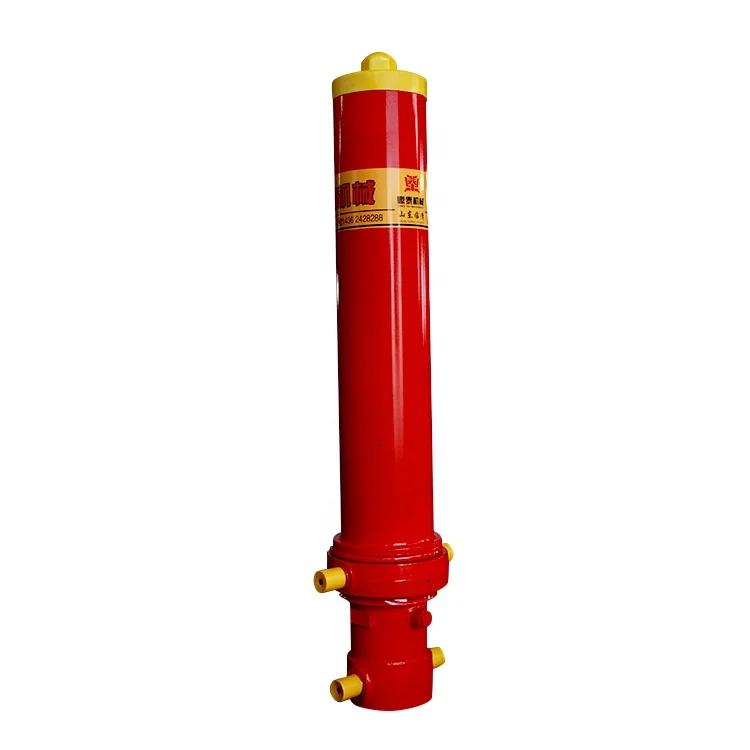

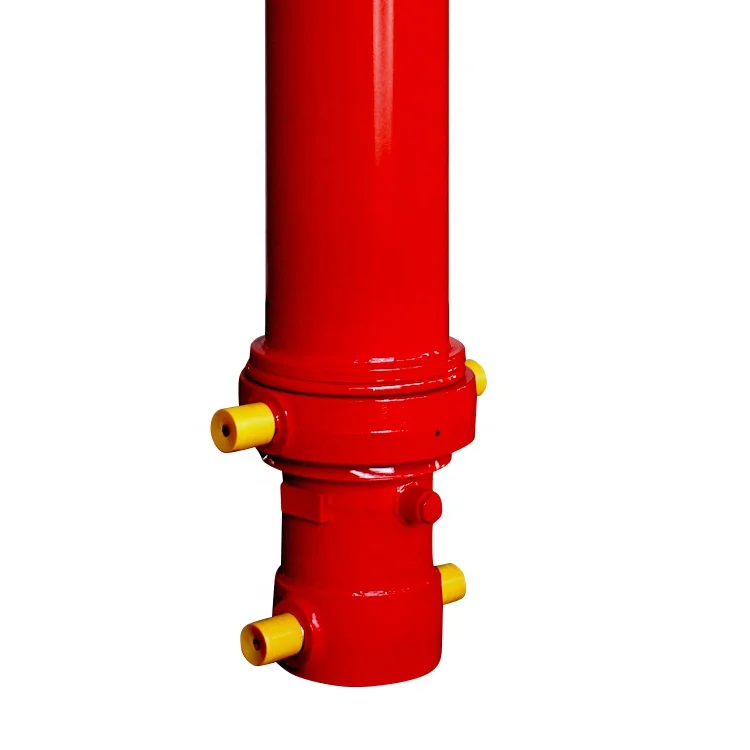

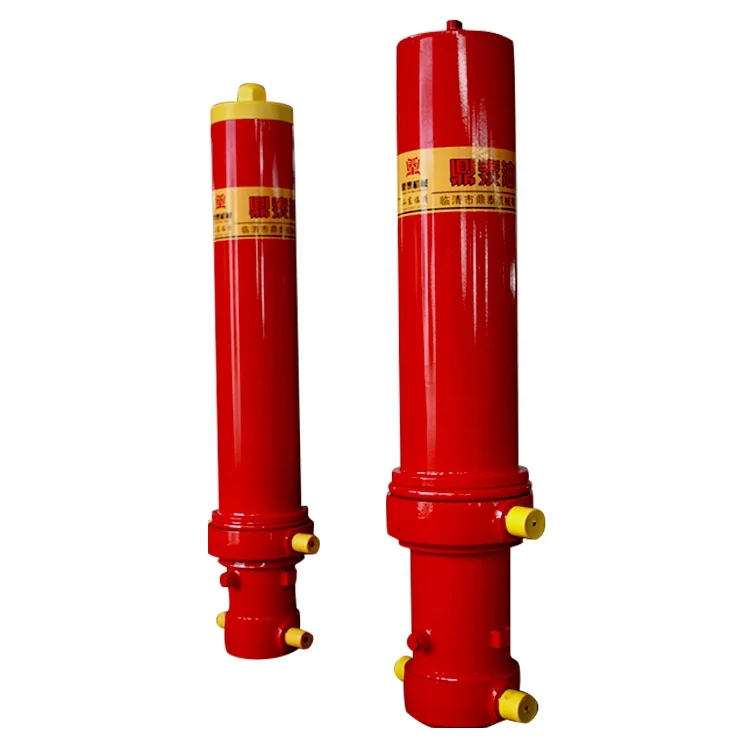

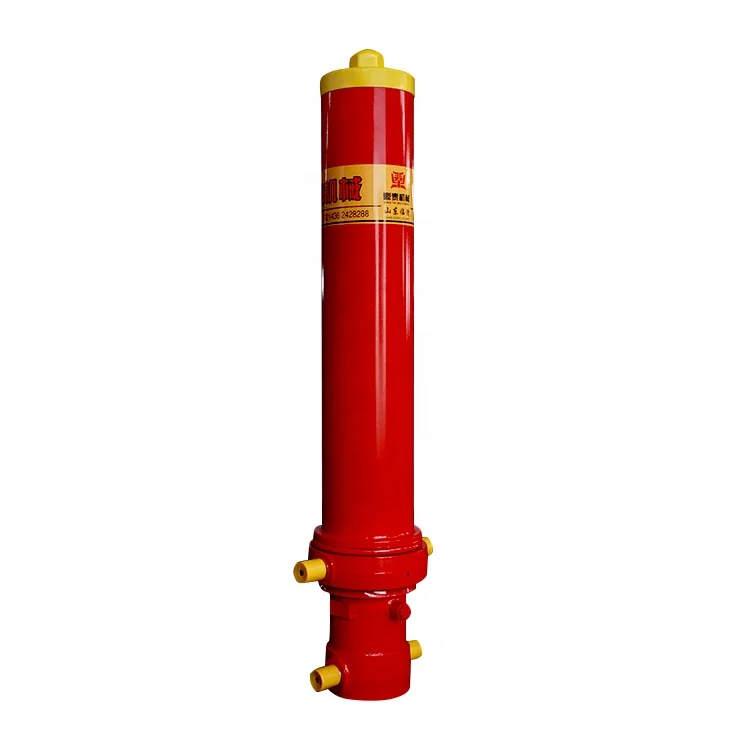

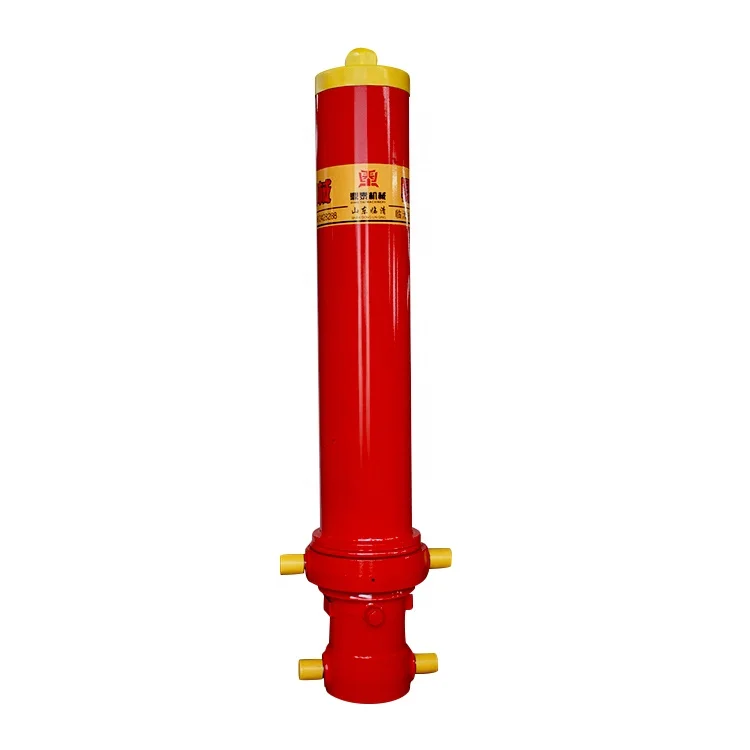

H100 ton hydraulic press cylinder hydraulic ram hydraulic cylinder
Basic Information:
| Model | Max storke | Rated Pressure | L1 | L2 | L4 | Shaft Diameter | M1 |
3TG-E130*3200 | 3200 | 16 | 325 | 340 | 215 | 60 | G1 |
| 3TG-E130*3600 | 3600 | 16 | 325 | 340 | 215 | 60 | G1 |
| 3TG-E150*3000 | 3000 | 16 | 325 | 340 | 245 | 60 | G1 |
| 3TG-E150*3830 | 3830 | 16 | 625 | 640 | 245 | 60 | G1 |
| 3TG-E150*4280 | 4280 | 16 | 325 | 340/360 | 201 | 60/65 | G1 |
| 4TG-E160*3360 | 3360 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E160*3800 | 3800 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E160*4280 | 4280 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E160*4650 | 4650 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 5TG-E160*4280 | 4280 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 5TG-E160*4650 | 4650 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*4280 | 4280 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*4650 | 4650 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*5180 | 5180 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*5390 | 5390 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*5700 | 5700 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 4TG-E180*6180 | 6180 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 5TG-E180*4280 | 4280 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
| 5TG-E180*4650 | 4650 | 16 | 325 | 340/360 | 245 | 60/65 | G1 |
 | Installment Introduction
1.The specifications for all the install screw and self- locking is M16(DIN931.Q8.8)
2.The specifications for grommet is M1730MM.
3.The biggest gap between support and cylinder is 2mm.
4.Make sure the hydraulic cylinder vertically ,up and down two parallel shafts when installed.
5.The installation should be greater than the center distance between the closed hydraulic cylinder center distance 20mm-30mm. |
Six advantages for hydraulic
More secure
Faster unloding speed.
The lifting frequency higher
A stronger ability to adapt to the environment
Lighter
Lift more |  |
Our Services
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
• diameter of bore & rod • stroke |
