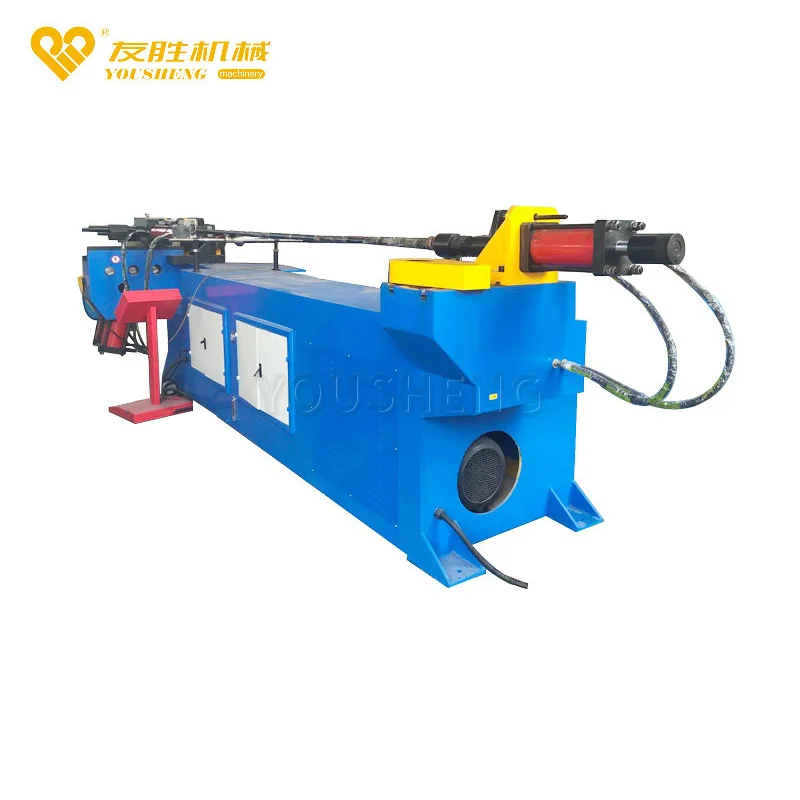

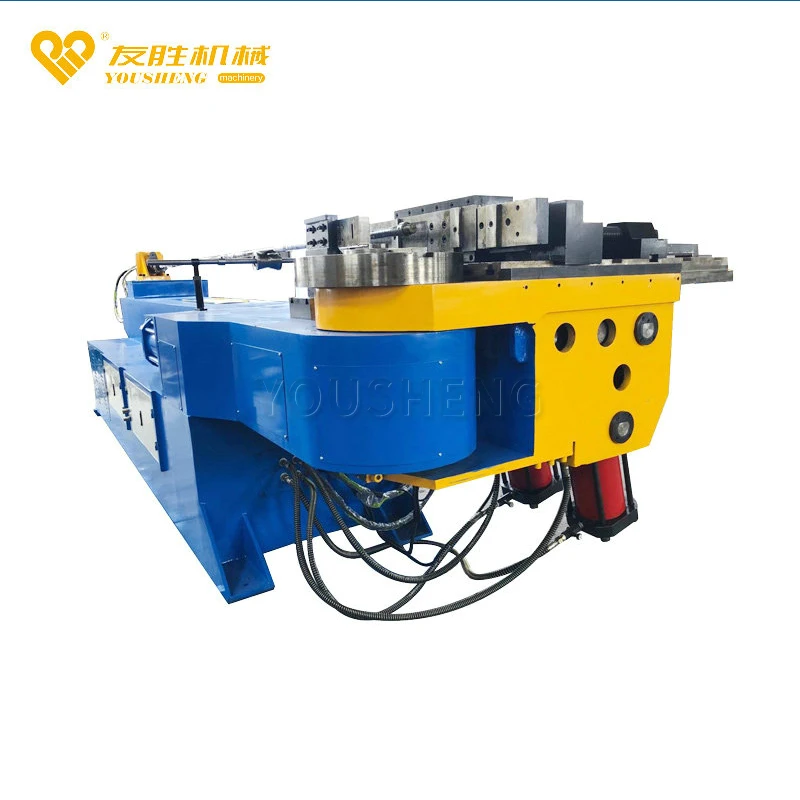

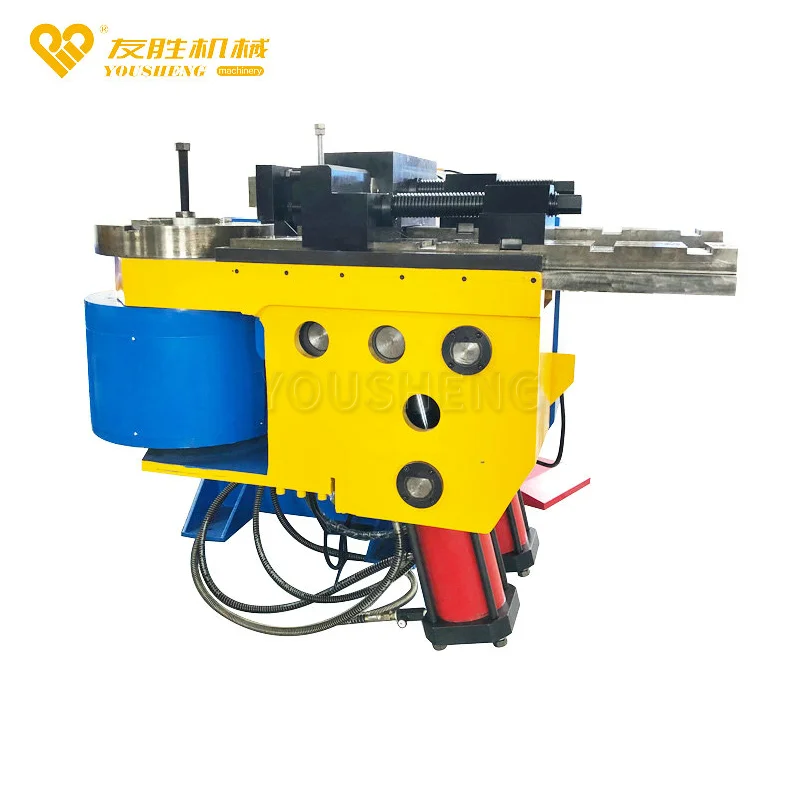

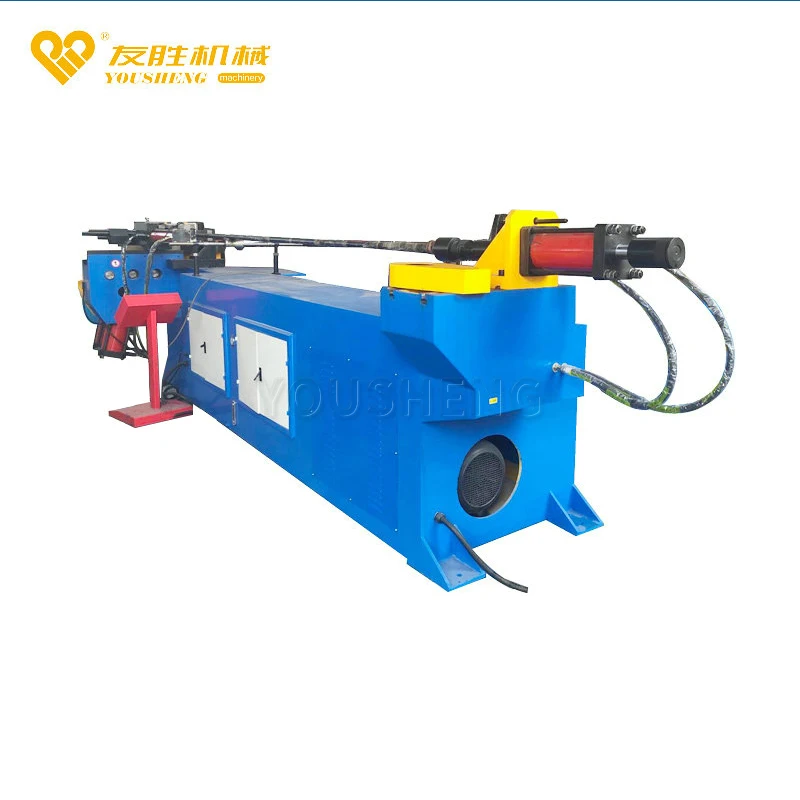

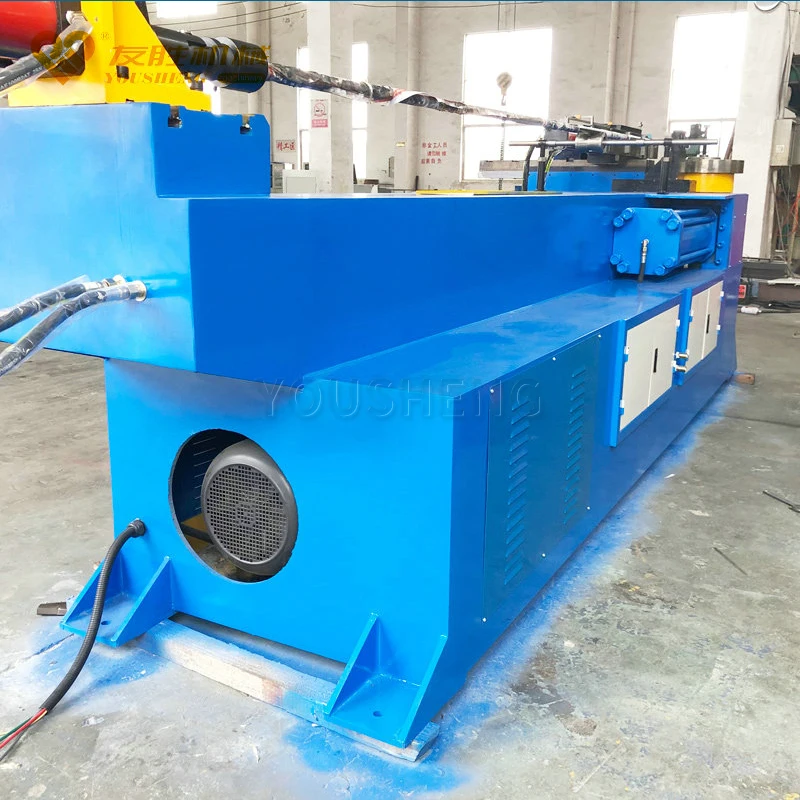

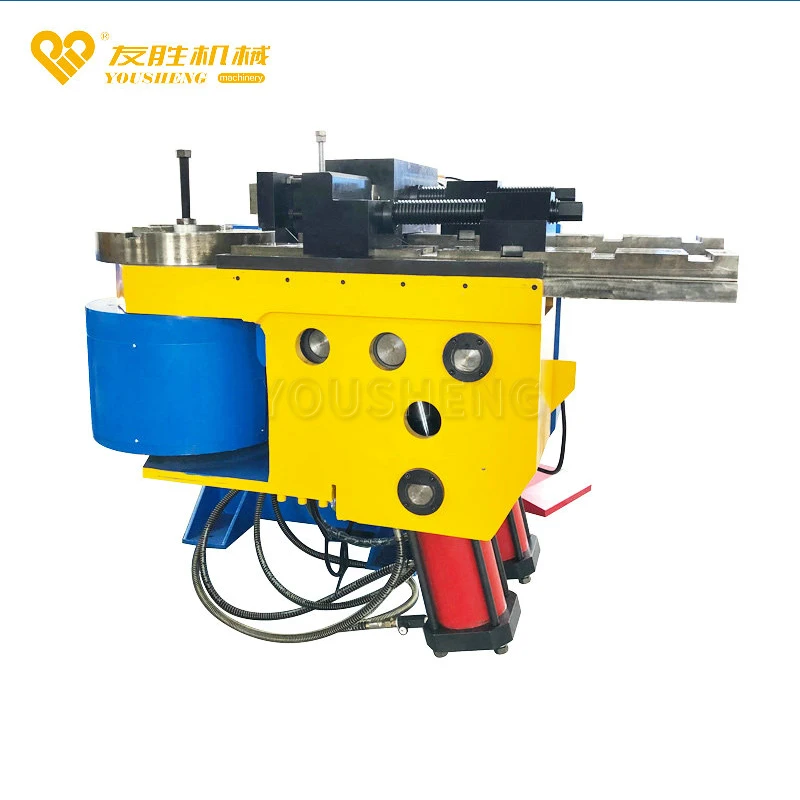

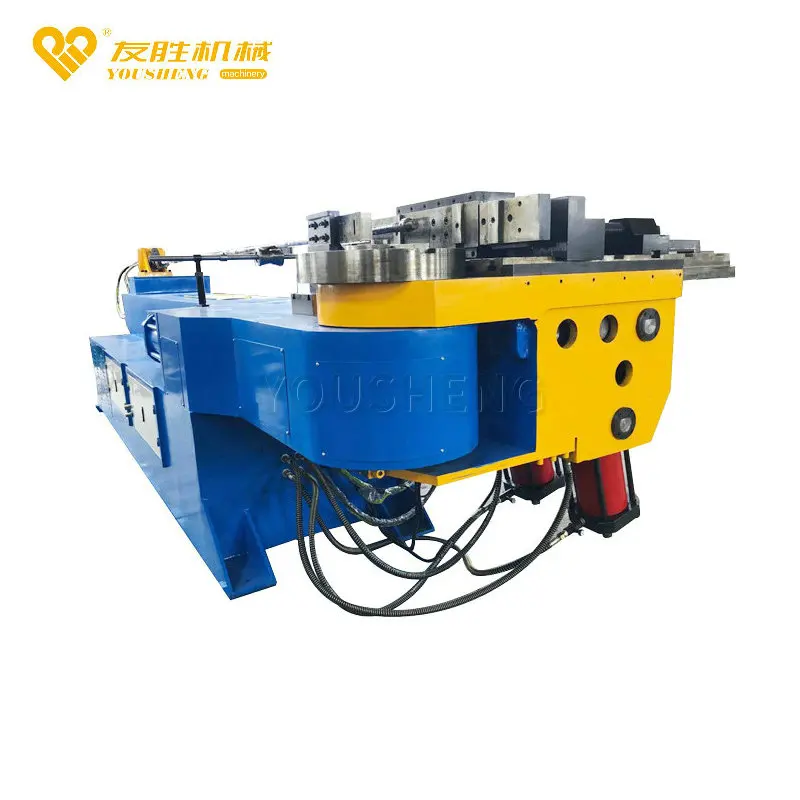

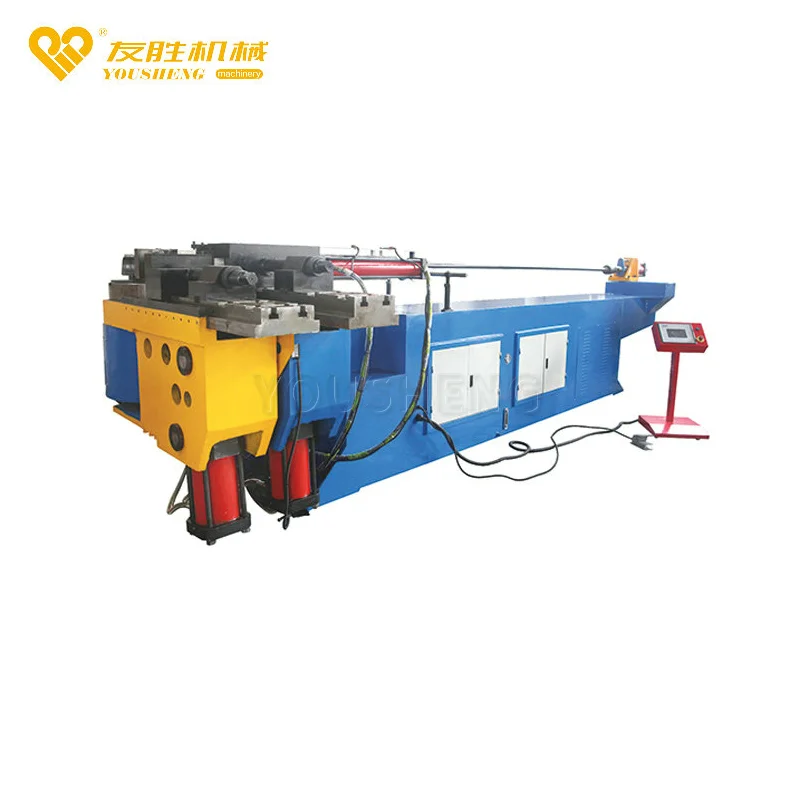

Chinese wholesale distributors manual hydraulic copper pipe bender for sale

Product Overview

Description







1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, titanium, brass etc.

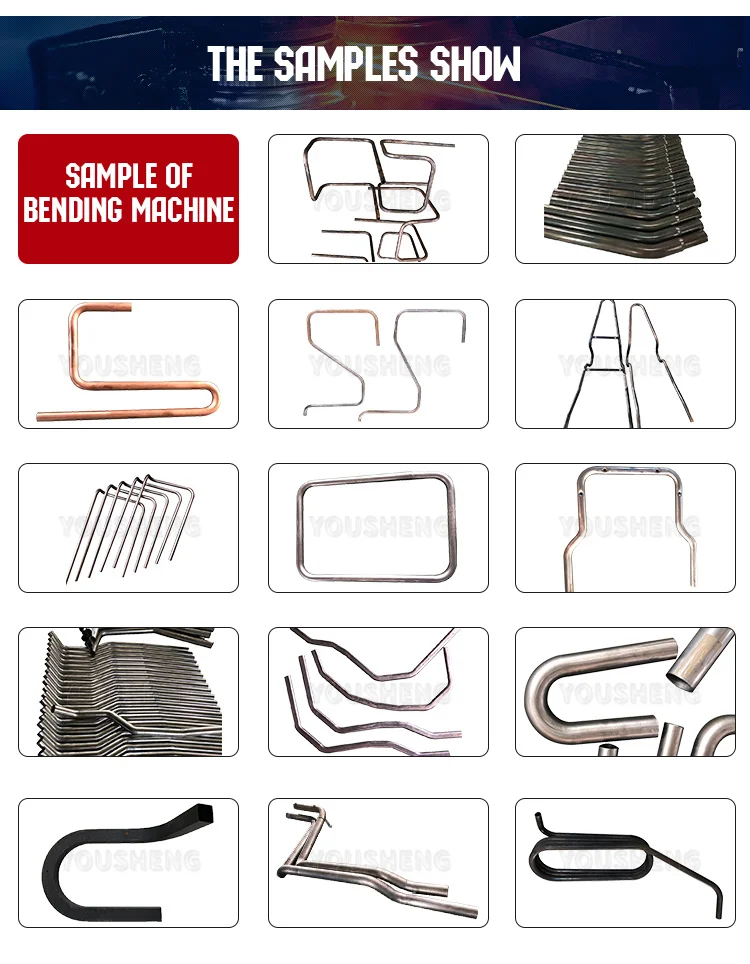

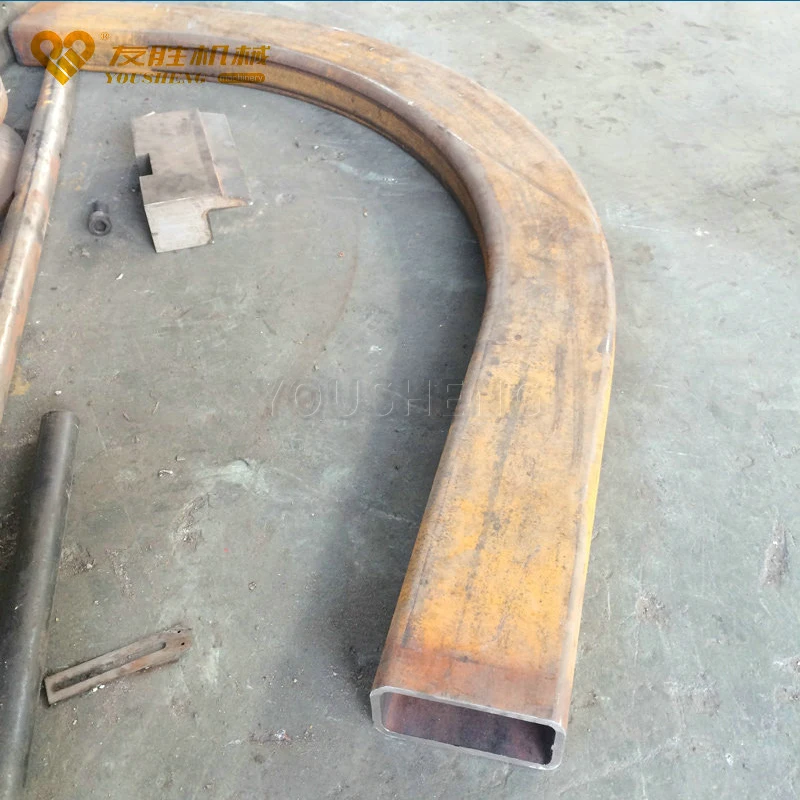

2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc.

3. Can bend 0-185degree angles, different angles can be bent in one pipe.

4.Controlled through Micro controller and possesses manual, semi-automatic functions.

5. Easy Operator Interface and Easy Data Input by English.

6. About 100 programs can be input, then show on controller , easy to learn and understand.

7.Possess automatic error detection function and limit protecting function, removing or changing faults easily and quickly.

8 . Cooling system with large capacity is provided to control working temperature effectively.

9. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

10. The movable foot switch has three functions, automatic start up, emergency stop and emergency stop continuity, which ensure high safety.



Application industry

automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares





Specification/Model	DW-38NC	DW-50NC	DW-63NC	DW-75NC	DW-89NC	DW-114NC
Max bending diameter of tube	38mm	50.0mm	63.0mm	75.0mm	89.0mm	114.0mm
Max bending wall thickness of tube	2.0mm	2.5mm	3.0mm	3.5mm	4.0mm	6.0mm
Max bending radius	260mm	300mm	300mm	400mm	400mm	500mm
Min bending radius	1.5D	1.5D	1.5D	1.5D	1.5D	1.5D
Max bending angle	185°	185°	185°	185°	185°	185°
Max feeding length	2000mm	2200mm	2600mm	3300mm	3800mm	4500mm
Bending method	Hydraulic bending	Hydraulic bending	Hydraulic bending	Hydraulic bending	Hydraulic bending	Hydraulic bending
Bending speed	Max 85°/s	Max 85°/s	Max 80°/s	Max 70°/s	Max 45°/s	Max 30°/s
Bending accuracy	±0.15°	±0.15°	±0.15°	±0.15°	±0.15°	±0.15°
Motor power	4kw	5.5kw	5.5kw	11kw	11kw	22kw
Size(approximately)	2700*820 *1100mm	3000*850 *1100mm	3450*900 *1300mm	4350*900 *1300mm	4400*1100 *1300mm	6800*1750 *1500mm
Weight(approximately)	750kg	900kg	1300kg	2200kg	3200kg	7200kg



















1. Q: Are you trading company or manufecturer ?
     A: We are manufecture.

2. Q: How long is your delivery time?
     A: The standard model is 7-15 days, the customized model is 30-60days.

3. Q: How to choose the model of machines?
     A: -Max. outside diameter
         -Wall thickness range:
         -Bending radius (CLR)(just for pipe bending machine):
         -The pipe material:
         -The drawings if possible(the best for recommend right model):

4. Q: Do you provide samples ?is it free or extra ?
     A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

5. Q: What is your term of payment ?
     A:30% T/T in advance, the balance pay before shipment.

6. Q: How is shipping?
     A: Shipping by sea, by air, by Express (DHL/UPS/FEDEX/EMS/TNT).

7. Q: How does your factory do regarding quality control?
     A: We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.

8. Q: How is the training and after sales service?
     A: Training: Machine should be placed in position and main power connected prior to setup and training at customer site. Customer should pay for travel plus related expenses (may include hotel, airfare, and rental car etc.) We also welcome customer send people here for training how to operate machines.Training CD or Manuals are available.
          After sale service: this shall be done by the seller. Seller will provide all kinds of technical support to the buyer by telephone, fax or email free of charge. After one-year guarantee period, we assure you life-long maintenance.

9. Q: Where is your factory located? How can I visit there?
     A: Our factory is located in Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or PVG airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
