plastic food storage containers /plastic disposable cup making machine price
- Category: Plastic Product Making Machinery >>>
- Supplier: Zhejiang Fuxinlong Machinery Co. Ltd.
Share on (62253070342):
Product Overview
Description
Product Description
Usage
This series mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make flower pots, disposable bowls
lids, plates, trays and ect
I.Main Technical Parameter
Model | FJL-SZ-680 I | FJL-SZ-680 II | FJL-SZ-750 I | FJL-SZ-750 II | |
Max. Forming Area/ | 650×320mm | 750×420mm | |||
Max. No-Load Speed | 35 Cycles/min | ||||
Running Pattern | Hydraulic | ||||
Oil Pump Motor Power | 5.5KW(Double Pump) | 15KW(Double Pump) | |||
Cutting Pattern | In mould automatic | ||||
Feeding Pattern | Motor with Encode/ | Servomotor
| Servomotor
| Servomotor
| |
Stretching Pattern | Air Cylinder
| Servomotor
| Air Cylinder
| Servomotor
| |
Sheet Materia | PP.PS.HIPS.PET.PVC | ||||
Sheet Thickness Range | 0.2-2mm | ||||
Max. forming Depth, Sample Height | 120mm | 150mm | |||
Max. Sheet Roll Dia | 800mm | ||||
Heater arrangement | (120Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
| (152Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
| |||
Temperature Controller & Thermocouple | PID K-Type | ||||
Electrical Consumption | 40KW/h | 45KW/h | 50KW/h | 55KW/h | |
Overall Power | 100KW | 110KW | 120KW | 130KW | |
Air Consumption | 1.5-1.8m3/min, 0.6-0.8 Mpa | 2-2.5m3/min, 0.6-0.8 Mpa | |||
Dimension | L3650×W1950×H2500mm | L4000×W1730×H2600mm | |||
Weight(T) | 4.4T | 4.5T | 4.8T | 5T | |
Power Supply | 380V/50HZ Three phase four wires | ||||

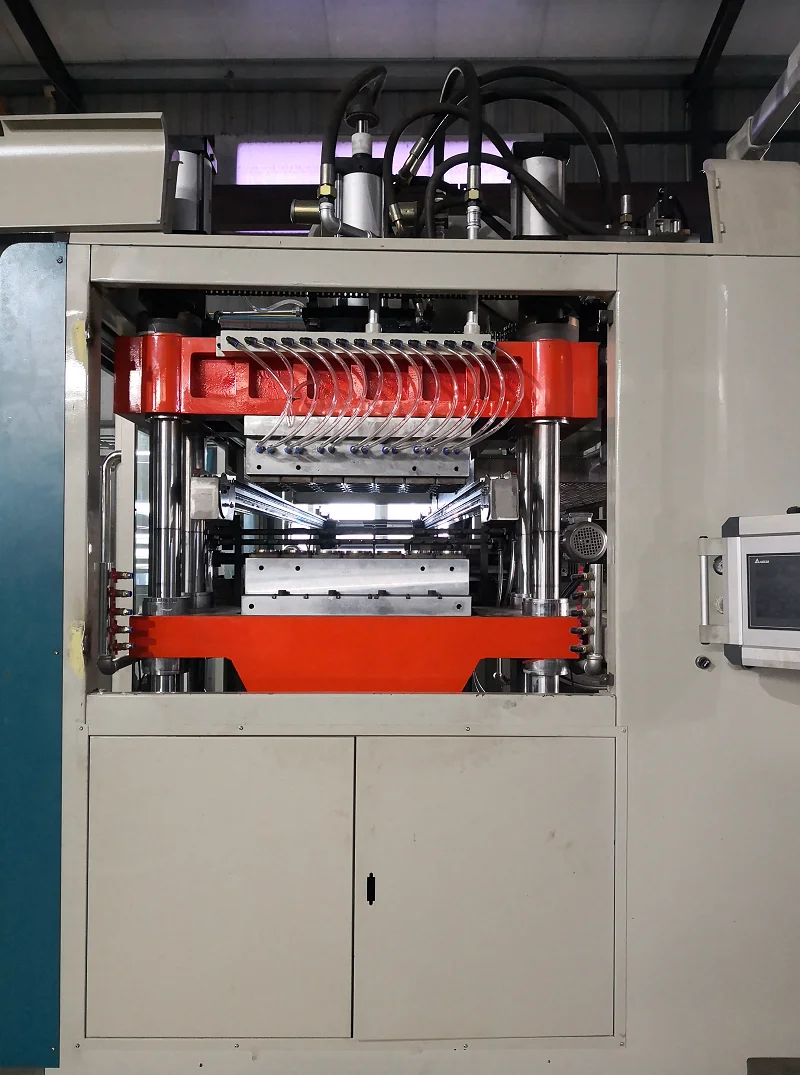

II.Major construction features
The sheet feeding pin chain is controlled by motor with encode.
The stretching of plug inside of up mould is controlled by air cylinder.
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.

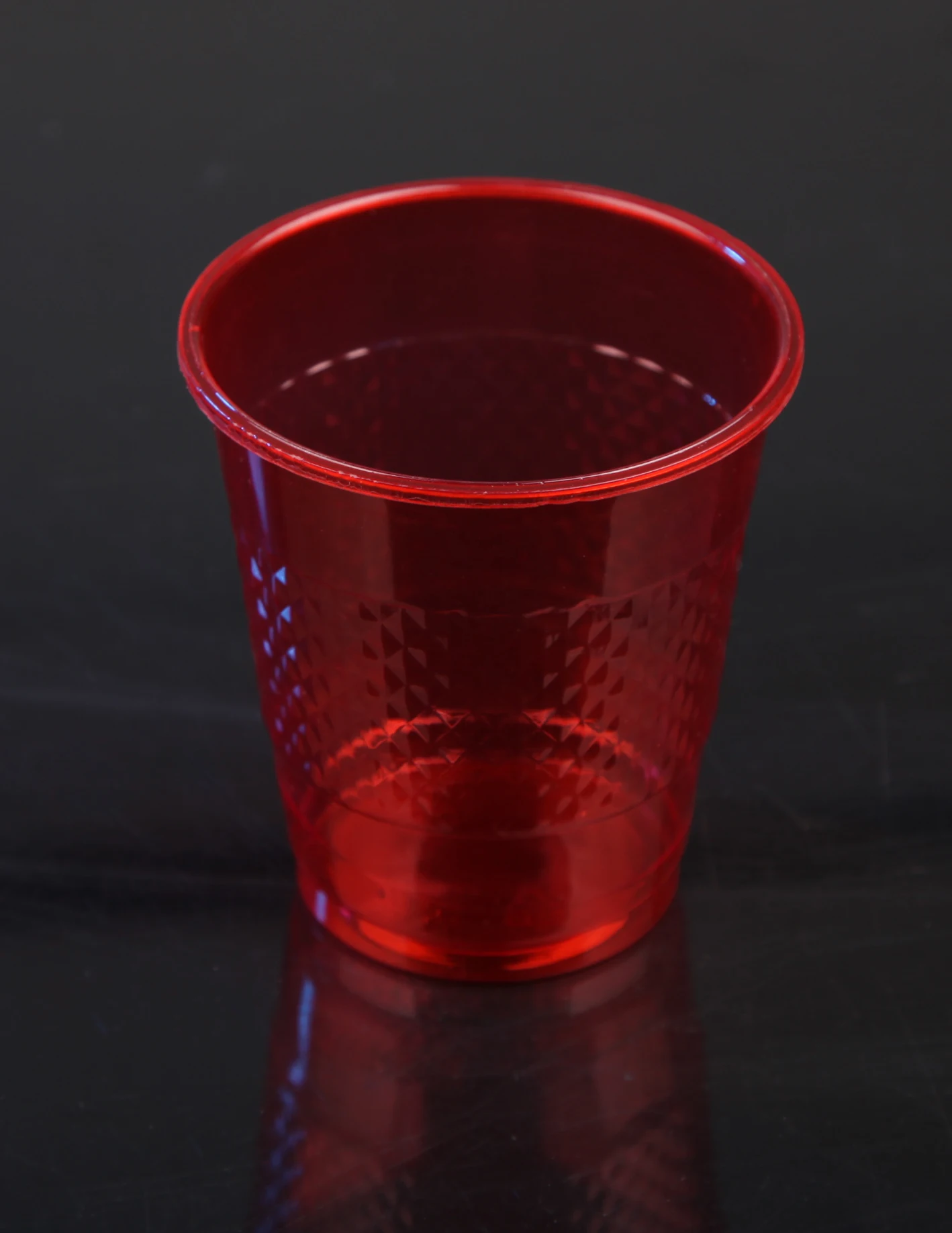

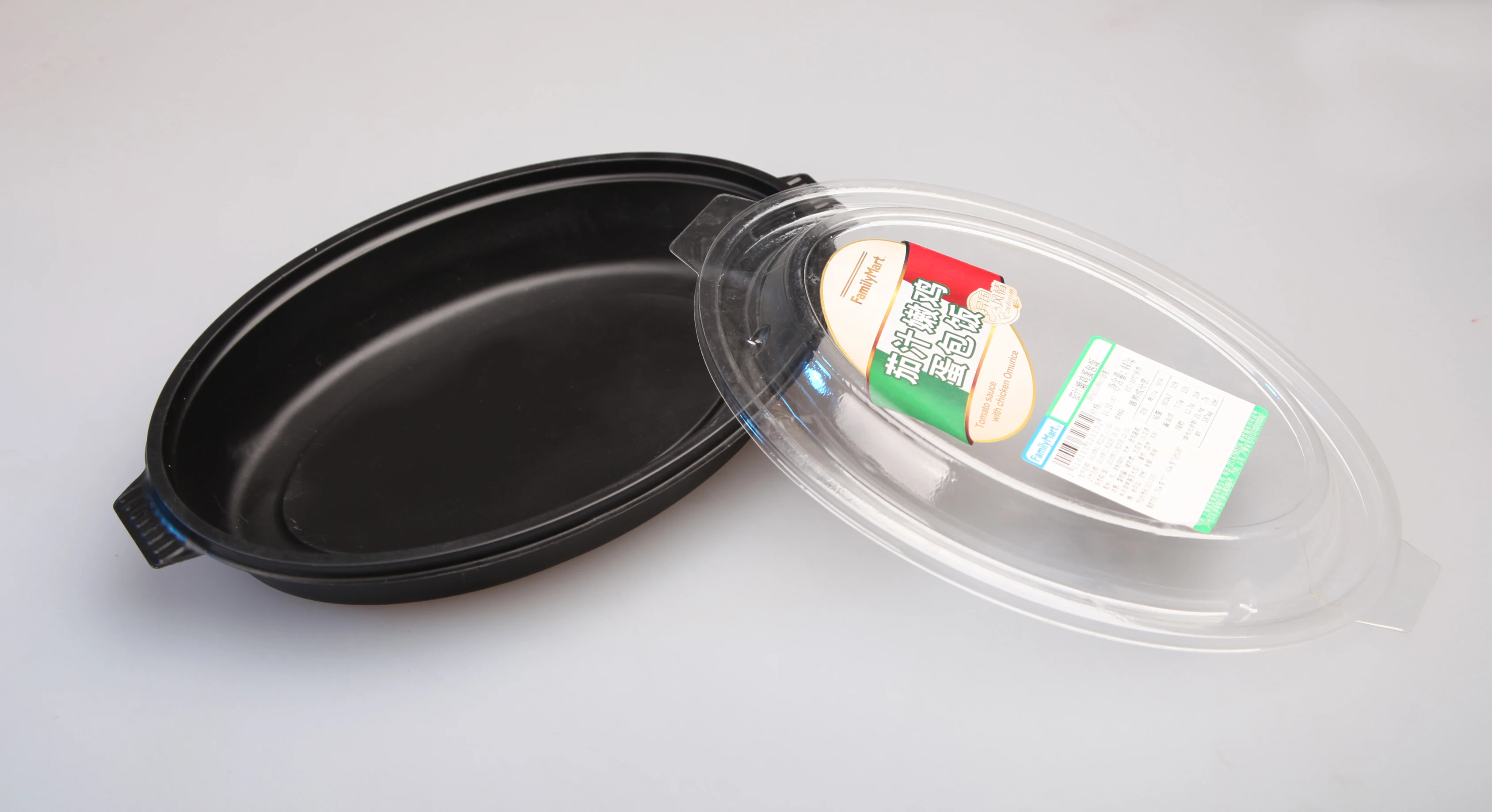

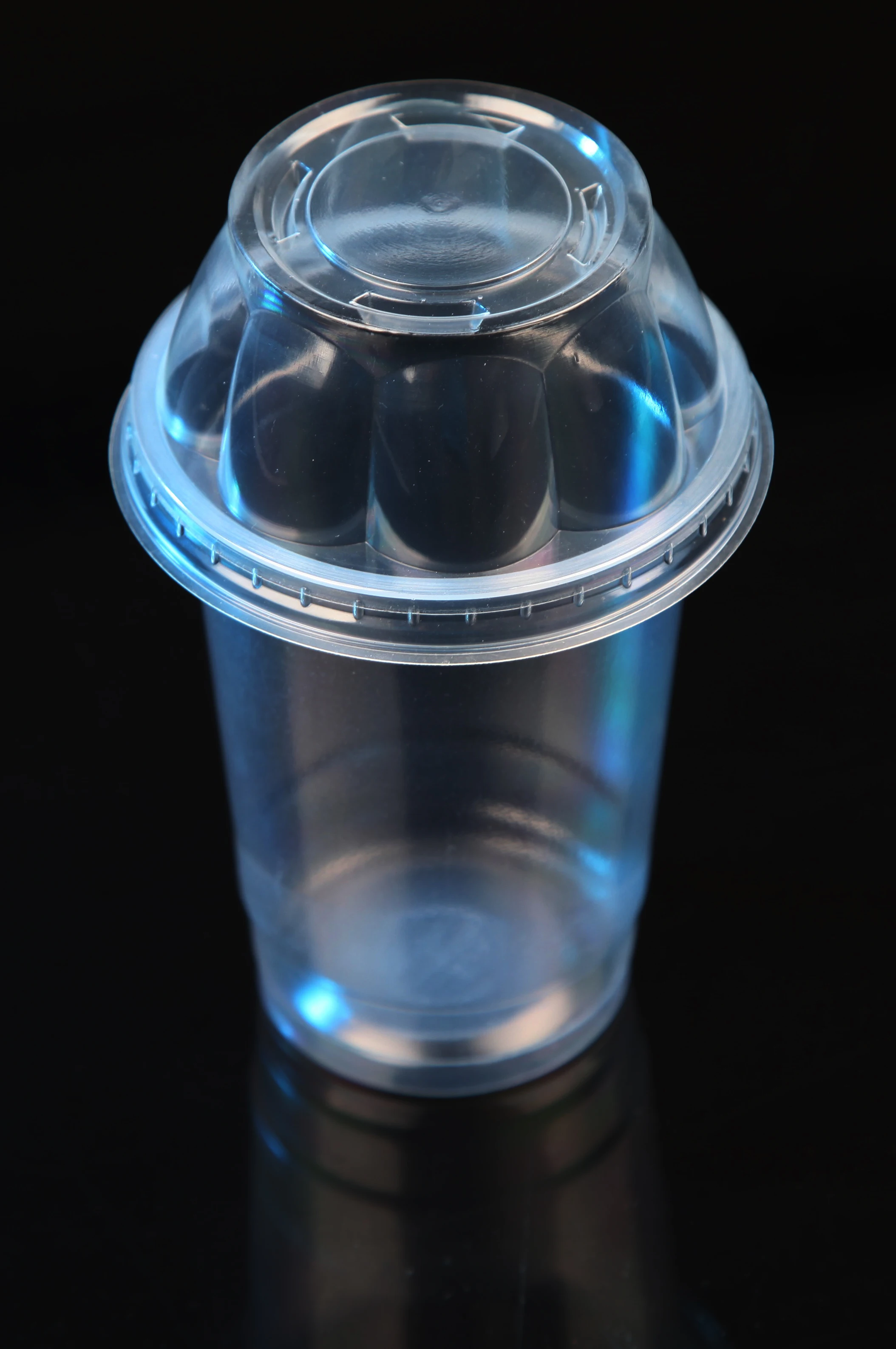

III. Products sample
Packaging & Shipping
WOODEN PACKING
Our Services
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.
Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,for example , Sweden, Romania,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
Company Information
Certification
Our advantage
Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
